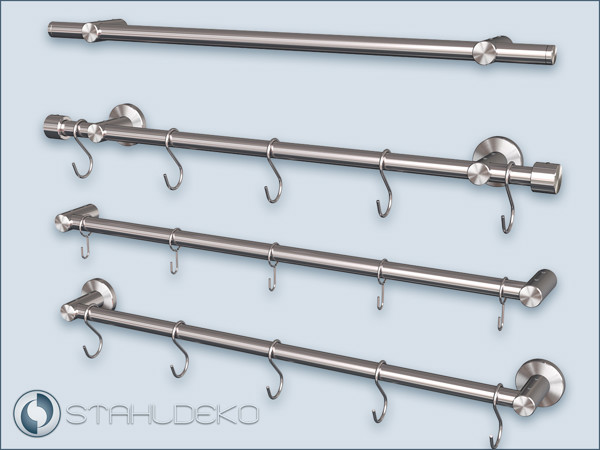

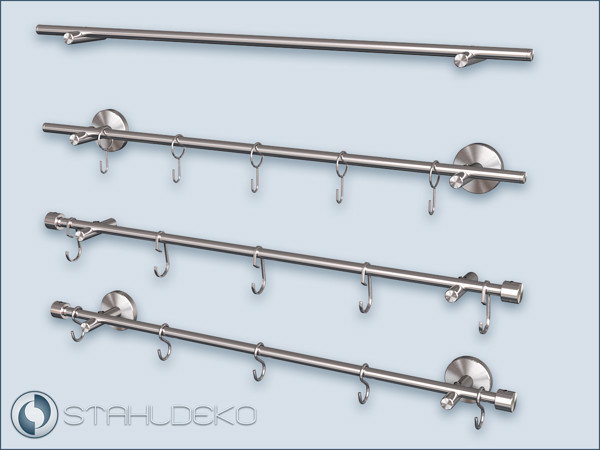

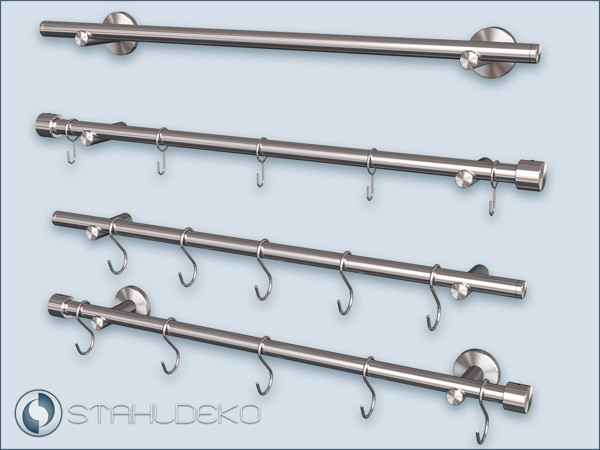

Assemble your own railing made of V2A stainless steel: system post 10
Kitchen accessories made of stainless steel by Stahldeko: Classic railing for the kitchen that combines simple design with functionality,
Pfosten-10 system with the tube Ø 10mm completely in stainless steel with a satin finish. Consists of stainless steel tube Ø 10mm, Post 10
supports in a side-closed and side-open design, optionally with or without a base plate. From a length of 100 cm, the intermediate
supports are supplied open at the side. If you choose the version with open external supports, you can use the cylinder end pieces or the
impact caps to close the pipe ends. Of course, you can also select the tube without end pieces, for example to mount the joints or the
wall brackets on the tube ends. The material is solid stainless steel DIN WNR 1.4301 with a satin finish. For hanging kitchen accessories,
we offer railing hooks made of nickel-plated steel, S-hooks made of stainless steel or stainless steel hooks made of flat steel. Including
fastening material for simple 1-point assembly. With the help of additional railing brackets, articulated connectors and wall brackets, it
can be extended to form an L-shaped or U-shaped railing. *Custom-made products on request, except
straight railing rods, we also bend all our railings into any other shape, made absolutely according to your needs and space situation.
Just send us a sketch and you will receive an offer for your individual kitchen railing.

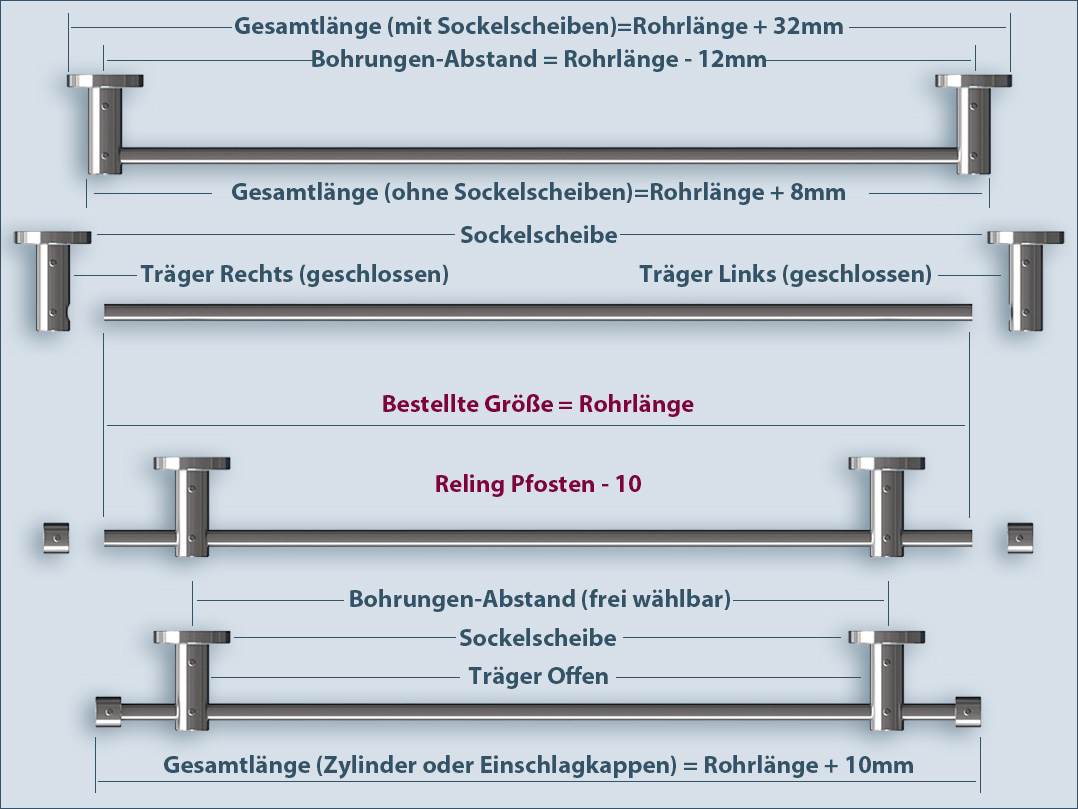

Kitchen rail post 10: calculate and order the correct length
Ordered size is the pure tube length. The total length is usually greater, in the version with closed outer brackets, the allowance for
the brackets and possibly the base washers are added, in the version with open outer brackets, the allowance for end pieces is added to
the tube length. Please refer to the drawing for the dimensions *If desired, please enter the number in cm in the field
"shorten by:". then we will cut the tube to the right length for you. For example: If you need a tube of exactly 177cm,
then under "Length" please select - 180cm, and in the field "Shorten by:" enter the number "3
cm". Sections are not sent. * Parcel service shipping: The tubes up to 260cm are
always delivered in one piece. The tube is divided in the middle from a length of 260cm. A connection adapter is always included. A
support is to be attached to the connection point. * Freight forwarding: The tubes longer
than 260cm and up to 400cm are delivered in one piece. *Rail longer than 400cm (also in one piece) - price

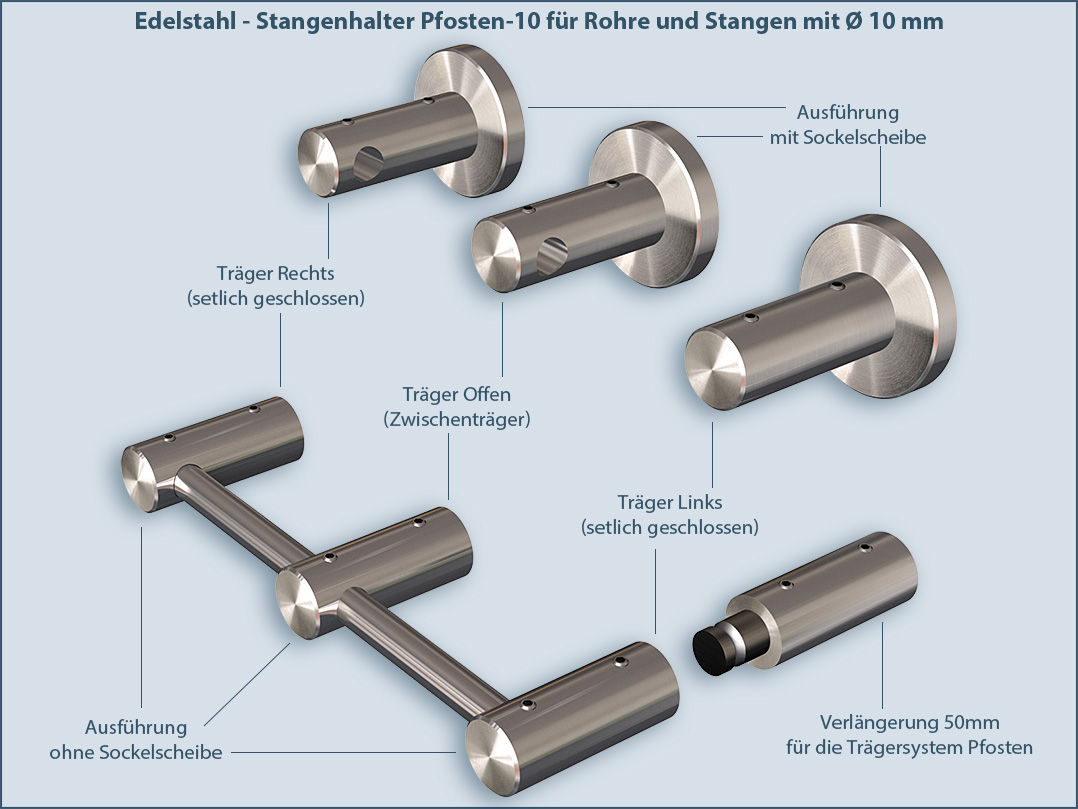

Support post 10 made of stainless steel V2A for tubes and rods with Ø10 mm.
Rod carrier made of V2A
stainless steel for all rods and tubes with Ø 10mm. Available as an open or side-closed (right or left) carrier. Side-closed version is
used as a support and end piece at the same time. Fastening with bolts and spax screws, boreholes and screws are covered with base washers
(optional). The rod is pushed in from the side and secured with a grub screw.

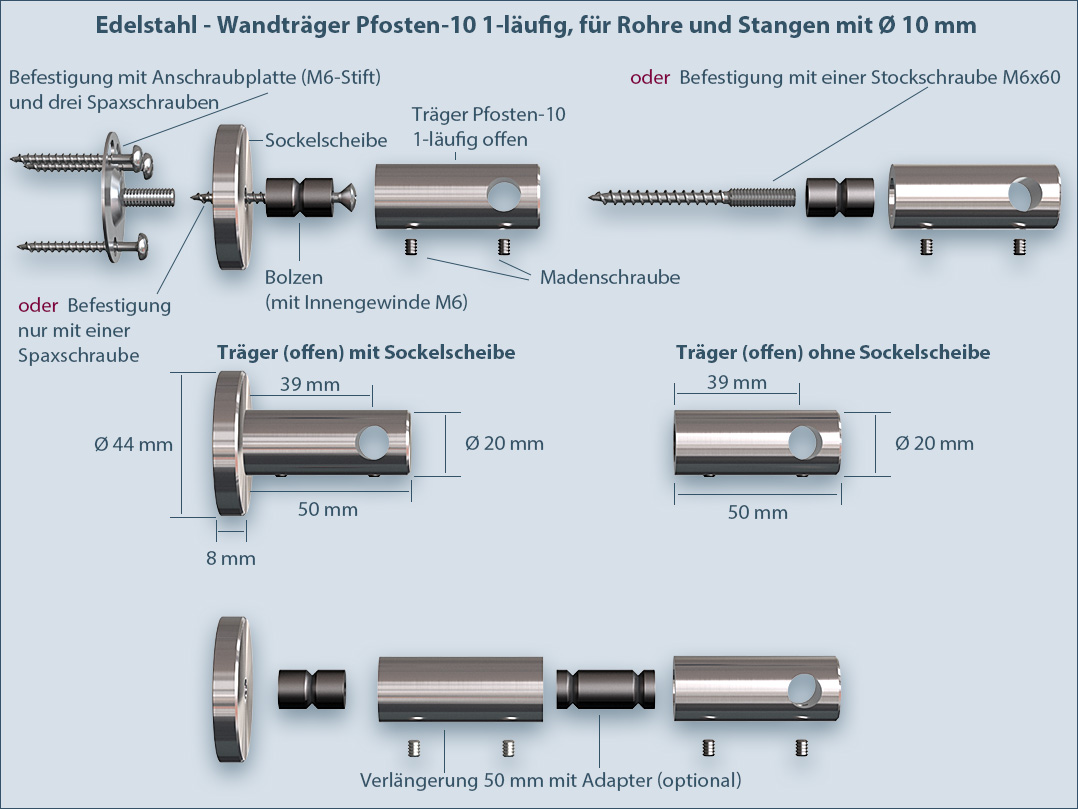

Post-10 railing bracket: assembly and fastening instructions for various versions.
With this railing holder system you can choose the
following versions: railing carriers closed at the side (left and right) and railing carriers open at the side. Closed straps hold the
railing tube and at the same time close the tube ends. If you decide to use the open version of the outer beams, you should close the pipe
ends with end pieces, we offer knock-in caps and end pieces cylinders for this, of course you can also leave the pipe ends open in order
to use a jointed corner connector or a wall bearing (separately in to find single parts 10mm). You can mount these railing brackets
horizontally (wall or front edge of worktop) or vertically (cupboard, shelf bottom or top edge of worktop). First, attach the stud
(with or without a base washer) to the wall, countertop, or cabinet.As standard, we supply a spax screw with
the dowel as fastening material.The bolt has a continuous M6 thread, so an alternative attachment with a hanger bolt,
metric screw or mounting plate is possible. Then slide the railing brackets (along with the tube) onto the bolts and tighten the
bracket grub screws (not too tight). Of course it is also possible to extend the bracket (optional). We also offer a 50mm extension
made of stainless steel for the post support system. You connect the extension and the carrier with an adapter.

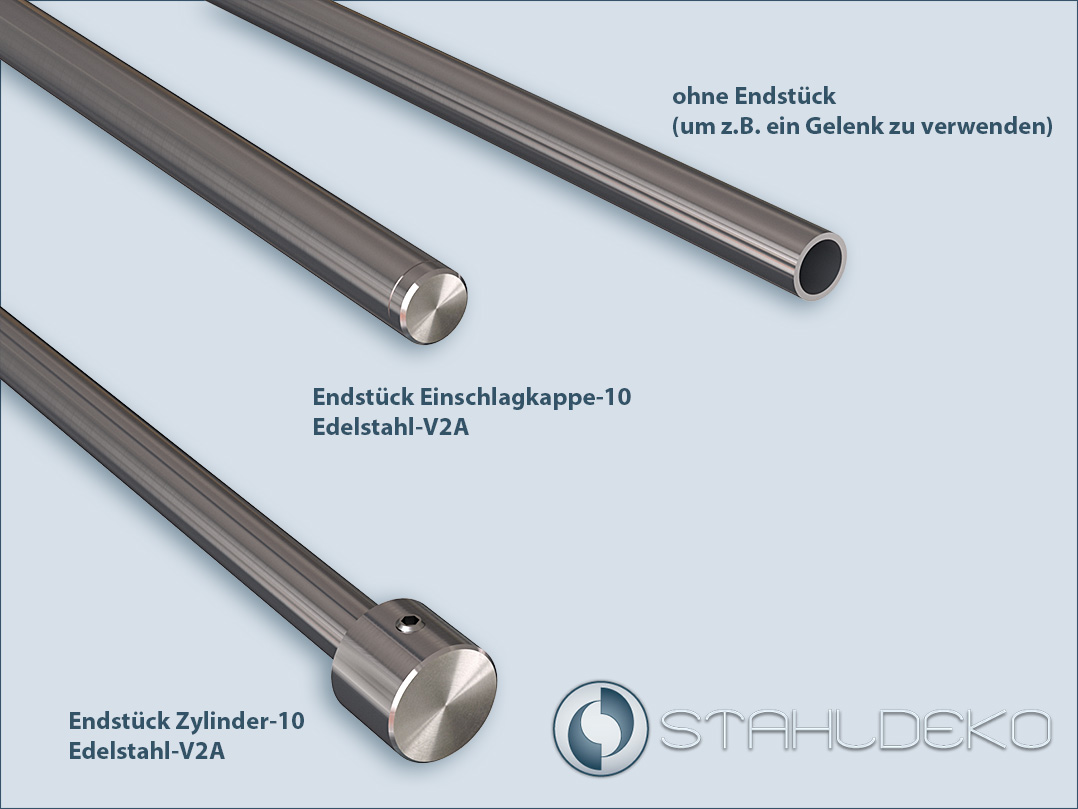

Order tube end pieces for the railing post-10.
If you choose the outer railing
carrier in open design, you must close the tube ends nW. We offer impact caps or cylinder end pieces for our railings. Simply select the
desired end piece in the corresponding field. Of course, you can also order the version without end pieces, for example to use a pipe
joint or a wall bracket at this point.

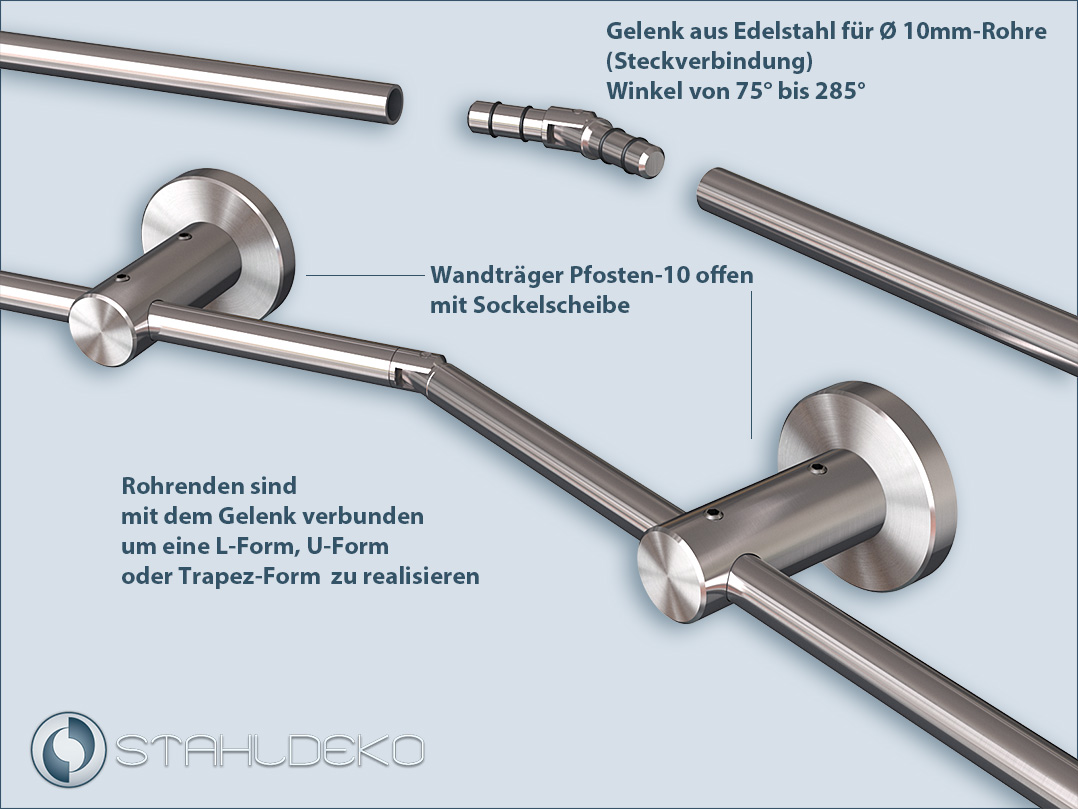

Connect tube ends with joints to create an L-shape or U-shape railing.
If you need an L-shape or U-shape or
trapezoidal-shape railing for your kitchen area, then you can use our corner joint connectors for the 10mm diameter round tubes. These
joints are inserted into the pipe ends instead of the end pieces, so you can easily achieve any angle from 75° to 285°. To assemble an
L-shaped railing, order: 1 railing with a tube open on one side and 1 piece end piece + 1 piece railing with a tube open on one side, 1
piece end piece and with 1 piece joint To configure a U-shape or a 3-sided trapezoid railing, order: 2 pcs. railing with a tube open on
one side and 1 pc. end piece + 1 pc. railing with a tube open on both sides without end pieces but with 2 pcs. joints Do you need help
putting it together? Write to us or call us.

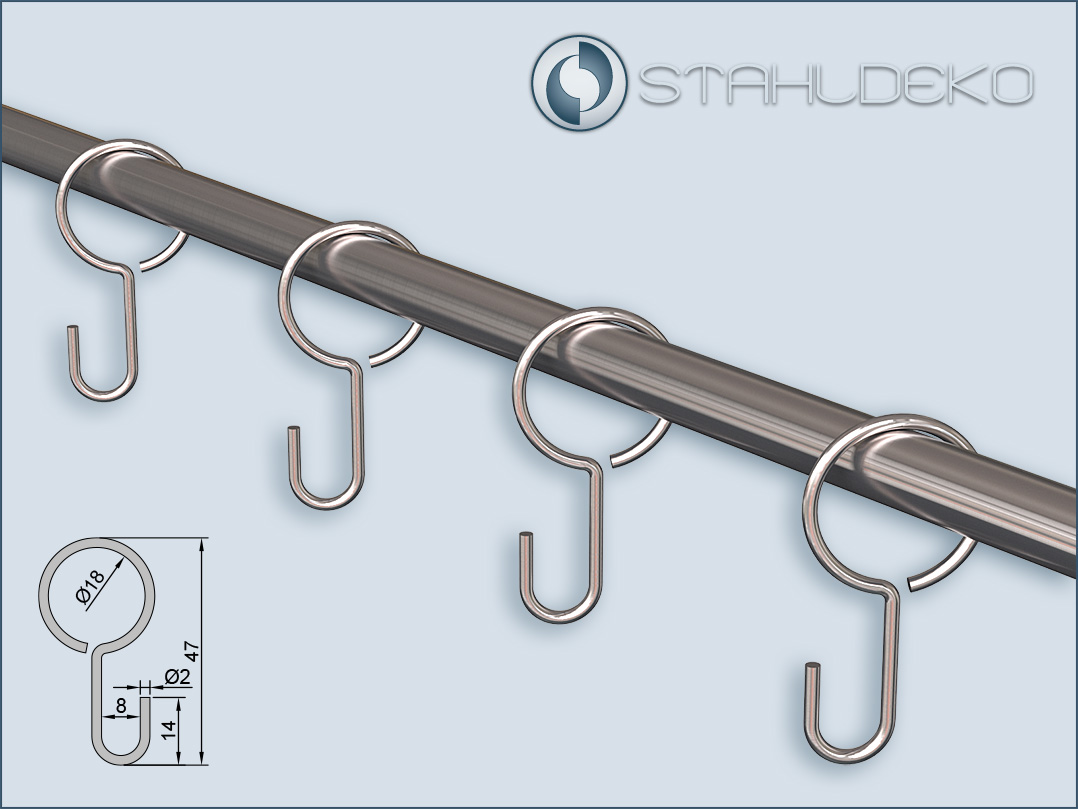

Order hook made of steel, nickel-plated, for 10mm railing.
You can use our nickel-plated steel hooks to attach kitchen
utensils to the Rail Post-10. Please refer to the drawing for the dimensions.

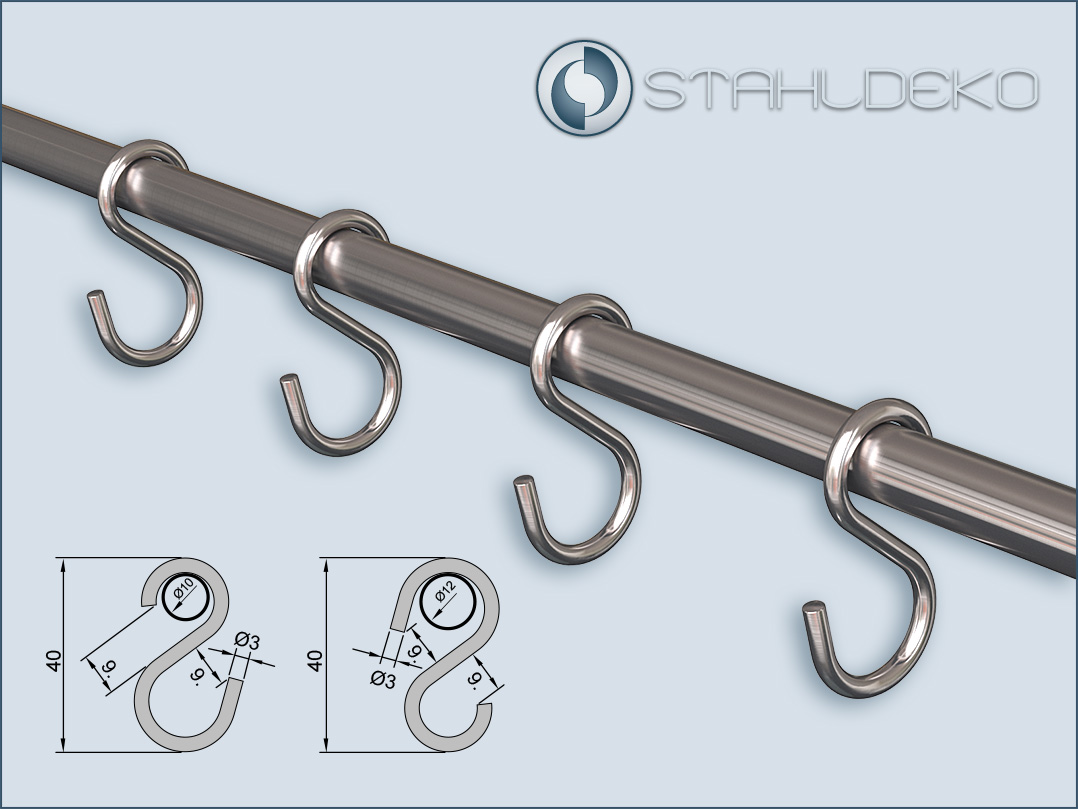

Hook S-shape for railings with 10mm diameter, material stainless steel.
Hook S-shape made of V2A
stainless steel, very stable and robust, bent from 3mm stainless steel wire, ends are punched. For indoor and outdoor use as a railing
hook. Easy attachment and detachment to 10mm tube by "clamping system with 9mm opening" Please refer to the drawing
for the dimensions.

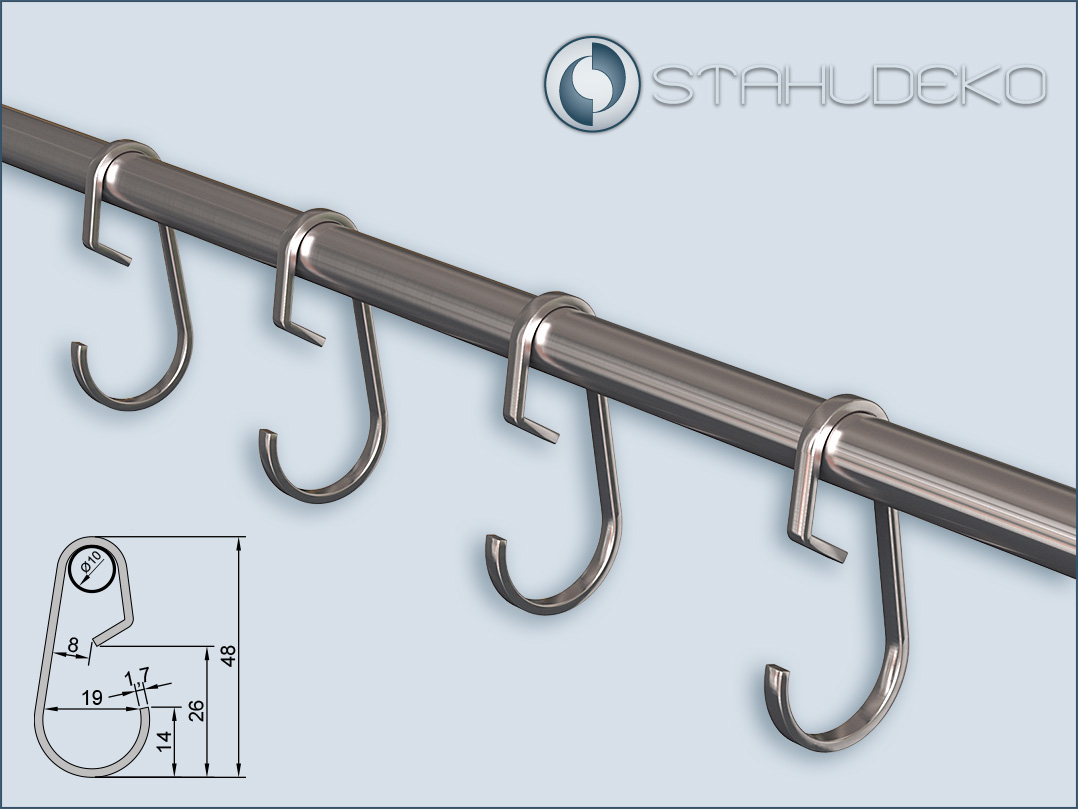

Stainless steel hook made of flat steel for railing with 10mm tube diameter
Absolutely stable hooks made of V2A
stainless steel, bent from 1.7 x 3.2mm flat steel, ends are punched. For tubes and rods with Ø 10 mm. Also suitable for outdoor use. For
use in the kitchen area as a railing hook. Please refer to the drawing for the dimensions.
Product Information: Stainless Steel Ring Hook for 10mm Pipes
The V2A stainless steel ring hook, formed from 3mm stainless steel wire, is robust and known for its smooth operation. It is compatible
with pipes of various diameters, including 10 and 12mm versions. The closed design provides protection against theft, making the ring hook
a secure choice for commercial applications. Usable in a variety of settings, from indoor to outdoor areas. Please refer to the
illustration for exact measurements.

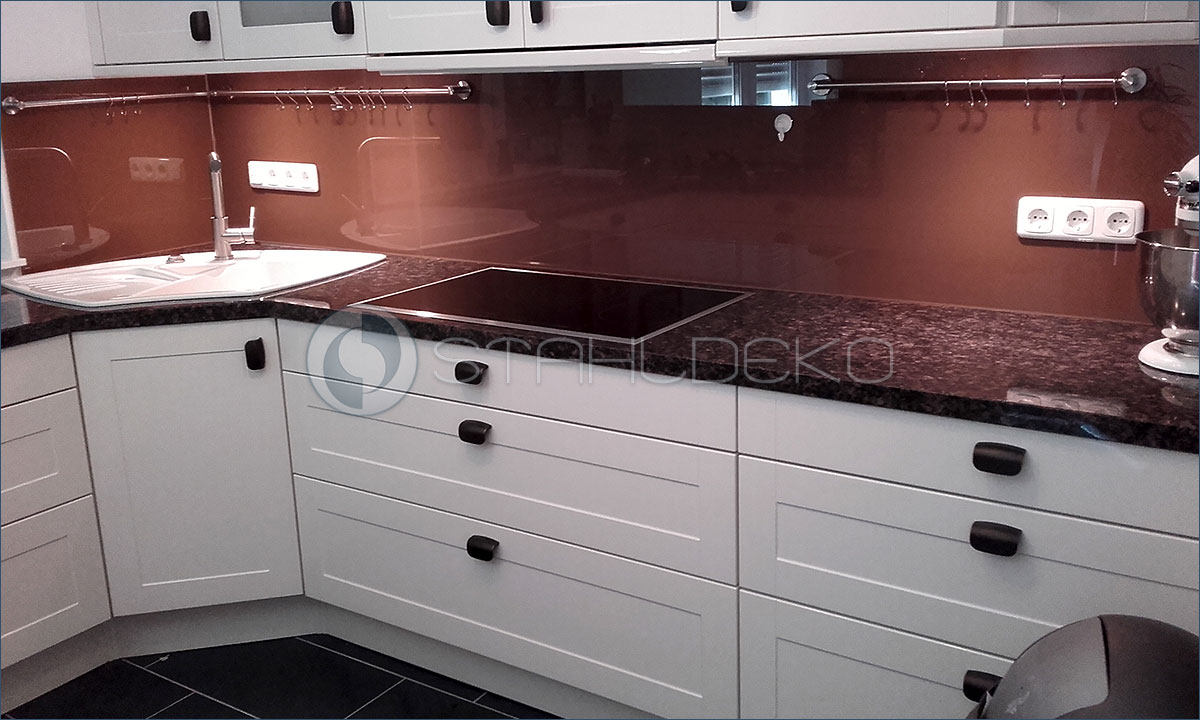

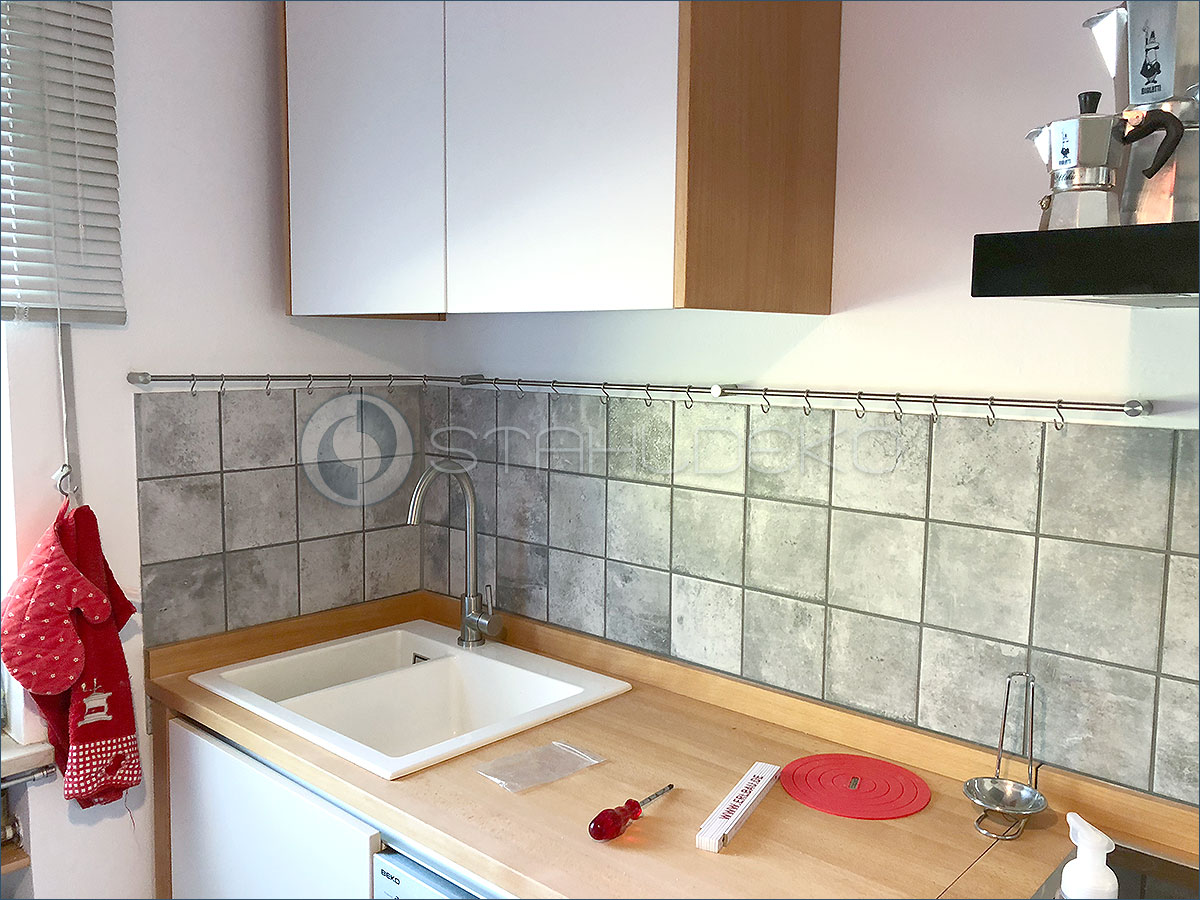

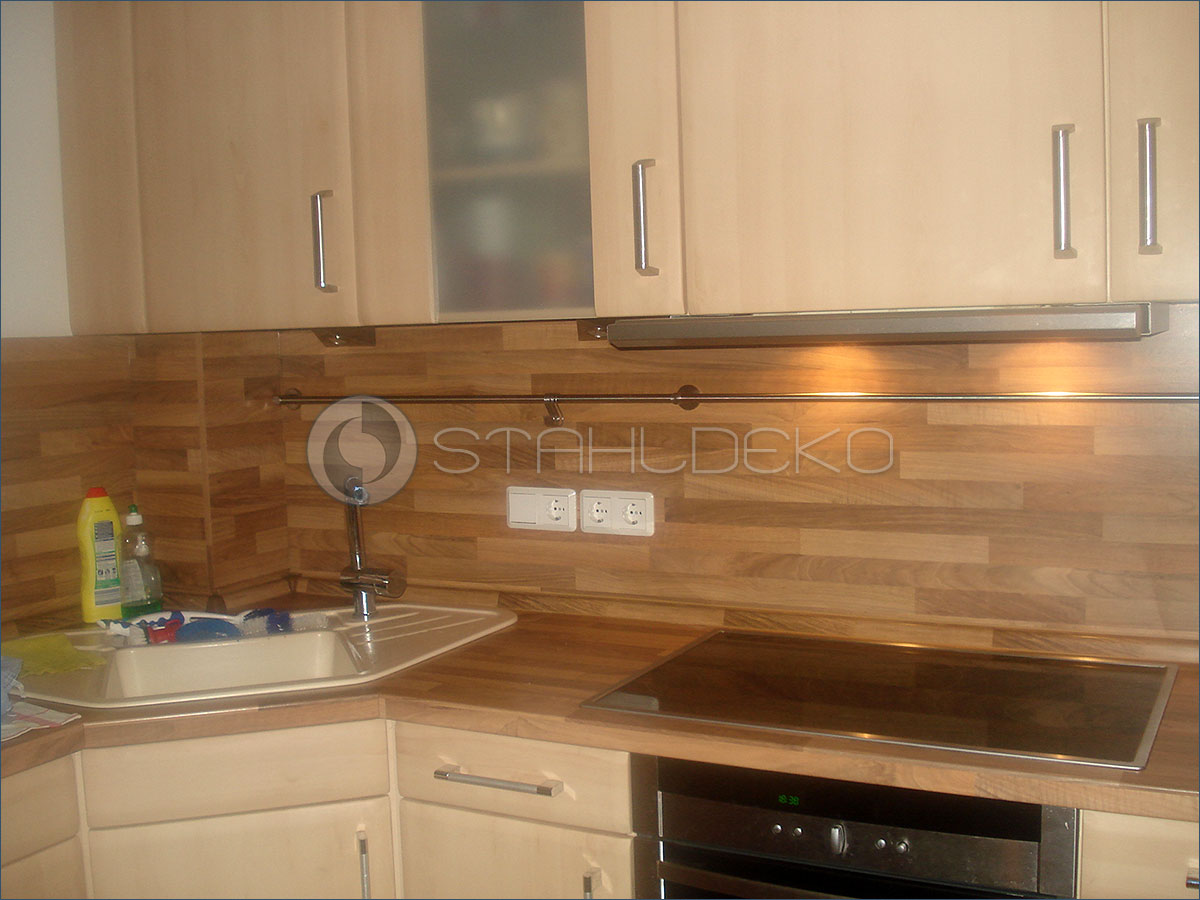

Examples of use and expansion: Railing system post 10, with stainless steel tube Ø 10mm

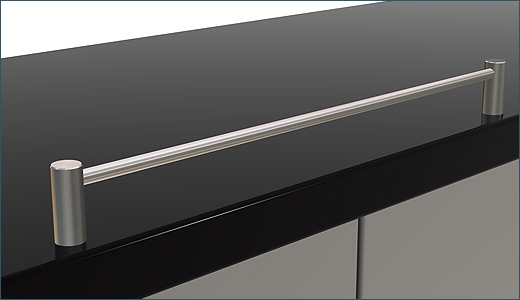

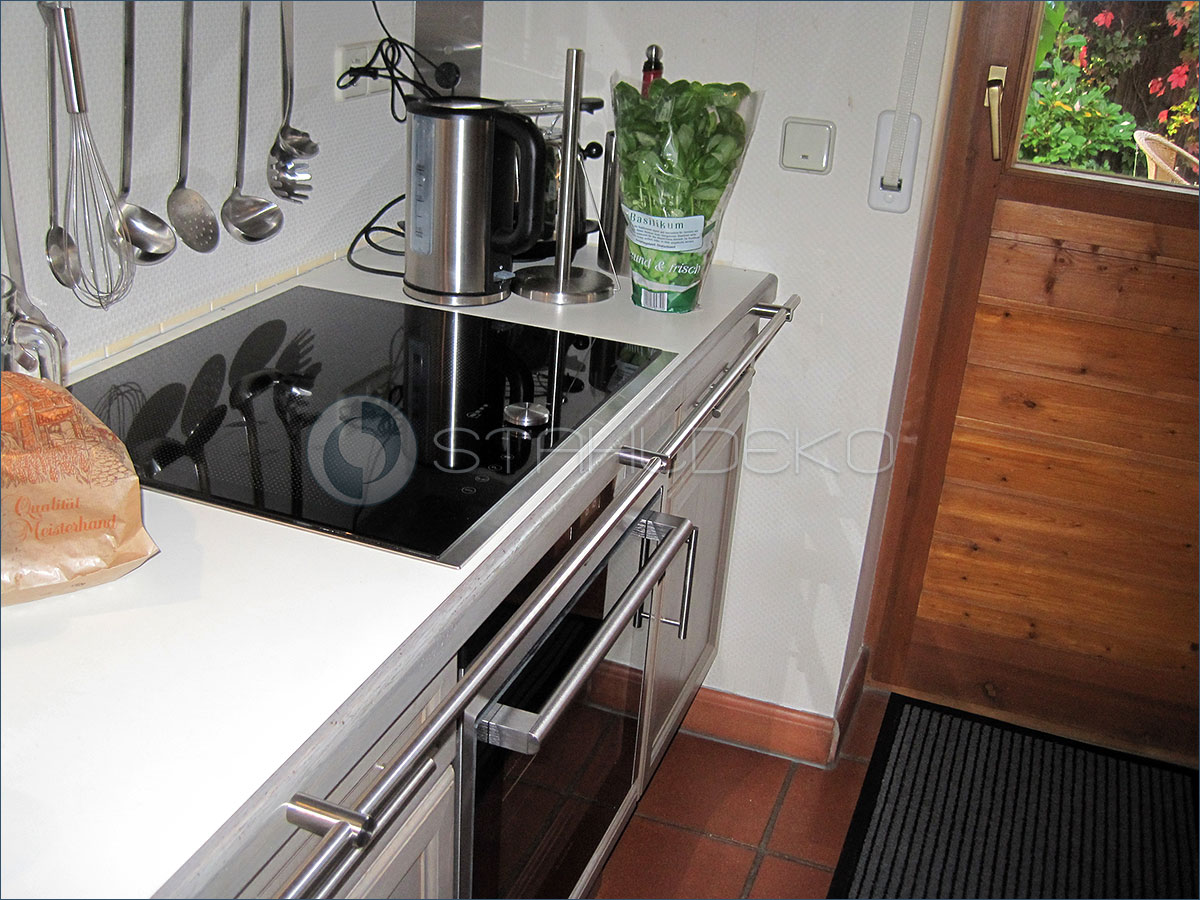

Railing post 10 also as a worktop or shelf
boundary. Another possible use in the kitchen as a hob safety device.

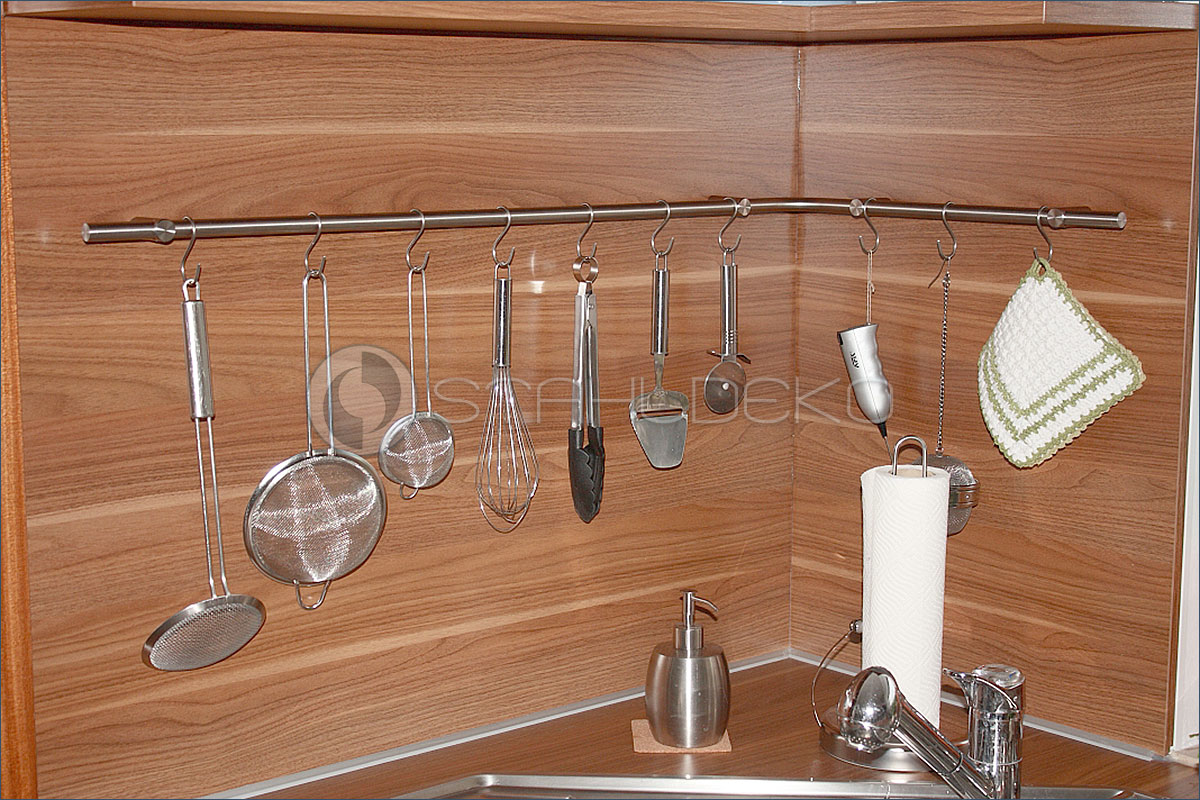

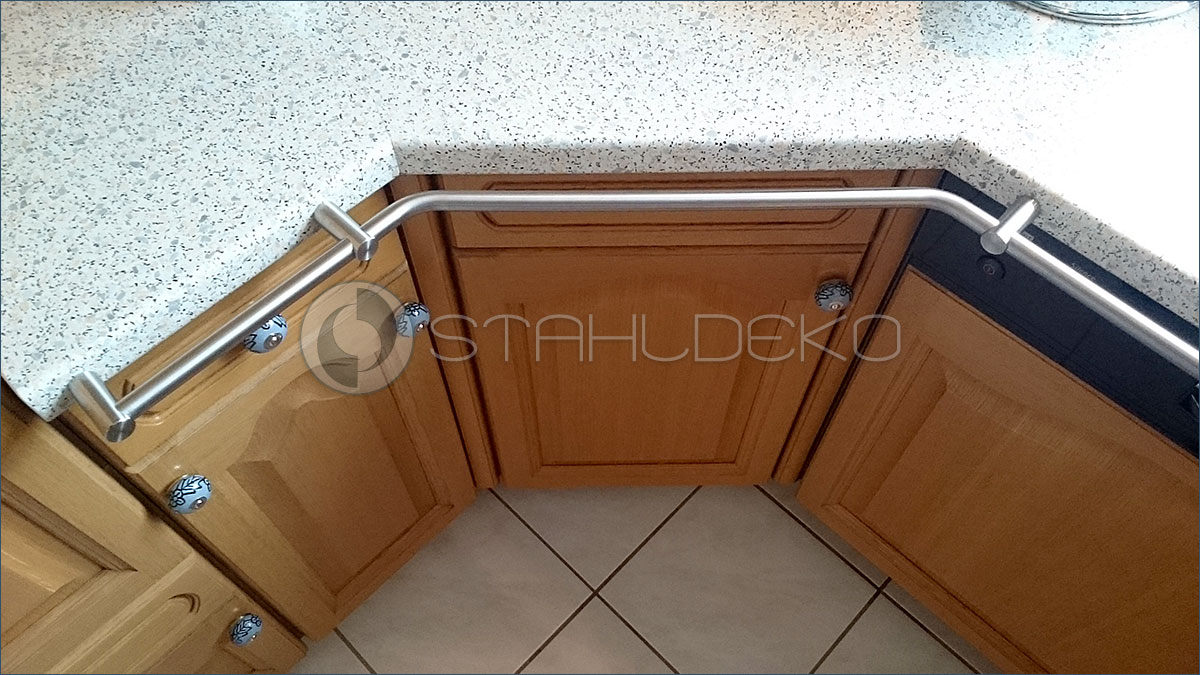

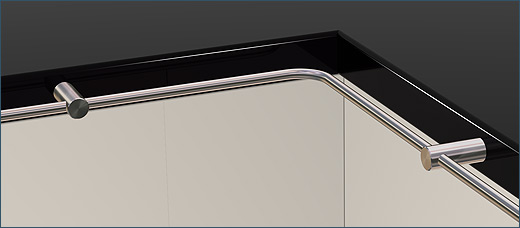

Railing post 10
mounted on the edge of the worktop and bent as an inside corner. Inside and outside corners are possible, and can also be realized with a
10mm joint. Perfect towel holder for the kitchen. Simply hang the towel or pot holder that you don't need at the moment on the
rail tube, they stay close at hand and are always at hand.

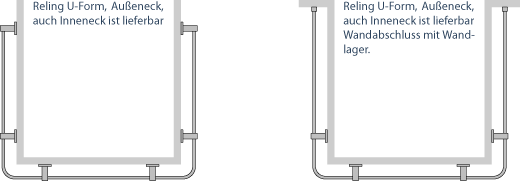

Railing system U-shape for outside corner post 10. End is
also possible with wall brackets. The inner corner solution is also implemented according to the same principle.

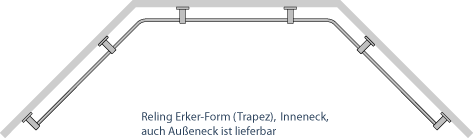

Bay window railing with inside corner
for kitchen and kitchen equipment, railing system in trapezoidal shape: we manufacture your railing for every wall angle or worktop angle,
whether outside corner or inside corner.
We will also be able to manufacture a suitable
railing system for curved walls in the kitchen or round worktops.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
very good optical uniformity
Grain size 2500
Shiny brushed appearance
for kitchen, for kitchen equipment and furnishings
Wall distance without base plate 39mm, with base plate 47mm, Base plate Ø48mm
Stainless steel bracket post 10 closed on the side
Bracket made of stainless steel V2A, post10 open on the side
for a railing length of 100cm, an intermediate bracket is supplied
