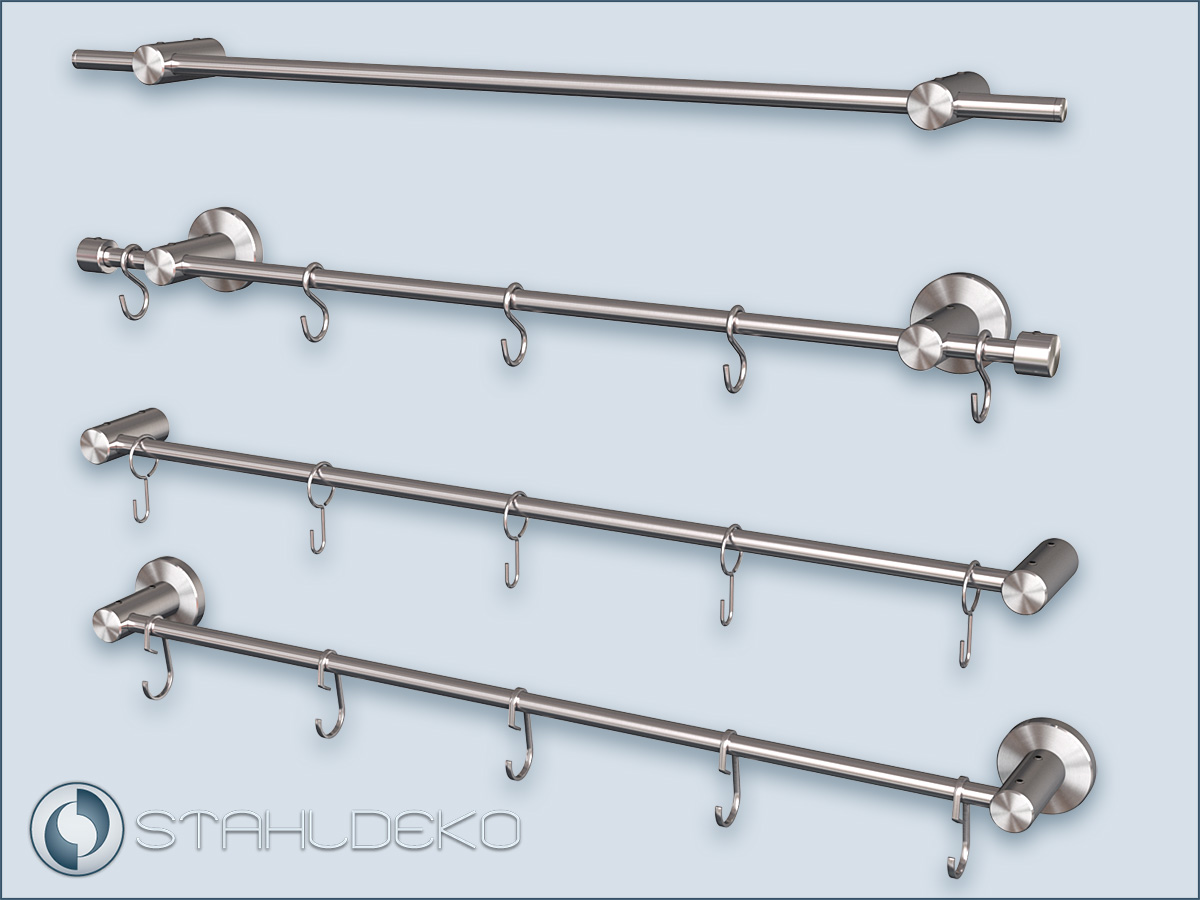

Combine railing made of V2A stainless steel yourself: railing system Sont 16

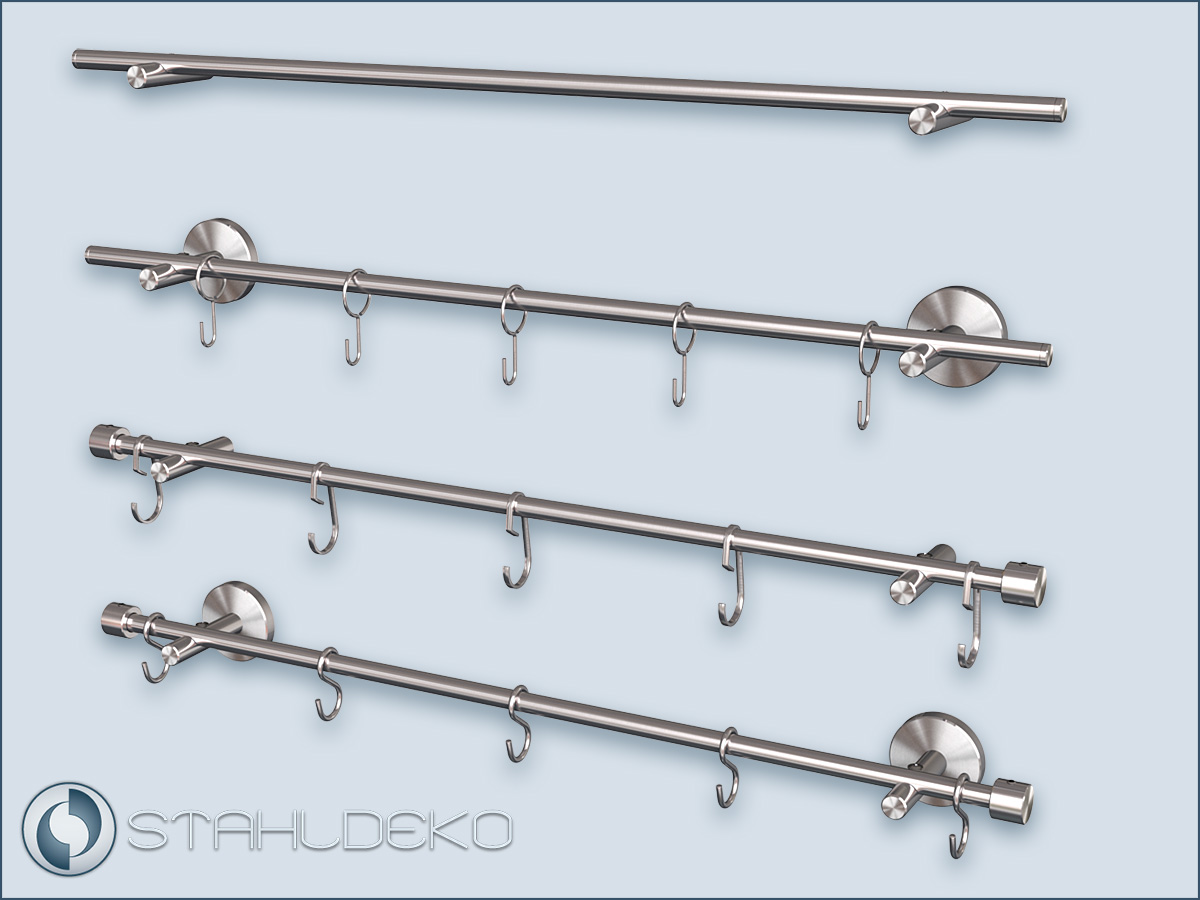

Kitchen rail that combines modern design with functionality, System Sont-16 with the tube Ø 16mm completely in stainless steel with a
satin finish. Consists of round tube Ø 16mm, open support beams Sont 16, optionally with or without base plate. The intermediate supports
are supplied from a length of 140 cm. To close the open pipe ends, you can use the cylinder end pieces or the impact caps. Of course, you
can also select the railing tube without end pieces, for example to mount the joints or the wall brackets on the tube ends. The material
is solid stainless steel DIN WNR 1.4301 with a satin finish. For hanging kitchen utensils, we offer hooks made of nickel-plated steel or
railing hooks as S-hooks made of stainless steel. Including fastening material for simple 1-point assembly. With the help of additional
brackets, joints and wall brackets, it can be expanded to form a U-shaped and L-shaped kitchen rail. *Custom-made products on request, apart from straight railings, we also bend all our railings into any other
shape, made absolutely according to your needs and space situation. Just send us a sketch and you will receive an offer for your
individual railing rod.

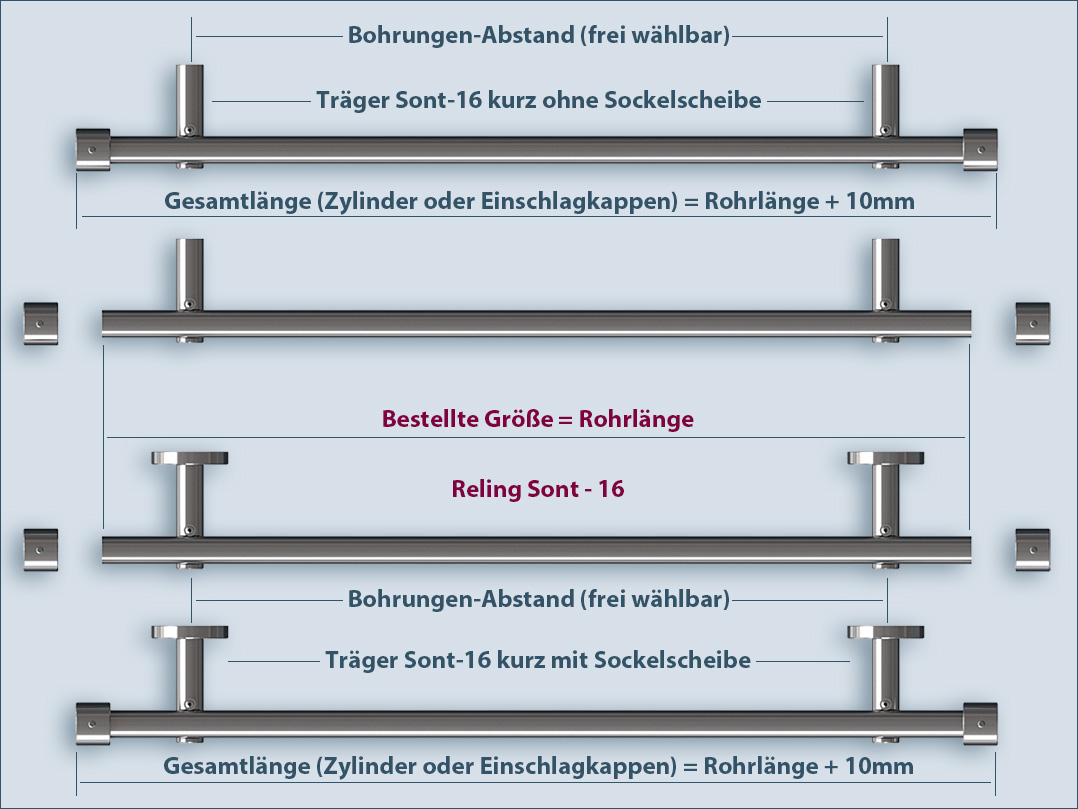

Kitchen hook rack Sont-16: measure and buy the right length
Ordered railing size is the pure tube length. Total length is usually larger, the allowance for the end pieces is added to the pipe
length. Please refer to the drawing for the dimensions *If desired, please enter the number in cm in the field "shorten
by:". then we will cut the tube to the right length for you. For example: If you need a tube of exactly 194cm, then under
"Length" please select - 200cm, and in the field "Shorten by:" enter the number "6
cm". Sections are not sent. * Parcel service shipping: The tubes up to 260cm are
always delivered in one piece. The tube is divided in the middle from a length of 260cm. A connection adapter is always included. A
holder is to be attached to the connection point. * Freight forwarding: The tubes longer
than 260cm and up to 400cm are delivered in one piece. *Rail longer than 400cm (also in one piece) - price

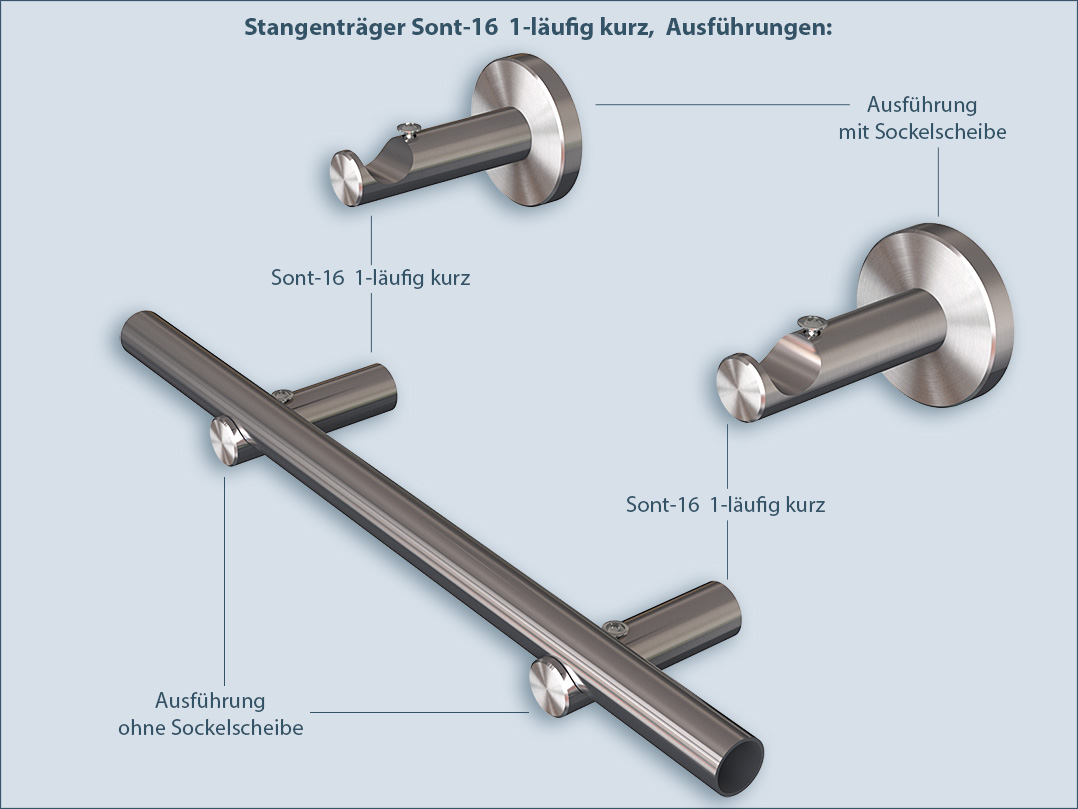

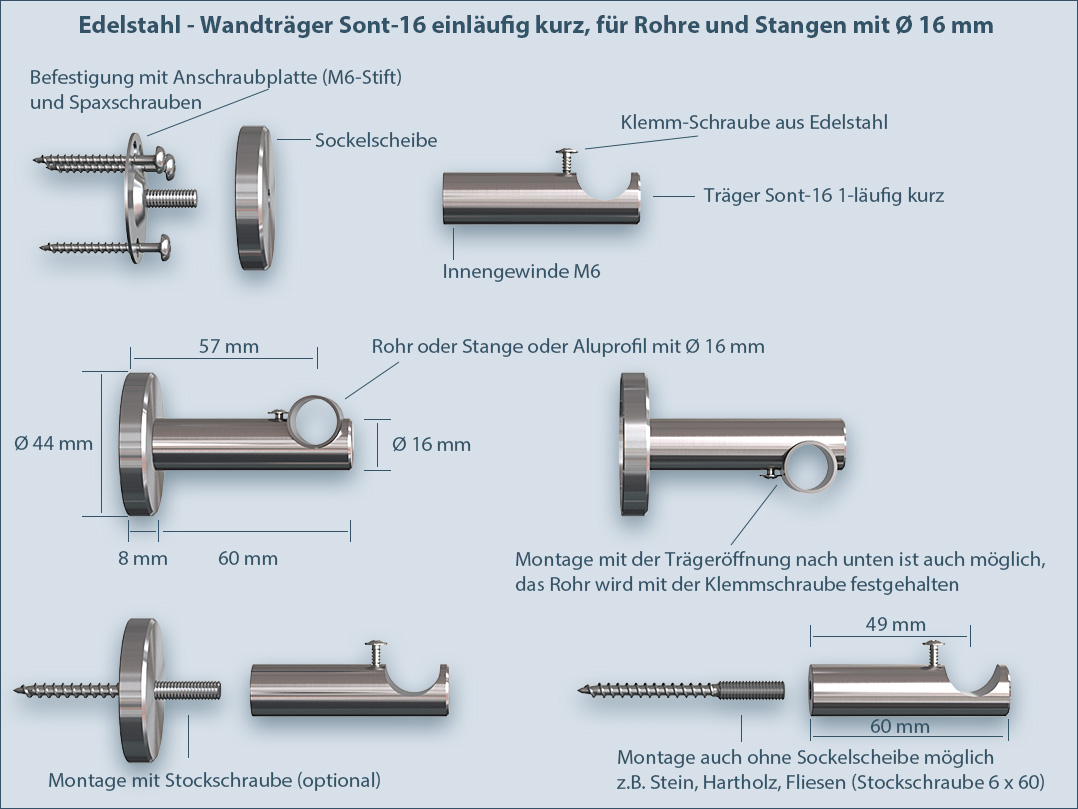

Railing bracket Sont-16 1-track short: Fastening and assembly instructions for different versions.
With this holder system you can
choose the following versions: with or without a base disc, and place the holders on the railing rod absolutely freely. You can mount
these railing brackets horizontally (wall or front edge of countertop) or vertically (cupboard, shelf bottom or top edge of countertop).
First attach the hanger bolt (incl. dowels for wall mounting) to the wall. Then slide on the base washer (if selected) and screw the
bracket onto the hanger bolt grub screw. Then insert the pipe into the holder openings and fix it with the clamping screws. You can also
place the Sont bracket with the openings facing downwards; in this position, too, the tube is held firmly with the clamping screws. The
Sont carrier has an M6 thread in the carrier foot, so alternative attachment with a metric screw or mounting plate is possible.

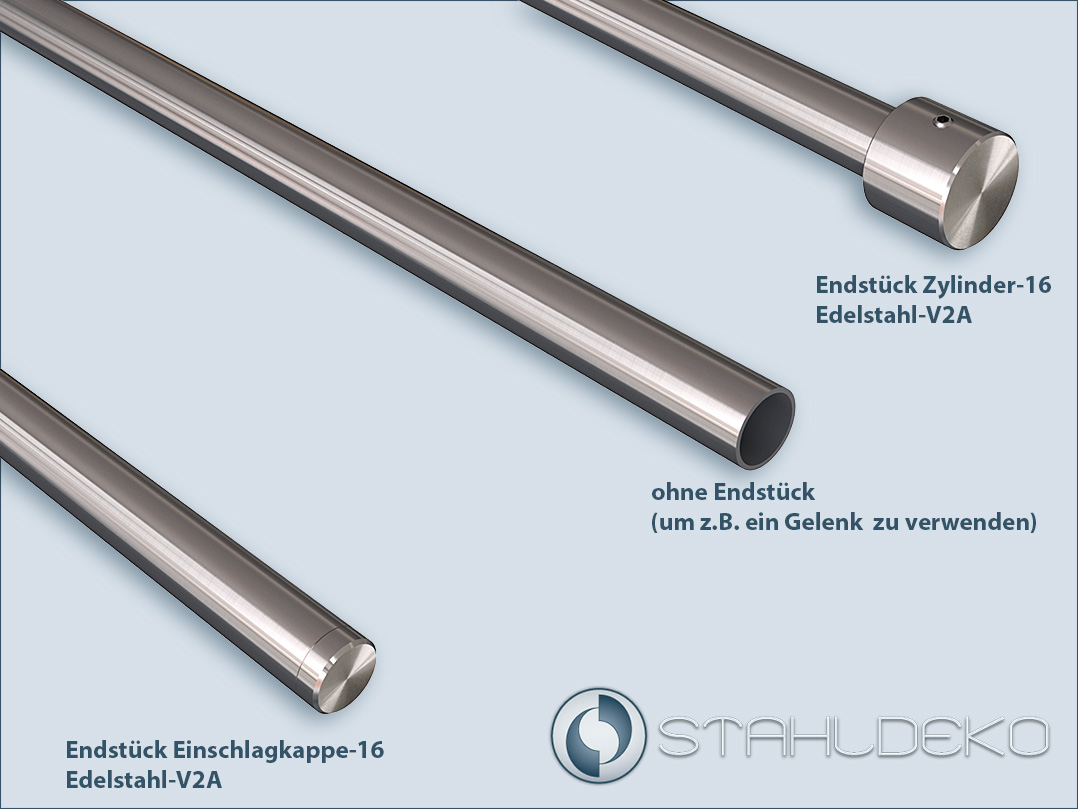

Order tube end pieces for the railing system Sont-16.
In order to close the pipe ends, we
offer impact caps or cylinder end pieces. Simply select the desired end piece in the corresponding field. Of course, you can also order
the version without end pieces, for example to use a pipe joint or a wall bracket at this point.

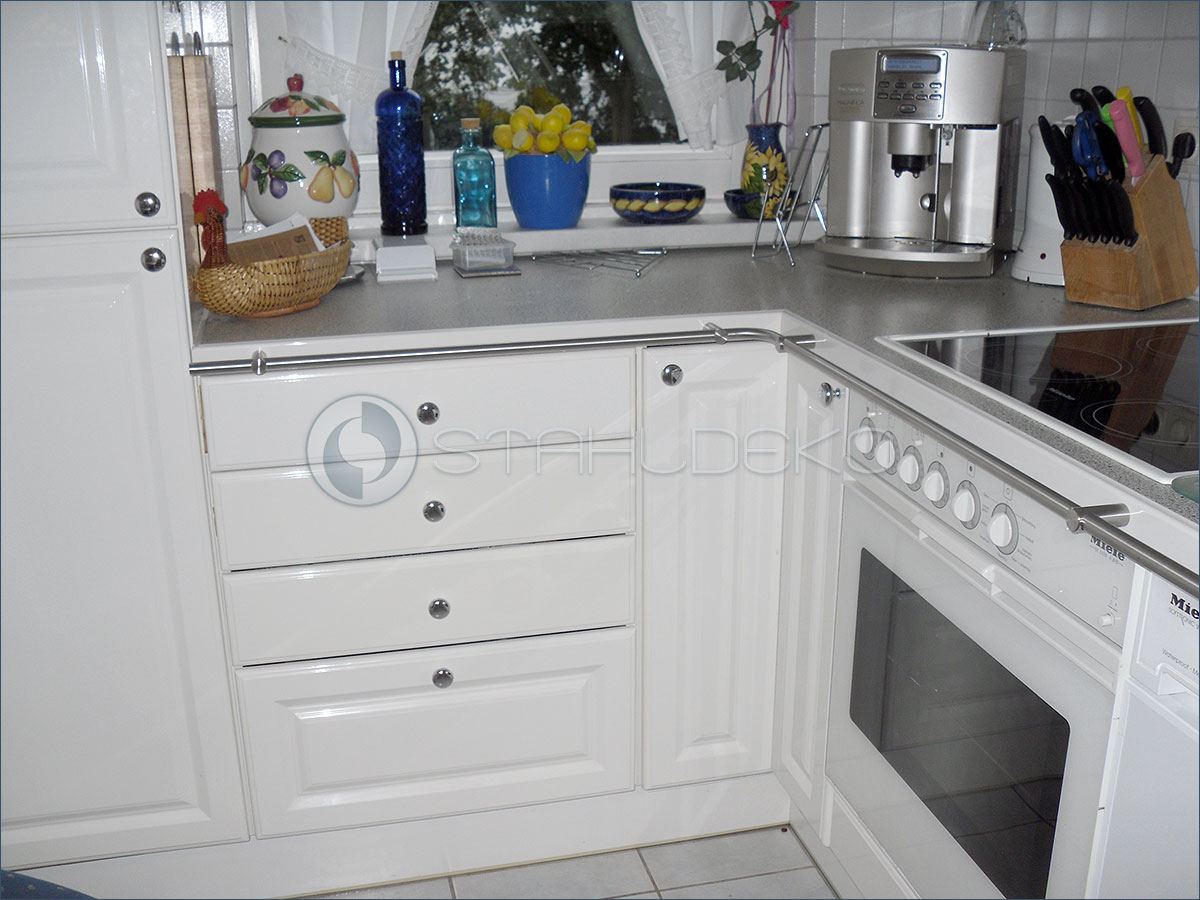

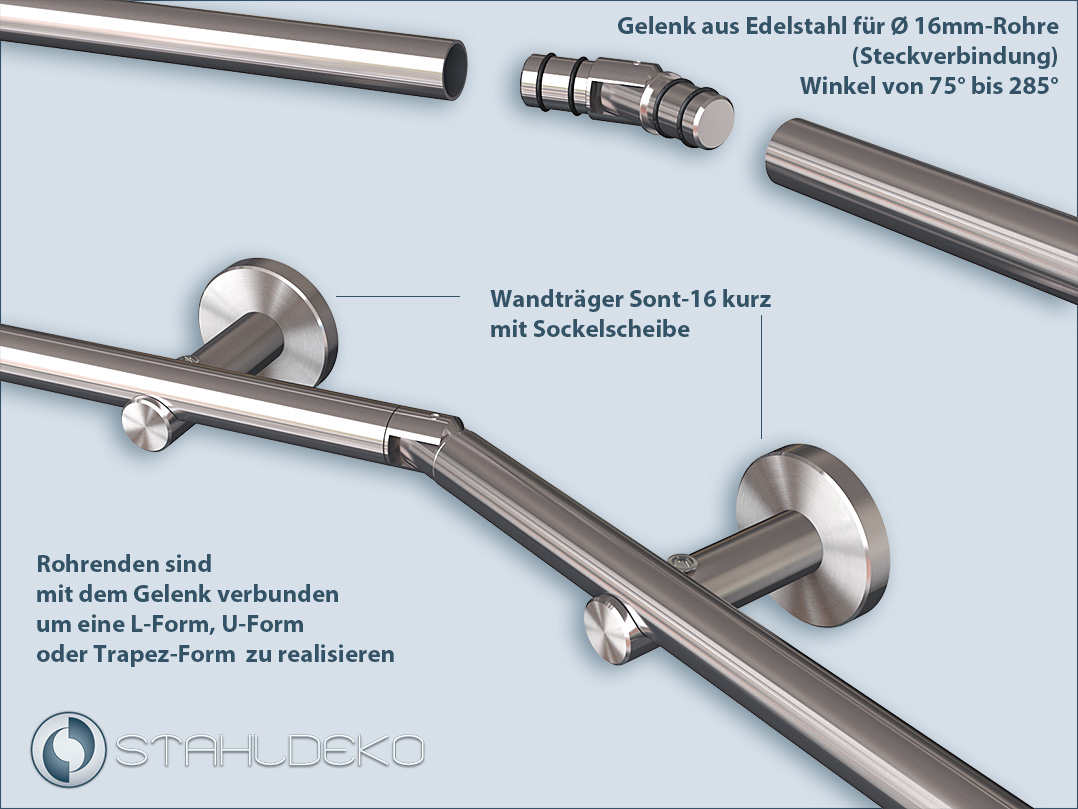

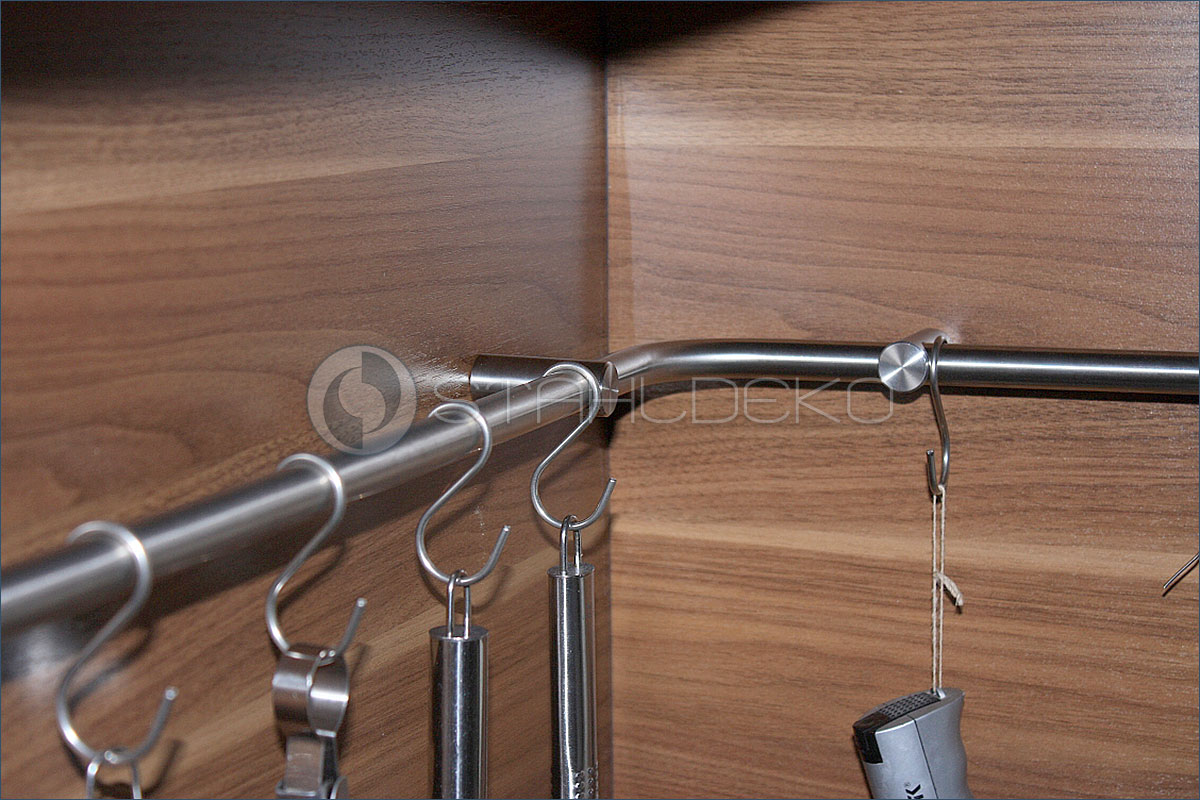

Connect tube ends with joints to create an L-shape or U-shape railing.
If you need an L-shape or
U-shape or trapezoidal-shape railing for your kitchen, then you can use our stainless steel joints for the round tubes with a diameter of
16mm. These joints are inserted into the railing tube ends instead of the end pieces, so you can easily achieve any angle from 75° to
285°. To assemble an L-shaped railing, order: 1 pc. railing with a tube open on one side and 1 pc. end piece + 1 pc. railing with a
tube open on one side, 1 pc. end piece and with 1 pc. joint To create a U-shape or a 3-sided trapezoidal railing, order: 2 railings
with a tube open on one side and 1 piece end piece + 1 railing with a tube open on both sides without end pieces but with 2 pieces
joints Do you need help putting it together? Write to us or call us.
Order railing hooks made of steel, nickel-plated, for 16mm railings.
You can use our nickel-plated steel hooks to attach kitchen
accessories to the Railing Post-16. Please refer to the drawing for the dimensions.

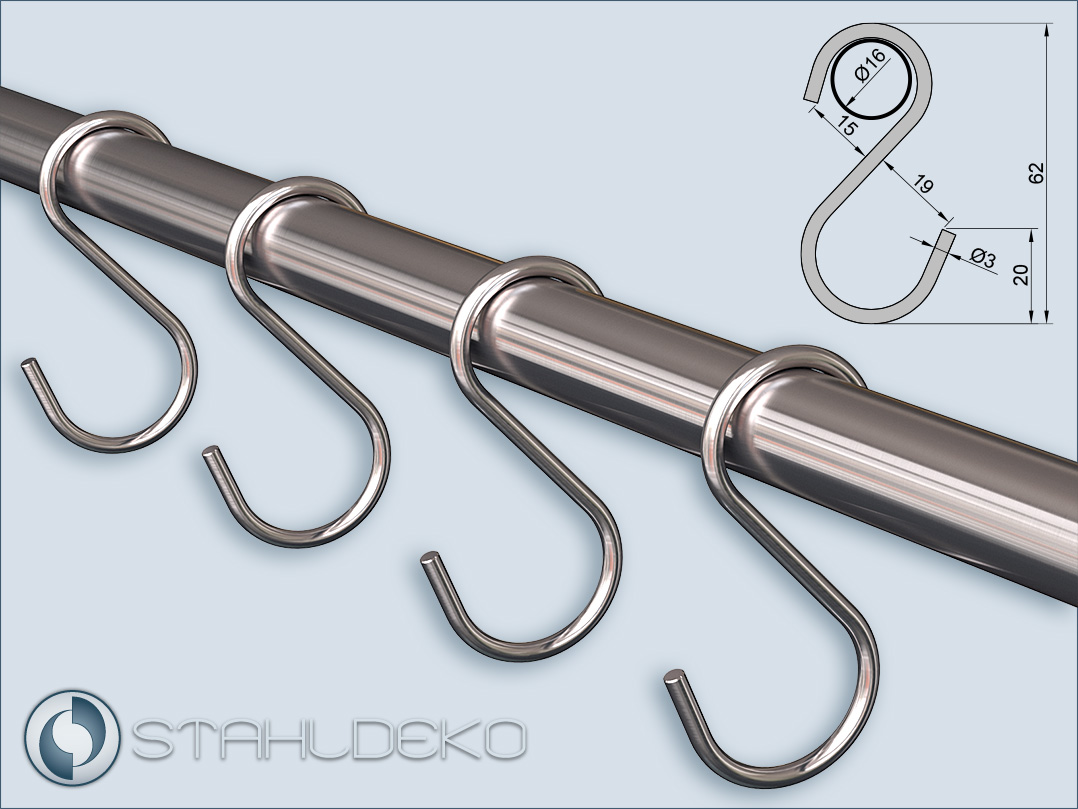

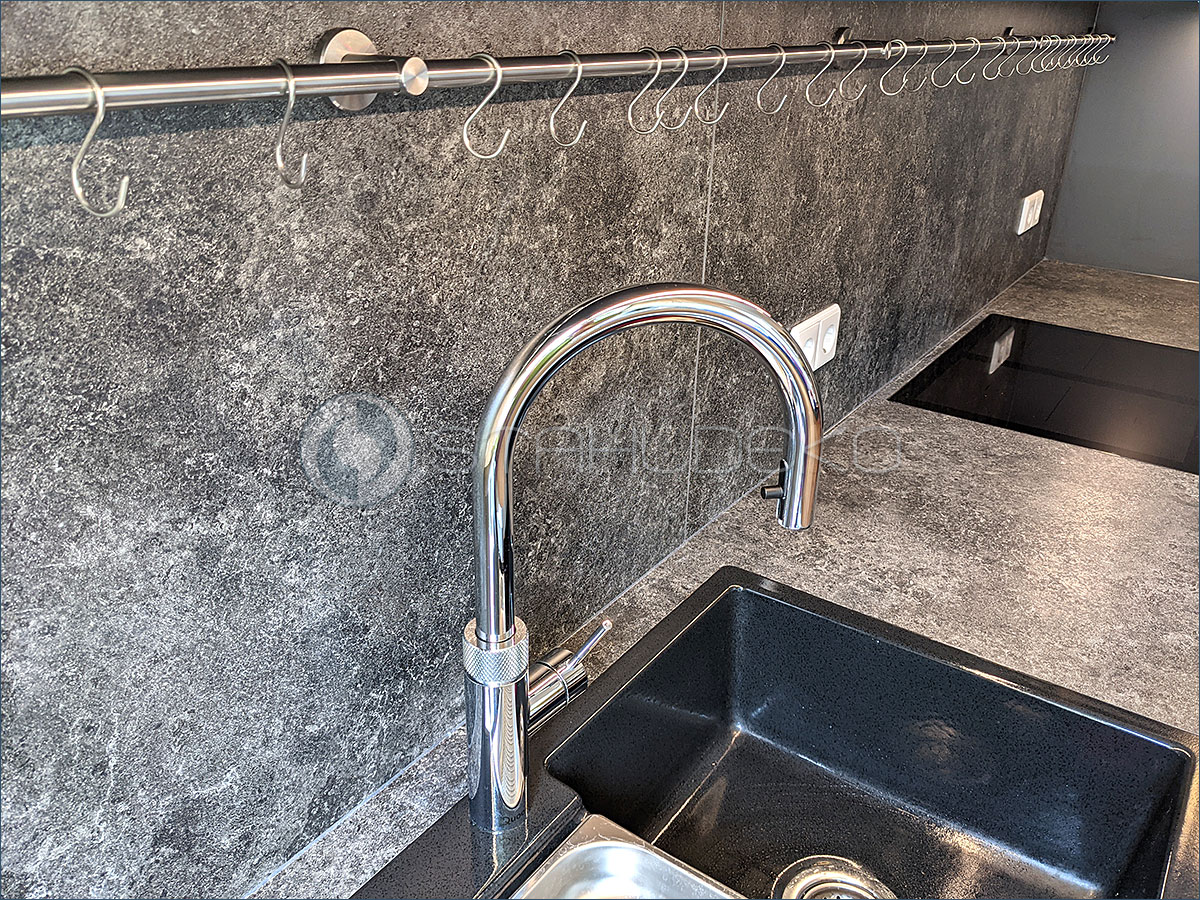

S-shaped railing hook for rods and tubes with a diameter of 16mm, stainless steel material, also suitable for heavy objects
Hook S-shape made of V2A
stainless steel, very stable and robust, but at the same time very smooth-running, bent from 3mm stainless steel wire, ends are punched.
For indoor and outdoor use as a railing hook. Easy to attach and detach to 16mm pipe by "clamping system with 15mm
opening" Please refer to the drawing for the dimensions.

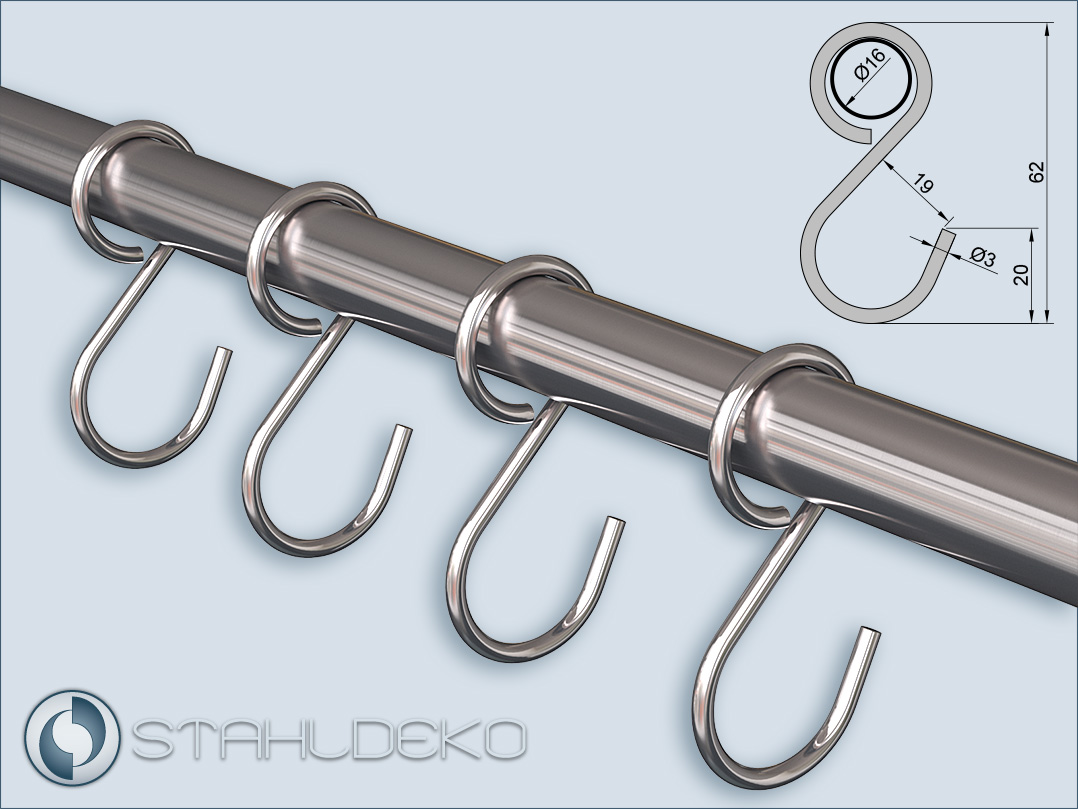

Product Information: Stainless Steel Ring Hook for 16mm Pipes
The V2A stainless steel ring hook is characterized by high stability and smooth mobility. Manufactured from 3mm thick stainless steel
wire with precisely stamped ends, it features a closed form that ensures increased security against theft. Suitable for commercial use
both indoors and outdoors. Please refer to the attached technical drawing for detailed dimensions.

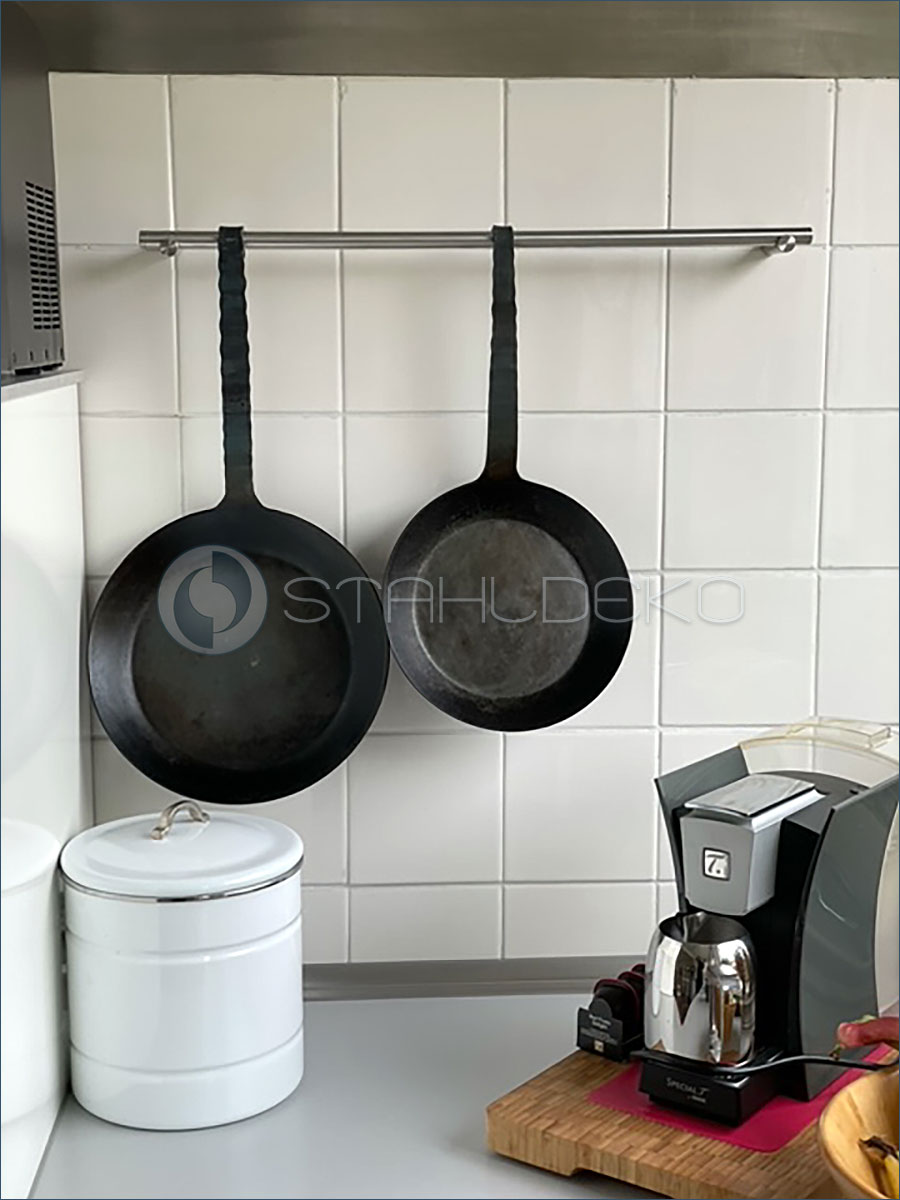

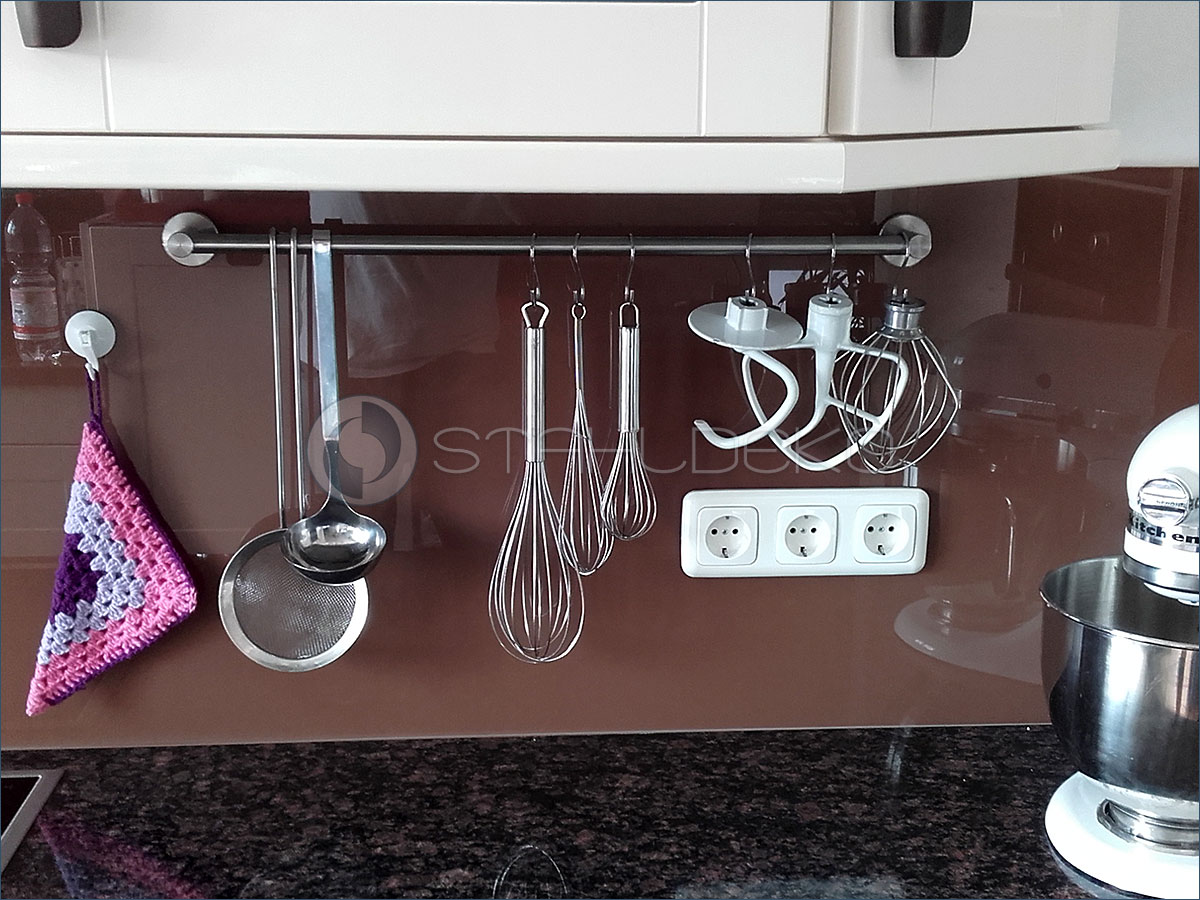

Examples of use and extensions: Railing Sont 16, with stainless steel tube Ø 16mm.

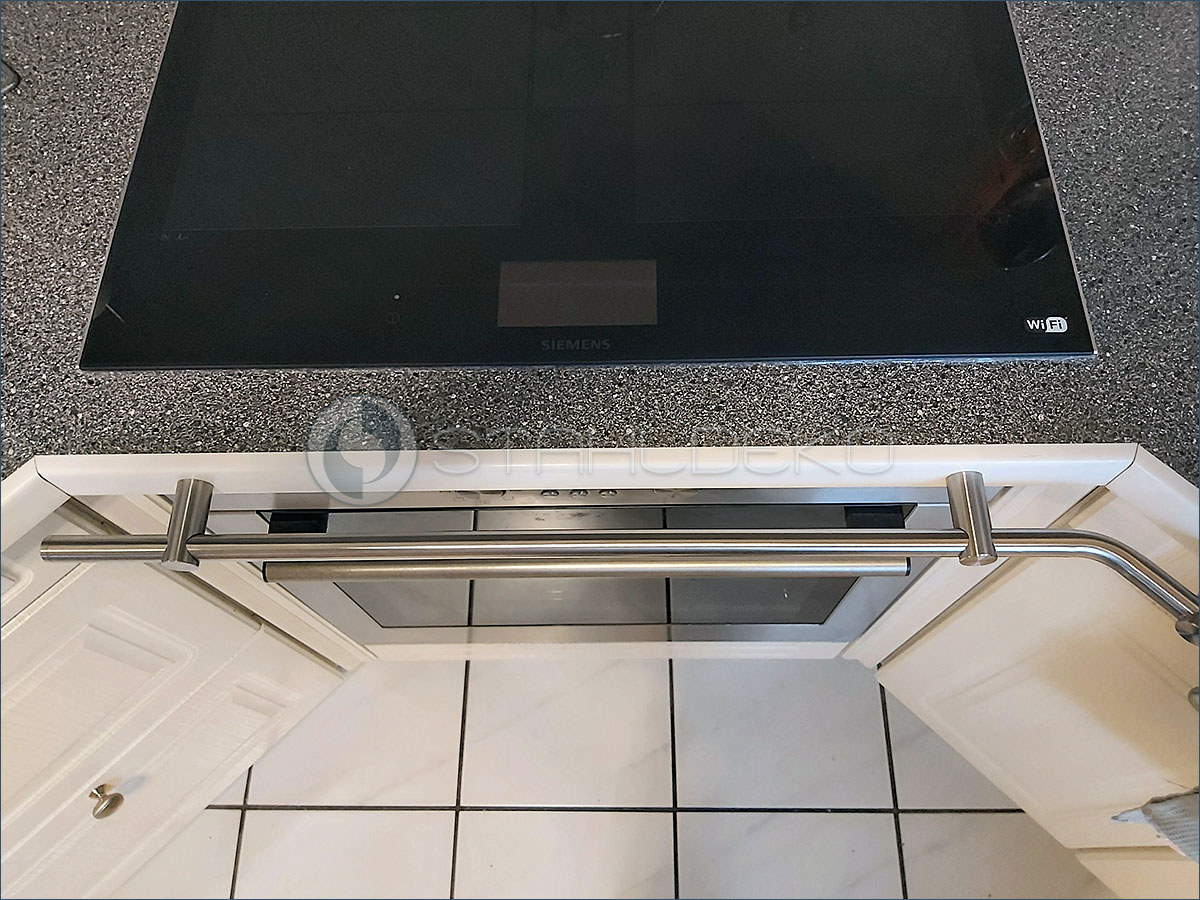

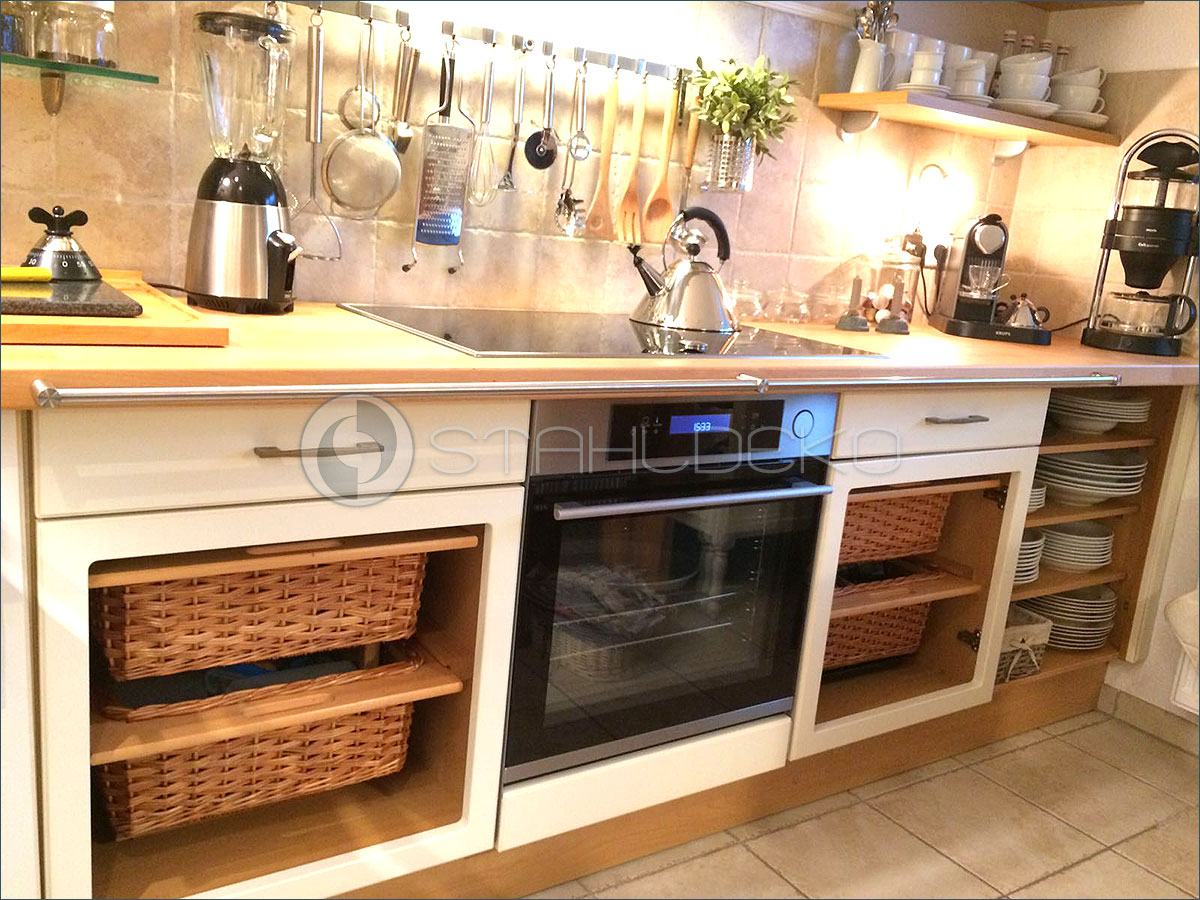

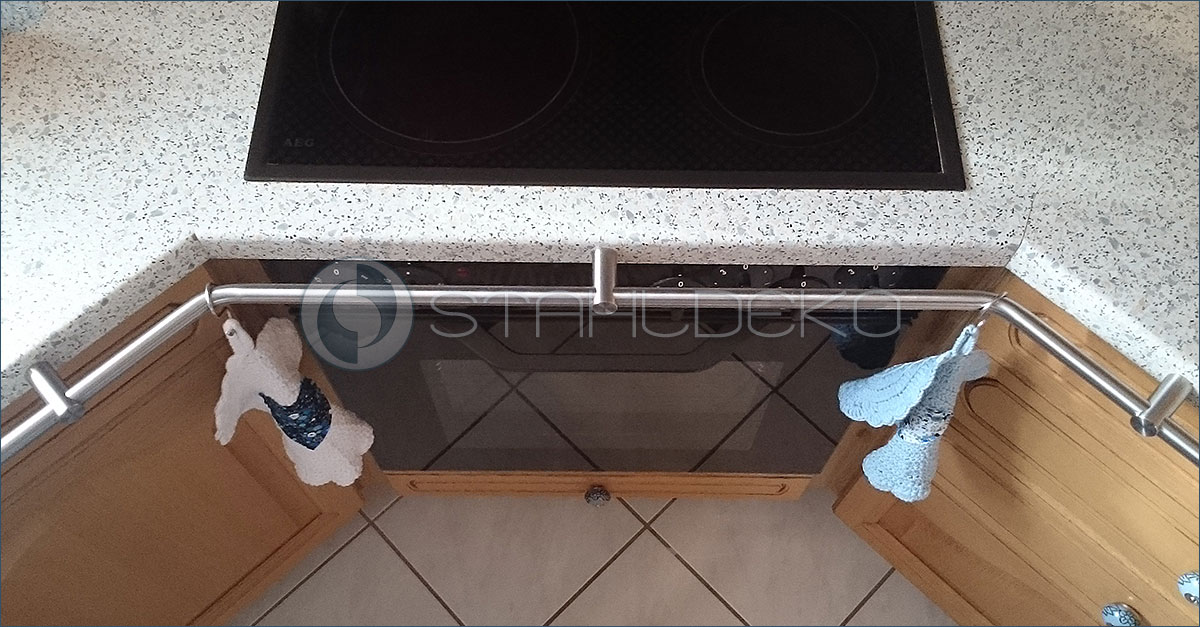

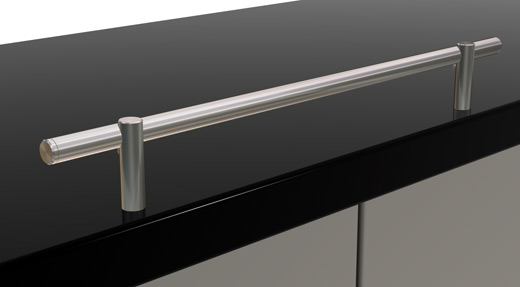

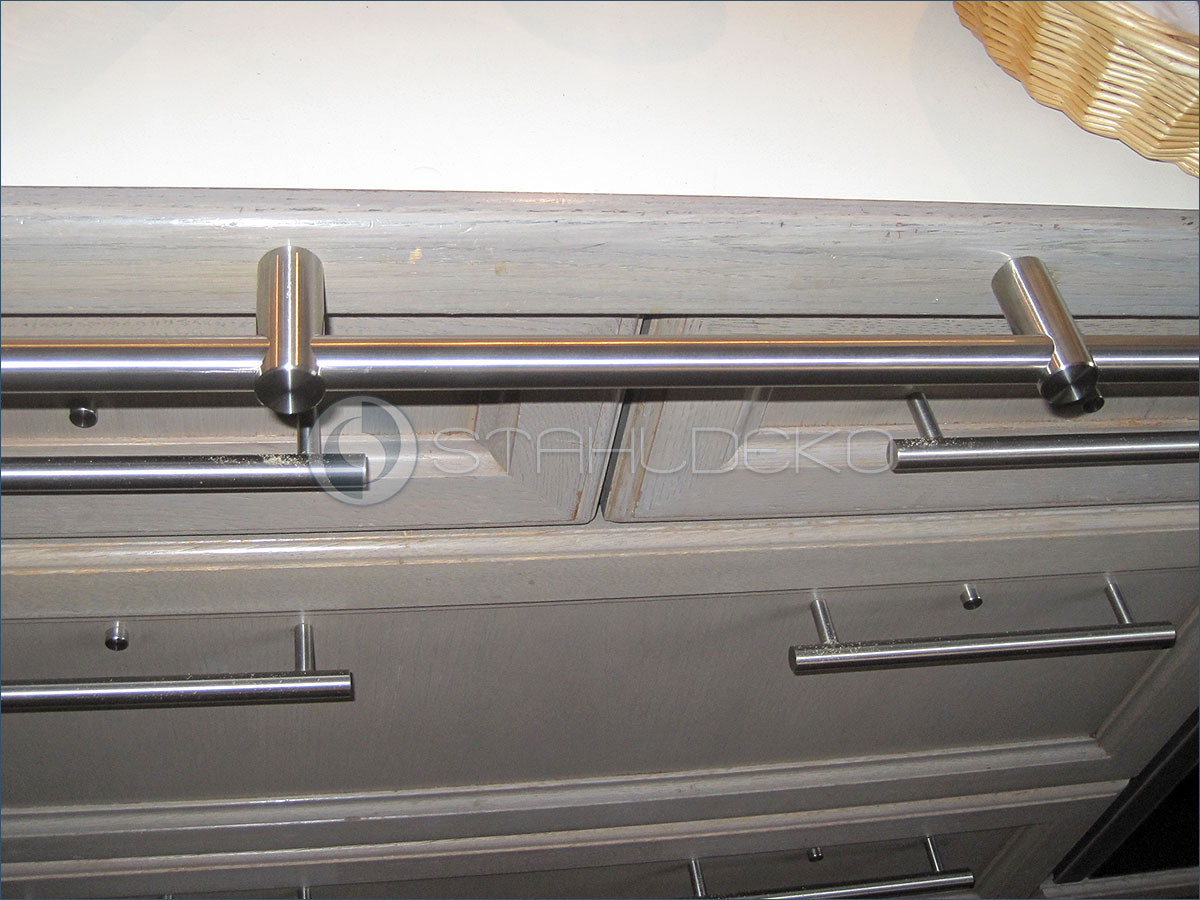

Railing Sont16 as a worktop demarcation in the kitchen, e.g. to
secure the hob. Pipe ends closed with stainless steel caps.

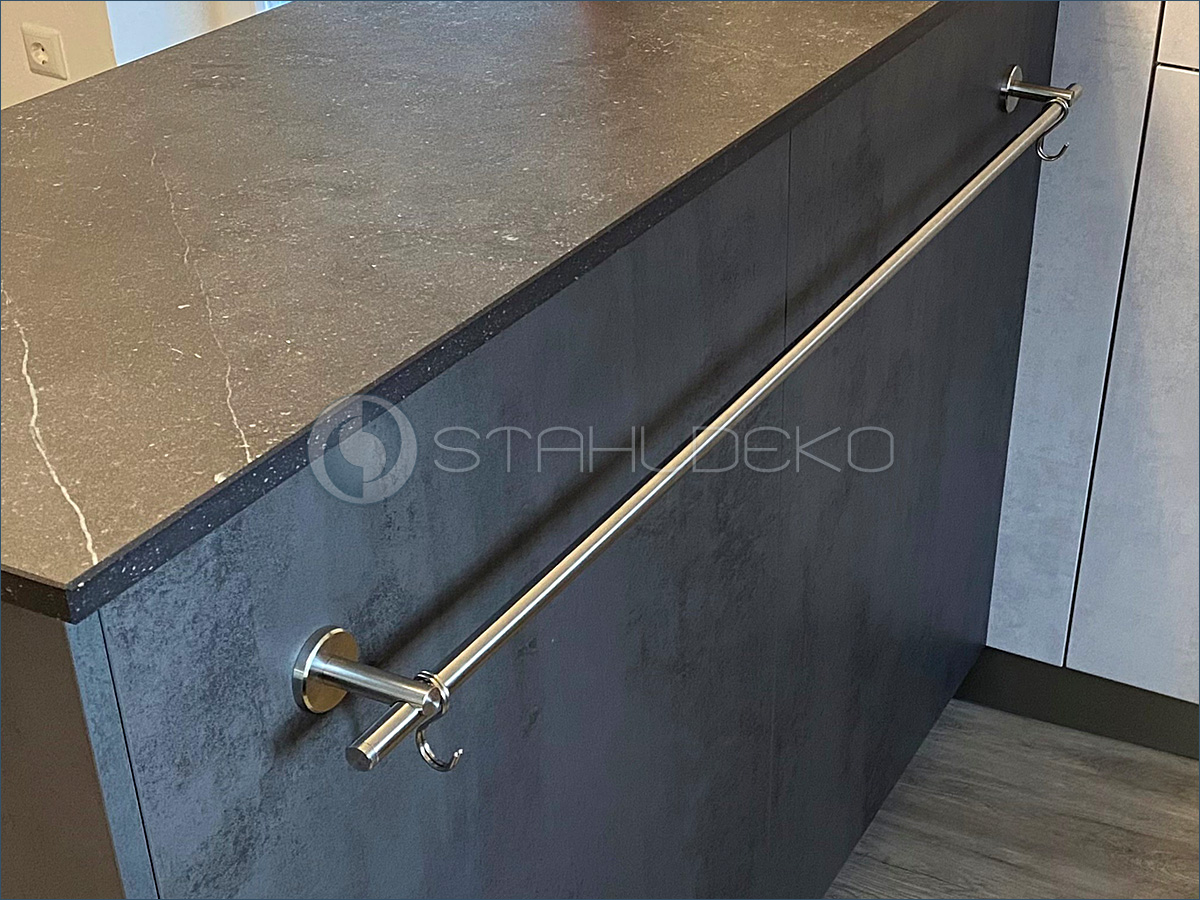

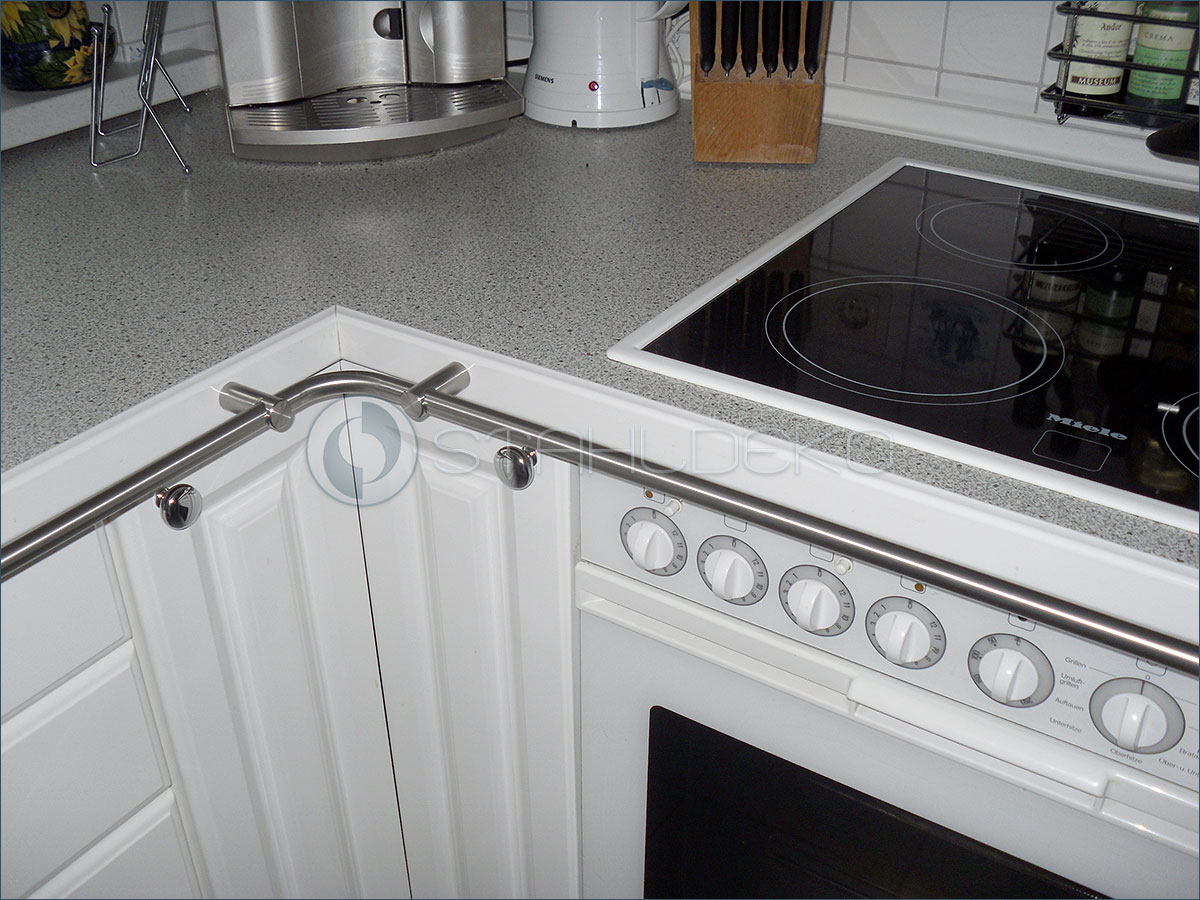

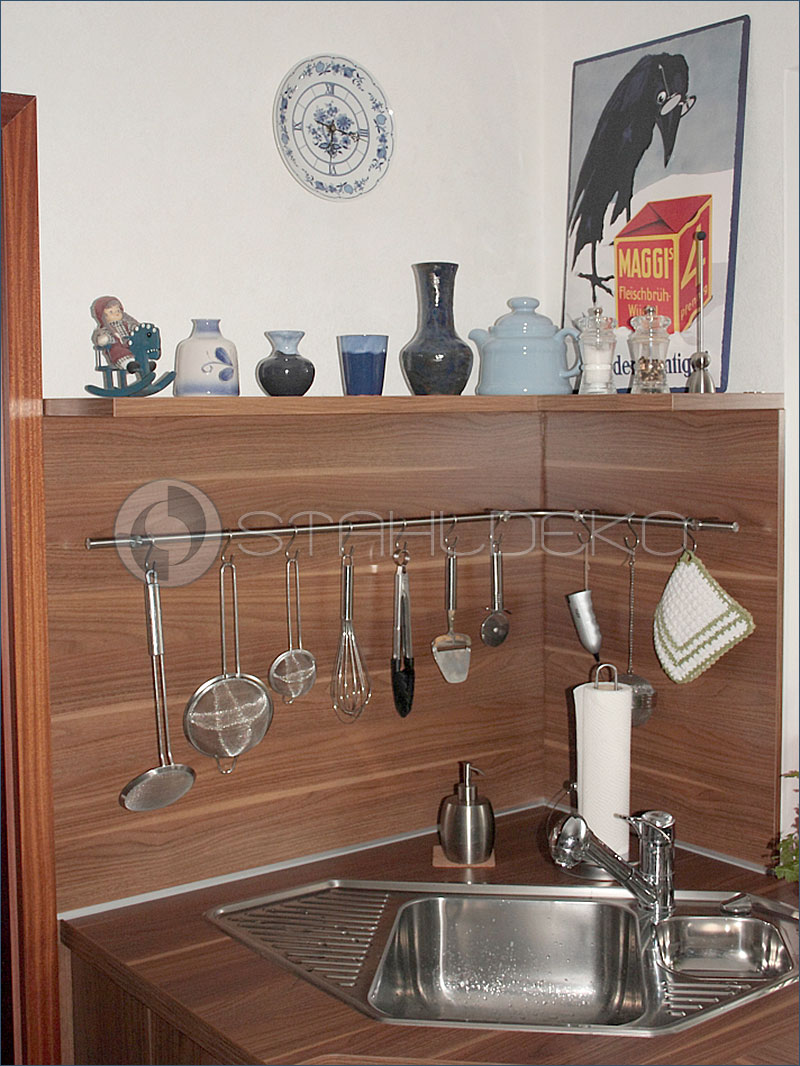

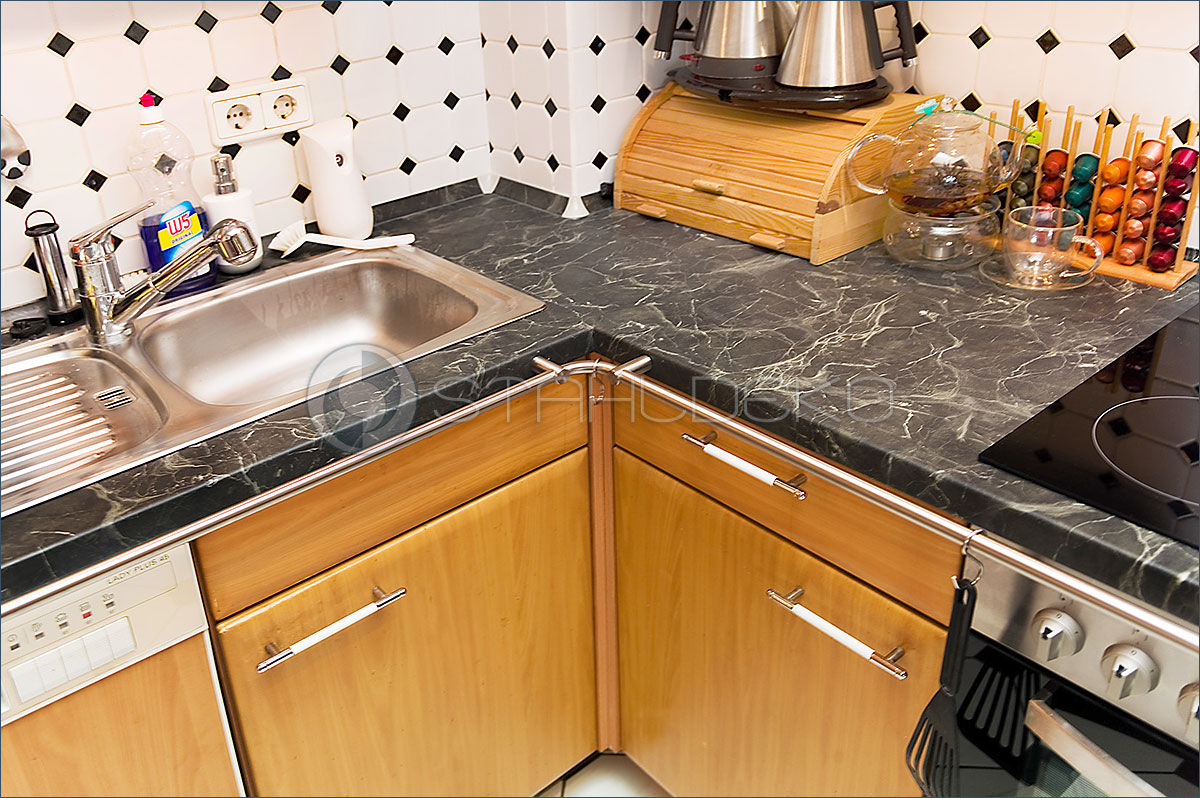

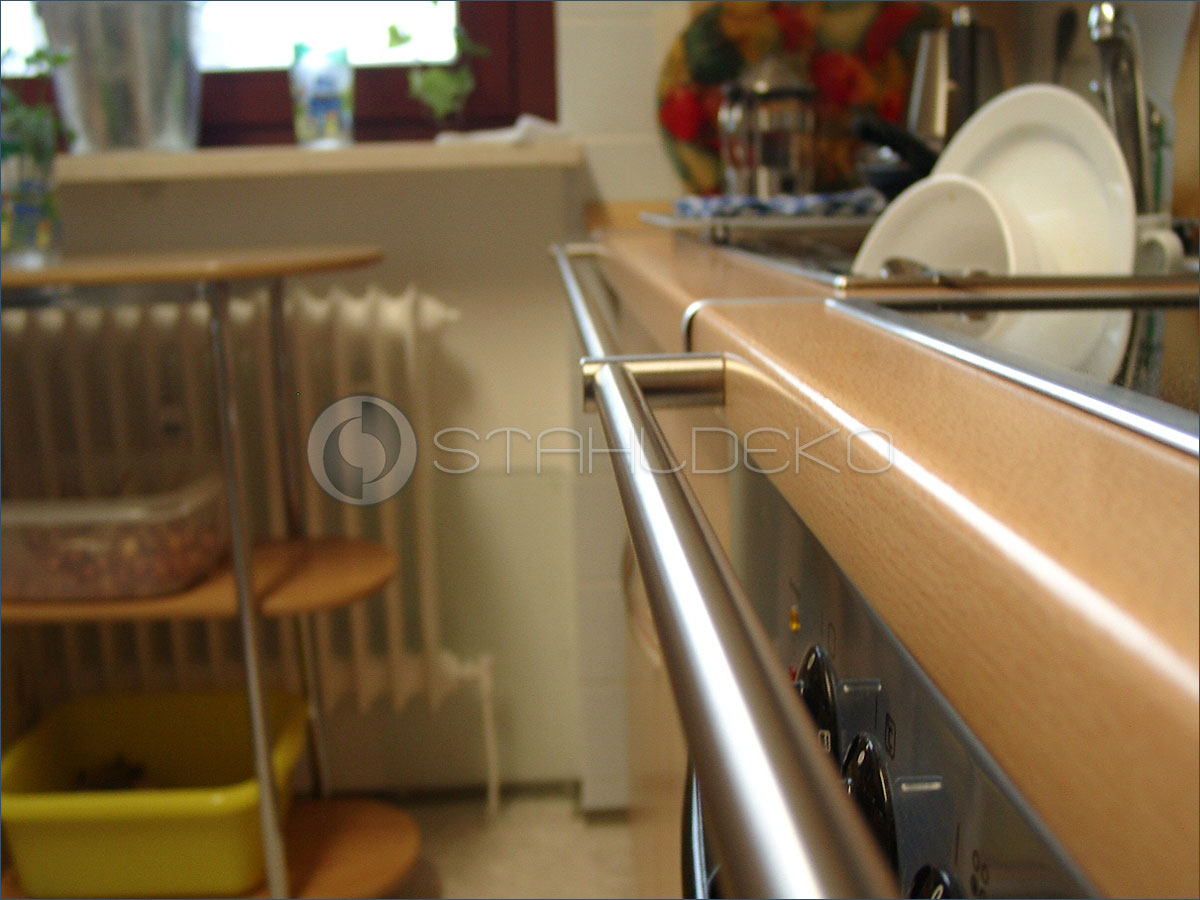

Here the railing is bent and mounted on the front edge of
the worktop. Ideal solution as a kitchen towel holder. Simply hang towels and potholders that you don't need at the moment on the
railing, they stay close by and are always at hand.

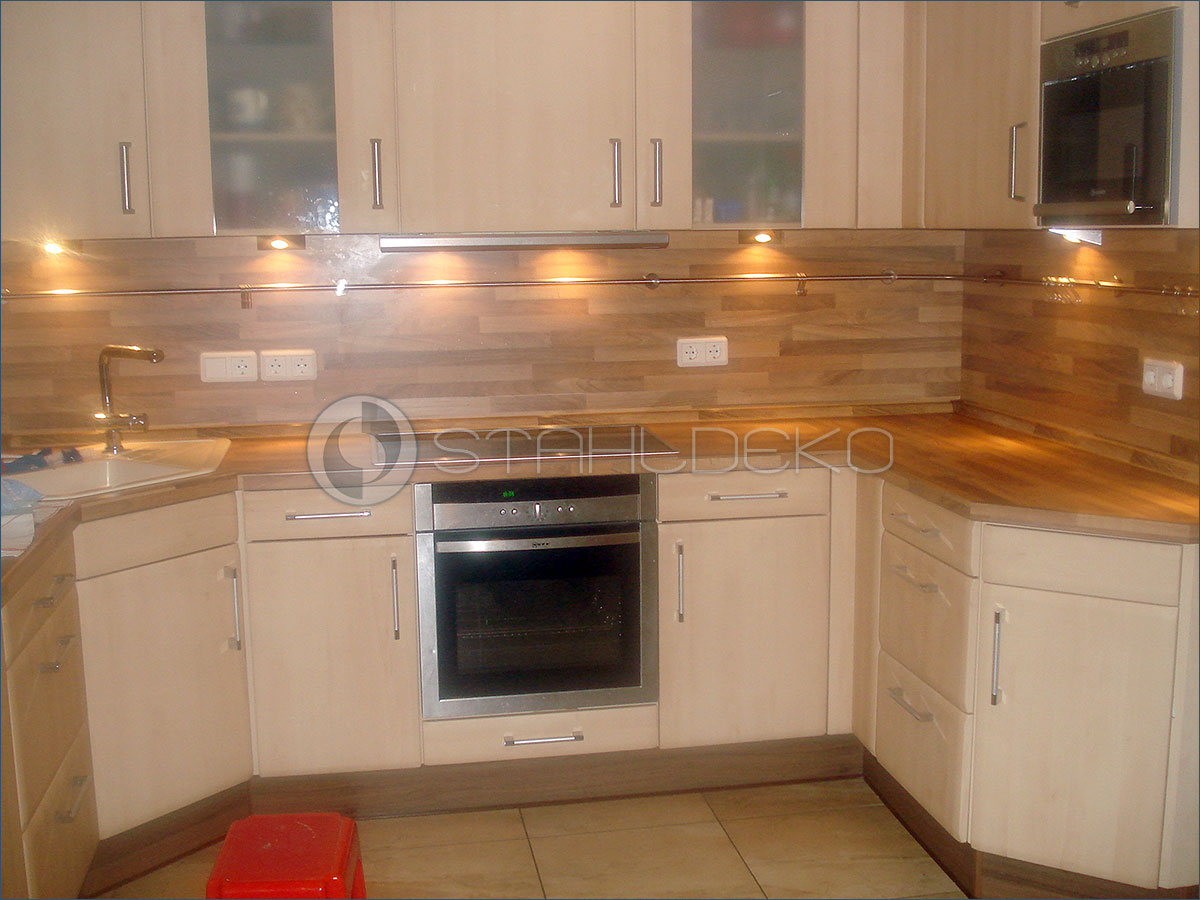

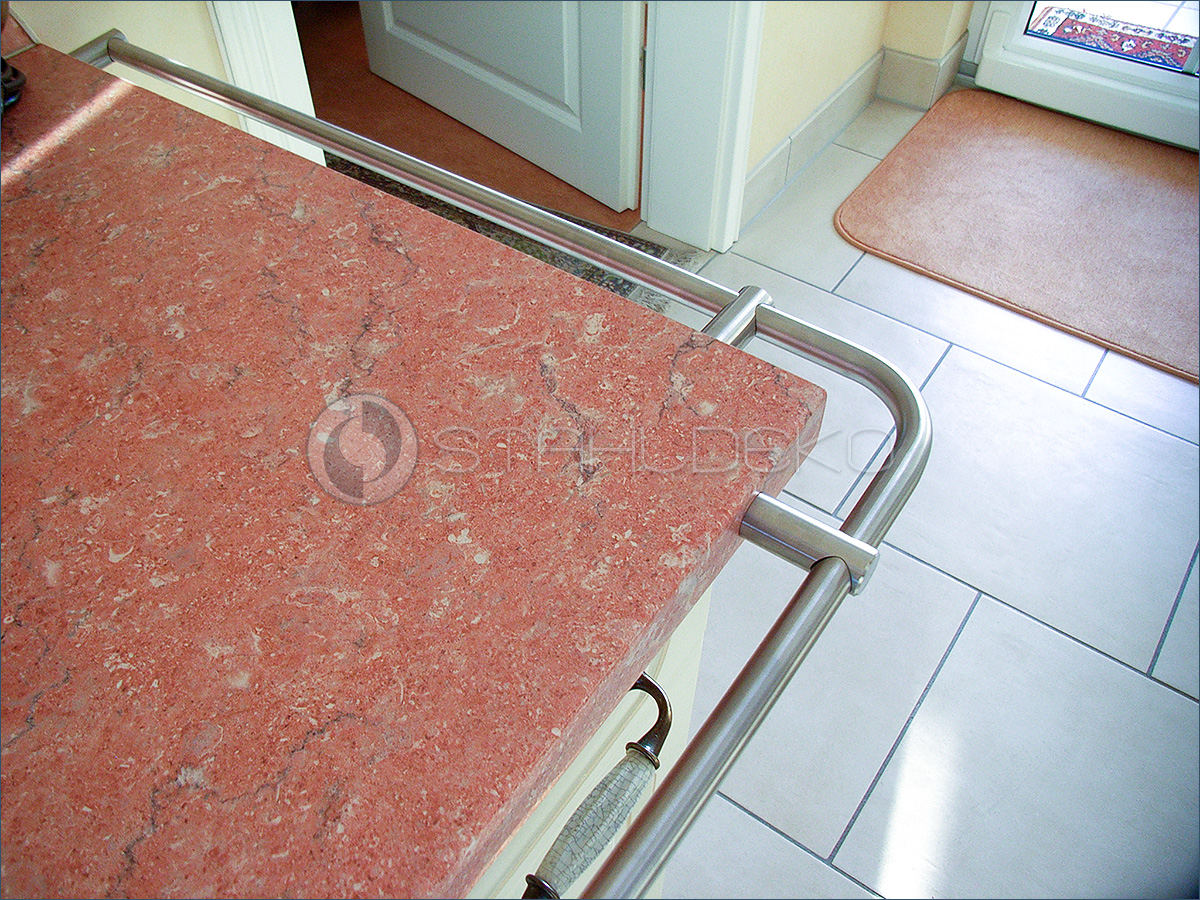

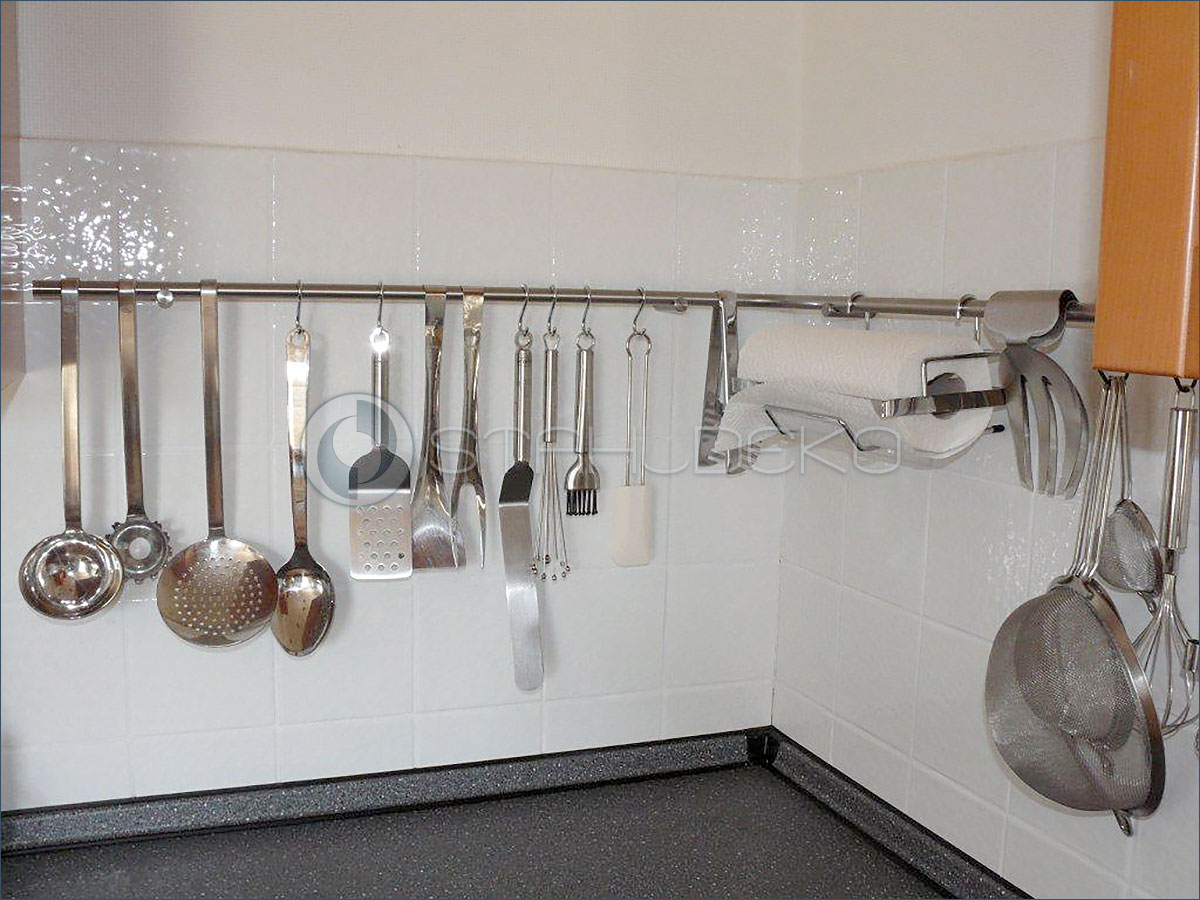

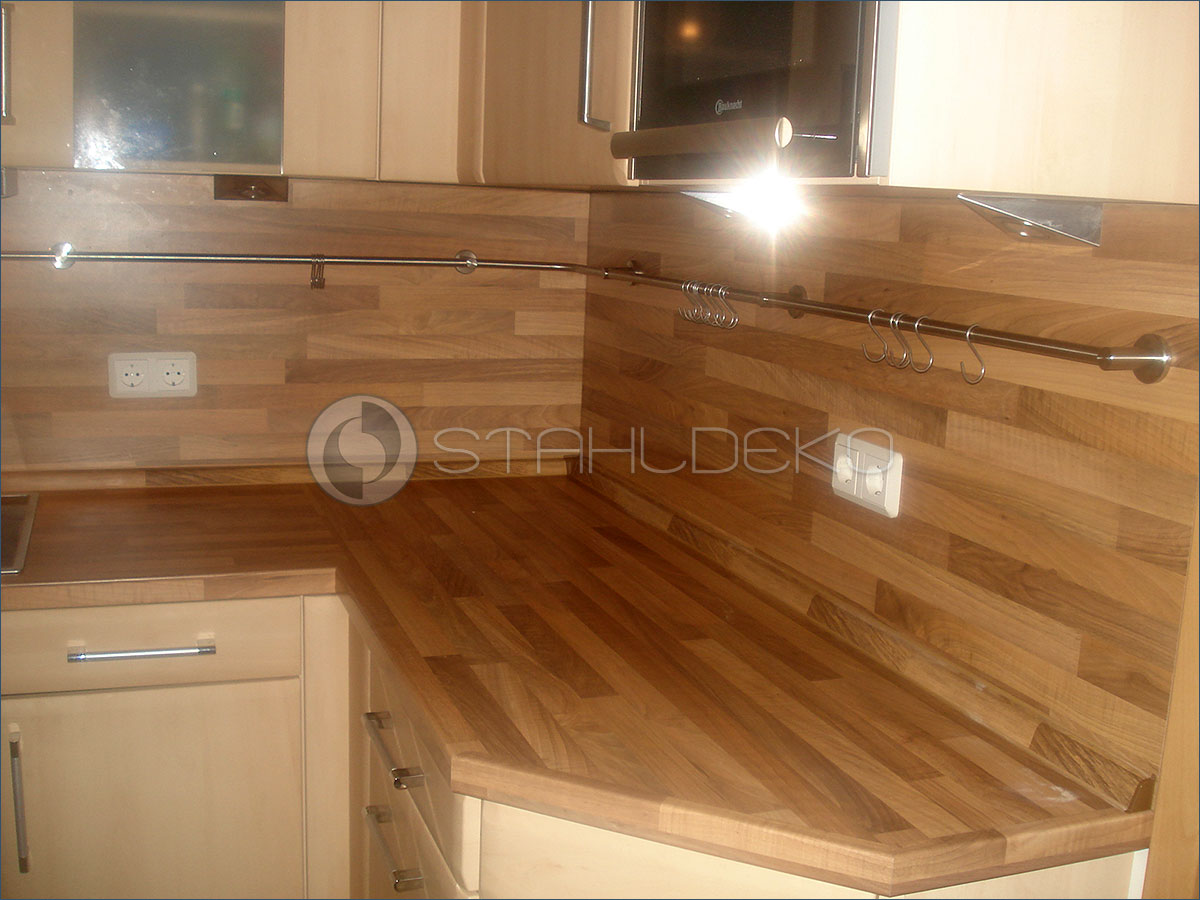

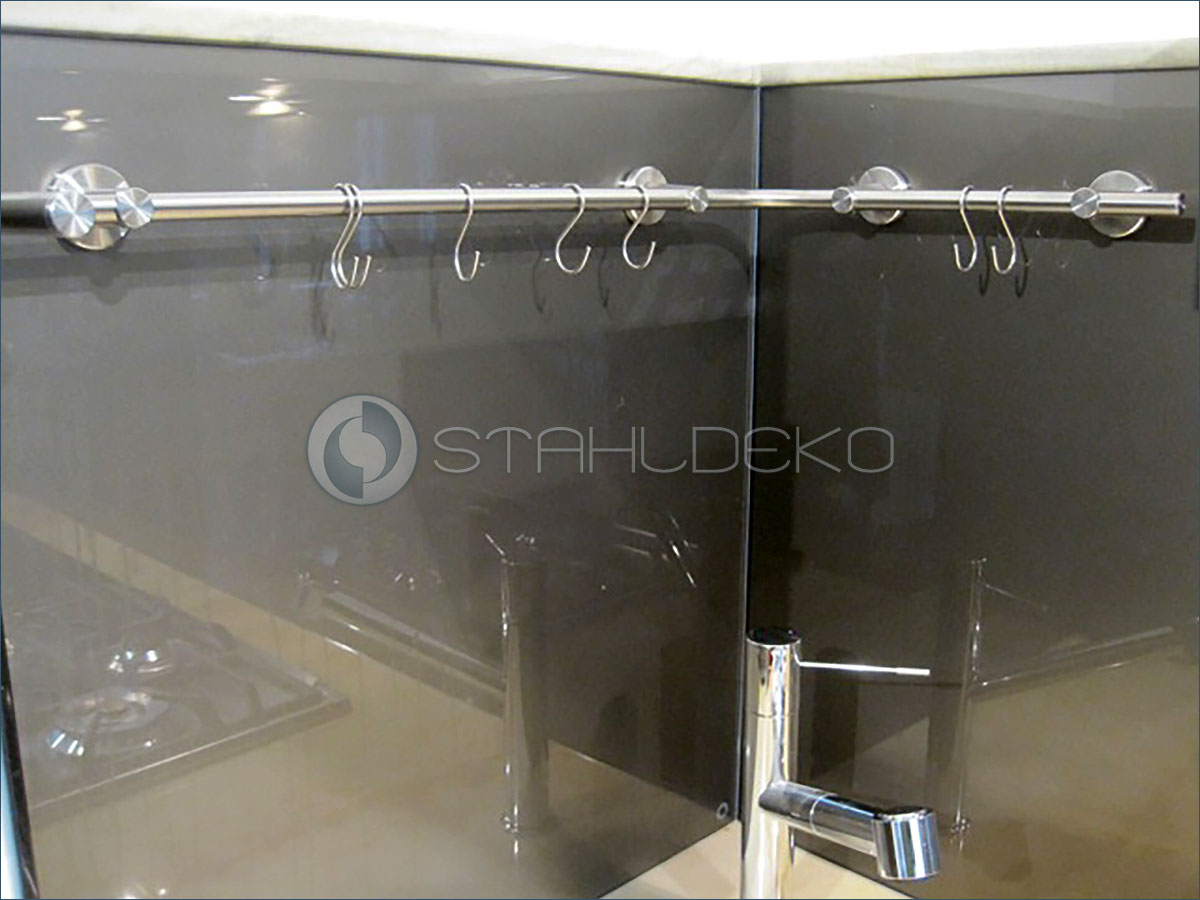

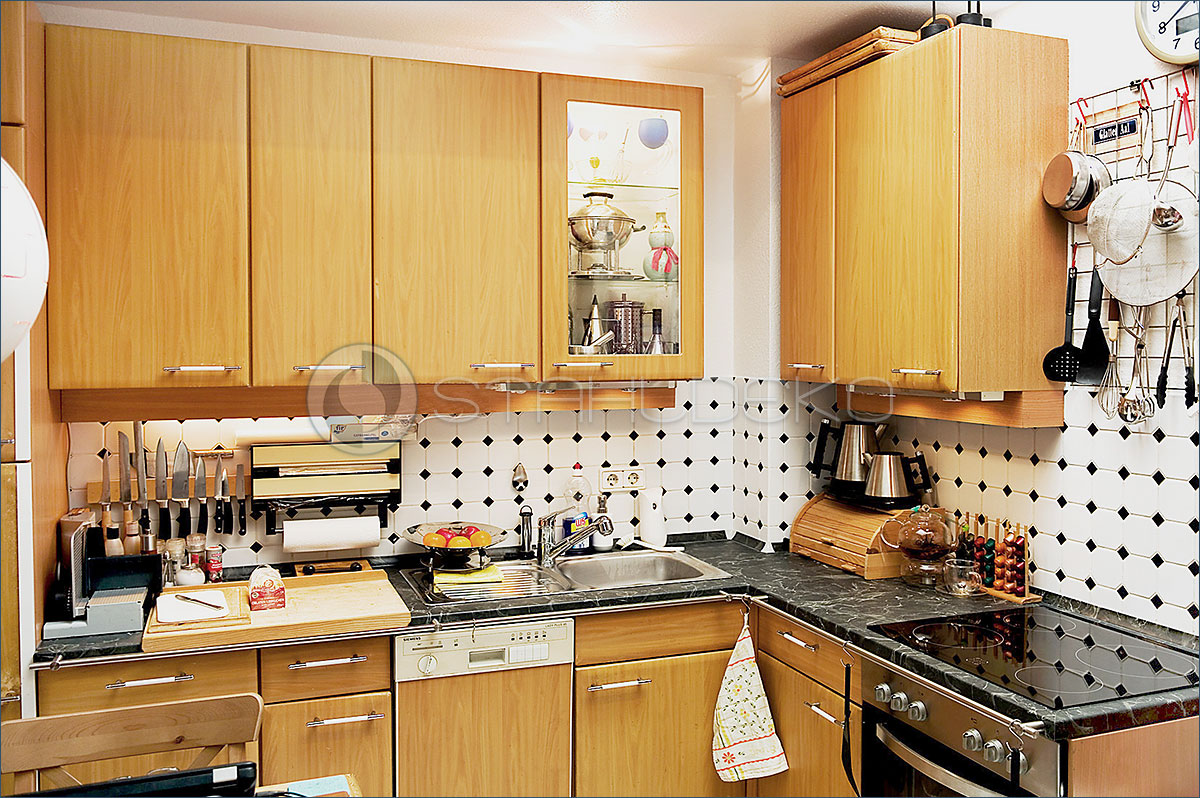

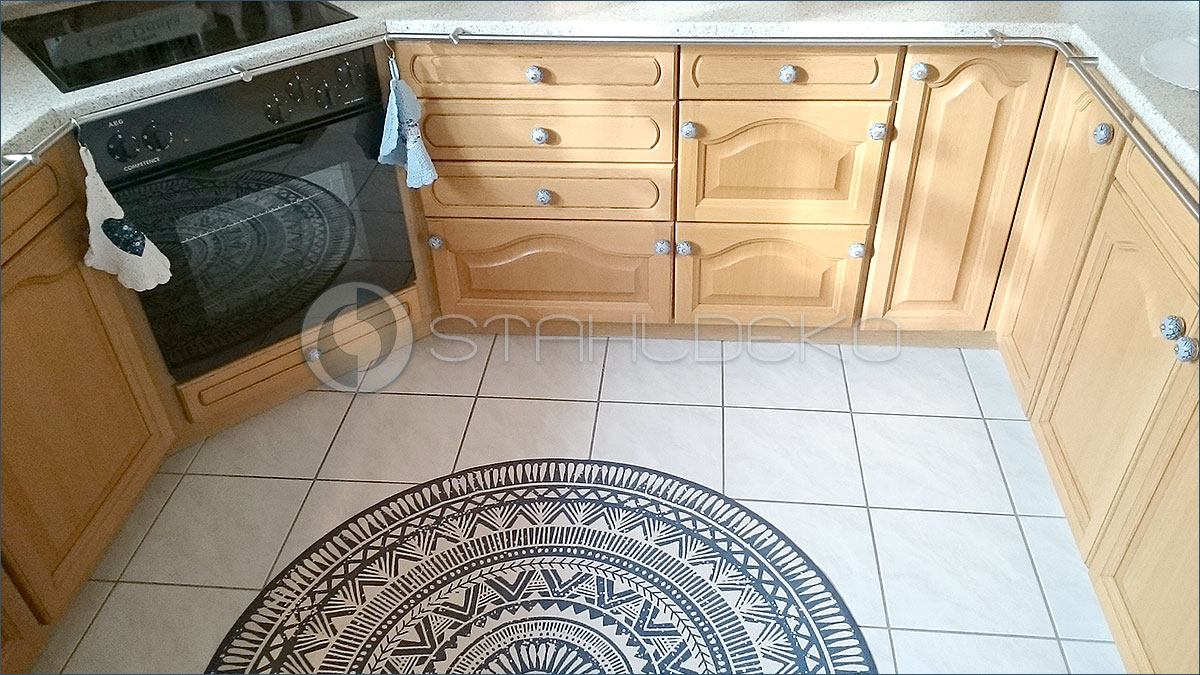

Kitchen accessories: U-shaped railing for outside corner
Sont16. Pipe ends closed with stainless steel caps or wall bearings. The inner corner bend is also realized according to the same

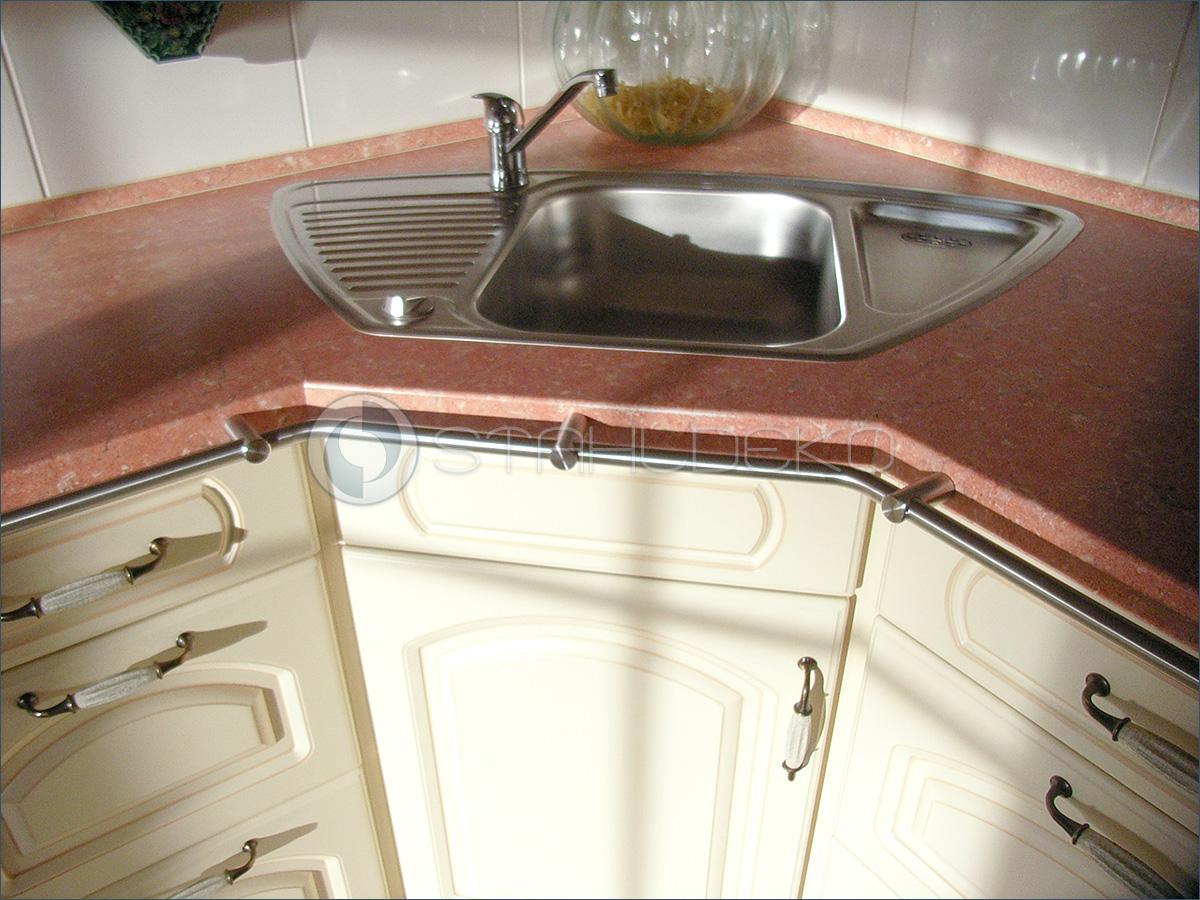

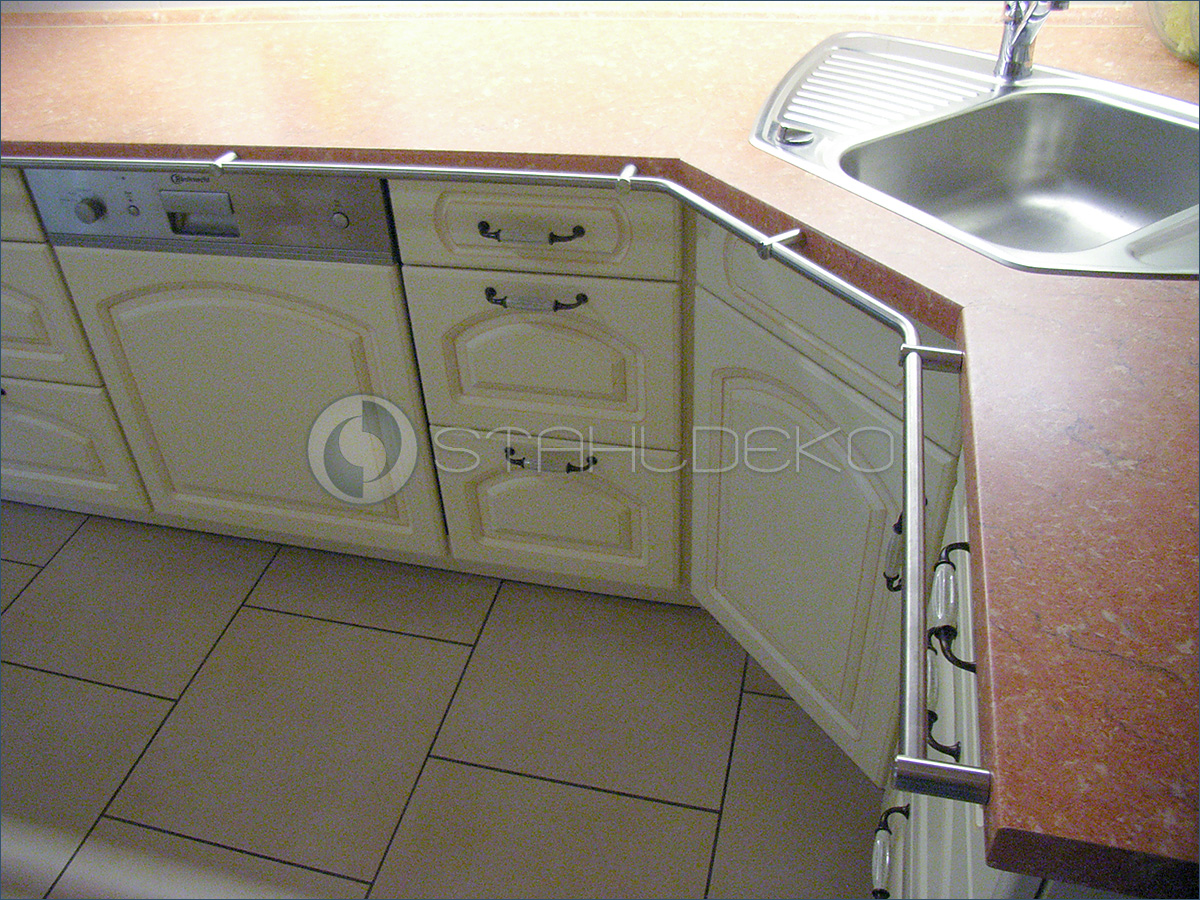

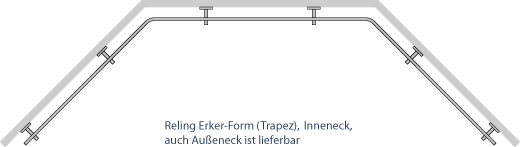

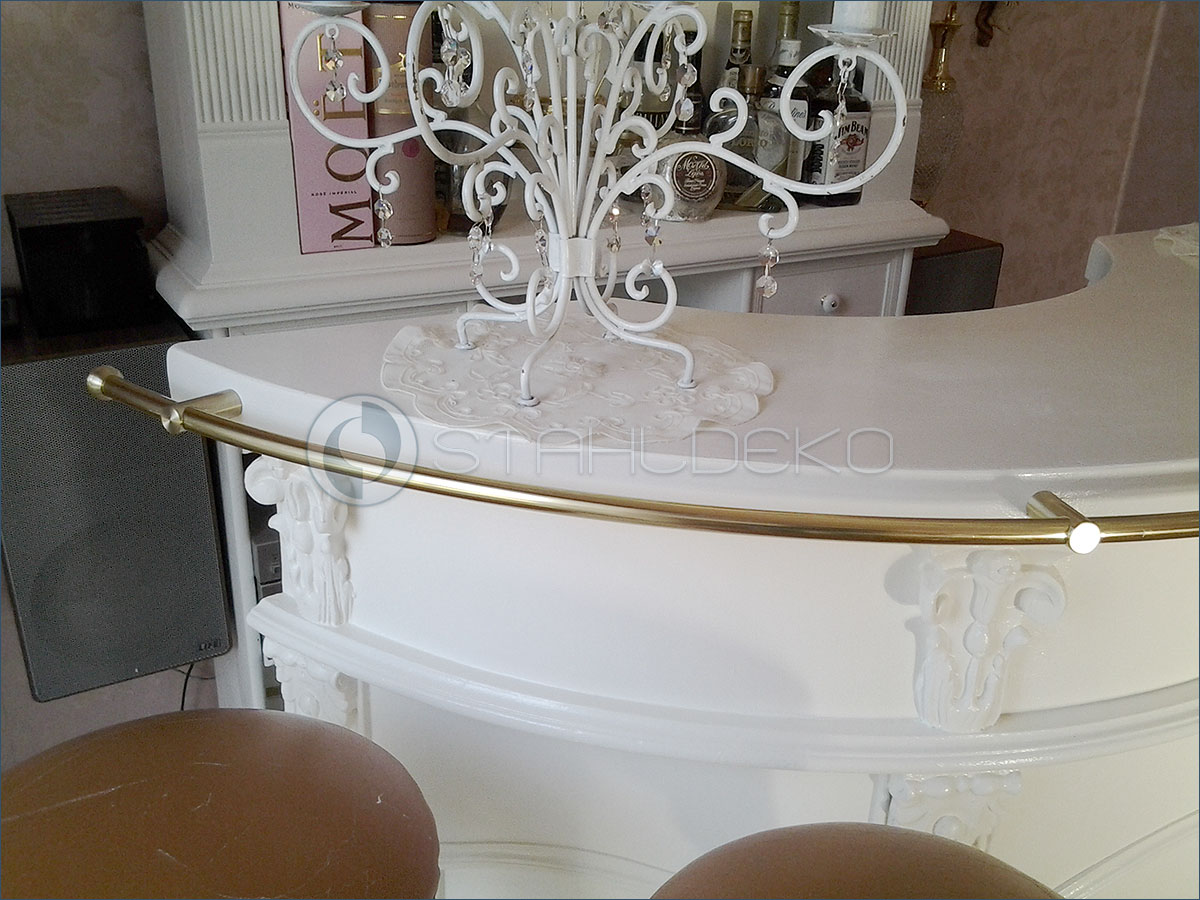

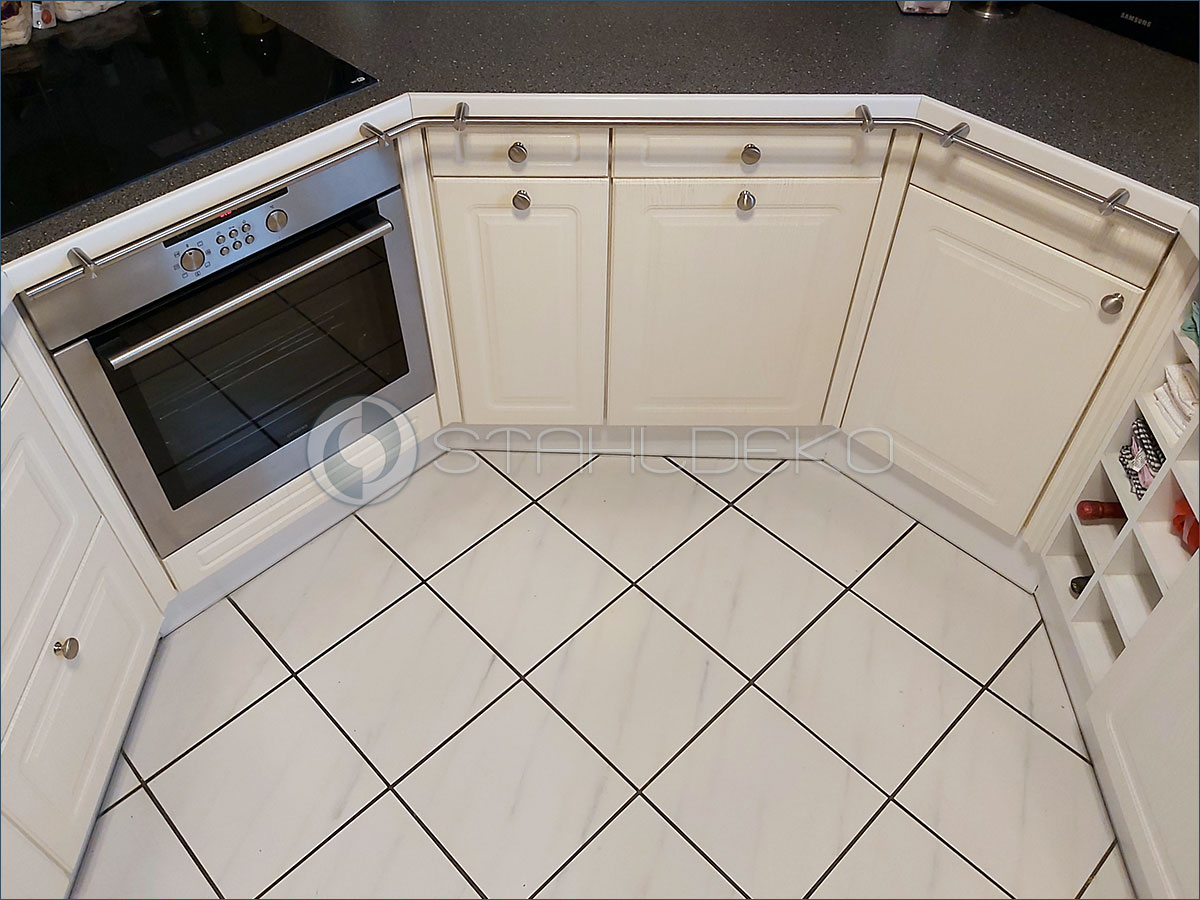

Curved railing as a bay window for kitchen
equipment, trapezoidal railing system: we manufacture your kitchen railing to fit any wall or worktop angle.

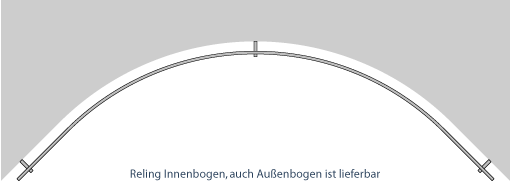

Round railing for walls in the kitchen or round worktops. Inquiry and sketch by fax

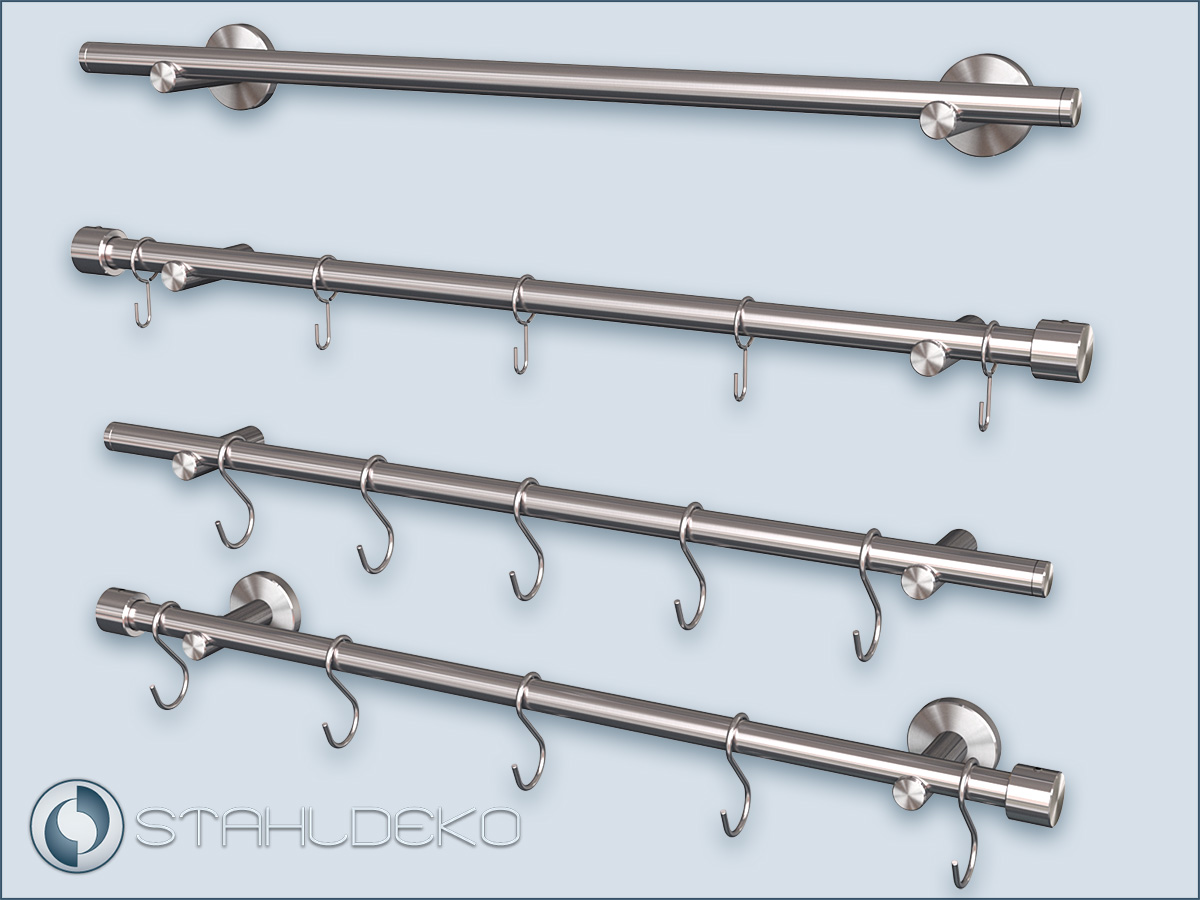

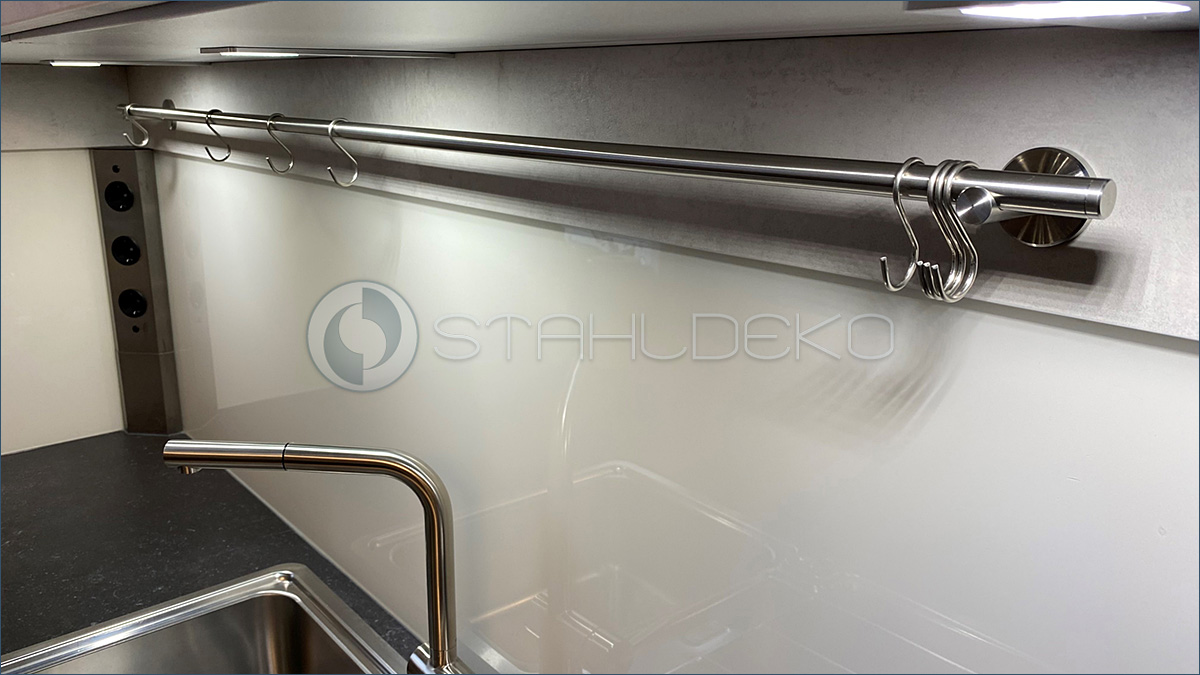

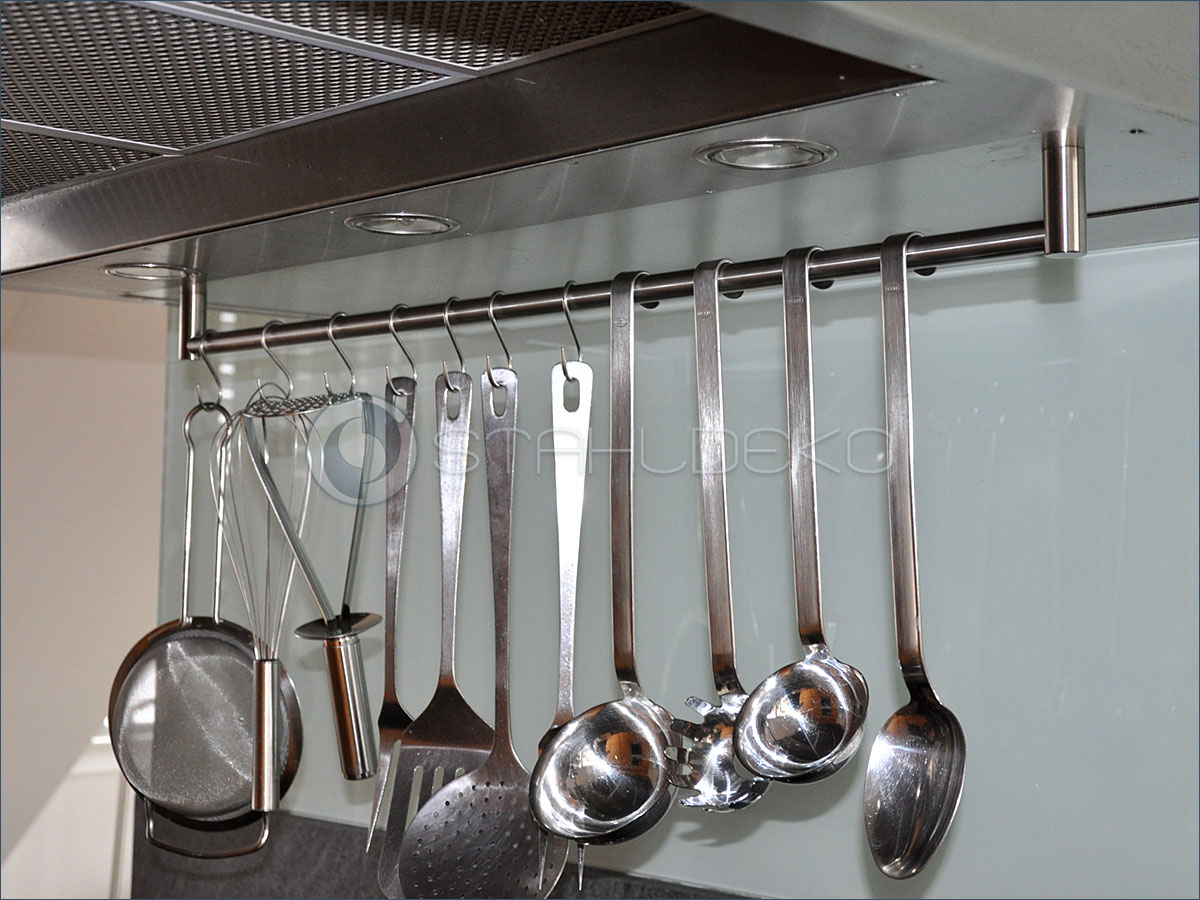

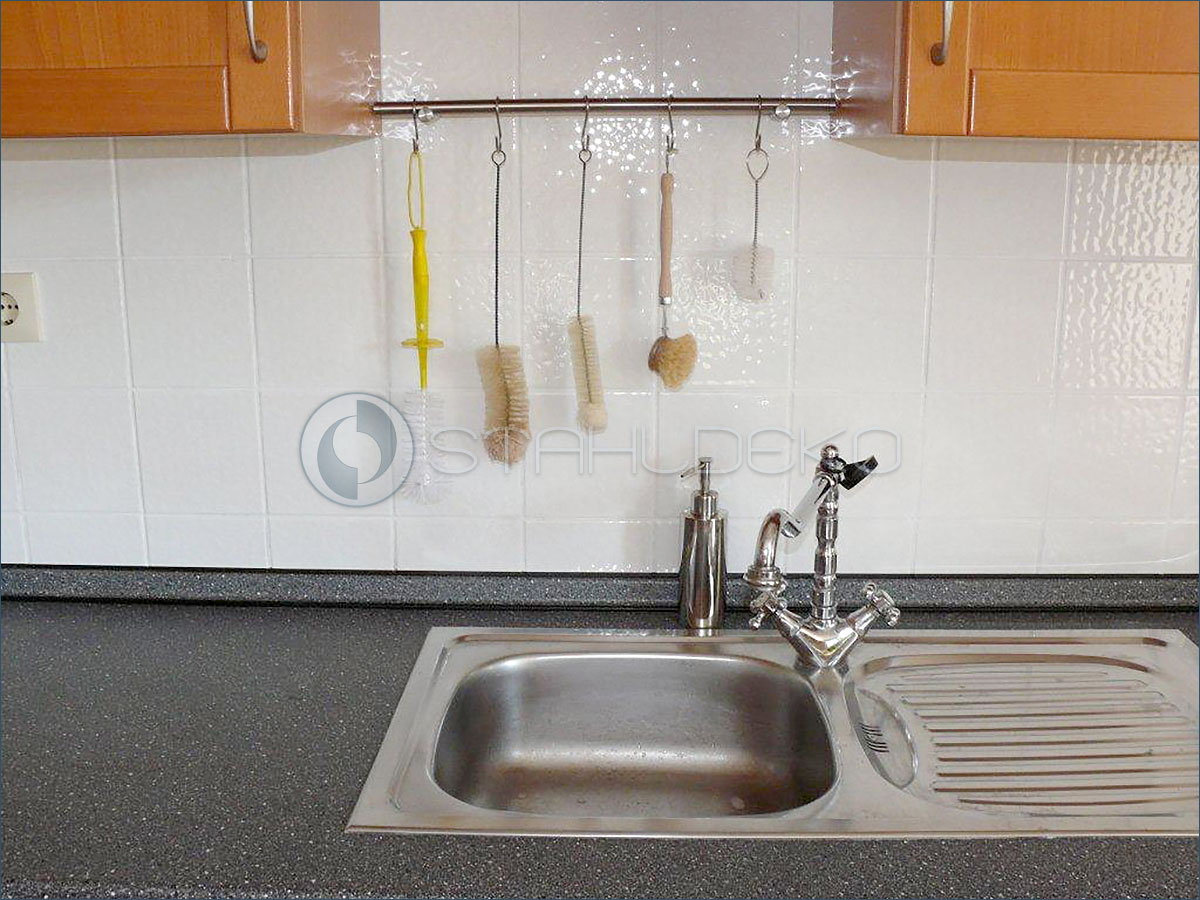

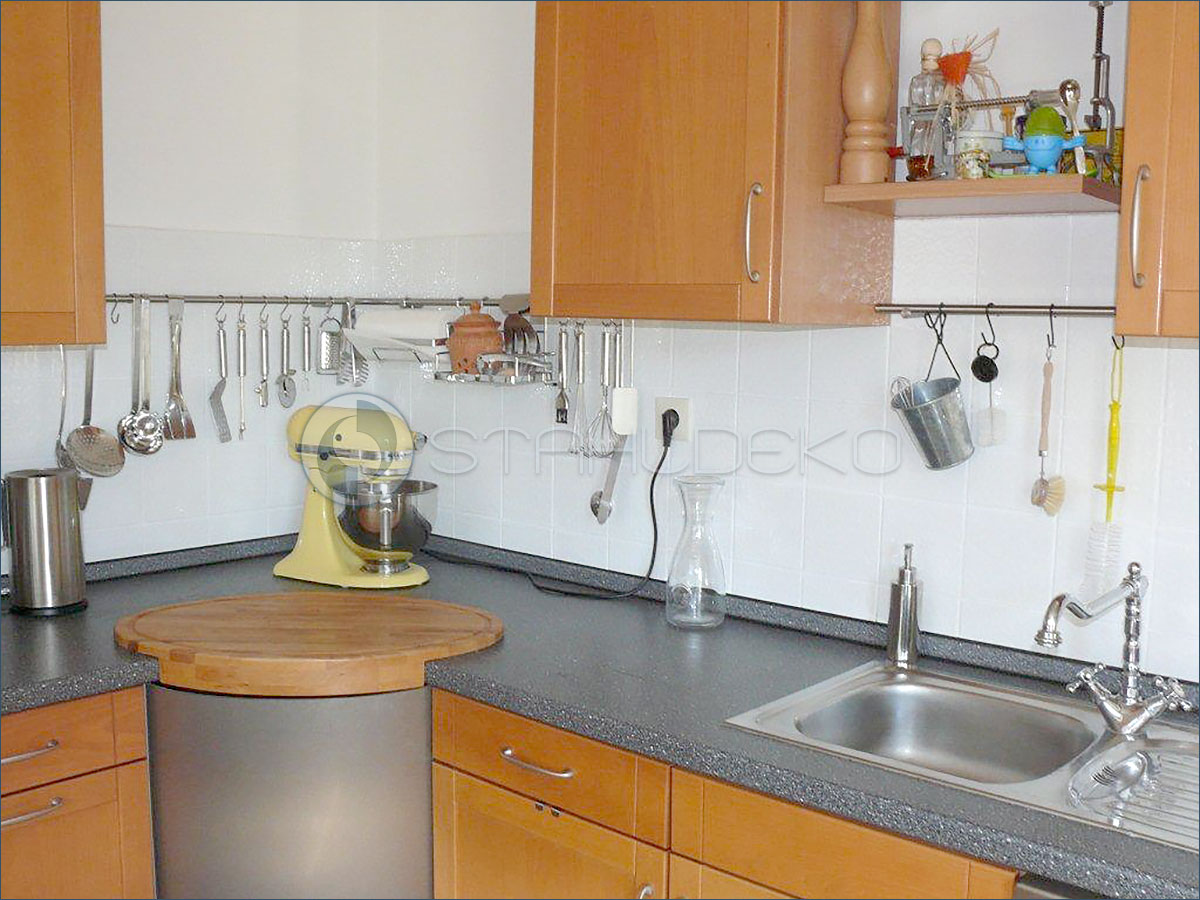

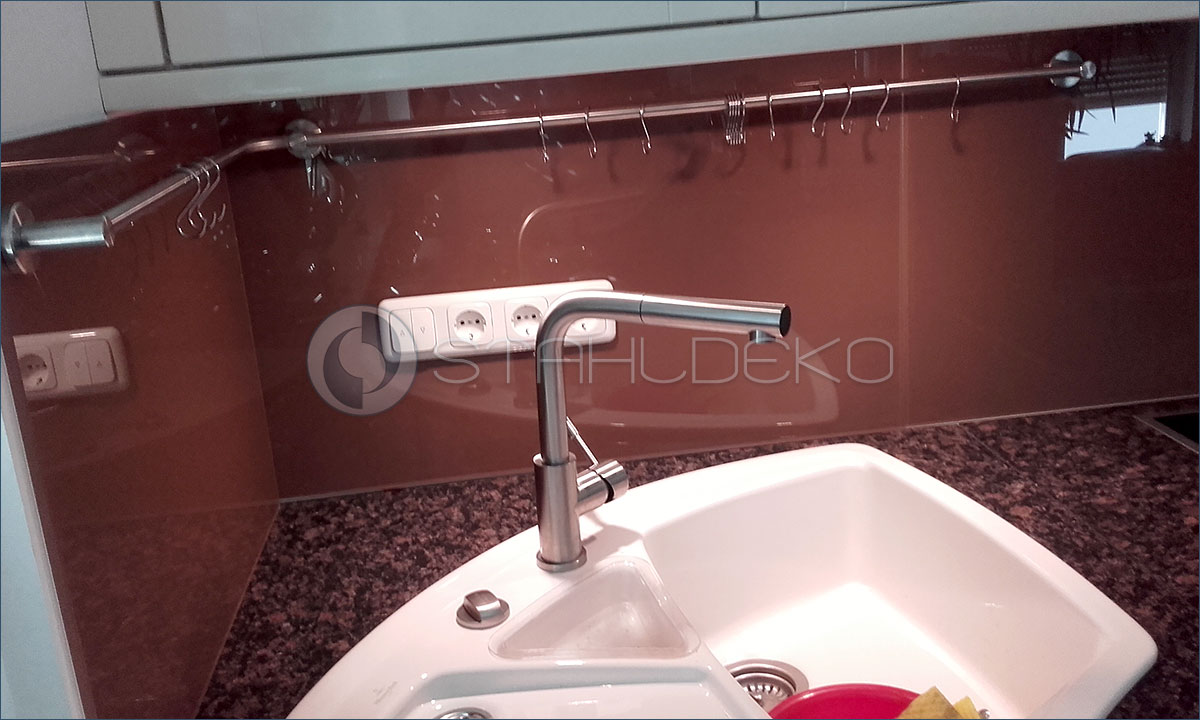

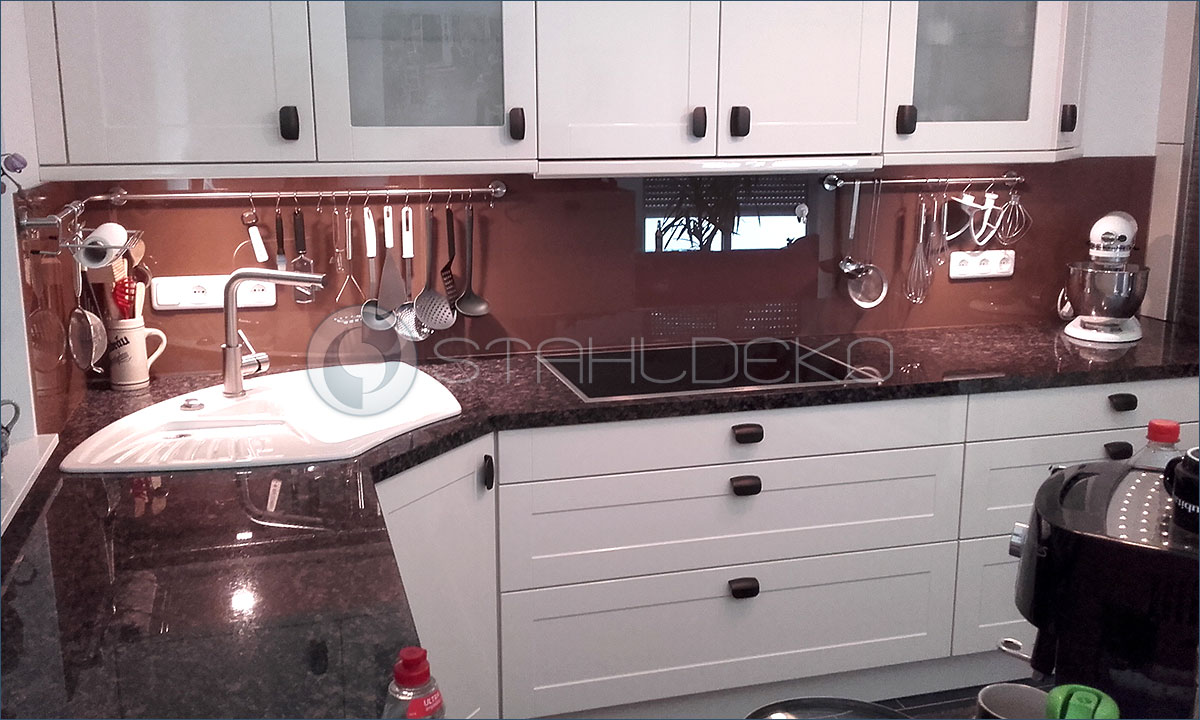

Railing Sont 16 with hooks, railing system with 16mm tube.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
very good optical uniformity
Grain size 2500
Shiny brushed appearance
for kitchen, for kitchen equipment and furnishings
Wall distance without base plate 49mm, with base plate 57mm. Base plate Ø44mm

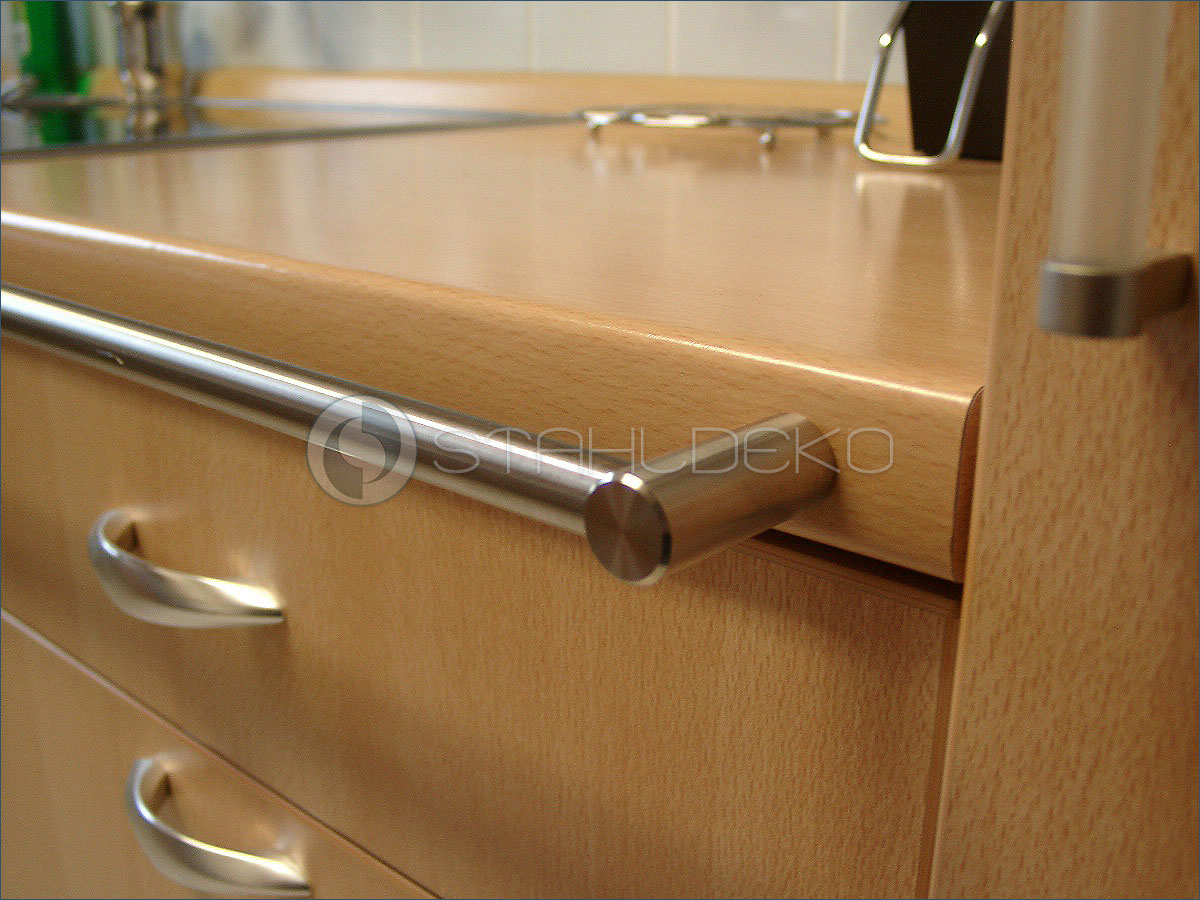

V2A rod bracket Sont16, open
Is screwed onto a base plate
for a railing length of 140cm, an intermediate bracket is supplied
