Create your own design railing made of stainless steel: System Sont-10
Stahldeko stainless steel accessories for kitchen equipment and kitchen design: modern railing system Sont 10, as a classic railing with
the tube Ø 10mm, completely in stainless steel with a satin finish. Consists of the tube Ø 10mm, open support beams Sont 10, optionally
with or without base plate. The intermediate supports are supplied from a length of 100 cm. To close the open pipe ends, you can use the
cylinder end pieces or the impact caps. Of course, you can also select the railing tube without end pieces, for example to mount the
joints or the wall brackets on the tube ends. The material is solid stainless steel DIN WNR 1.4301 with a satin finish. For hanging
kitchen utensils, we offer hooks made of nickel-plated steel, stainless steel hooks made of flat steel or railing hooks as S-hooks made of
stainless steel. Mounting material included for simple 1-point attachment. With the help of additional railing brackets, joints and wall
bearings, it can be expanded to form a U-shaped and L-shaped kitchen railing. *Custom-made products on
request, apart from straight railings, we also bend all our railings into any other shape, made absolutely according to your needs and
space situation. Just send us a sketch and you will receive an offer for your individual railing rod.
Railing system for the Sont-10 kitchen: Measure, calculate and order the length
Ordered railing size is the pure tube length. Total length is usually larger, the allowance for the end pieces is added to the tube
length. Please refer to the drawing for the dimensions *If desired, please enter the number in cm in the field "shorten
by:". then we will cut the tube to the right length for you. For example: If you need a tube of exactly 183cm, then under
"Length" please select - 200cm, and in the field "Shorten by:" enter the number "17
cm". Sections are not sent. * Parcel service shipping: The tubes up to 260cm are
always delivered in one piece. The tube is divided in the middle from a length of 260cm. A connection adapter is always included. A
holder is to be attached to the connection point. * Freight forwarding: The tubes longer
than 260cm and up to 400cm are delivered in one piece. *Rail longer than 400cm (also in one piece) - price

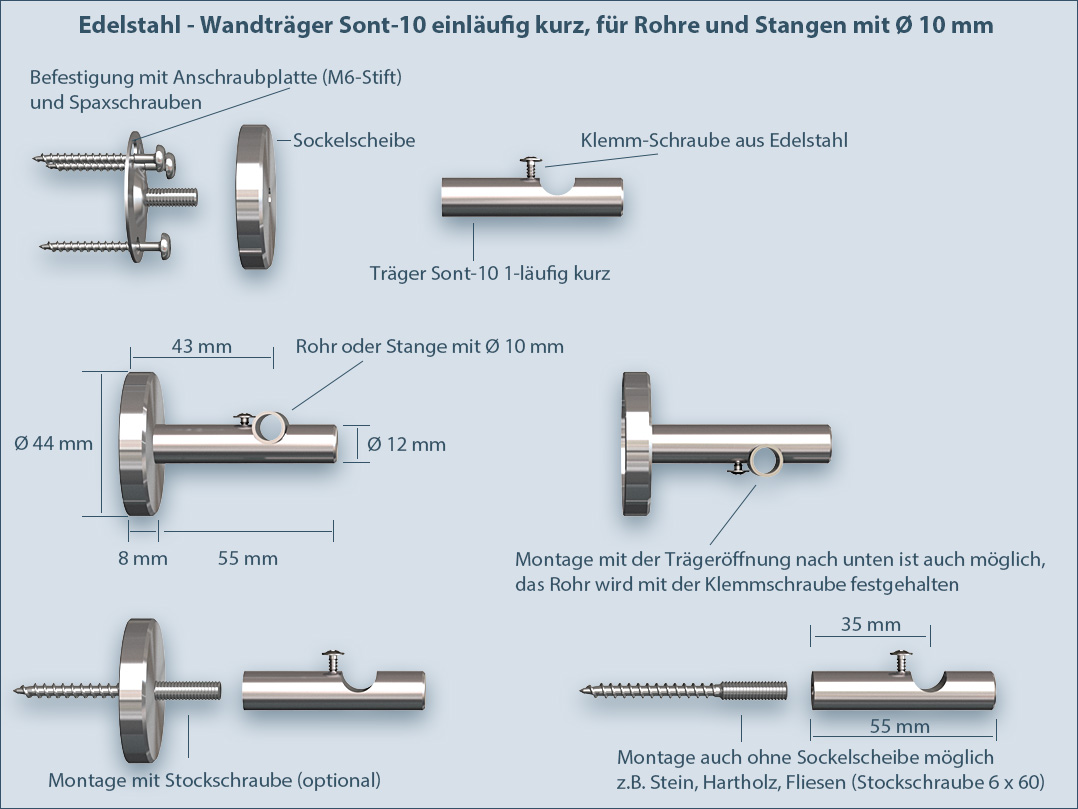

Holder for the railing Sont-10 1-track short: Fastening and assembly instructions for different versions.
bracket system you can choose the following versions: with or without a base plate, and place the railing supports on the rod absolutely
freely. You can attach these railing brackets horizontally (wall or front edge of worktop) or vertically (cupboard, shelf bottom or top
edge of worktop). First mount the hanger bolt (incl. dowels for wall mounting) on the wall. Then slide on the base washer (if selected)
and screw the holder onto the hanger bolt grub screw. Then insert the tube into the holder openings and fix it with the clamping screws.
You can also place the Sont railing carrier with the openings facing downwards; the railing rod is also held firmly with the clamping
screws in this position. The Sont carrier has an M6 thread in the carrier foot, so alternative attachment with a metric screw or
mounting plate is possible.
Order tube end pieces for the railing system Sont-10.
In order to close the pipe ends,
we offer impact caps or cylinder end pieces. Simply select the desired end piece in the corresponding field. Of course, you can also order
the version without end pieces, for example to use a pipe joint or a wall bracket at this point.

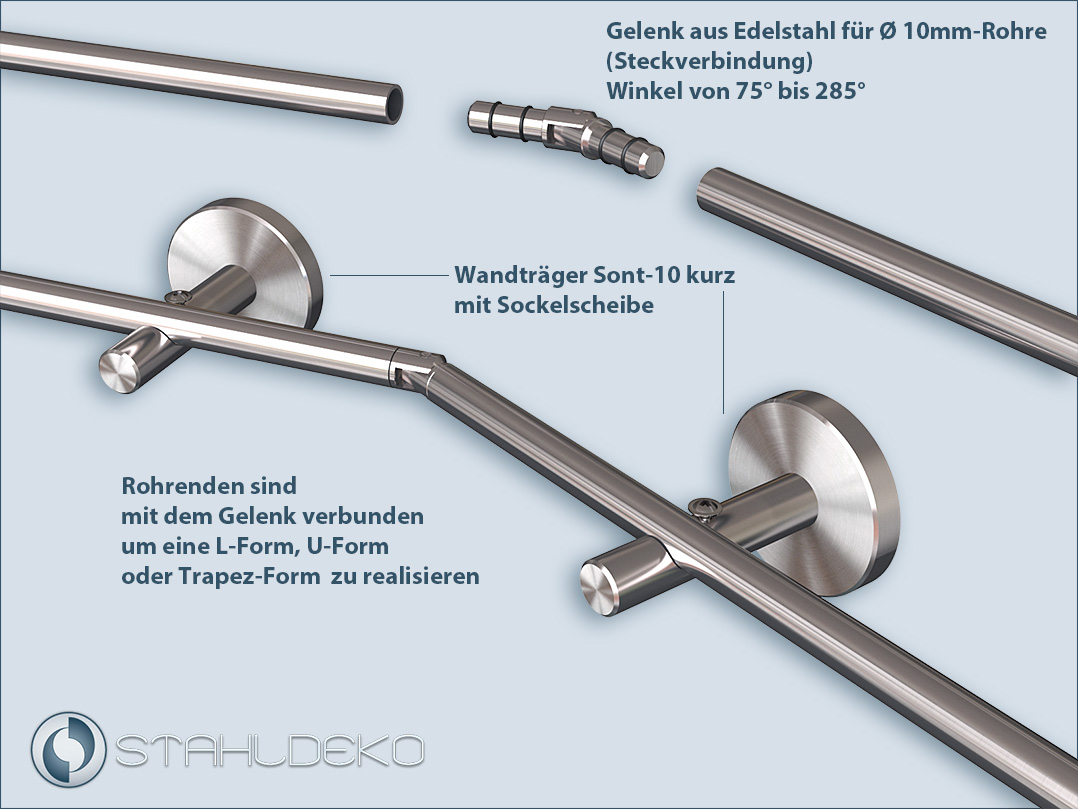

Connect tube ends with joints to create an L-shape or U-shape railing.
If you need an L-shape or U-shape or
trapezoidal-shape railing for your kitchen area, then you can use our corner joint connectors for the 10mm diameter round tubes. These
joints are inserted into the pipe ends instead of the end pieces, so you can easily achieve any angle from 75° to 285°. To assemble an
L-shaped railing, order: 1 railing with a tube open on one side and 1 piece end piece + 1 piece railing with a tube open on one side, 1
piece end piece and with 1 piece joint To configure a U-shape or a 3-sided trapezoid railing, order: 2 pcs. railing with a tube open on
one side and 1 pc. end piece + 1 pc. railing with a tube open on both sides without end pieces but with 2 pcs. joints Need help
configuring? Write to us or call us.
Order hook made of steel, nickel-plated, for 10mm railing.
You can use our nickel-plated steel hooks to attach kitchen
utensils to the Rail Post-10. Please refer to the drawing for the dimensions.
S-hook for railing with 10mm diameter, material stainless steel.
Hook S-shape made of V2A stainless steel, very stable
and robust, bent from 3mm stainless steel wire, ends are punched. For indoor and outdoor use as a railing hook. Easy attachment and
detachment to 10mm tube by "clamping system with 9mm opening" Please refer to the drawing for the dimensions.
Stainless steel hook made of flat steel for railing with 10mm rod diameter
Absolutely stable hooks made of V2A stainless
steel, bent from 1.7 x 3.2mm flat steel, ends are punched. For tubes and rods with Ø 10 mm. Also suitable for outdoor use. For use in the
kitchen area as a railing hook. Please refer to the drawing for the dimensions.
Product Information: Stainless Steel Ring Hook for 10mm Pipes
The V2A stainless steel ring hook, formed from 3mm stainless steel wire, is robust and known for its smooth operation. It is compatible
with pipes of various diameters, including 10 and 12mm versions. The closed design provides protection against theft, making the ring hook
a secure choice for commercial applications. Usable in a variety of settings, from indoor to outdoor areas. Please refer to the
illustration for exact measurements.

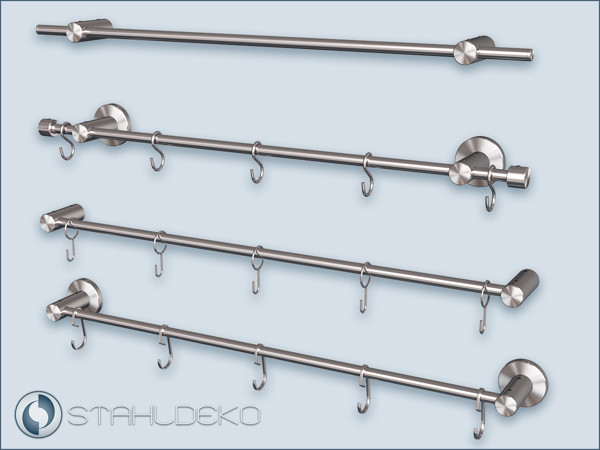

Examples of use and extensions: Design railing Sont 10, with stainless steel rod Ø 10mm
Railing Sont10 as a delimitation
for the worktop in the kitchen, for example to secure the hob.
Here the railing is mounted on the front edge
of the kitchen worktop and bent as an inside corner. Ideal solution as a kitchen towel rail. Simply hang towels and pot holders that you
don't need at the moment on the rail, they stay close at hand and are always at hand.
U-shape railing for outside
corner Sont10. Closing is also possible with wall brackets. The inner corner solution is also implemented according to the same
Inside corner oriel railing for kitchen furnishings and kitchen
design, railing systems in trapezoidal form: we manufacture your railing to fit any wall or worktop angle, whether outside corner or
We will also be able to offer you a suitable
Religsystem for curved walls in the kitchen or round worktops.
Design railing Sont10, stainless steel V2A system Sont10 for kitchen design.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
very good optical uniformity
Grain size 2500
Shiny brushed appearance
for kitchen, for kitchen furnishings and equipment
Wall distance without base plate 35mm, with base plate 43mm. Base plate Ø48mm
Stainless steel rod bracket Sont10, open
Is screwed onto a base plate
for a railing length of 100cm, an intermediate bracket is supplied
