Configure your own brass kitchen rail: Post 16 model
Hook rail which combines classic style with functionality, railing system Pfosten-16 with the round tube Ø 16mm completely in brass DIN
MS.65 with a satin finish and covered with an impact-resistant protective varnish. Consists of round tube Ø 16mm, short railing supports
for post 16 open at the side, optionally with or without a base plate. The intermediate supports are supplied from a length of 120 cm. To
close the pipe ends, you can use the cylinder end pieces or the ball end pieces. Of course, you can also select the tube without end
pieces, for example to mount the joints on the tube ends. We offer railing hooks made of brass-plated steel or S-hooks made of stainless
steel for hanging up kitchen accessories. Including fastening material for simple 1-point fastening. With the help of additional brackets
and joints, it can be expanded to form a U-shaped and L-shaped railing system. *Custom-made products on
request, apart from straight brass tubes, we also bend all our railing tubes in any other shape, made absolutely according to your needs
and space situation. Simply send us a sketch and you will receive an offer for your individual hook rack for your kitchen.
Hook rail post 16: calculate and order the correct length.
Ordered kitchen railing size is the pure tube length. The total length is usually greater, in the case of the version with open external
supports, the allowance for end pieces is added to the tube length. Please refer to the drawing for the dimensions *If desired, please
enter the number in cm in the field "shorten by:". then we will cut the brass tube to the right length for you. For
example: If you need a tube of exactly 127cm, then under "Length" please select - 140cm, and in the field
"Shorten by:" enter the number "13 cm". Sections are not sent. *
Parcel service shipping: The tubes up to 260cm are always delivered in one piece. The tube is divided in the middle
from a length of 260cm. A connection adapter is always included. A support is to be attached to the connection point. * Freight forwarding: The tubes longer than 260cm and up to 400cm are delivered in one
piece. *Kitchen rail longer than 400cm (also in one piece) - price on request.

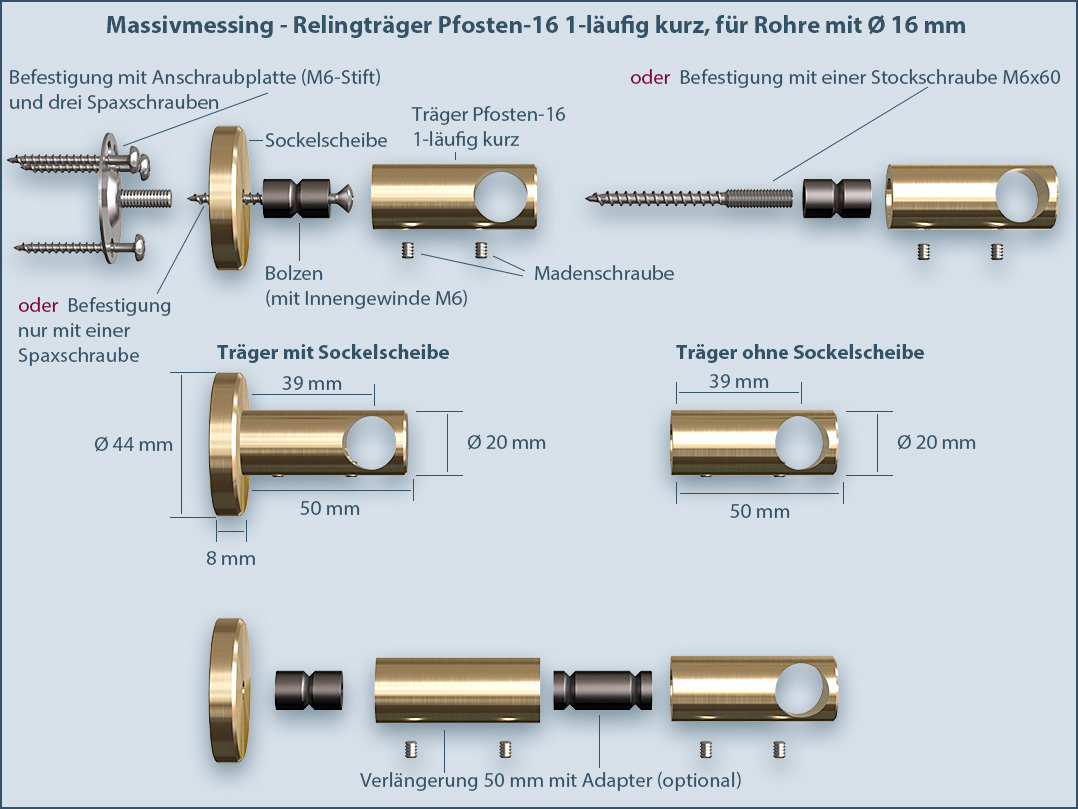

Support for hook strip system Pfosten-16 short: Fastening and assembly instructions for different versions.
With this carrier system with open sides,
you should close the tube ends with end pieces, we offer the end pieces ball and cylinder for this, of course you can also leave the tube
ends open in order to use a joint at this point. You can mount these railing brackets horizontally (wall or front edge of countertop)
or vertically (cupboard, shelf bottom or top edge of countertop). First, attach the stud (with or without a base washer) to the wall,
countertop, or cabinet. As standard, we supply a spax screw with the dowel as fastening material. The bolt has a continuous M6 thread, so
an alternative attachment with a hanger bolt, metric screw or mounting plate is possible. Then slide the railing brackets (along with
the tube) onto the bolts and tighten the bracket grub screws (not too tight). Of course it is also possible to extend the bracket

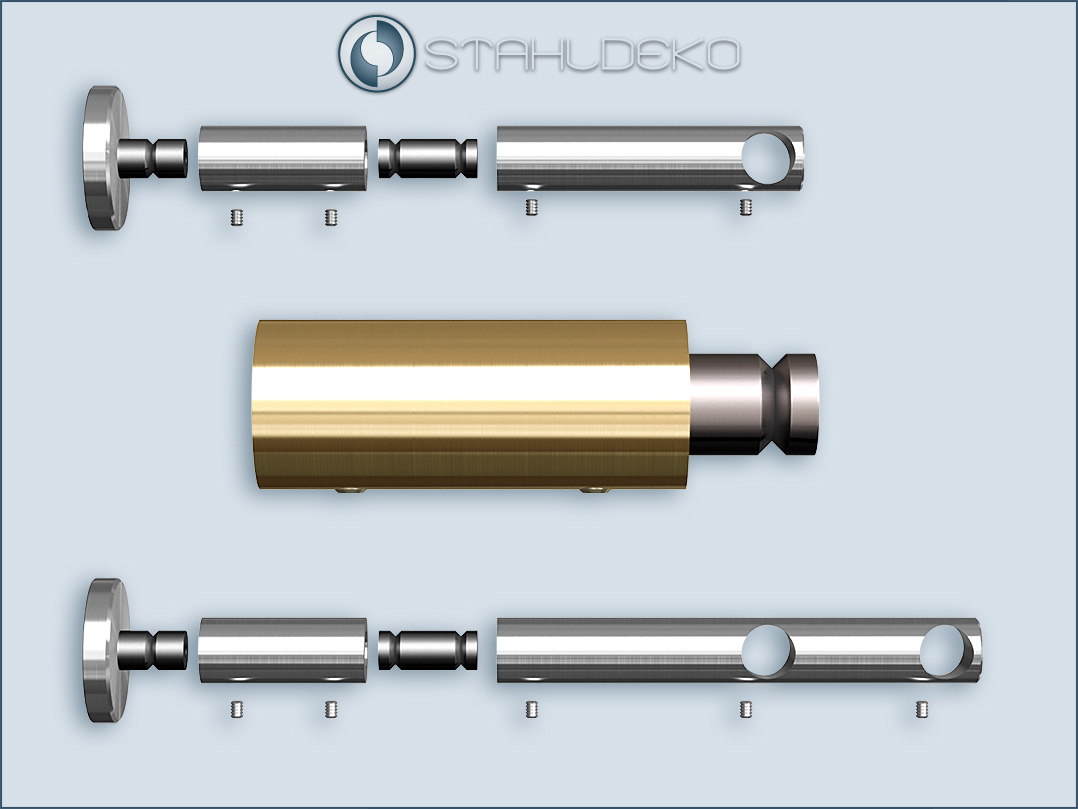

(optional). We also offer a 50mm extension made of brass for the post support system. You connect the extension and the carrier with an

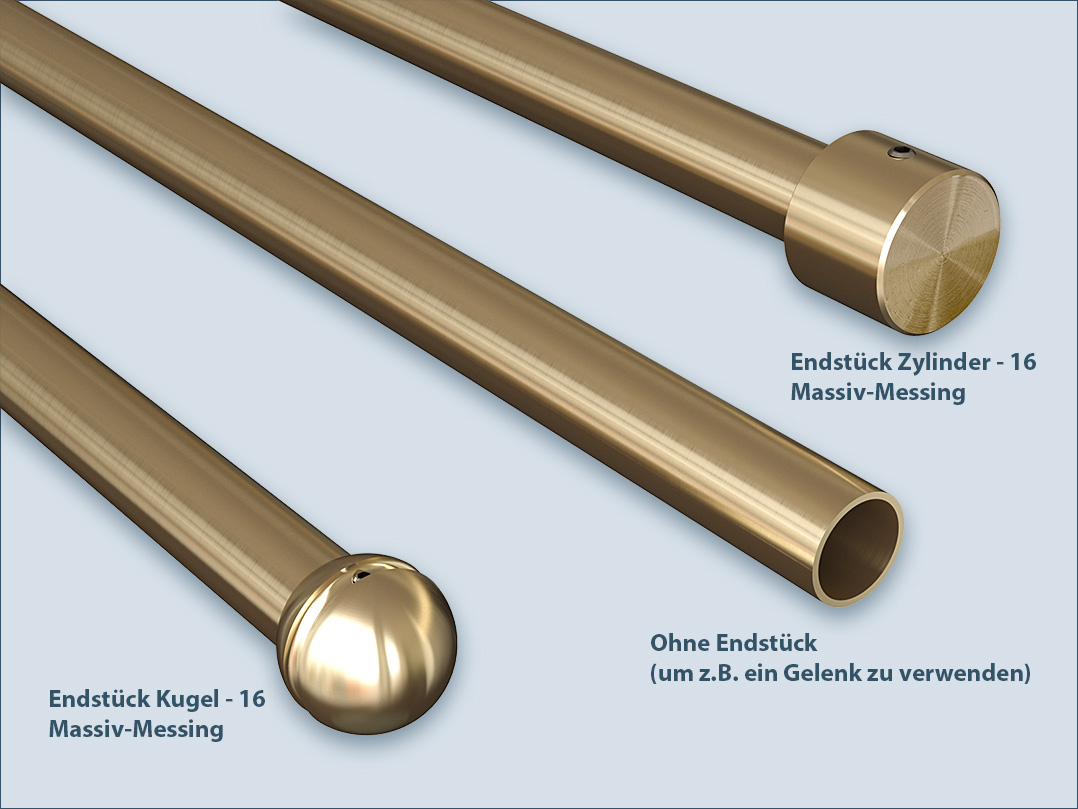

Order brass end pieces for the kitchen rail post-16.
The railing supports are open at the side, so you have to

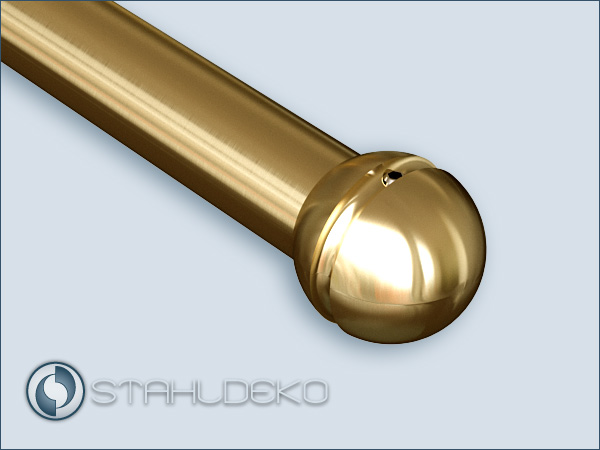

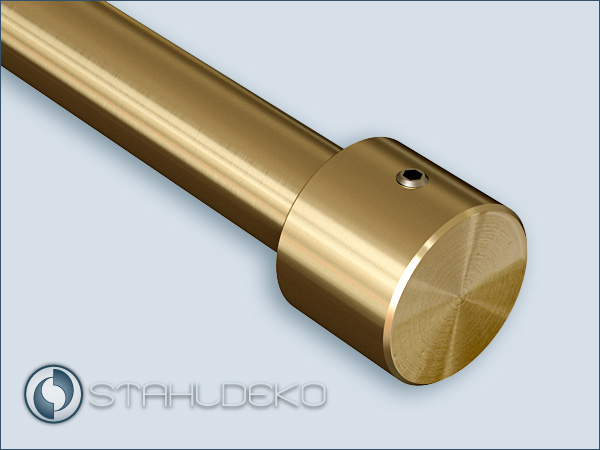

close the tube ends nW. For our railings, we offer ball end pieces or cylinder end pieces made of brass. Simply select the desired end
piece in the corresponding field. Of course, you can also order the version without end pieces, for example to use a joint connector (only
made of stainless steel) at this point.

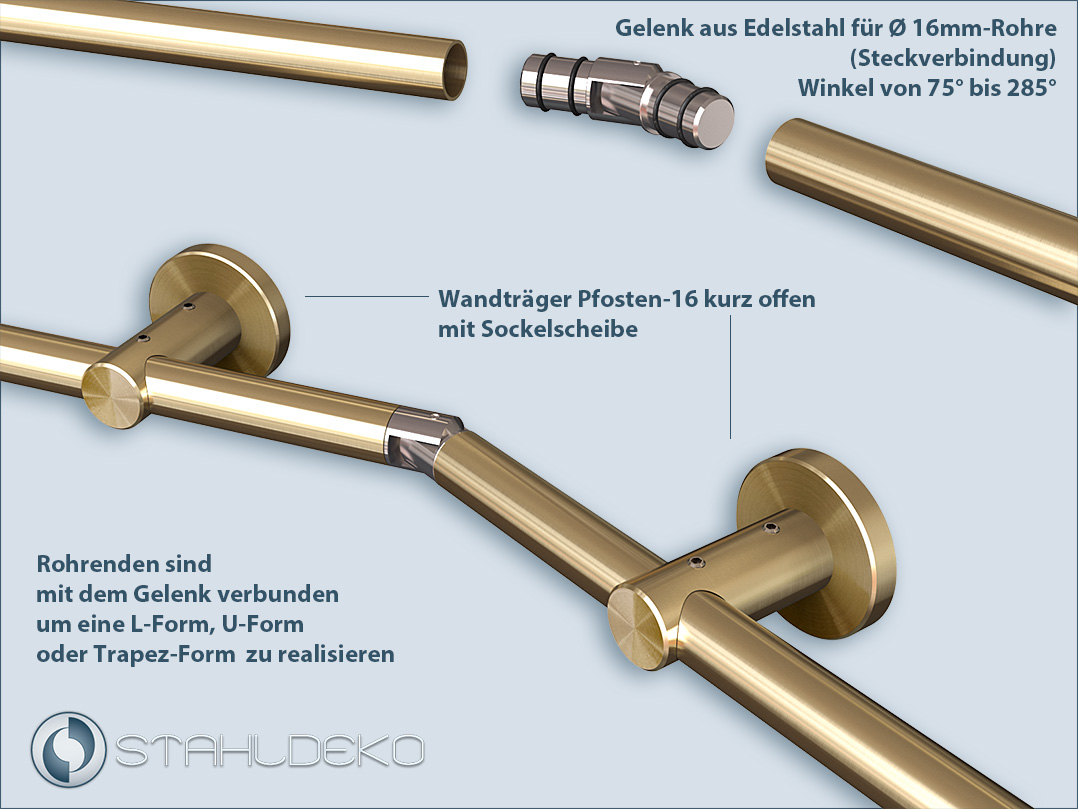

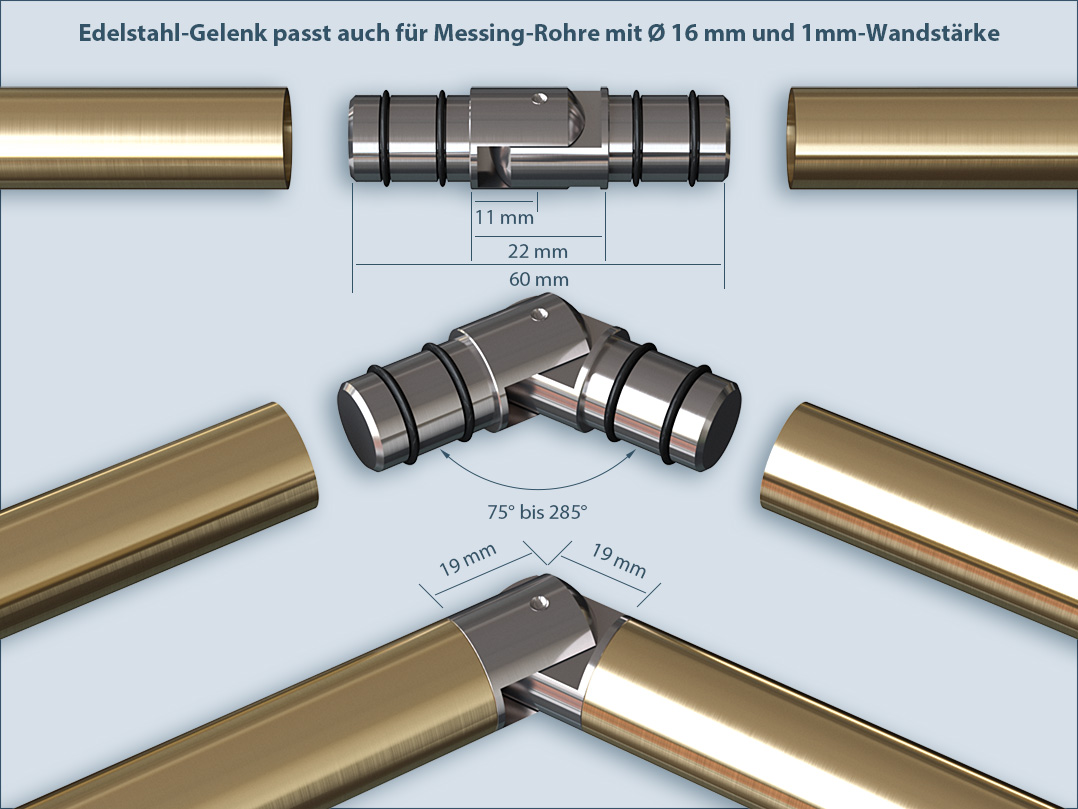

Connect the ends of the railing tube with a stainless steel joint to create an L-shaped or U-shaped hook strip.
If you need an L-shape or U-shape or
trapezoidal-shape railing for your kitchen, then you can use our stainless steel joints for the 16mm diameter round brass tubes. These
joints are inserted into the pipe ends instead of the end pieces, so you can easily achieve any angle from 75° to 285°. To assemble an
L-shaped railing bar, order: 1 railing with a tube open on one side and 1 piece end piece + 1 piece railing with a tube open on one side,
1 piece end piece and with 1 piece joint To create a U-shape or a 3-sided trapezoidal hook rail, order: 2 railings with a tube open on
one side and 1 piece end piece + 1 railing with a tube open on both sides without end pieces but with 2 pieces .joints Do you need help
putting it together? Write to us or call us.

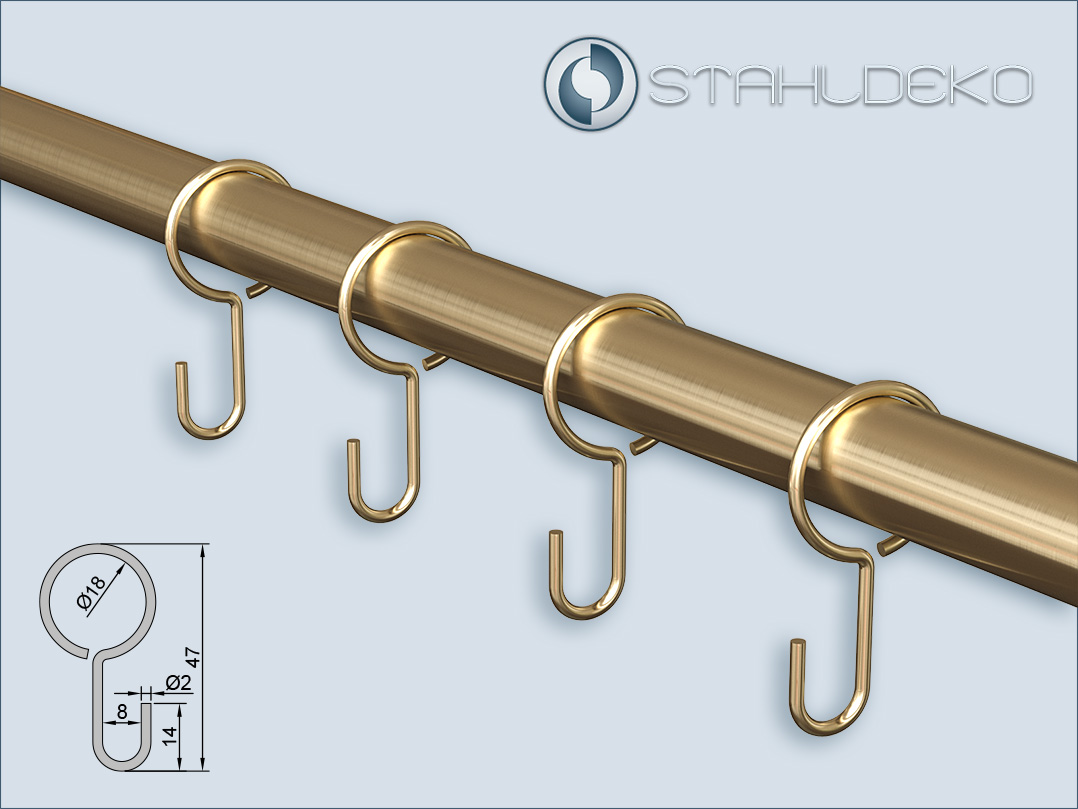

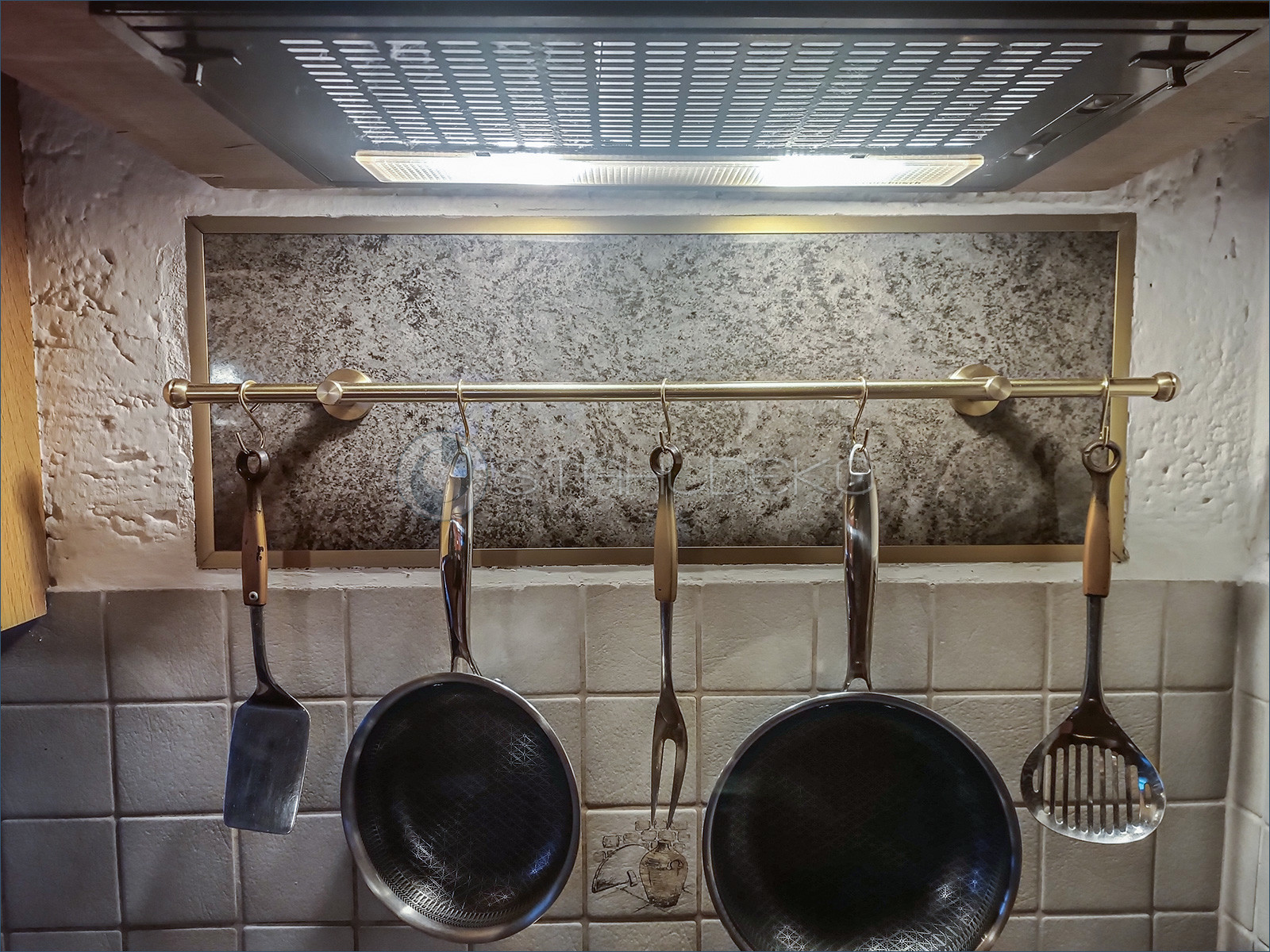

Order railing hooks made of steel, brass-plated, for 16mm kitchen railing.
You can use our
brass-plated steel hooks to attach kitchen utensils to the post-16 hook rail. Please refer to the drawing for the dimensions.

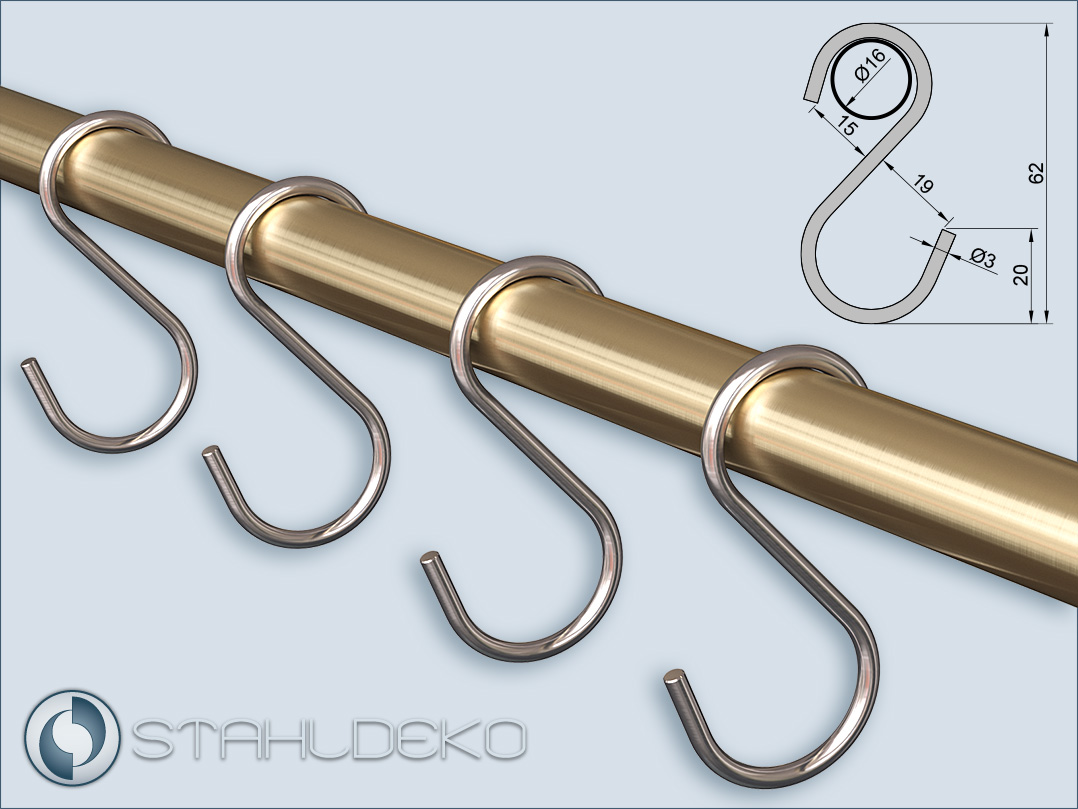

Stainless steel S-hook for 16mm diameter rods and tubes.
Hook S-shape made of V2A stainless steel, very stable and robust,
but at the same time very smooth-running, bent from 3mm stainless steel wire, ends are punched. For indoor and outdoor use as a railing
hook. Easy to attach and detach to 16mm pipe by "clamping system with 15mm opening" Please refer to the drawing for

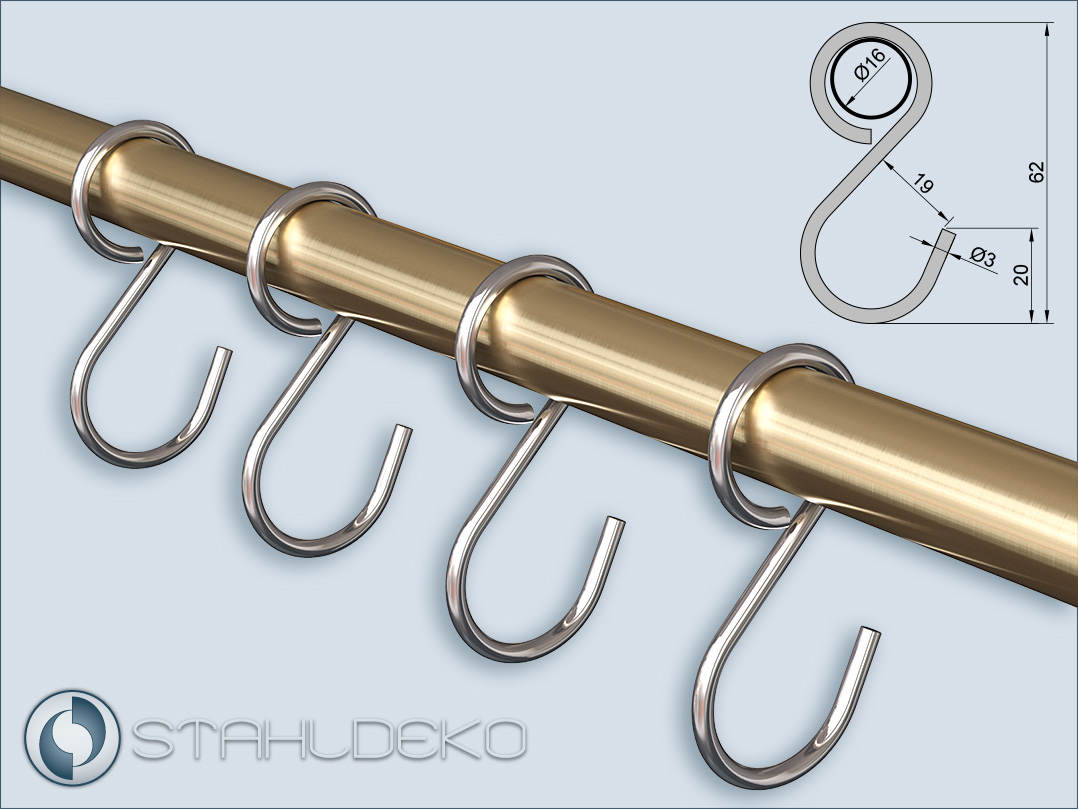

Product Information: Stainless Steel Ring Hook for 16mm Brass Pipes
This ring hook made of V2A stainless steel combines durability and effortless function. It is suitable for brass pipes with diameters of
up to 16mm. Its closed form prevents unauthorized removal and thus provides high security, ideal for use in commercial spaces as well as
for indoor and outdoor areas. For precise dimensions, refer to the technical drawing.
Examples of use and expansion: Kitchen rail post 16.

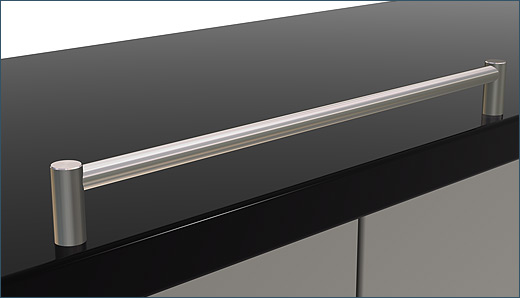

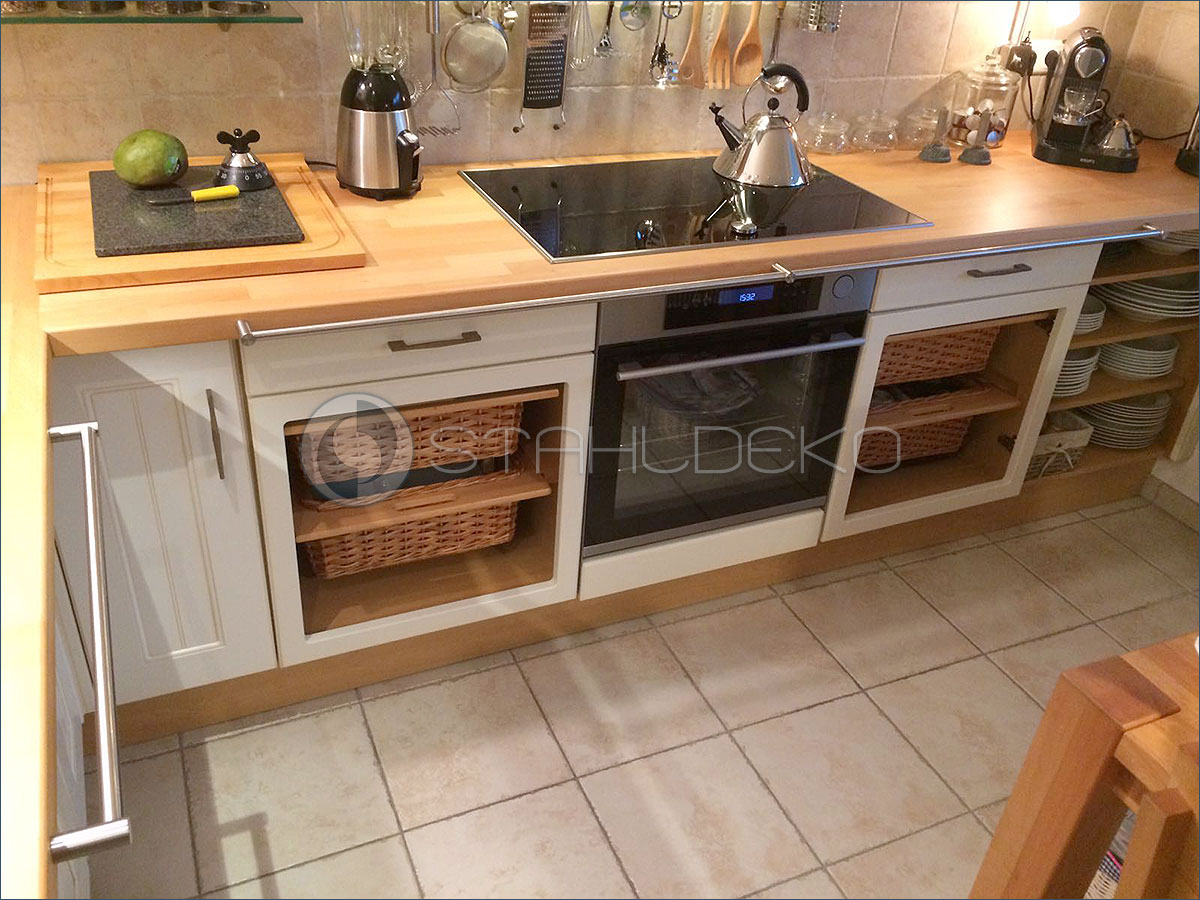

Kitchen rail post 16 for separating
shelves, worktops or hobs in the kitchen.

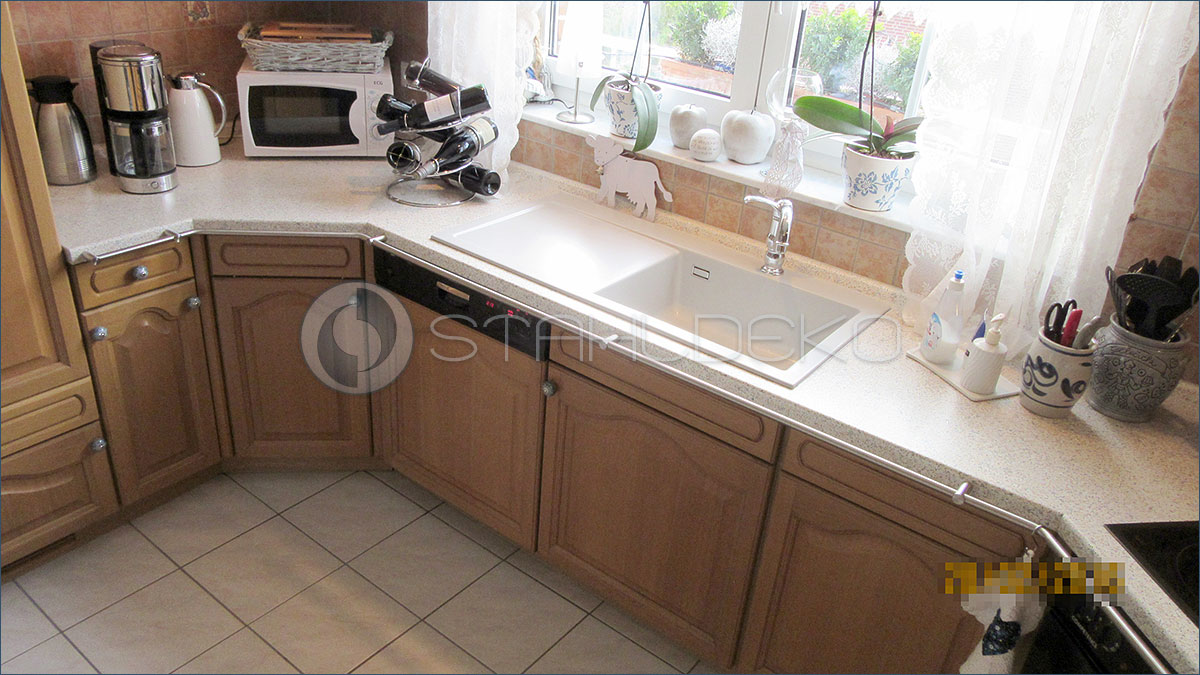

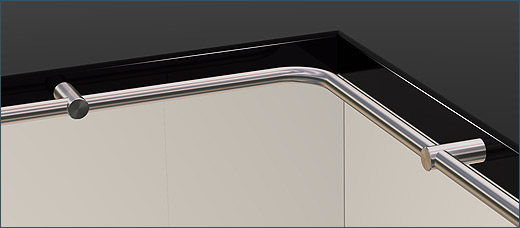

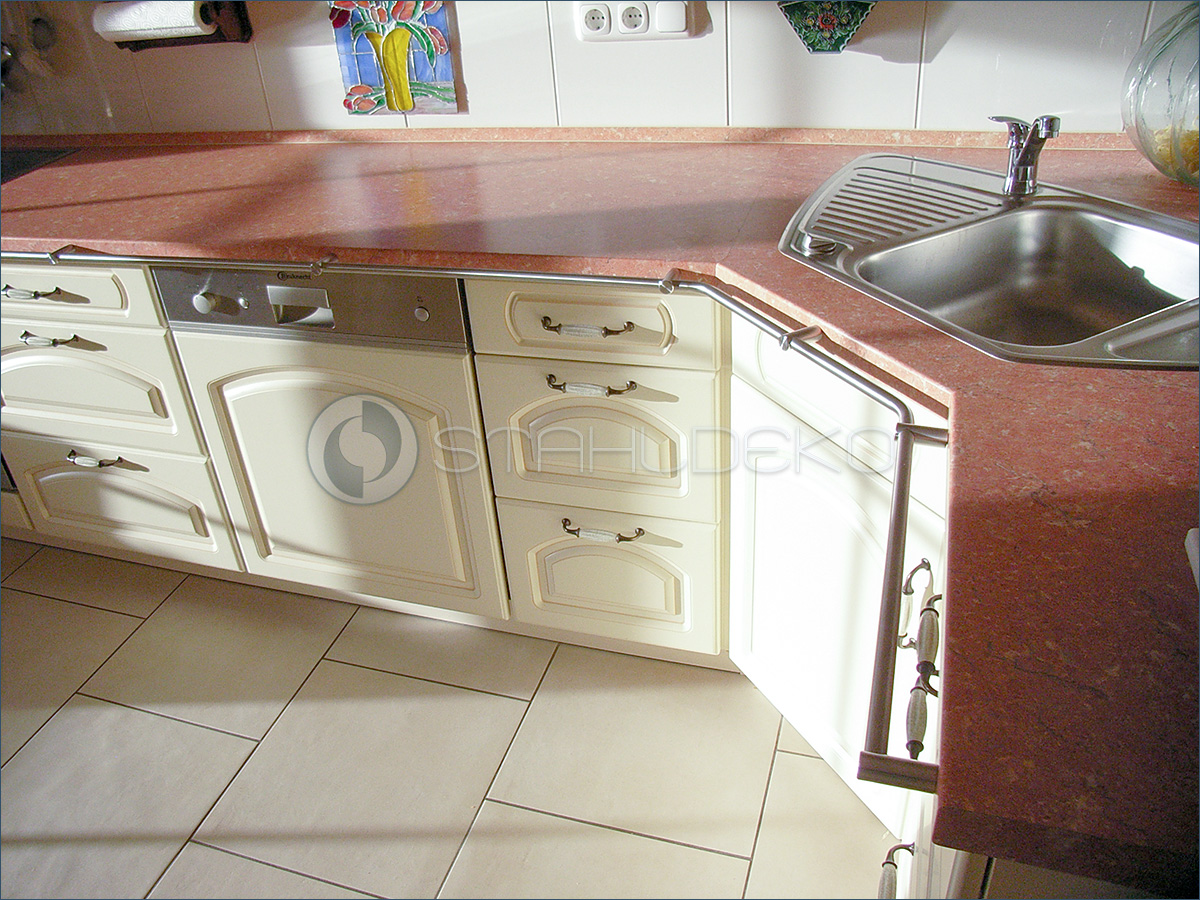

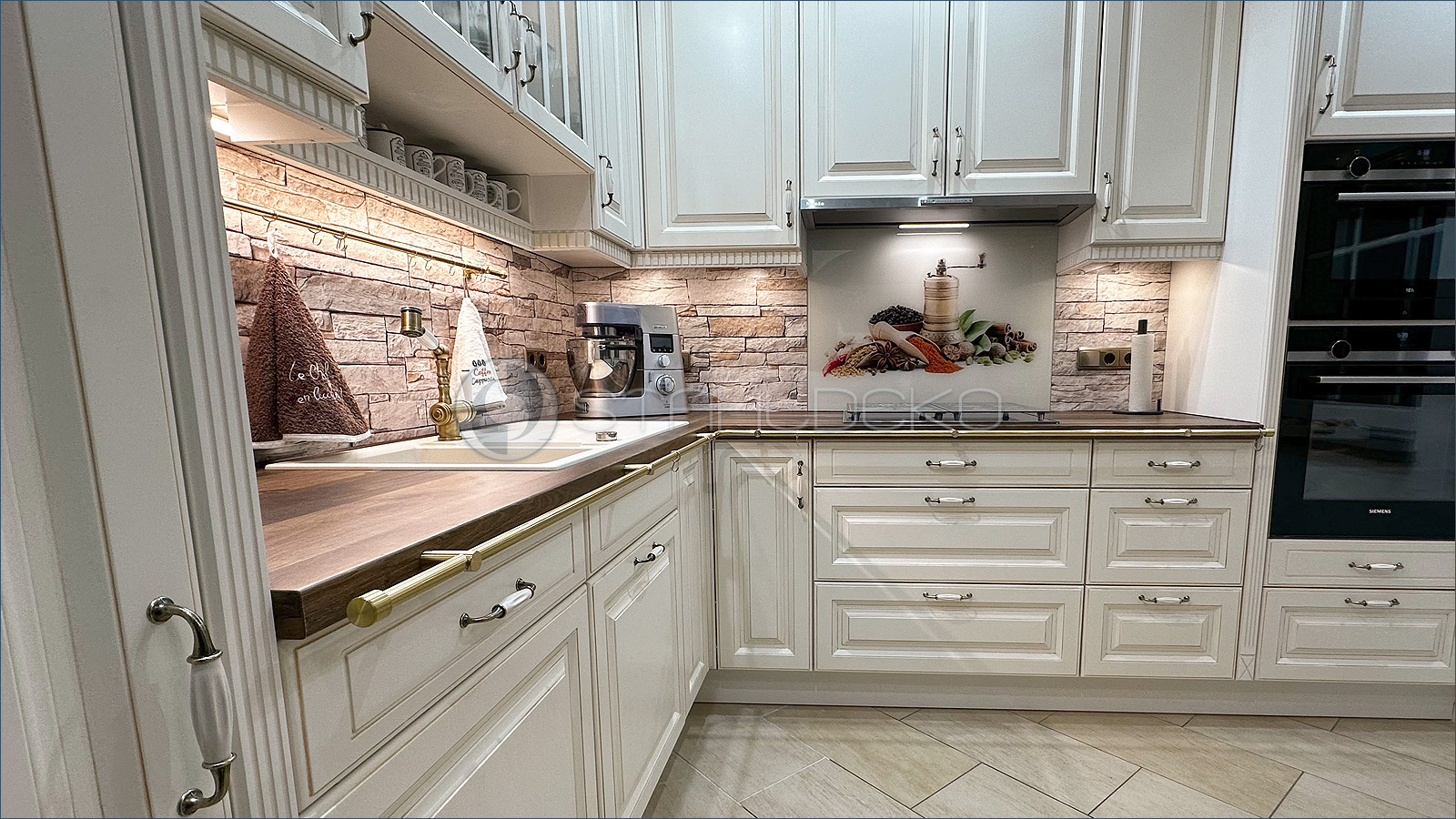

Post 16 railing system
attached to the edge of the worktop and bent at 90° as an inside corner. Inside and outside corners are possible with any angle, also
realizable with stainless steel joint 16mm. Functional towel holder for the kitchen area. Simply hang towels or potholders that you
don't need at the moment on the rail, they stay close by and are always at hand.

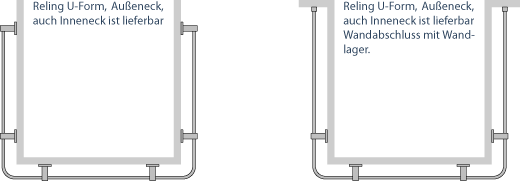

Railing systems U-shape for outside corner with post 16.
End is also possible with wall bracket. The inside corner solution is also implemented according to the same principle.

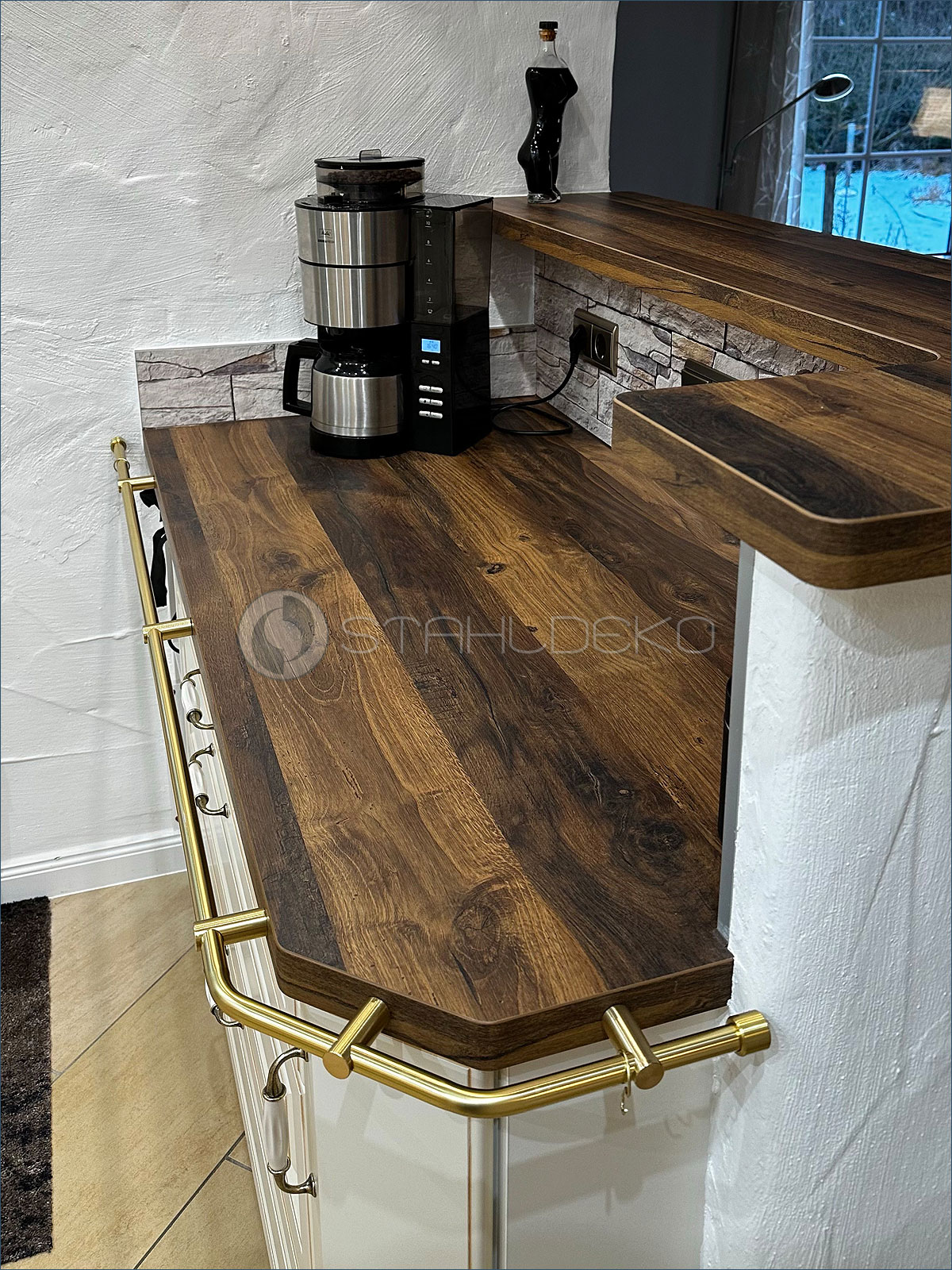

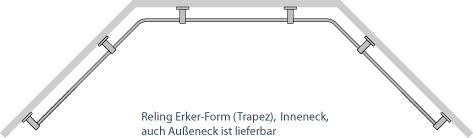

Bay window kitchen railing with inside
corner for kitchen area, railing system in trapezoidal shape: we manufacture your railing for every wall angle or worktop angle, whether
outside or inside corner.

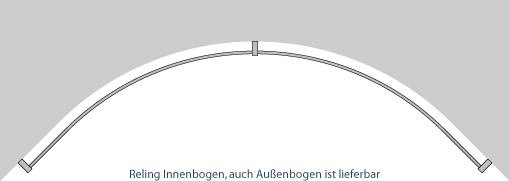

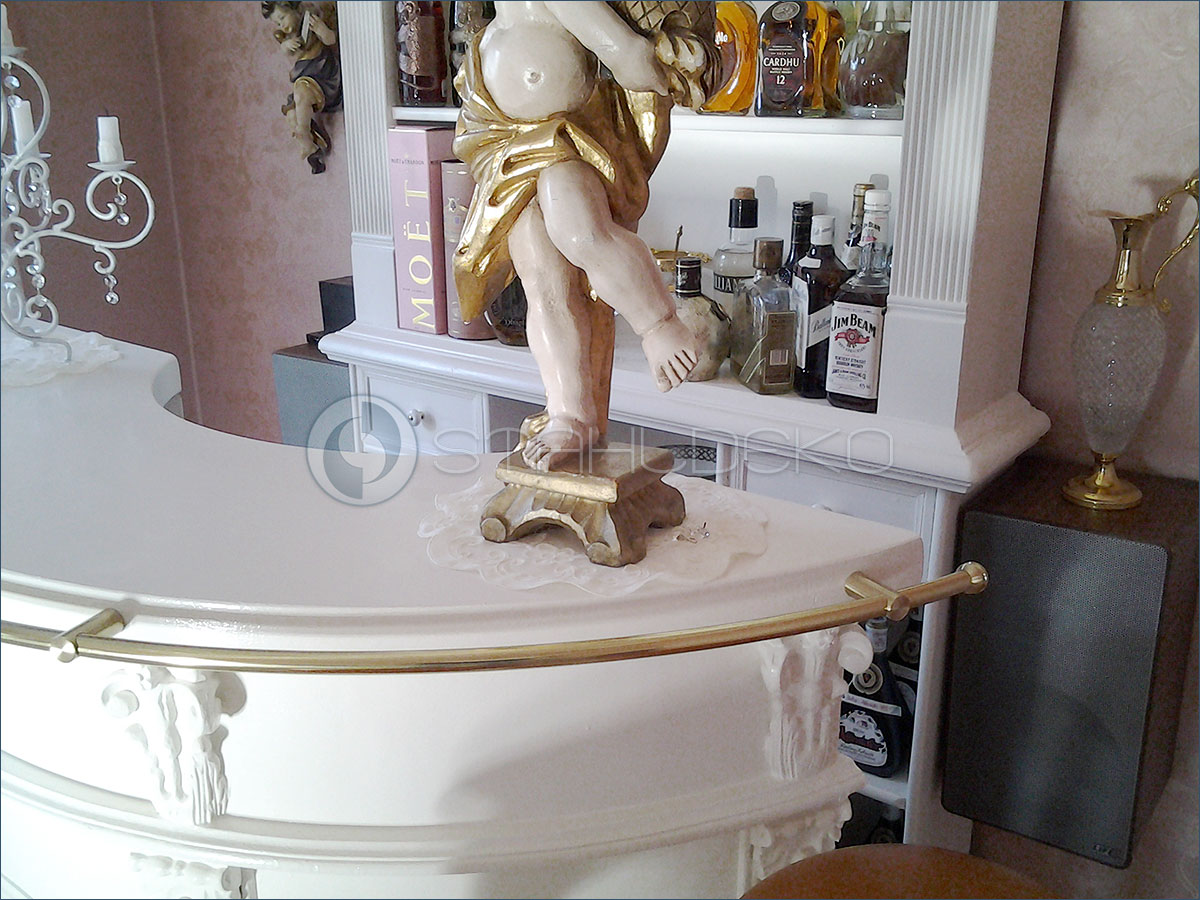

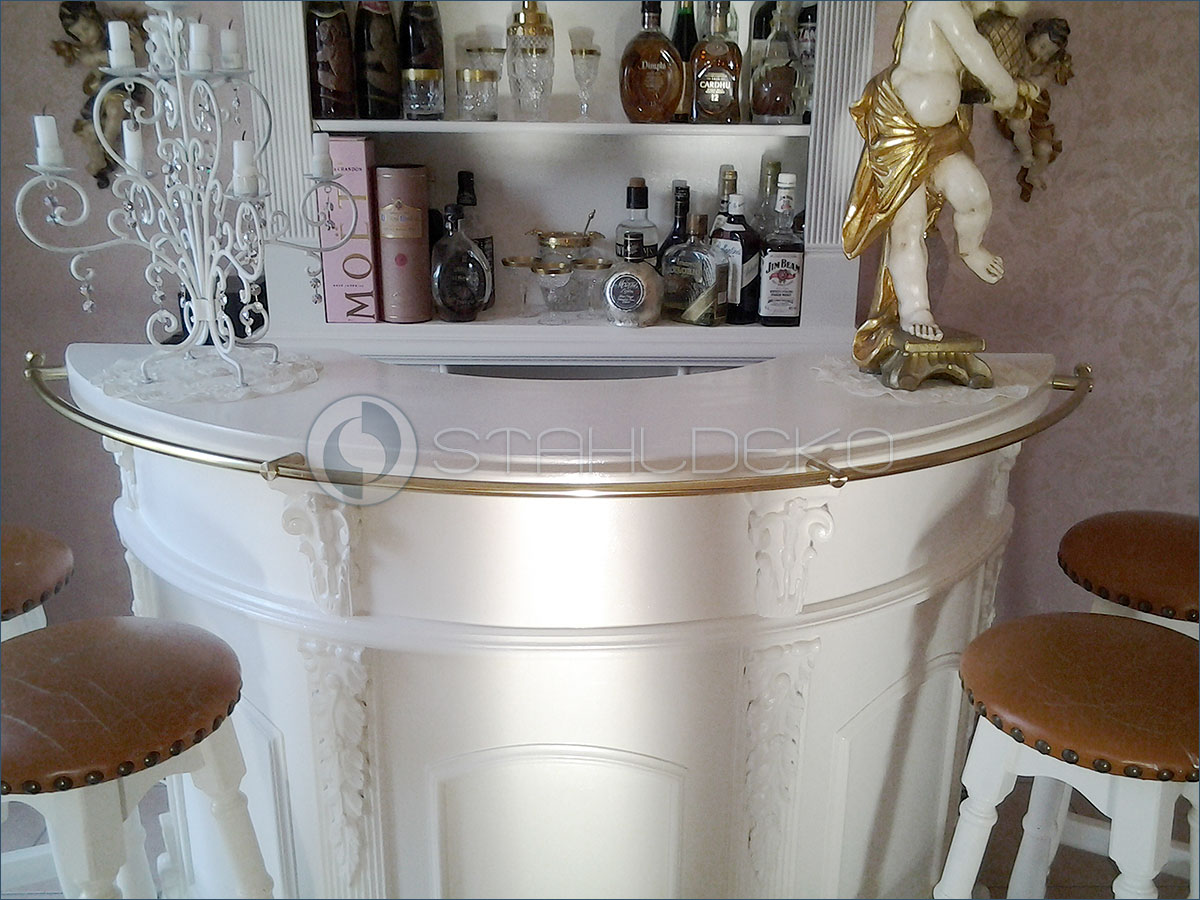

We will also be able to manufacture
a suitable railing for you for curved walls in the kitchen or round worktops.
