Profile systems made of high-quality aluminium: The ceiling supports, made of V2A stainless steel or powder-coated aluminum in white or black, are available in lengths of 45 cm, 60 cm, 80 cm and 100 cm and can be shortened by up to 5 cm.

The ceiling mount for our Stahldeko aluminum profiles is perfect for corner windows or bay windows. The ceiling supports offer the option of choosing any distance from the wall and, with lengths of 5 to 100 cm, enable a very variable distance between the curtain rod and the ceiling. Our sturdy base fasteners are even suitable for heavy curtains.
Ceiling beams and aluminum profiles combine the functional advantages of inner-tubes and the possibilities of unlimited curtain throwing for corner windows or bay windows. With the basic elements return, inner arch, outer arch, round arch as well as girders and double-barreled girders, wall bearings, solutions for complex interior design situations are ready.
Our aluminum profile system with ceiling attachment and aluminum arch is also suitable for shower curtains, wind protection curtains, room dividers, vestibule curtains and room partitions. All components of the system are consistently matched to each other.

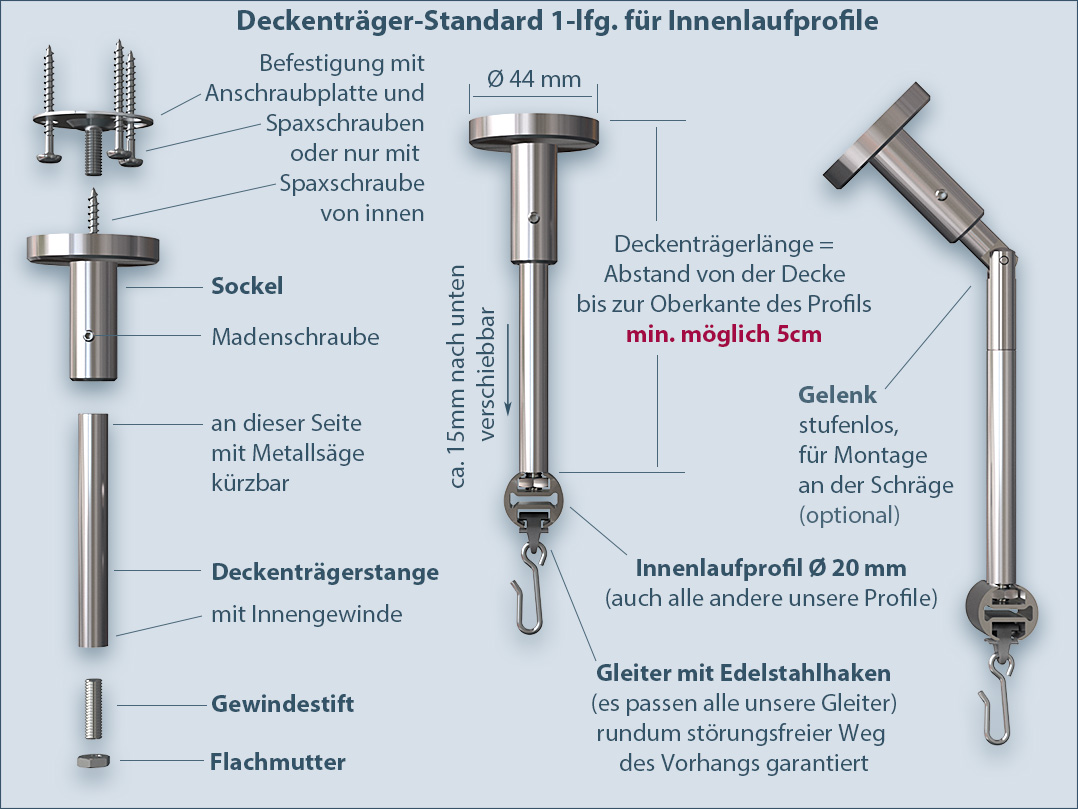

The ceiling mount for aluminum poles with inner track is suitable for 1-track and 2-track mounting systems

The positioning of the ceiling beams on the inner rail can be done absolutely freely. First mount the bases on the ceiling in accordance with the length of the curtain rod. You can either fasten this with a screw-on plate or screw it on directly with a spax screw.
In the next step, slide the flat nut, which is attached to the threaded pin, into the fastening barrel of the profile and position it according to the already mounted base. Now screw the ceiling support rods onto the threaded pins. The entire construction is then pushed to the ceiling and the ceiling support rods are inserted into the sockets.
Now tighten the grub screws in the sockets, but not too tight. You can adjust the height of the bracket in the base by approx. 2 cm and thus align the curtain rod absolutely horizontally on the ceiling.
If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw. However, the minimum possible distance is approx. 50 mm.

Of course, we can also offer you a solution for mounting on a sloping roof or wall.

If you want to attach the ceiling bracket to a slope, please order a joint for 10mm tubes. First screw this joint to one side of the ceiling support rod (a grub screw and a drive-in nut are supplied). Push the other side of the joint into the base and fix it with a base grub screw. In this way, you can easily mount the ceiling bracket on the wall or roof slope at any angle.
Of course, you can combine the ceiling brackets with and without a joint on a curtain rod, for example if the rod ends at the side of a sloping wall.

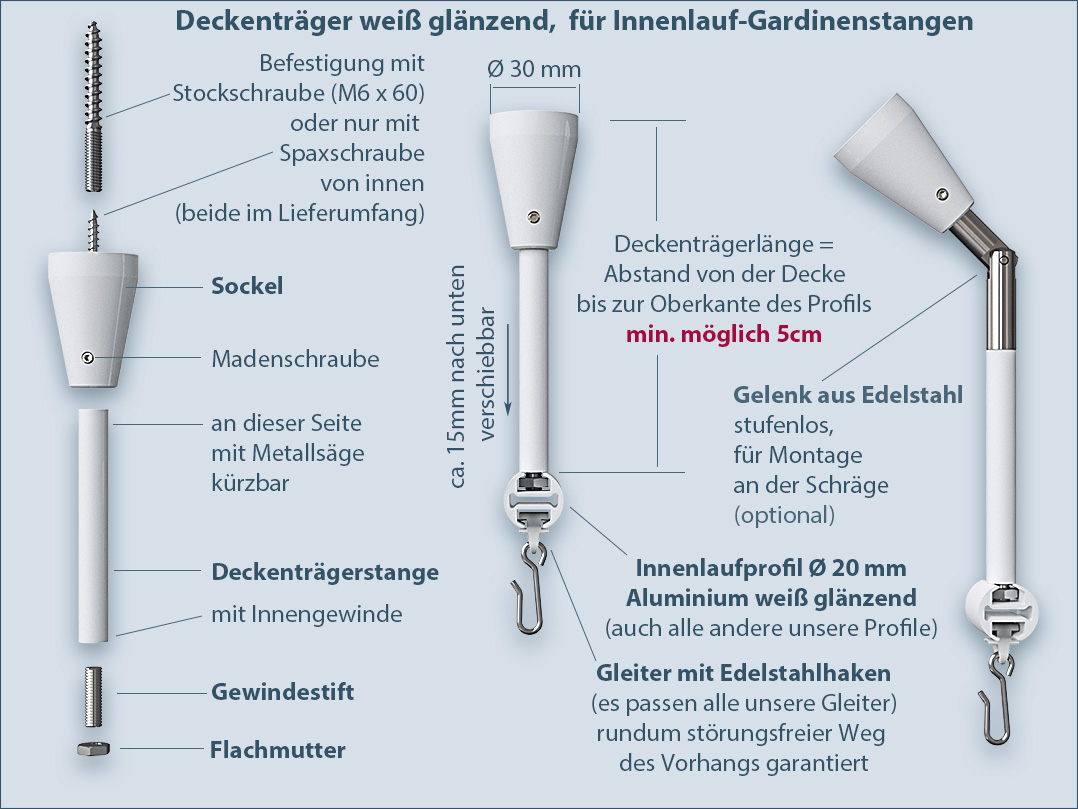

Inner track fastening system for mounting on the ceiling Standard 1-track, made of glossy white aluminium

You can place the white ceiling supports absolutely freely on the inner rail. First mount the bases on the ceiling according to the length of the curtain track. You can either attach the base with a hanger bolt or screw it on directly with a Spax screw.
Then slide the flat nut, which is attached to the threaded pin, into the fastening barrel of the profile and position it according to the base already attached. Then screw the ceiling support rods onto the threaded pins, push the construction towards the ceiling and insert the ceiling support rods into the sockets.
Now tighten the grub screws in the base, but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the rail absolutely horizontally on the ceiling. If you want a smaller distance from the rail to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw. The minimum possible distance is about 50 mm.

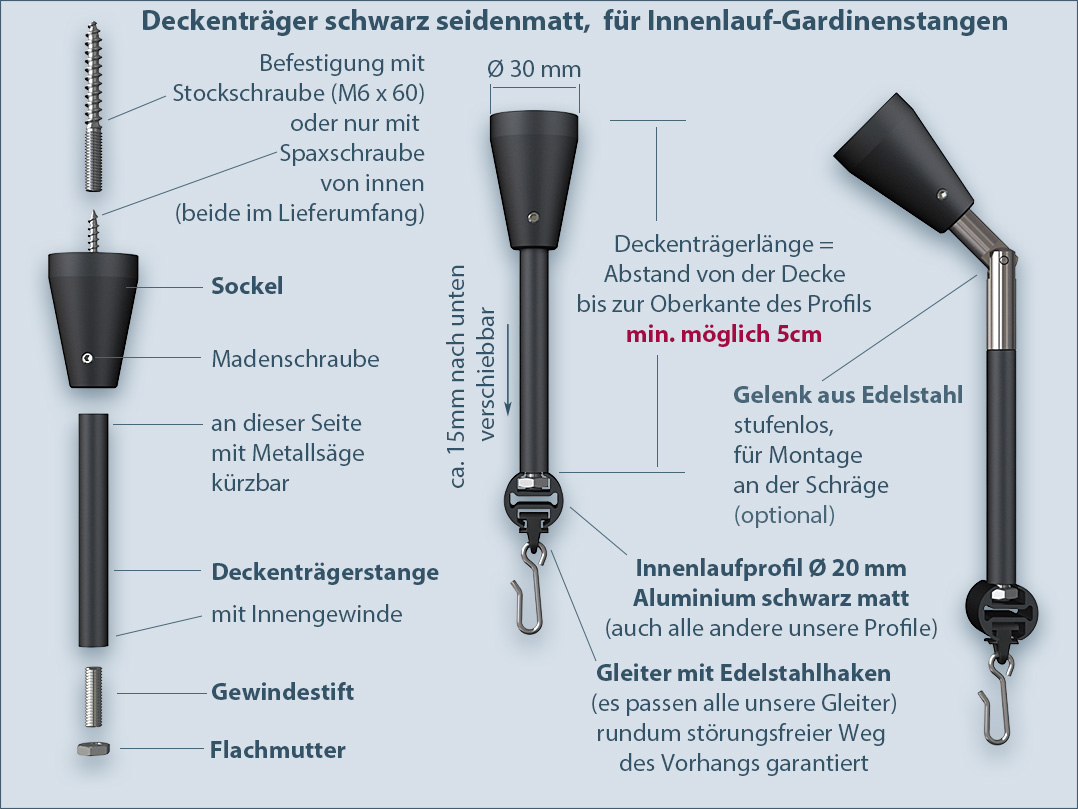

The standard 1-track inner rail mounting system for ceiling mounting is made of black satin aluminum

You can flexibly position the ceiling supports, in elegant black satin finish, along the inner rail. Begin the installation by attaching the bases to the ceiling to match the length of your curtain track. You have two options for attaching the base: Use either a hanger bolt or direct attachment with a spax screw.
In the next step, slide the flat nut attached to the threaded pin into the profile's attachment run and align it with the already attached base. The ceiling support rods are now screwed onto the threaded pins. Then bring the entire construction closer to the ceiling and insert the ceiling support rods into the sockets.
The next few steps involve tightening the grub screws in the sockets - but not over tightening. This allows you to adjust the height of the brackets in the base by about 2 cm in order to align the rail exactly horizontally on the ceiling. If a smaller distance between the rail and the ceiling is desired, it is possible to shorten the ceiling support rod with a hacksaw. The minimum possible distance is about 50 mm.

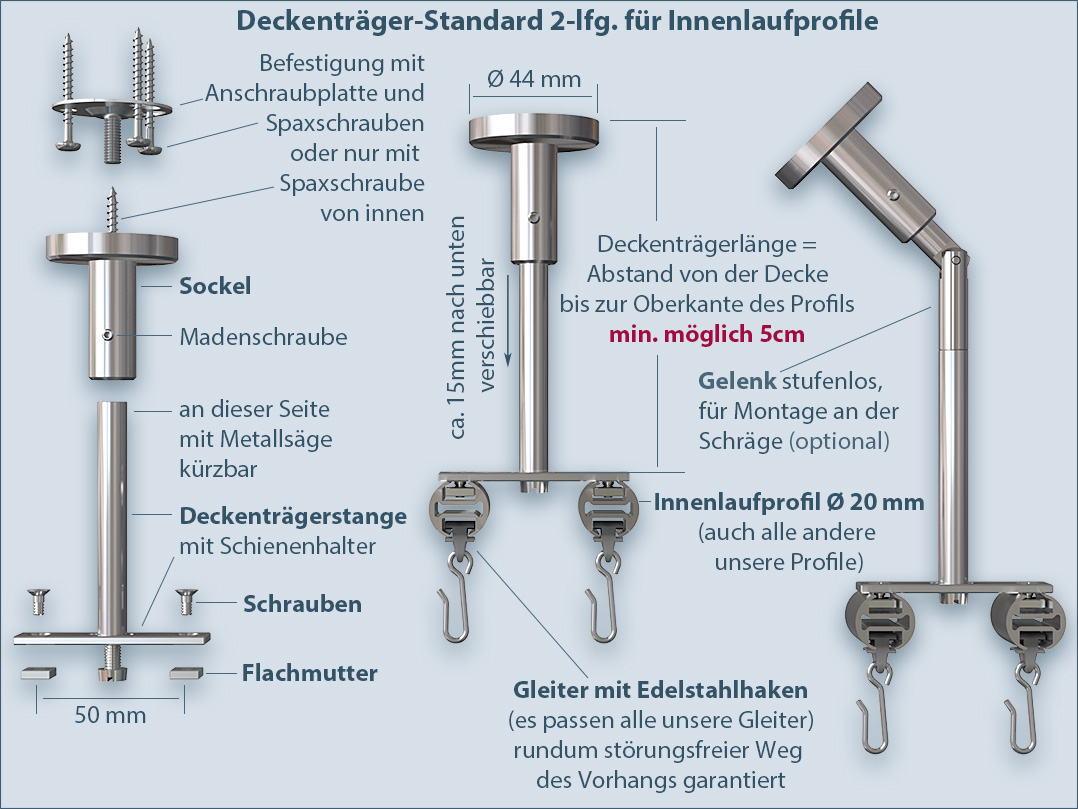

Inner track mounting system for attachment to the ceiling, standard, two-track, material: stainless steel V2A

You can position the double-track ceiling brackets on the inner curtain rod as you wish. Start by mounting the bases on the ceiling, adjusted to the length of your curtain rod. The bases can either be attached using a screw-on plate or screwed on directly with a spax screw.
In the next step, slide the flat nut into the profile's fastening barrel and position it according to the bases already attached. Then screw the ceiling support rods with the 2-track rail holders to the flat nut. Slide the entire construction towards the ceiling and insert the ceiling support rods into the sockets.
Now tighten the grub screws in the sockets - but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the curtain rod absolutely horizontally on the ceiling. If you prefer a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

Of course, we also offer you a double-barreled ceiling bracket for mounting on sloping roofs or walls.

If you want to install a double-barreled ceiling support on a slope, you only need a joint for 10 mm pipes. First attach this joint to one side of the ceiling support rod (a grub screw and drive nut are included). Then slide the other side of the joint into the base and fix it with a grub screw. In this way, the ceiling support can be mounted easily and at any angle on sloping walls or roofs. It is of course possible to combine the ceiling brackets with or without a joint on a curtain rod - for example if the rod ends at the side of a sloping wall.

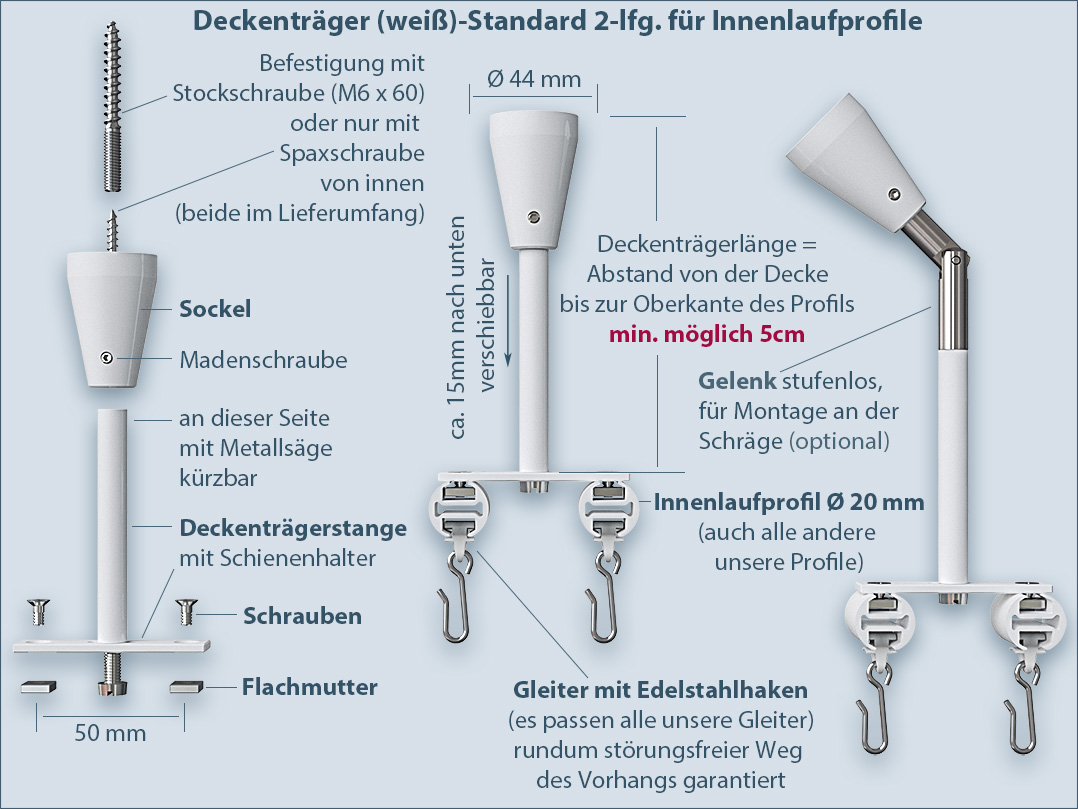

Inner track mounting system for attachment to the ceiling Standard, two-track, aluminum glossy white

Of course, our two-track standard ceiling support is also available in glossy white aluminum to match our white inner rails. You can position the double-track ceiling beams on the inner rail as you wish.
First, mount the bases on the ceiling according to the length of the rod. The bases can either be fastened with a hanger bolt or screwed on directly with a Spax screw.
Then slide the flat nut into the profile's fastening barrel and position it according to the base already attached. Screw the ceiling support rods with the two-track rail holders to the flat nut. Then push the construction to the ceiling and insert the ceiling support rods into the sockets.
Now tighten the grub screws in the sockets, but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the curtain rod absolutely horizontally on the ceiling. If you prefer a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

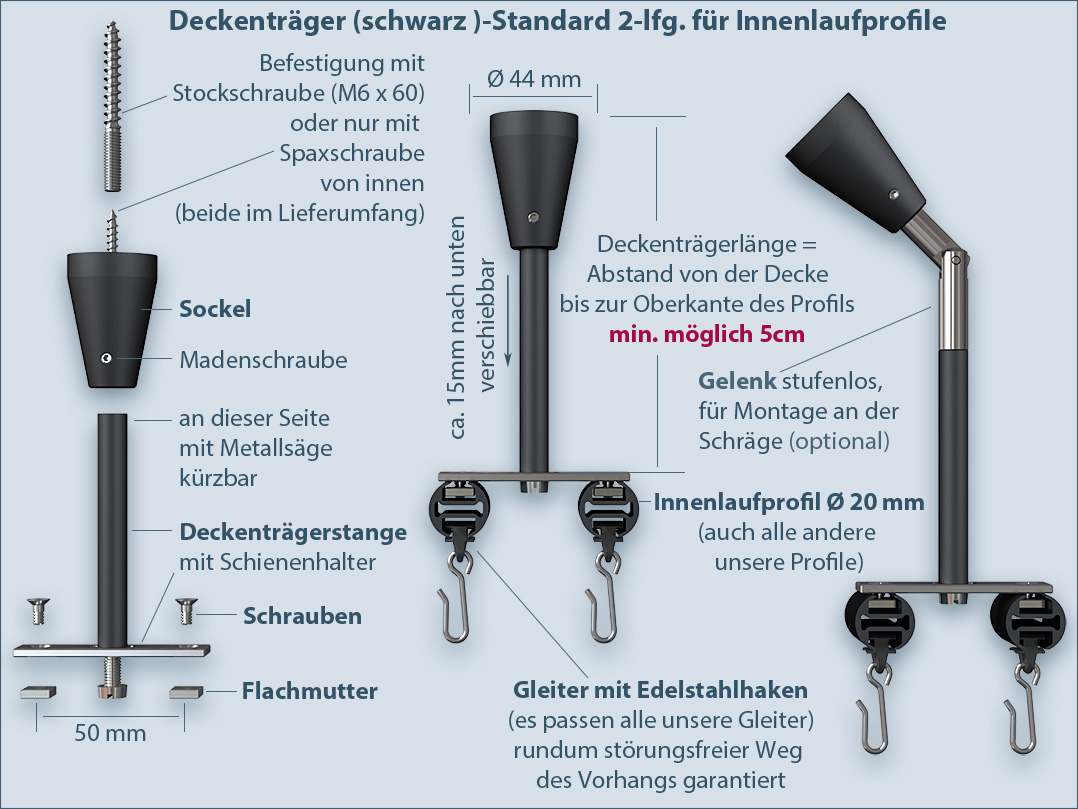

Inner track mounting system for standard ceiling mounting, two-track, in black satin finish made of aluminium.

Of course, our two-track standard ceiling support is also available in black, satin-matt aluminum to match our inner rails. The positioning of the two-track ceiling beams on the inner rail is entirely up to you.
Start by mounting the bases on the ceiling, using the length of the rod as a guide. To attach the base, you have the option of attaching it with a hanger bolt or screwing it on directly using a Spax screw.
Then slide the flat nut into the profile's fastening barrel and align it with the base that has already been mounted. The ceiling support rods, equipped with double-track rail holders, are now screwed to the flat nut. Now lift the entire construction to the ceiling and insert the ceiling support rods into the sockets.
The next step is to tighten the socket grub screws, but be careful not to overtighten. The height of the support can be adjusted by about 2 cm in the base, which enables the curtain rod to be precisely aligned horizontally on the ceiling. If you prefer a smaller distance between the rod and the ceiling, you can shorten the ceiling support rod with a hacksaw. In this case, the minimum distance that can be realized is about 50 mm.

Ceiling mounting for all our curtain rails with inner track

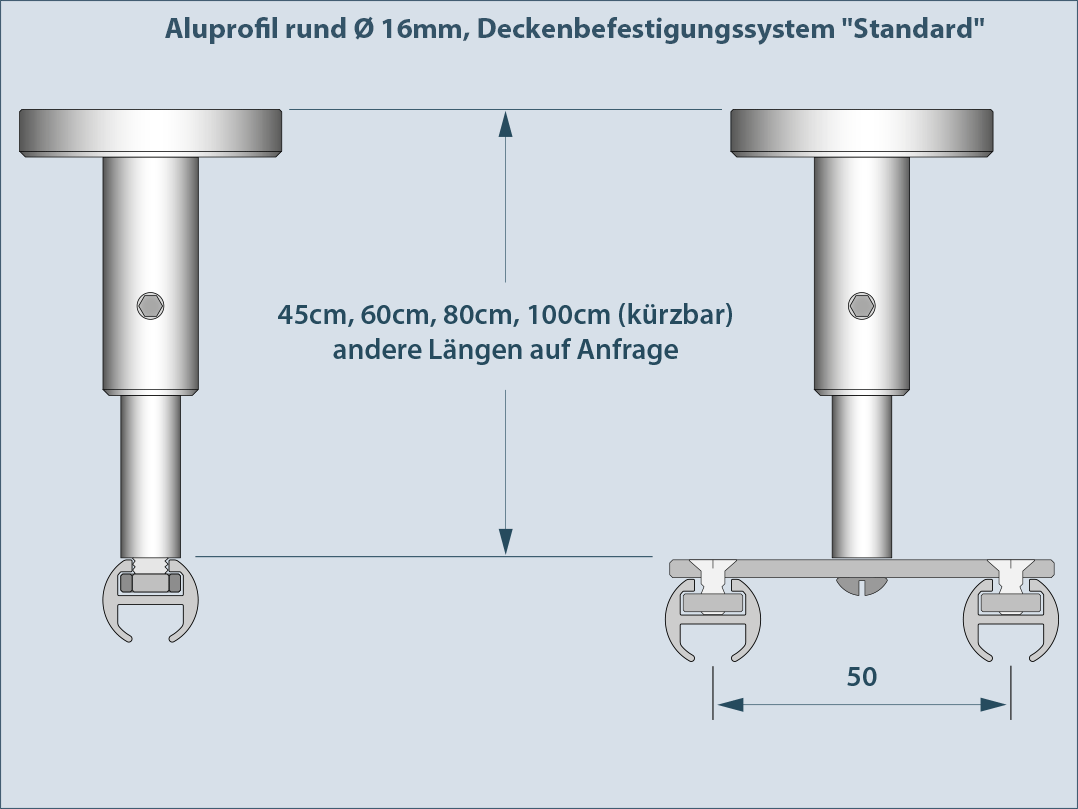

Ceiling mount for round aluminum profile with a diameter of 16mm, single or double rail.Ideal for interior curtain rods.

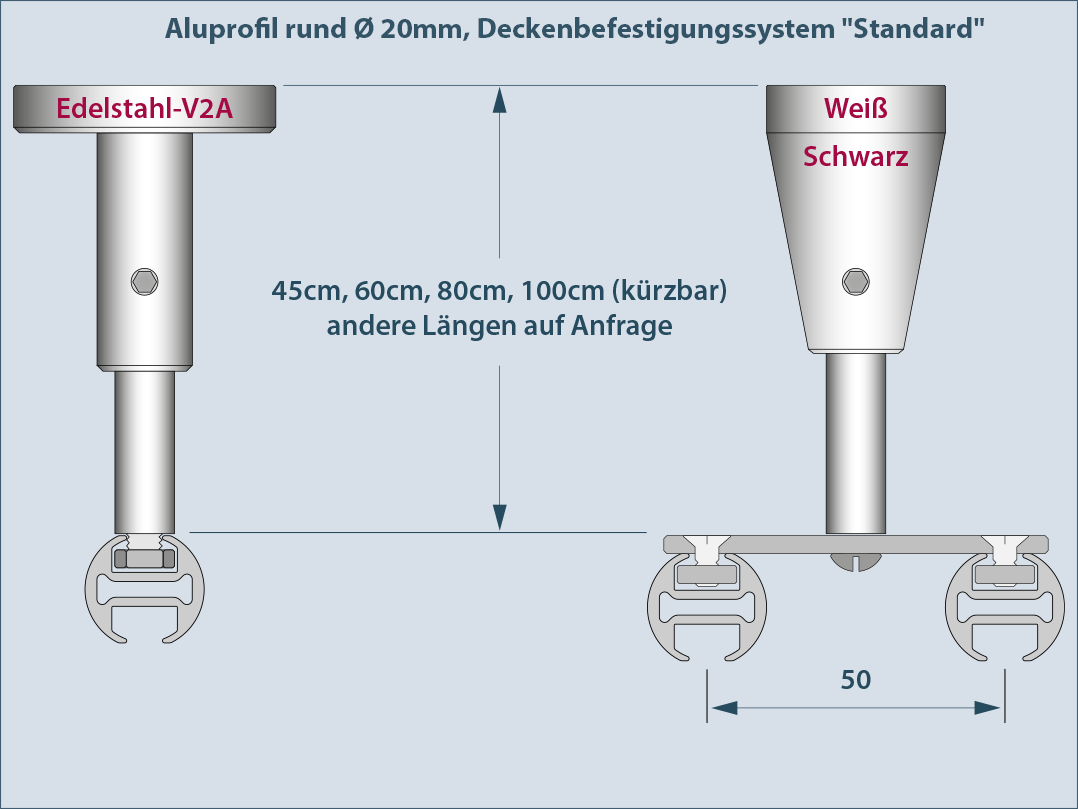

Ceiling mounting for round curtain track with inner track, 20mm diameter, single or double track. Ideal for indoor curtain rods, room partitions and room dividers.

Ceiling bracket made of stainless steel for square aluminum profile 14x35mm, single or double rail. Ideal for larger room partitions, partitions, room dividers, rods for vestibule and windbreak curtains.

Ceiling bracket with suspension, ceiling attachment for 2-track curtain rails or 4-track curtain rails.

Examples of use: ceiling brackets and aluminum rods Ø 20 and 16mm

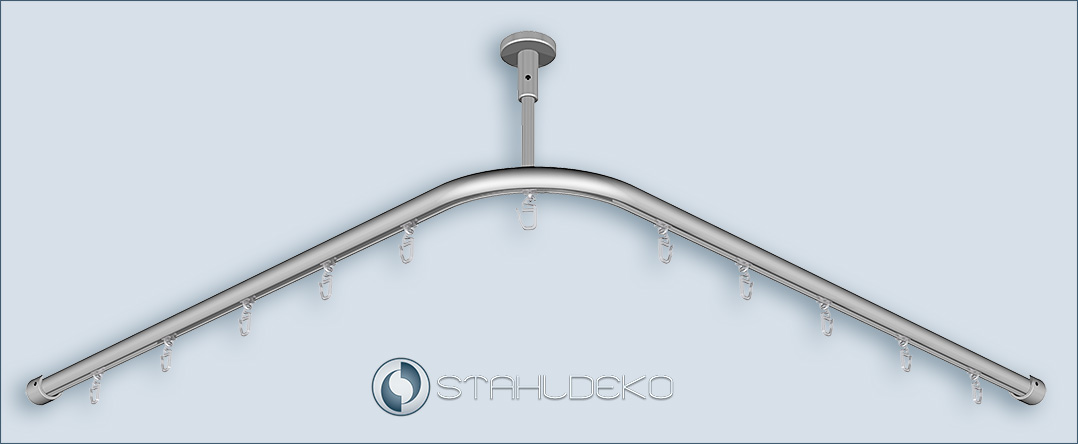

Shower curtain solution: ceiling support (available from 5 to 45 cm), profile made of aluminum Ø16 or 20 mm, aluminum sling-through corner as an outer curve, there are two wall bearing rod supports on the side. This system allows the shower curtain to slide smoothly from one side across the corner to the other side.

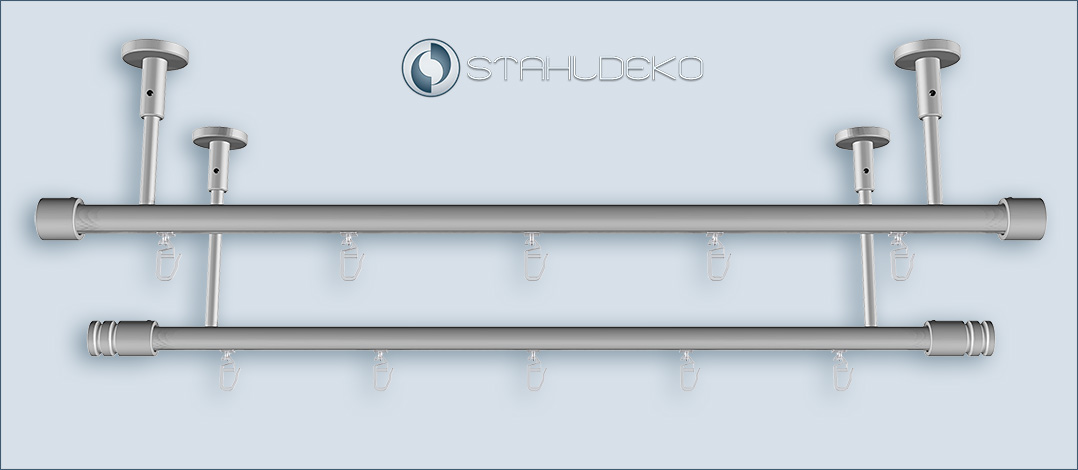

Ceiling attachment with straight aluminum rods and ceiling brackets of different lengths. Ceiling supports are available in heights from 5 to 45 cm, suitable poles Ø16 or 20 mm, with inner race, gliders with Ü hook, various end pieces made of stainless steel.

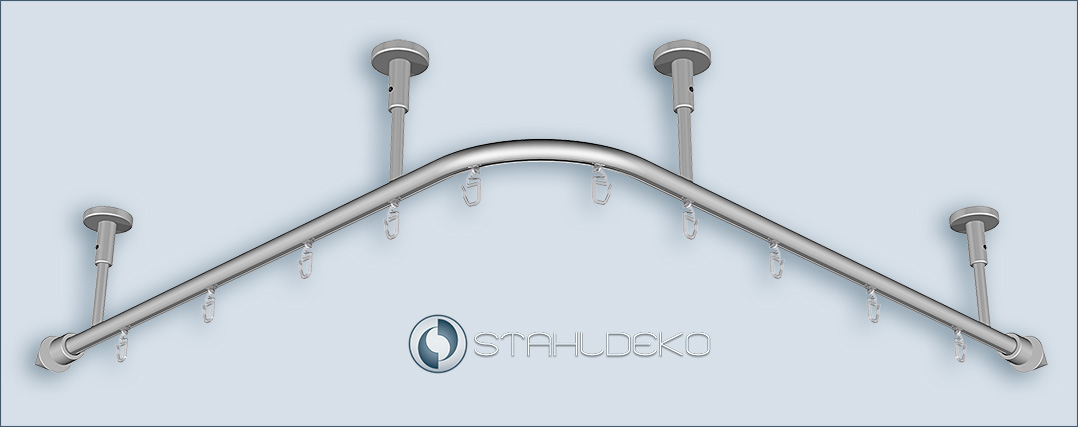

Outer corner solution: Fastening with 4 ceiling supports, aluminum profile Ø 20mm with slider and Ü hook, aluminum sling-through corner as outer curve. the ceiling supports are available in lengths from 5 to 45 cm.
