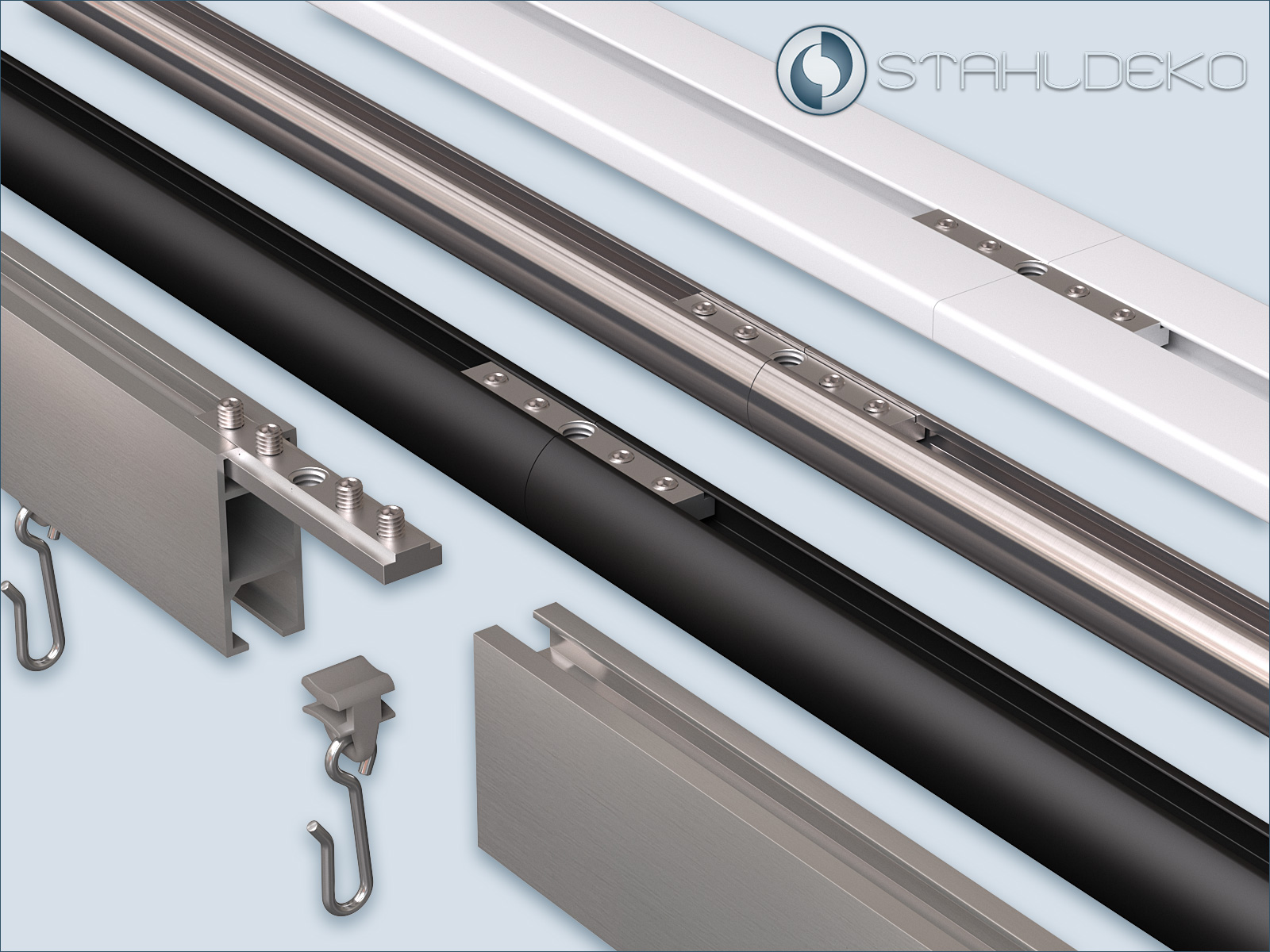

Connectors for all our aluminum profiles, curtain rods, curtain rails and curtain rails with inner rails. If you want to connect one of our inner rails, you can use these connectors. The rail connectors are made of stable flat steel, the connection point is secured with 4 pcs. grub screws (for round profiles and curtain rails) or 3 pcs. screws with flat nuts (square aluminum profile 14x35mm). Of course, the curtain's trouble-free path is 100% guaranteed, even with curved profiles and rails.

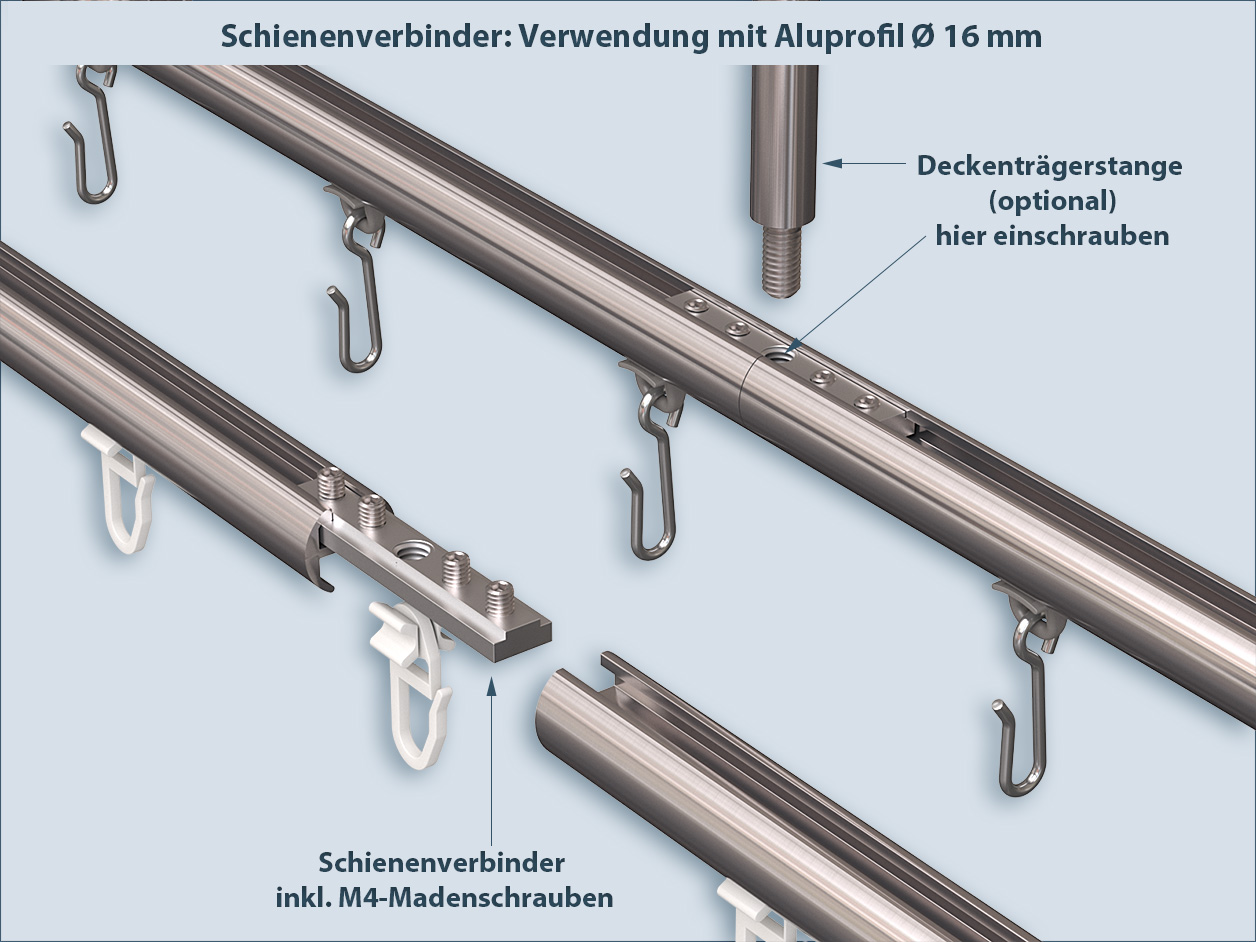

Connection for round aluminum profile with 16mm diameter Insert the rail connector into the mounting run of both 16mm aluminum rails and screw tight with 2 grub screws on each side. One connector is required for each connection point.

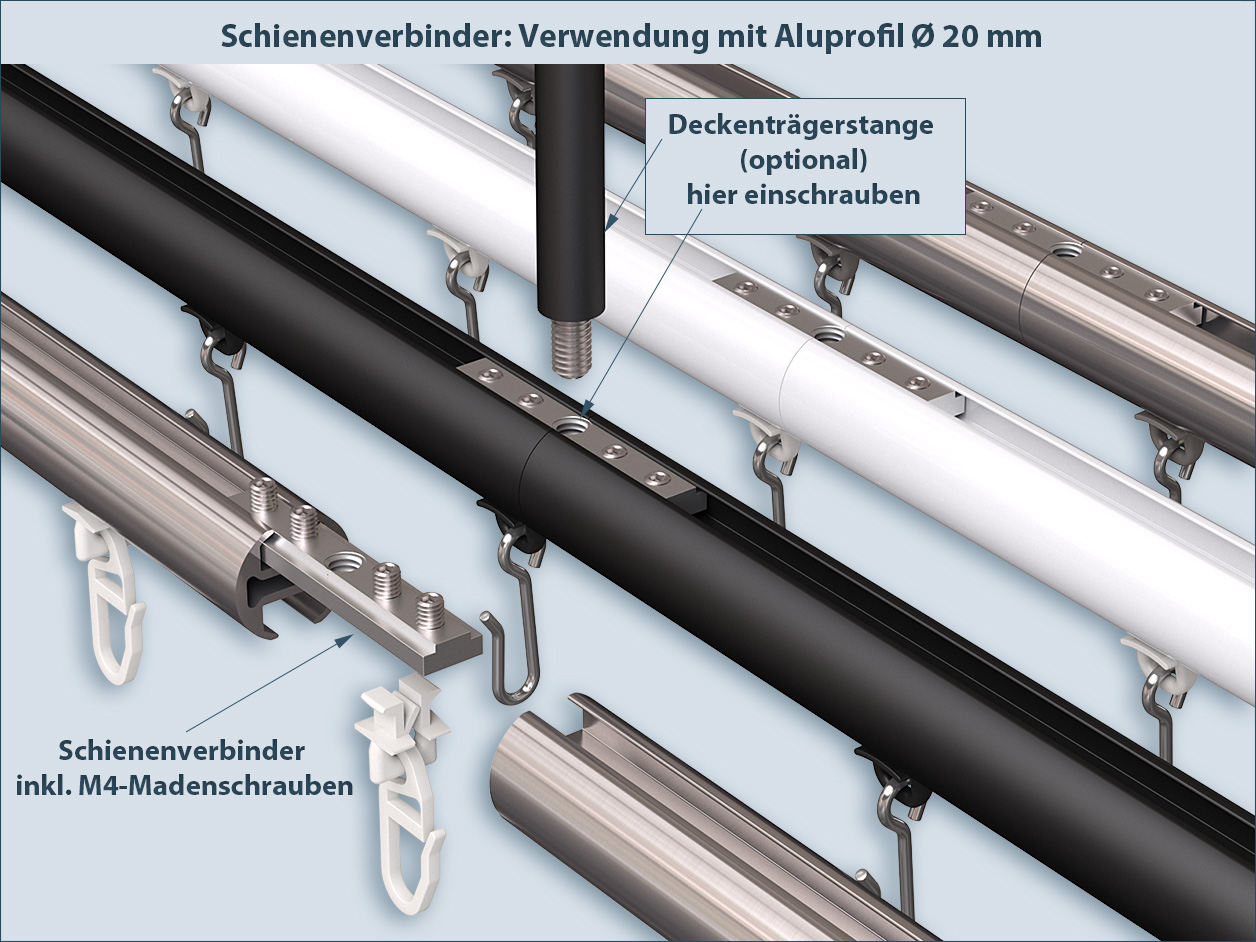

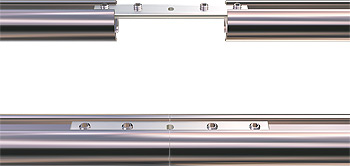

Profile connection for round curtain rails with a diameter of 20mm Insert the connection into the fastening run of both 20mm curtain rails and screw tight with 2 grub screws on each side. One rail connection is required for each connection point.

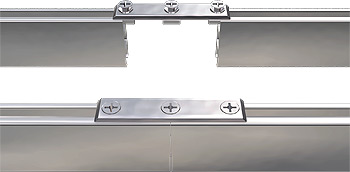

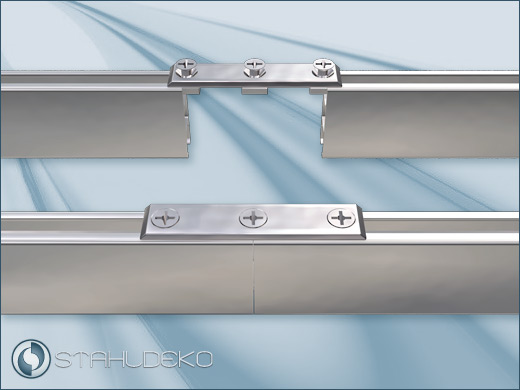

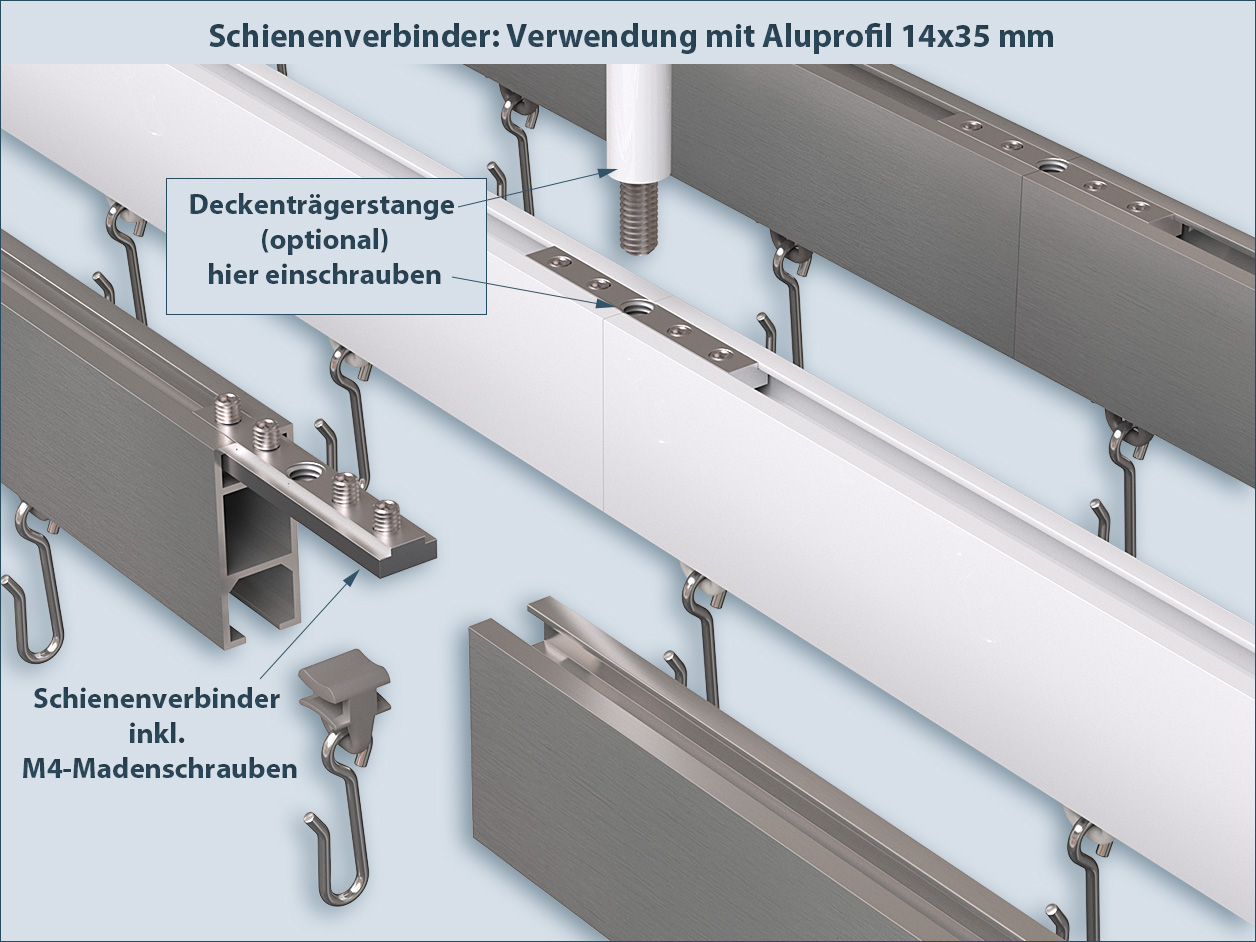

Rail connector for square aluminum profile 14x35mm Insert the connector into the mounting barrel of the two square aluminum profiles and screw tight with 3 screws. One rail connector is required for each connection point.

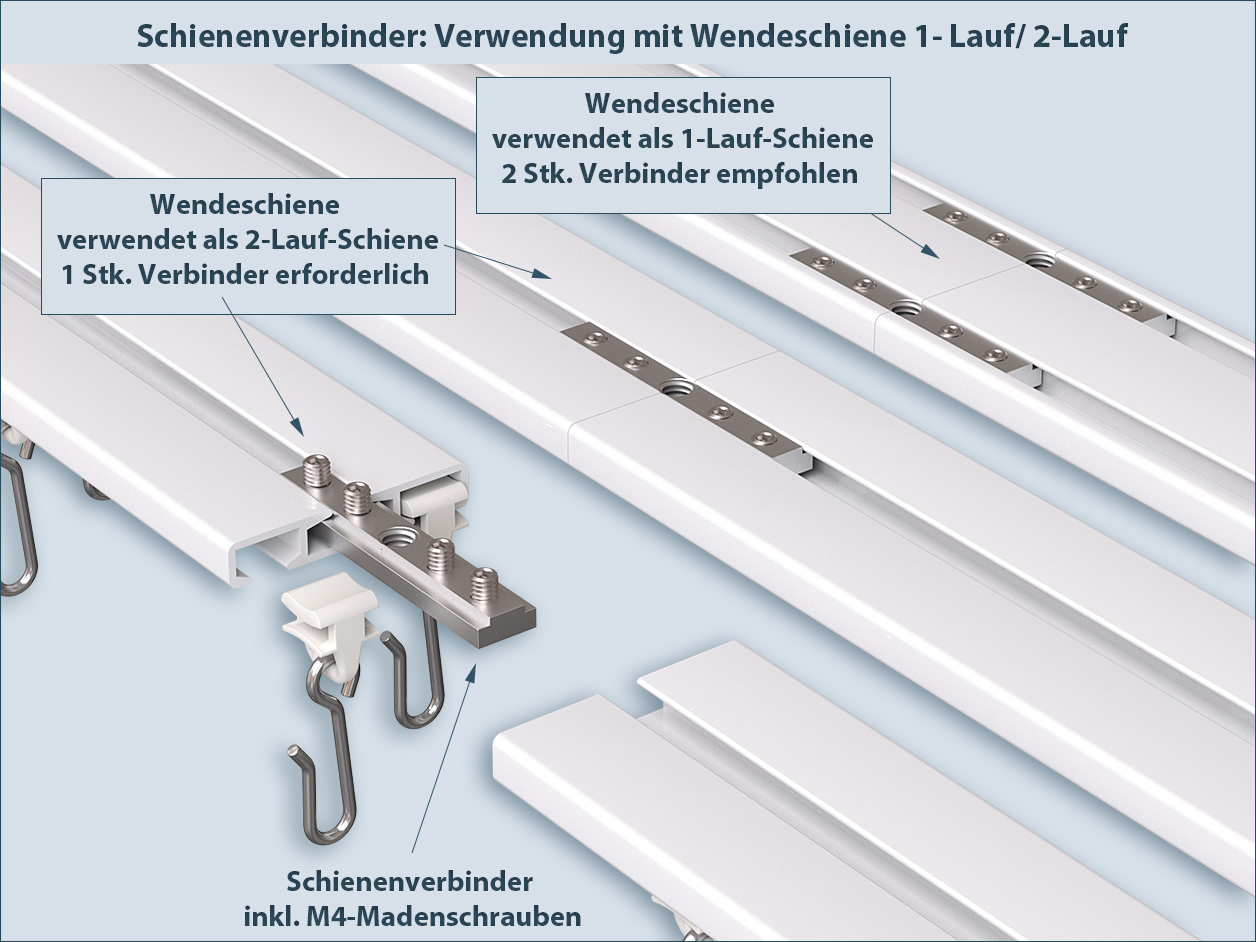

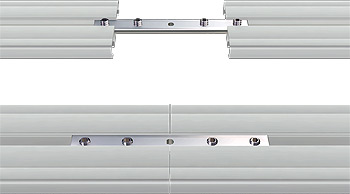

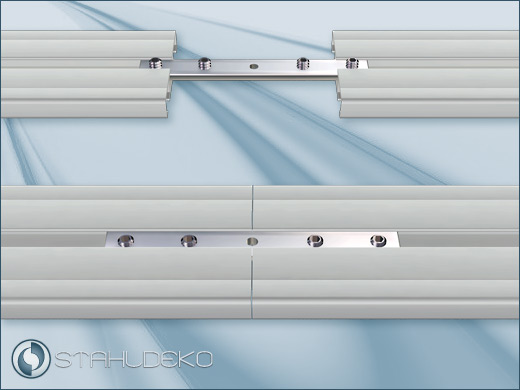

Rail connector for curtain rails (turning rails) 1/2 run or 3/4 run Insert the rail connector in the top rail of both curtain rails and tighten with 4 grub screws. Per connection point it is recommended: 1-track curtain rail : 2 pcs. connectors 2-track curtain rail : 1 piece connector 3-track curtain rail: 2 pcs. connectors 4-track curtain rail : 2 pcs. connectors
Connector for all our aluminum profiles, curtain rods and curtain rails with internal track.
for all aluminum profiles with internal track
all our aluminum inner track systems
aluminum reversible tracks
approx. 70mm long, 9mm wide, and 3mm high
4 Pcs. Grub Screws M4, or 3 Pcs. M5 Screws with Flat Nuts
