Decorative design with aluminium: inner runner profile Ø 20mm, innovative and universal.

Discover the elegance and function of Stahldeko's decorative aluminum design: The aluminum tube with a diameter of 20mm combines the shiny appearance of the Stahldeko curtain rods with the functional advantages of an inner tube. These advantages allow unlimited and smooth sliding of the curtain.
Our basic elements such as single and double-track ceiling supports, single-track wall supports and double-track supports, wall brackets and end pieces offer you solutions for complex interior design situations. We recommend the 20mm aluminum profile for a variety of uses, be it as a curtain rod with inner rail, shower curtain rod, as a room divider, or as a windbreak and windbreak both indoors and outdoors.
A variety of curved shapes can be realized and each custom-made product is always manufactured as a coherent piece and, if possible, delivered as such. Trouble-free sliding of the curtain is guaranteed.
Send us a sketch by e-mail or fax and we will immediately make you an offer for a custom-made product. All components of our system are perfectly coordinated, available in fixed lengths of up to 600cm or made to measure. Ideal for the individual design of curtains and curtains decorations.

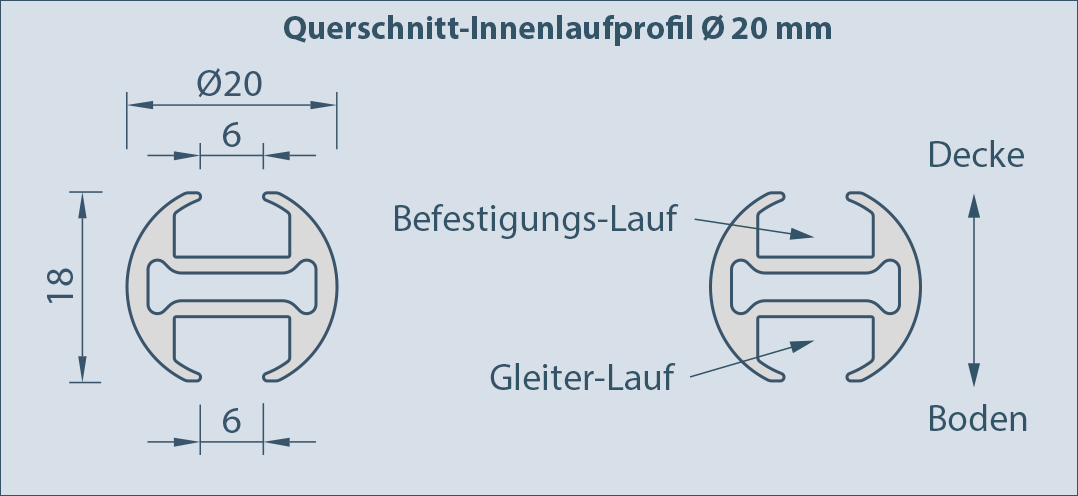

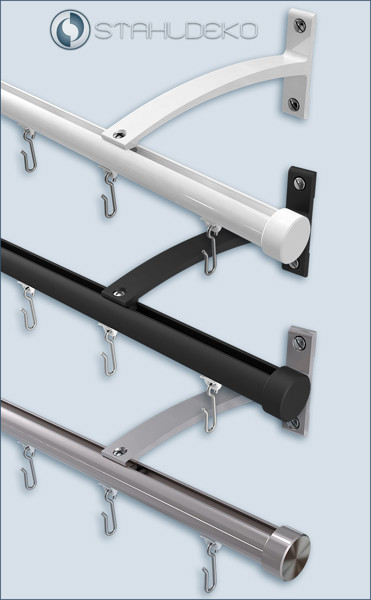

Our inner running profiles with a diameter of 20mm are made of aluminum and are available in the following surfaces: stainless steel look, glossy white, matt black and glossy black. We offer matching accessories such as ceiling supports, wall brackets and end caps, which you can order in materials such as stainless steel V2A, aluminum white glossy or aluminum black satin.
Of course you also have the option of combining the colours, for example stainless steel with white, black with white or stainless steel with black. Design your curtain rods individually according to your wishes and needs.

Discover suitable end pieces for rods with an inner profile of Ø 20mm in our online shop

Our range includes various end pieces for our high-quality aluminum profiles with a diameter of 20mm. Simply select the end piece you want from the options available in our dedicated box. In the pictures we proudly present our wide range of end pieces and end knobs made of stainless steel, as well as black and white aluminum variants for profiles with a diameter of 20mm.
Of course, if you prefer, you can also place an order without end pieces. This gives you the option of using a wall support, an arch or a throw-through corner at this point, for example. We want to make sure you find the perfect solution for your unique needs.
Discover our diverse selection now and give your curtains and curtain rods the perfect finishing touch!

Order matching gliders with hooks for your curtains and drapes that are tailored to our inner runner profiles:

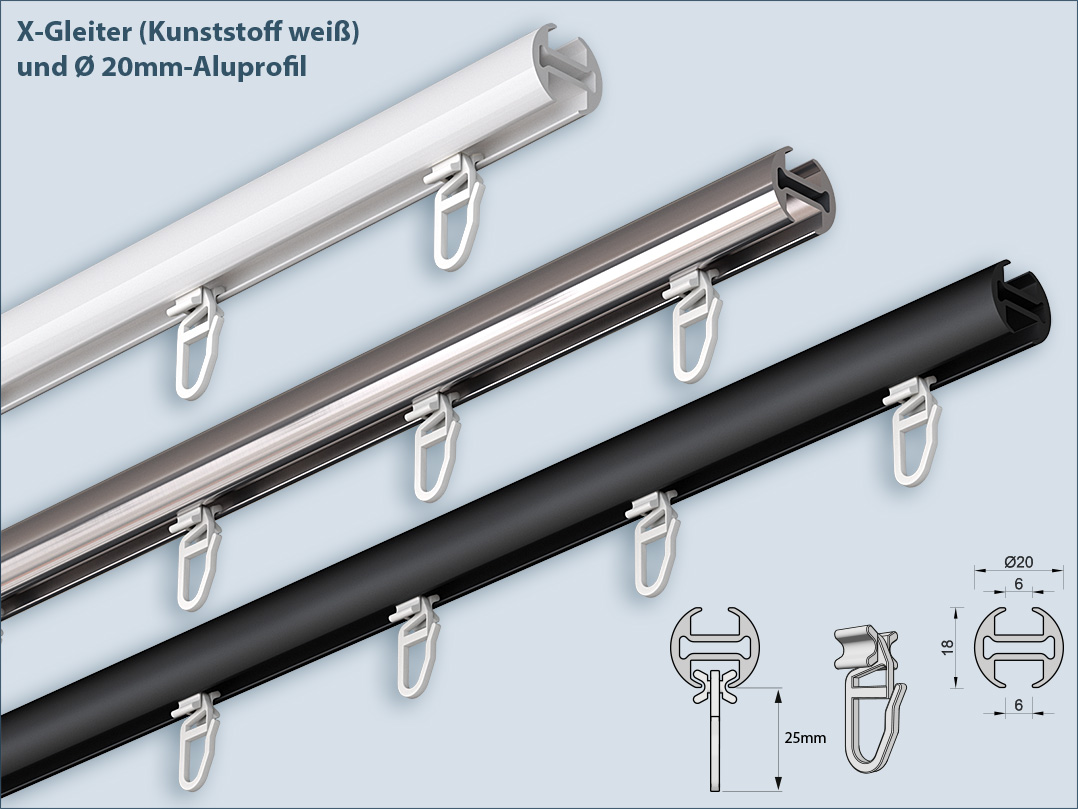

X Gliderfor inside curtain rods with a 20mm round profile: The standard curtain glider X-Glider is equipped with pleating hooks and is made entirely of white plastic. It is inserted laterally into the rail.

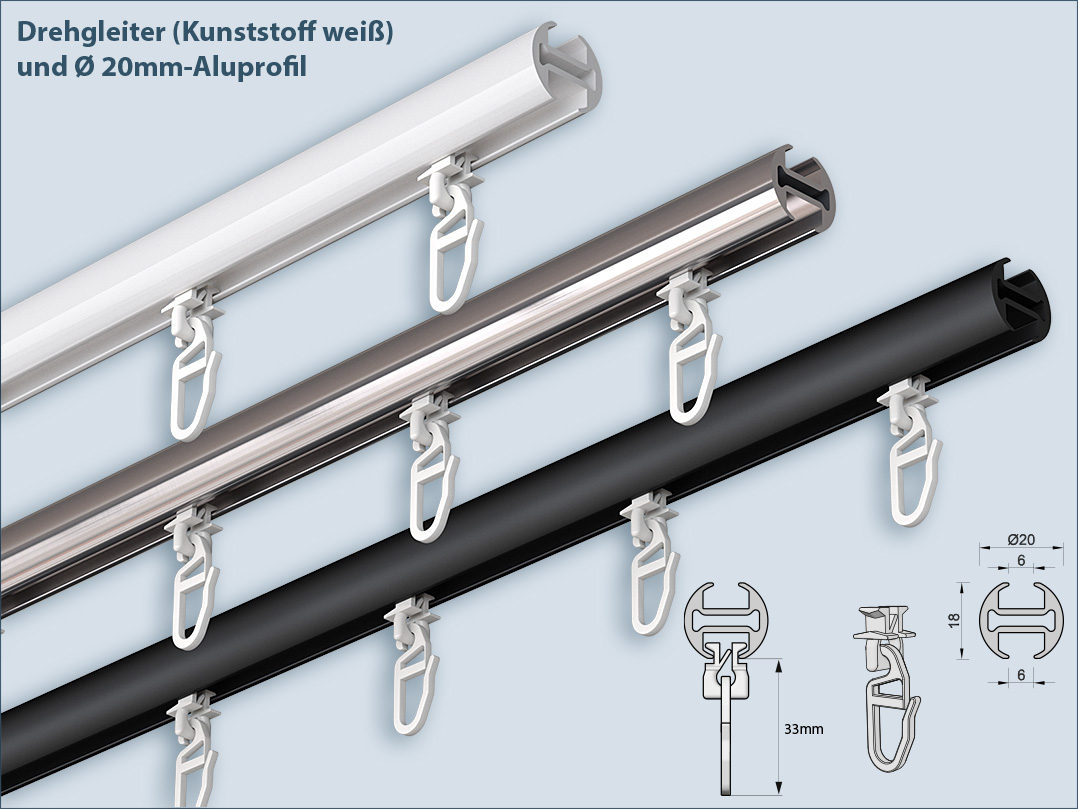

rotary glider, Plastic glides for inside curtain rods, can be screwed in and out on a 20mm aluminum profile: the comfort curtain glider rotary glider is equipped with a clip-on hook. Made of white plastic, it can be screwed in or out of the inner running system at any point.

Smooth-running, absolutely stableGlides with stainless steel hooksfor 20mm round inner rail made of aluminum: These very stable (up to 1.5 kg/piece) and at the same time very smooth-running gliders are equipped with stainless steel hooks. They are particularly suitable for heavy curtains and drapes as well as for use in wet and outdoor areas, for example as a curtain for a porch or windbreak curtain for a terrace or balcony.

loop glidersfor curtains with loops, suitable for 20mm aluminum inner track profile: The loop glider is specially designed for loop curtains and is made entirely of white plastic. Due to its semicircular shape, it offers excellent gliding properties in all of our inner rails.

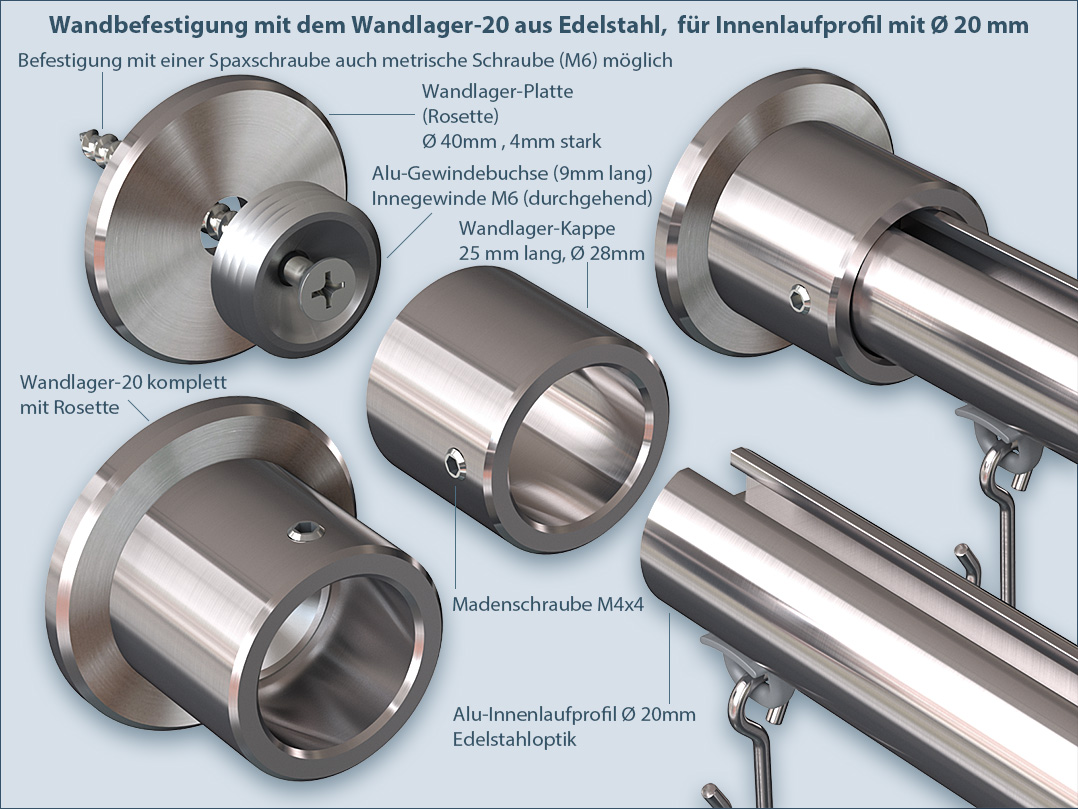

Niche attachment, wall-to-wall installation: rod support wall bearing 20 in V2A stainless steel.

Our rod brackets wall brackets for 20mm tube diameter offer an excellent solution for fastening curtain rods in niches. They are made of high quality stainless steel or aluminium. Our stainless steel wall bracket has a satin finish, while our black and white aluminum wall brackets are available in a black satin or gloss white finish. These bar mounts are compatible with round tubing or round inner barrel profiles. Our brackets ensure a strong and reliable attachment for curtain rods, curtain rods, wardrobe rods and fitting rooms, room dividers and are a stylish addition to any room design.
With our wall bracket system, you can easily prepare your decoration on the floor and then attach the fully decorated pole between two walls in the niche. First mount the wall mounting plates (rosettes) and threaded bushings on the wall with Spax screws. Then slide the rod onto the threaded bush and screw on the cap. The inner running rod is securely locked with a grub screw.

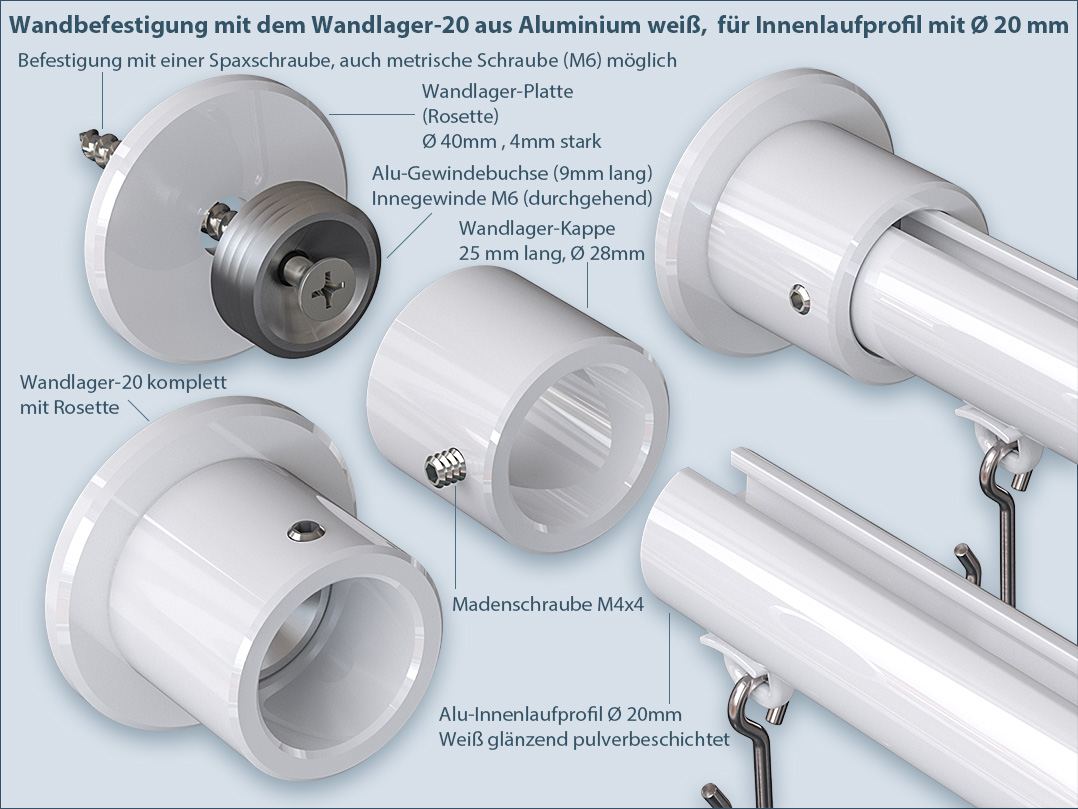

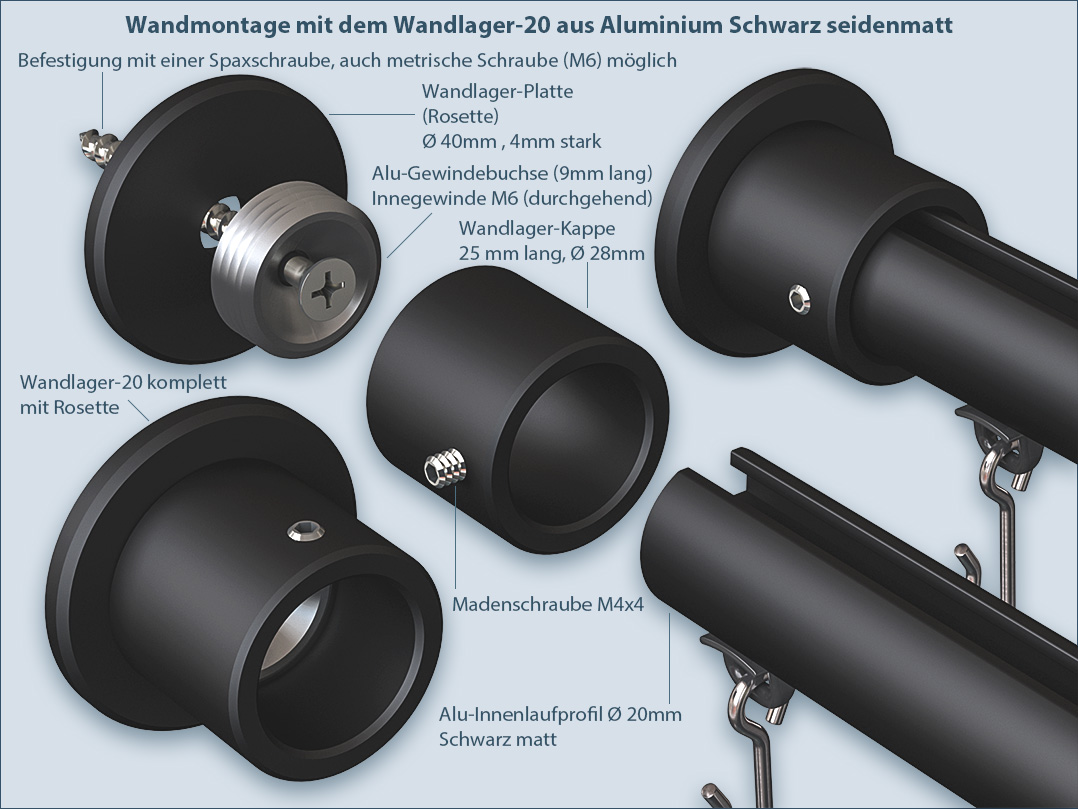

Of course, these wall brackets are also available in glossy white and matt black aluminum.

The ceiling mount for aluminum poles with inner track is suitable for 1-track and 2-track mounting systems

The positioning of the ceiling beams on the inner rail can be done absolutely freely. First mount the bases on the ceiling in accordance with the length of the curtain rod. You can either fasten this with a screw-on plate or screw it on directly with a Spax screw.
In the next step, slide the flat nut, which is attached to the threaded pin, into the fastening barrel of the profile and position it according to the already mounted base. Now screw the ceiling support rods onto the threaded pins. The entire construction is then pushed to the ceiling and the ceiling support rods are inserted into the sockets.
Now tighten the grub screws in the sockets, but not too tight. You can adjust the height of the bracket in the base by approx. 2 cm and thus align the curtain rod absolutely horizontally on the ceiling.
If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw. However, the minimum possible distance is approx. 50 mm.

Of course, we can also offer you a solution for mounting on a sloping roof or wall.

If you want to attach the ceiling bracket to a slope, please order a joint for 10mm tubes. First screw this joint to one side of the ceiling support rod (a grub screw and a drive-in nut are supplied). Push the other side of the joint into the base and fix it with a base grub screw. In this way, you can easily mount the ceiling bracket on the wall or roof slope at any angle.
Of course, you can combine the ceiling brackets with and without a joint on a curtain rod, for example if the rod ends at the side of a sloping wall.

Inner track fastening system for mounting on the ceiling Standard 1-track, made of glossy white aluminium

You can place the white ceiling supports absolutely freely on the inner rail. First mount the bases on the ceiling according to the length of the curtain track. You can either attach the base with a hanger bolt or screw it on directly with a Spax screw.
Then slide the flat nut, which is attached to the threaded pin, into the fastening barrel of the profile and position it according to the base already attached. Then screw the ceiling support rods onto the threaded pins, push the construction towards the ceiling and insert the ceiling support rods into the sockets.
Now tighten the grub screws in the base, but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the rail absolutely horizontally on the ceiling. If you want a smaller distance from the rail to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw. The minimum possible distance is about 50 mm.

The standard 1-track inner rail mounting system for ceiling mounting is made of black satin aluminum

You can flexibly position the ceiling supports, in elegant black satin finish, along the inner rail. Begin the installation by attaching the bases to the ceiling to match the length of your curtain track. You have two options for attaching the base: Use either a hanger bolt or direct attachment with a Spax screw.
In the next step, slide the flat nut attached to the threaded pin into the profile's attachment run and align it with the already attached base. The ceiling support rods are now screwed onto the threaded pins. Then bring the entire construction closer to the ceiling and insert the ceiling support rods into the sockets.
The next few steps involve tightening the grub screws in the sockets - but not over tightening. This allows you to adjust the height of the brackets in the base by about 2 cm in order to align the rail exactly horizontally on the ceiling. If a smaller distance between the rail and the ceiling is desired, it is possible to shorten the ceiling support rod with a hacksaw. The minimum possible distance is about 50 mm.

Inner track mounting system for attachment to the ceiling, standard, two-track, material: stainless steel V2A

You can position the double-track ceiling brackets on the inner curtain rod as you wish. Start by mounting the bases on the ceiling, adjusted to the length of your curtain rod. The bases can either be attached using a screw-on plate or screwed on directly with a Spax screw.
In the next step, slide the flat nut into the profile's fastening barrel and position it according to the bases already attached. Then screw the ceiling support rods with the 2-track rail holders to the flat nut. Slide the entire construction towards the ceiling and insert the ceiling support rods into the sockets.
Now tighten the grub screws in the sockets - but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the curtain rod absolutely horizontally on the ceiling. If you prefer a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

Of course, we also offer you a double-barreled ceiling bracket for mounting on sloping roofs or walls.

If you want to install a double-barreled ceiling support on a slope, you only need a joint for 10 mm pipes. First attach this joint to one side of the ceiling support rod (a grub screw and drive nut are included). Then slide the other side of the joint into the base and fix it with a grub screw. In this way, the ceiling support can be mounted easily and at any angle on sloping walls or roofs. It is of course possible to combine the ceiling brackets with or without a joint on a curtain rod - for example if the rod ends at the side of a sloping wall.

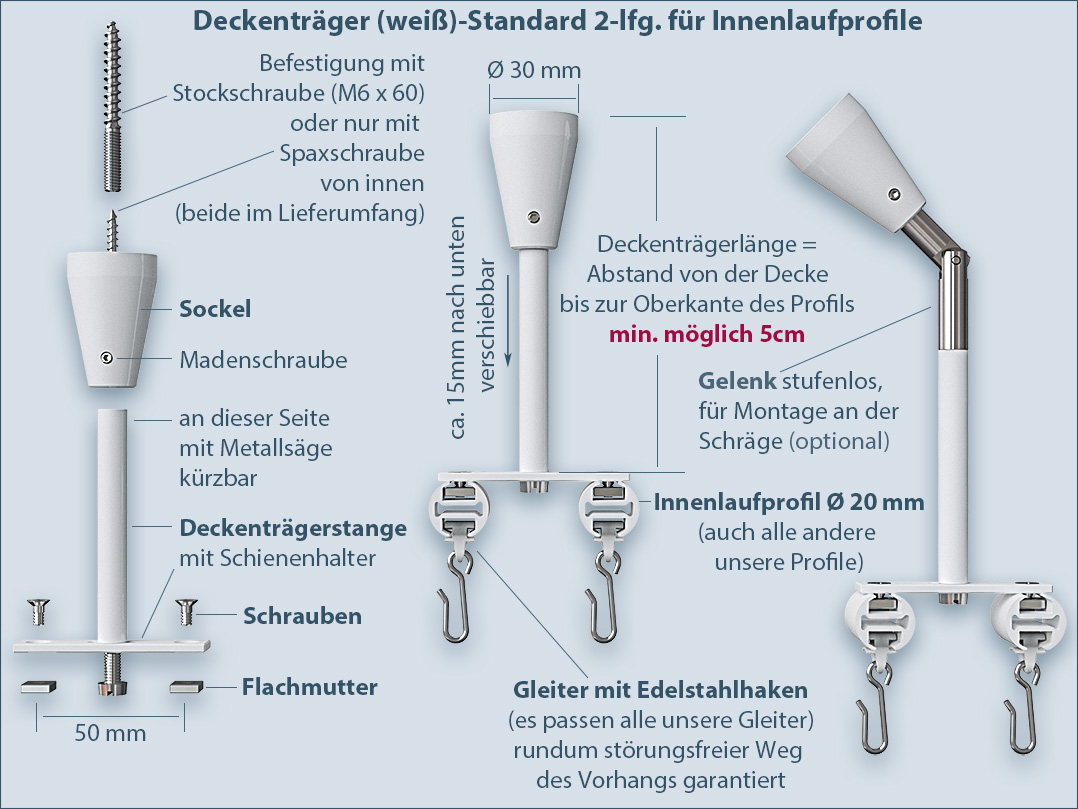

Inner track mounting system for attachment to the ceiling Standard, two-track, aluminum glossy white

Of course, our two-track standard ceiling support is also available in glossy white aluminum to match our white inner rails. You can position the double-track ceiling beams on the inner rail as you wish.
First, mount the bases on the ceiling according to the length of the rod. The bases can either be fastened with a hanger bolt or screwed on directly with a Spax screw.
Then slide the flat nut into the profile's fastening barrel and position it according to the base already attached. Screw the ceiling support rods with the two-track rail holders to the flat nut. Then push the construction to the ceiling and insert the ceiling support rods into the sockets.
Now tighten the grub screws in the sockets, but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the curtain rod absolutely horizontally on the ceiling. If you prefer a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

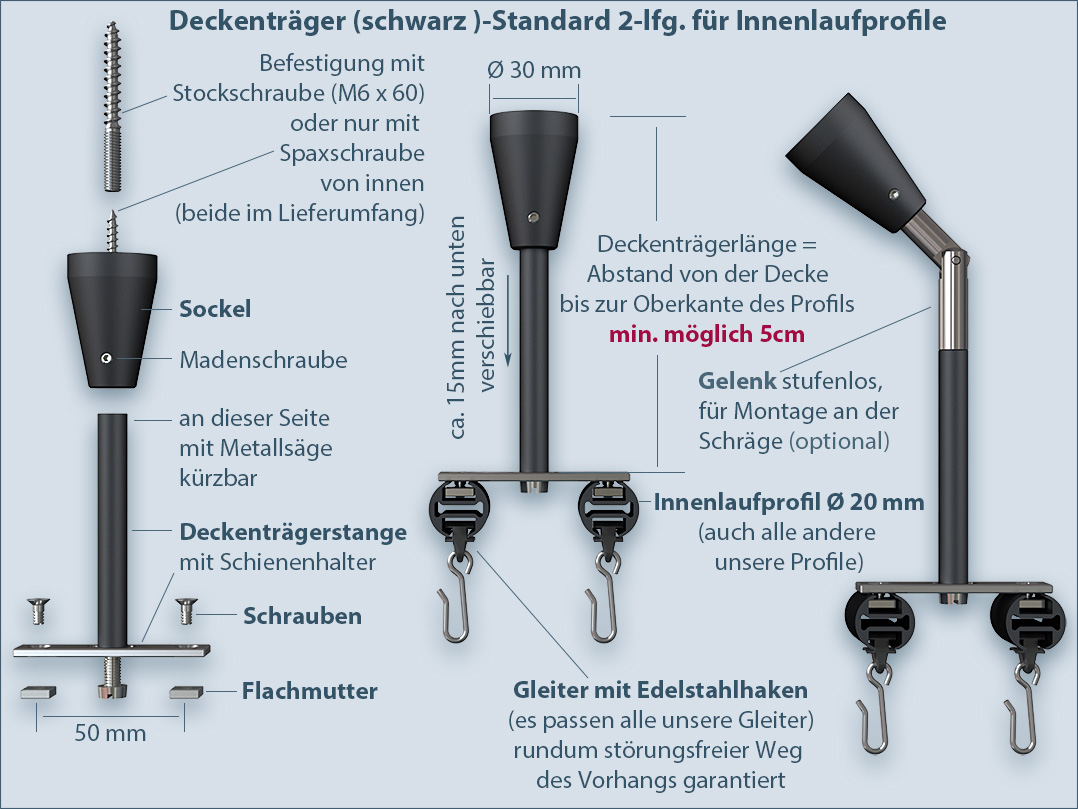

Inner track mounting system for standard ceiling mounting, two-track, in black satin finish made of aluminium.

Of course, our two-track standard ceiling support is also available in black, satin-matt aluminum to match our inner rails. The positioning of the two-track ceiling beams on the inner rail is entirely up to you.
Start by mounting the bases on the ceiling, using the length of the rod as a guide. To attach the base, you have the option of attaching it with a hanger bolt or screwing it on directly using a Spax screw.
Then slide the flat nut into the profile's fastening barrel and align it with the base that has already been mounted. The ceiling support rods, equipped with double-track rail holders, are now screwed to the flat nut. Now lift the entire construction to the ceiling and insert the ceiling support rods into the sockets.
The next step is to tighten the socket grub screws, but be careful not to overtighten. The height of the support can be adjusted by about 2 cm in the base, which enables the curtain rod to be precisely aligned horizontally on the ceiling. If you prefer a smaller distance between the rod and the ceiling, you can shorten the ceiling support rod using a hacksaw. In this case, the minimum distance that can be realized is about 50 mm.

Direct ceiling attachment: "direct" ceiling support, single and double-track, with the inner track profile Ø 20mm.

Our direct ceiling mount brackets offer increased load capacity, ideal for aluminum curtain rails, room divider rails and ejector rails. They are perfectly suited for corner and bay solutions. Available in single and double track versions, our ceiling brackets allow any distance from the wall. Its robust "direct" ceiling attachment is also suitable for heavy curtains and curtains. Ceiling brackets and the aluminum profile combine the functional advantages of the sling track and offer the possibility to slide the curtain through indefinitely, ideal for corner or bay windows. They are available in white powder-coated or in matt aluminum.

Support Top-20mm 1-track for round tube and inner track curtain rods, fastening system assembly instructions.

You can flexibly place these rod brackets on the curtain rod. First mount the sockets on the wall. The bases can either be fastened with a screw-on plate or screwed on directly with a Spax screw. Then insert the carrier foot into the base and tighten (but not too tightly) the base set screw. You can also place the Top rod holder with the openings facing down. In this position, it holds pipes or aluminum profiles absolutely securely with the grub screws. Insert the inner running profile or the round tube into the openings of the carrier and fix it with carrier grub screws. You can move the support foot in the base by approx. 1.5 cm in length to align the distance between the curtain rod and the wall or ceiling (only for 1-track brackets). If you want a smaller distance between the pole and the wall or ceiling, you can shorten the support foot with a hacksaw (minimum possible distance is approx. 65mm). Of course you can also extend the wall bracket (optional). For this we offer a 50mm standard extension for the top carrier system. The extension is simply attached to the carrier foot with a threaded pin. If you need special lengths, please feel free to contact us.

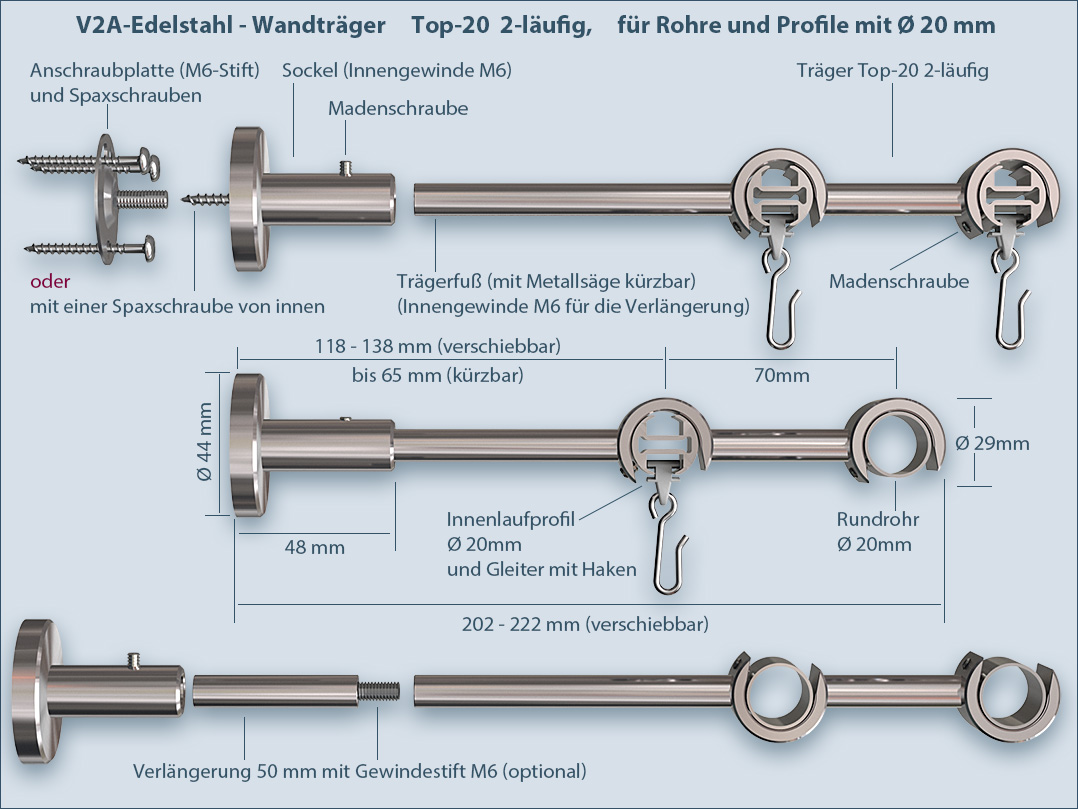

Double-barreled bracket wall bracket Top-20mm: use, fastening system, assembly instructions

You can place these wall brackets absolutely freely on the curtain rod. First mount the bases on the wall. To mount the Top wall bracket, you can either fasten the base with a screw-on plate or directly with Spax screws. After installing the bases, slide the carrier foot into the base and tighten the base set screw. Then insert the aluminum inner running profiles or round stainless steel tubes into the carrier openings and fix them with carrier grub screws. You can also place the Top wall bracket with the openings pointing downwards. In this position, too, the tubes or the aluminum profiles are held firmly with the grub screws. The rod holder can be adjusted in the base about 1.5 cm in length to change the distance between the rods and the wall. If you want a smaller distance from the pole to the wall, it is possible to shorten the support foot with a hacksaw. The minimum possible distance is approx. 65mm (first run). Of course it is also possible to extend the rod carrier (optional). We also offer a 50mm standard extension for the top bracket system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.

Carrier Sont-20mm 1-track for round tube and inner track curtain rods, assembly and fastening system.

The rod brackets for the curtain rod are very flexible and can be placed anywhere. First attach the base plate to the wall with bolts and tighten the spax screws. You can either fasten the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw. Next, slide the stainless steel supports (along with the tube) onto the studs and tighten the support grub screws, but not too tight. If necessary, you can extend the stainless steel wall mount with the optional 50mm standard solid stainless steel extension. To do this, connect the extension and the carrier with an adapter. The rod holder Sont can also be placed with the openings facing down to hold tubes or aluminum profiles absolutely securely with the clamping screws. Insert the inner profile or the round tube into the openings of the carrier and fix it with the carrier clamping screws. Again, the wall bracket can be extended with the optional 50mm standard extension. If you need special lengths, please feel free to contact us.

Double-barreled wall bracket Sont-20mm

The double-barreled wall bracket Sont-20mm is ideal for attaching curtain rods or aluminum profiles with a diameter of 20mm to the wall. The wall mount comes with a special mounting system that allows for easy installation. First you need to attach the wall mount to the wall using the supplied wall plugs and screws. You can then insert the curtain rod or the aluminum profile into the holder and fix it with the screws provided. The double-barreled wall bracket offers the advantage that you can attach two curtains or aluminum profiles at the same time, which is particularly practical if you want to hang up a transparent curtain and a blackout curtain, for example. In order to ensure optimum stability and secure attachment, you should ensure that the screws are tight and the curtain rod or aluminum profile is securely seated in the bracket.
The Sont-20mm double-barreled wall brackets are perfect for mounting curtain rods or curtain rods on the wall. They offer a flexible way of placing the bar mount and can be used for both aluminum inner races and round stainless steel tubes with a diameter of 20mm.
It is attached using a base plate and bolts, which are attached to the wall either directly with a spax screw or with a screw-on plate and spax screws. The stainless steel carriers are then pushed onto the bolts and fixed with the carrier grub screws. The rods are inserted into the openings of the carriers and secured with carrier clamping screws. It is also possible to place the wall bracket with the openings facing down.
Optionally, you can extend the Sont bar holder system with a standard 50mm extension by simply attaching the extension to the carrier foot with an adapter. We can also make custom length extensions if you require them.
