Rod support Sont-20 for curtain rods and drapes with tubes and inner profiles Ø 20mm: Application examples and fastening systems

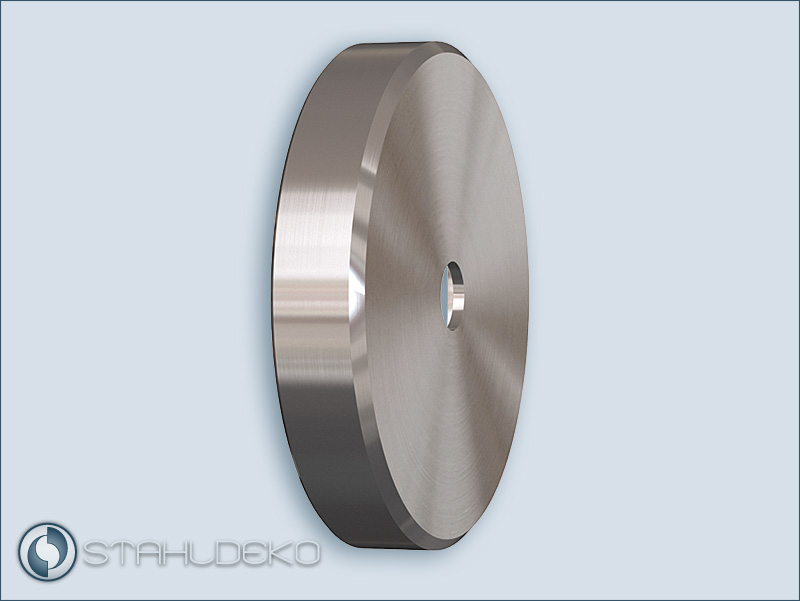

We offer suitable accessories for decoration with steel decoration, such as our open carrier made of stainless steel, which is suitable for all rods and aluminum profiles as well as stainless steel tubes and inner tubes with a diameter of 20mm. The carrier is available in versions with one or two barrels and is fastened with a bolt and spax screw. The drill holes and screws are covered with a base plate. The rod is placed on the supports from above and secured with a screw. With this support system, you can easily decorate the curtains on the floor and then attach the completely decorated tube or rail to the wall. If you want to vary the distance to the wall, you can use the bracket extension (sold separately) to adjust the distance in 50mm increments.

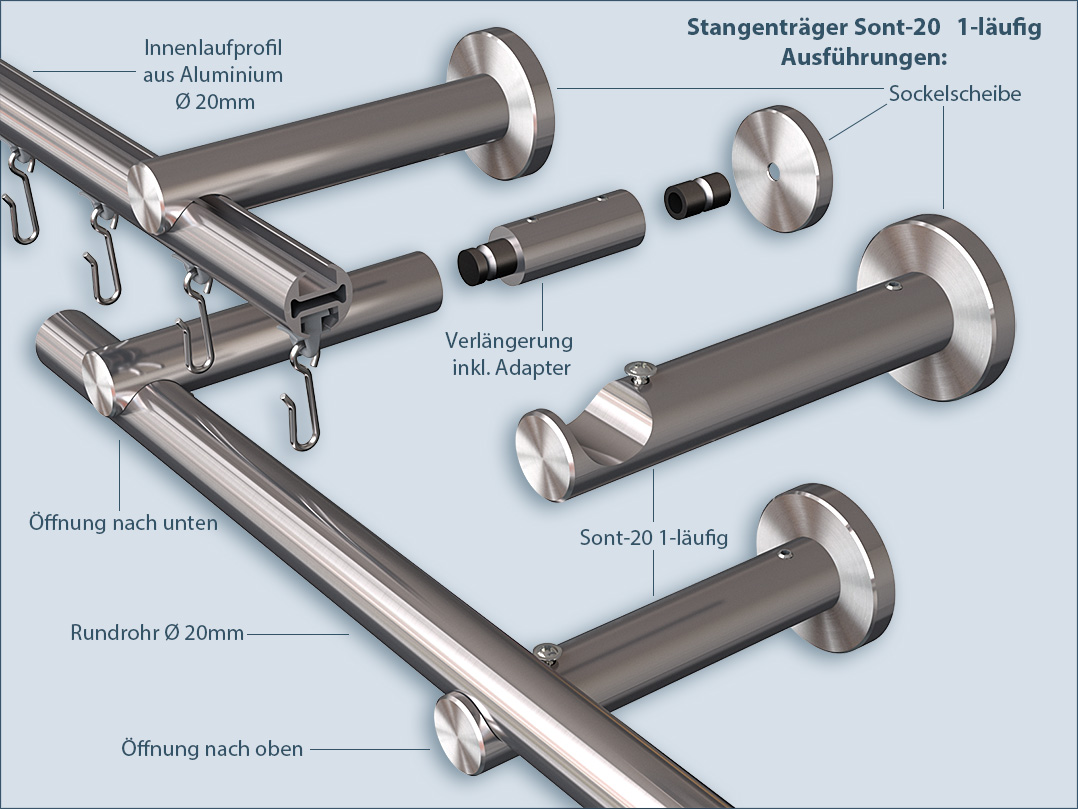

Carrier Sont-20mm 1-track for round tube and inner track curtain rods, assembly and fastening system.

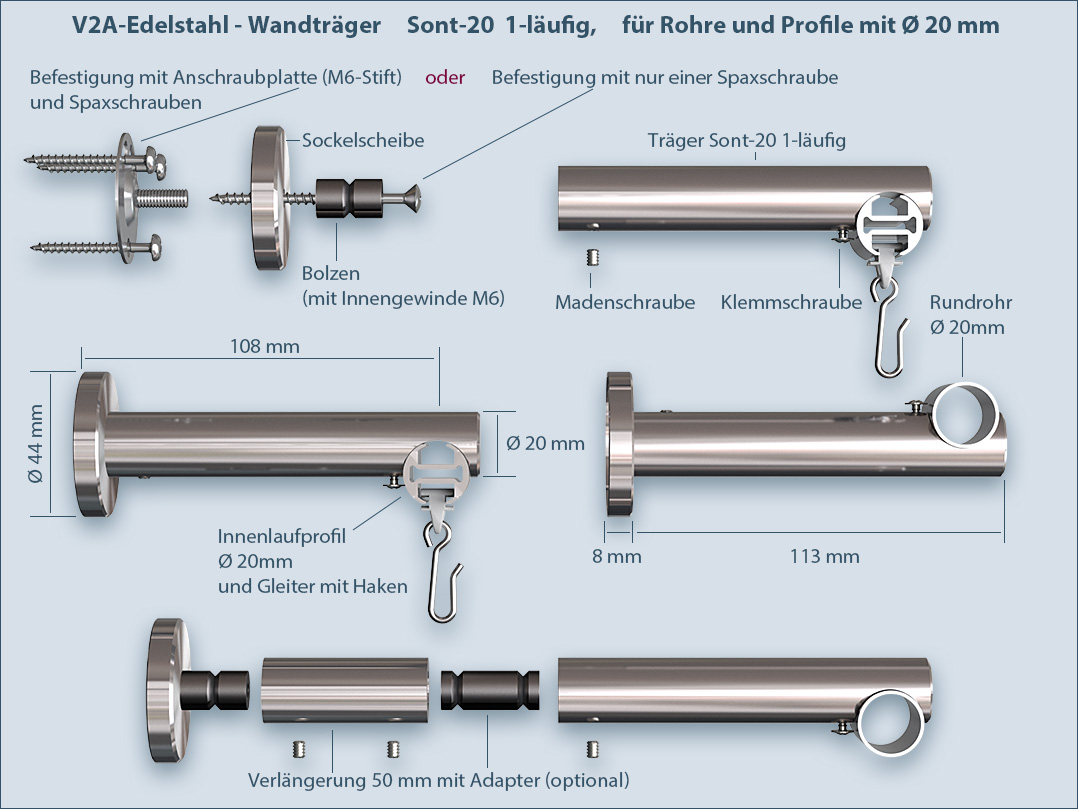

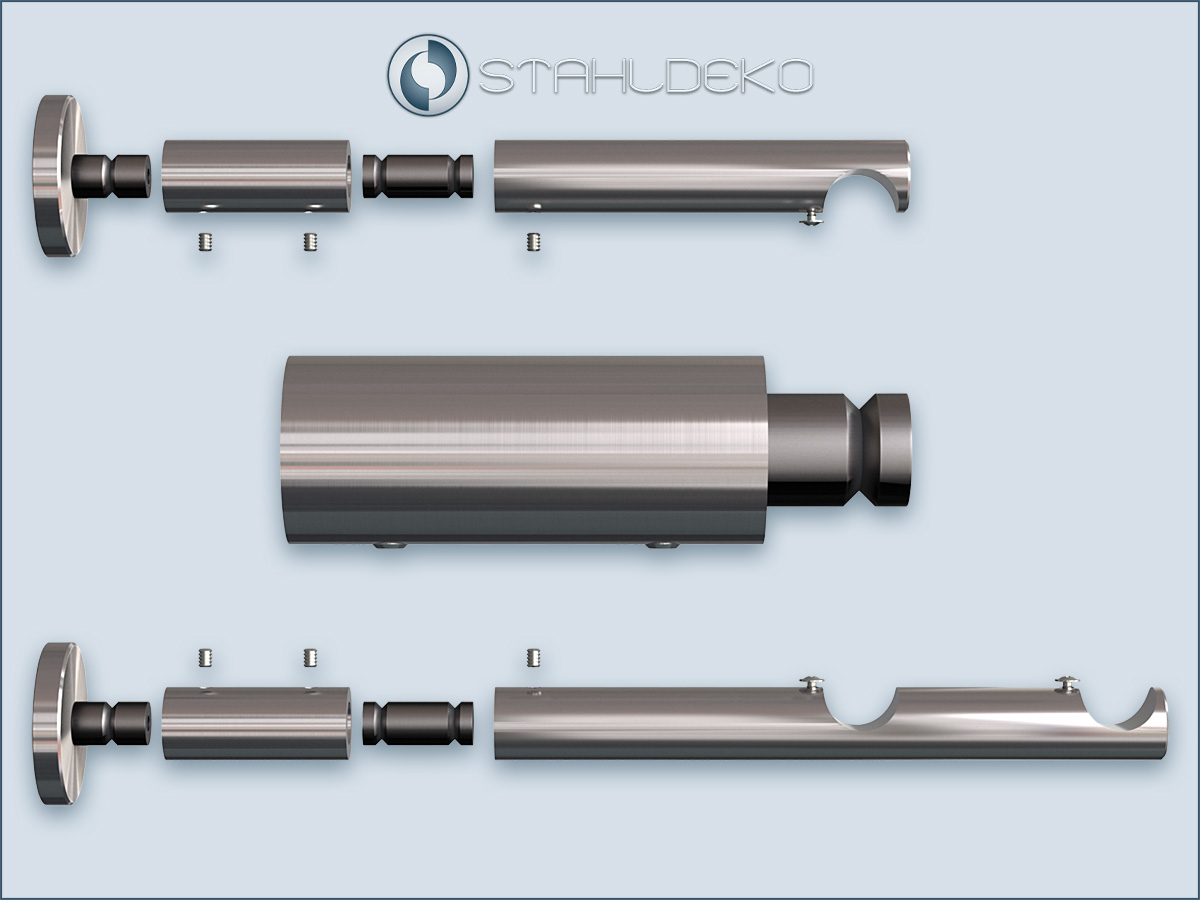

The rod brackets for the curtain rod are very flexible and can be placed anywhere. First attach the base plate to the wall with bolts and tighten the spax screws. You can either fasten the base plate and bolts with a mounting plate and Spax screws or screw them directly with a Spax screw. Next, slide the stainless steel supports (along with the tube) onto the studs and tighten the support grub screws, but not too tight. If necessary, you can extend the stainless steel wall mount with the optional 50mm standard solid stainless steel extension. To do this, connect the extension and the carrier with an adapter. The rod holder Sont can also be placed with the openings facing down to hold tubes or aluminum profiles absolutely securely with the clamping screws. Insert the inner profile or the round tube into the openings of the carrier and fix it with the carrier clamping screws. Again, the wall bracket can be extended with the optional 50mm standard extension. If you need special lengths, please feel free to contact us.

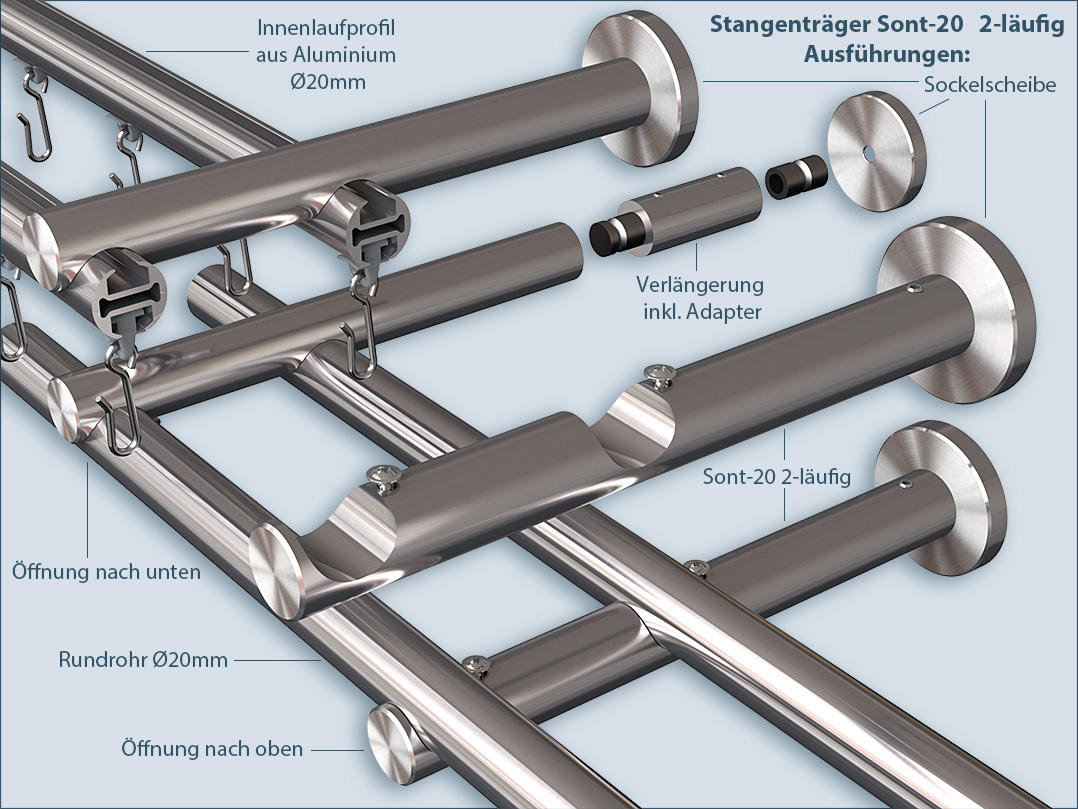

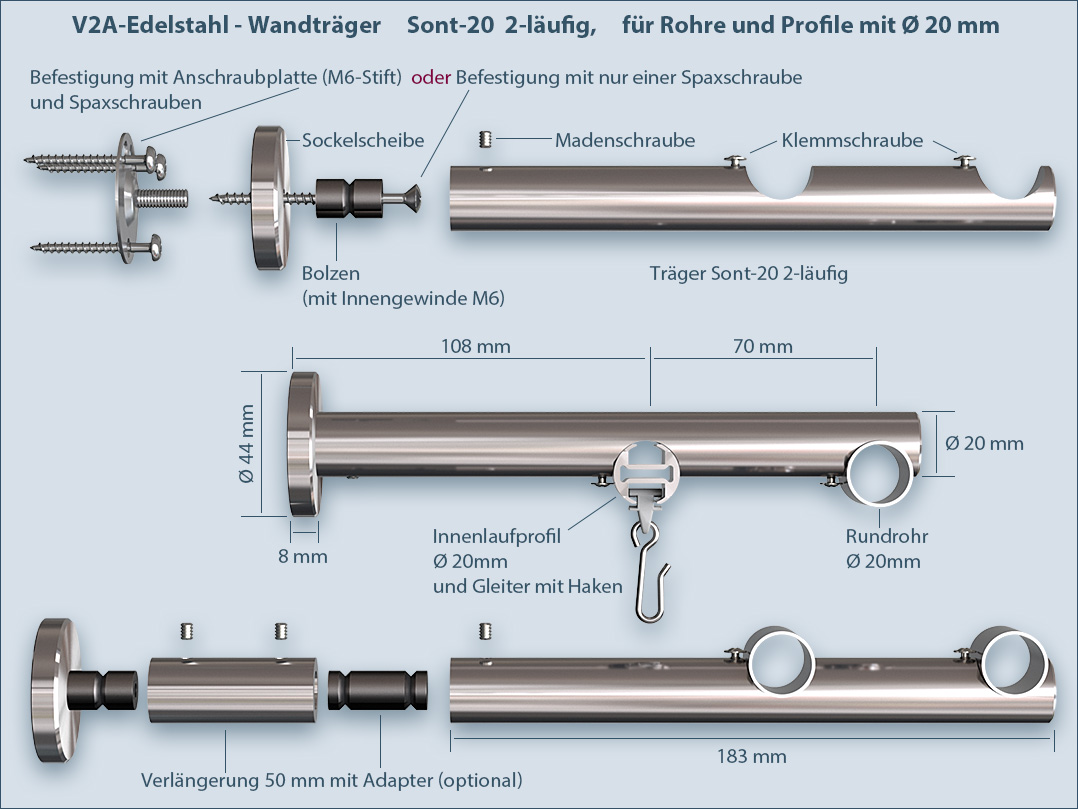

double-barreled wall bracket Sont-20mm
The double-barreled wall bracket Sont-20mm is ideal for attaching curtain rods or aluminum profiles with a diameter of 20mm to the wall. The wall mount comes with a special mounting system that allows for easy installation. First you need to attach the wall mount to the wall using the supplied wall plugs and screws. You can then insert the curtain rod or the aluminum profile into the holder and fix it with the screws provided. The double-barreled wall bracket offers the advantage that you can attach two curtains or aluminum profiles at the same time, which is particularly practical if you want to hang up a transparent curtain and a blackout curtain, for example. To ensure optimum stability and secure attachment, you should ensure that the screws are tight and the curtain rod or aluminum profile is securely seated in the bracket. The Sont-20mm double-barreled wall brackets are perfect for mounting curtain rods or curtain rods on the wall. They offer a flexible way of placing the bar mount and can be used for both aluminum inner races and round stainless steel tubes with a diameter of 20mm. It is attached using a base plate and bolts, which are attached to the wall either directly with a spax screw or with a screw-on plate and spax screws. The stainless steel carriers are then pushed onto the bolts and fixed with the carrier grub screws. The rods are inserted into the openings of the carriers and secured with carrier clamping screws. It is also possible to place the wall bracket with the openings facing down. Optionally, you can extend the Sont bar holder system with a standard 50mm extension by simply attaching the extension to the carrier foot with an adapter. We can also make custom length extensions if you require them.

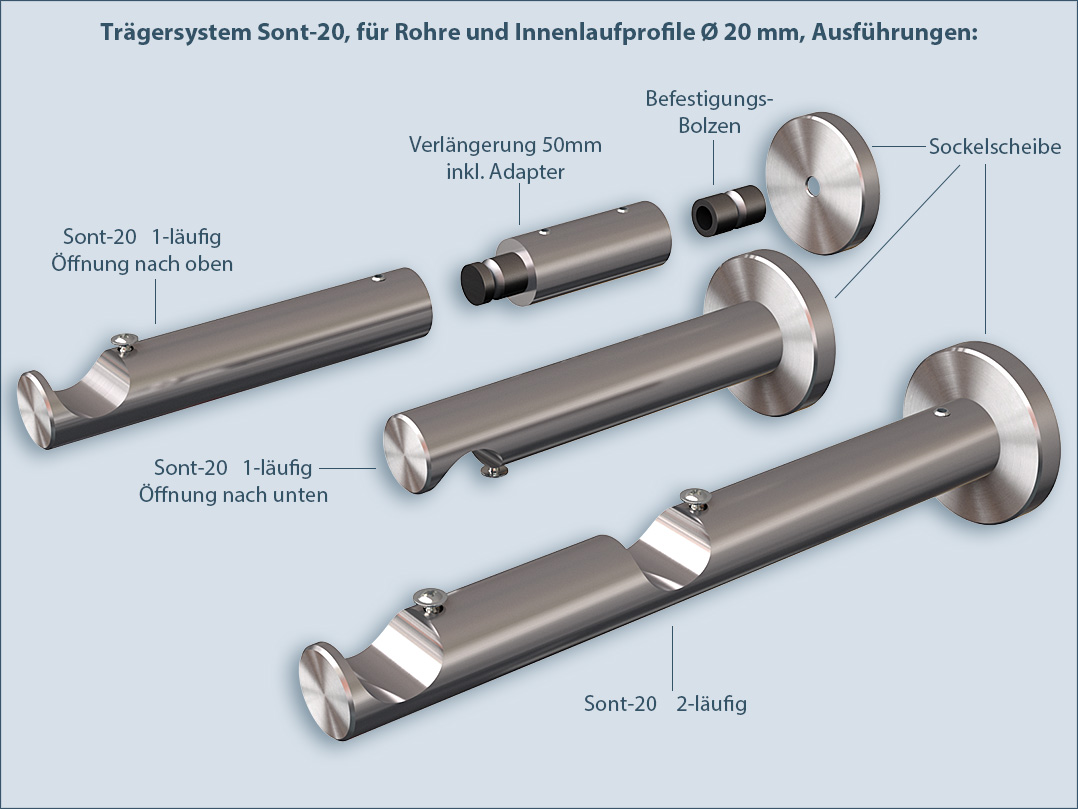

Bracket Sont 20 for stainless steel tubes and aluminum profiles.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
very good optical uniformity
Grain size 2500
Shiny brushed appearance
for curtain rod sets with the rod Ø20mm
for aluminum profiles Ø20mm
Wall - 1st Track 108 mm, 1st Track - 2nd Track 70 mm
