Support Top-20mm for round tube curtain rods and interior curtain rods: examples of use and assembly system
Decorative item from Stahldeko: open rod holder made of stainless steel for all round rods, tubes and inner profiles with a diameter of 20mm. Available as a 1-barrel or 2-barrel holder. A screw-on plate is used for attachment, the drill holes and screws are covered with a base. The rod carrier is inserted into the base and, if necessary, turned onto the screw-on plate. The tube is placed from above and the inner barrel profile from below in the openings of the carrier and secured with a grub screw. With this bracket system, you can easily carry out the curtain decoration on the floor and then attach the completely decorated curtain rod to the wall or ceiling (only for 1-track brackets). If you want to increase the distance to the wall or ceiling (only for 1-track holders), you can use extensions (sold separately).

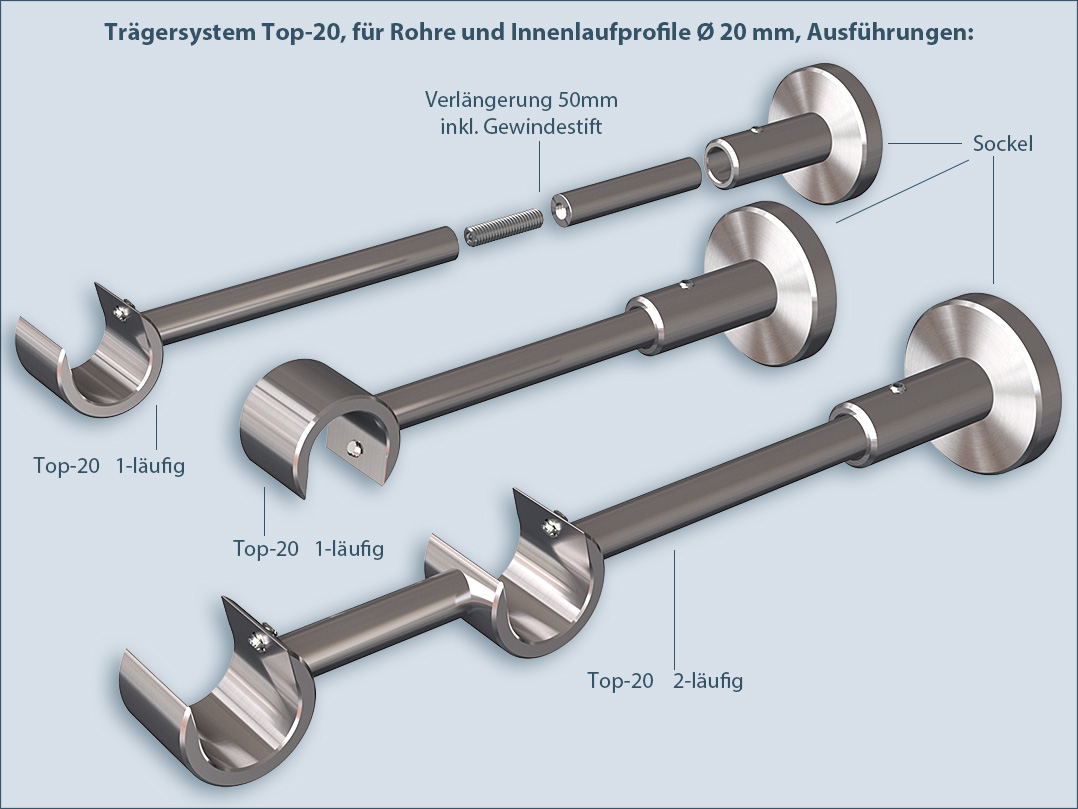

Support Top-20mm 1-track for round tube and inner track curtain rods, fastening system assembly instructions.
You can flexibly place these rod brackets on the curtain rod. First mount the sockets on the wall. The bases can either be fastened with a screw-on plate or screwed on directly with a Spax screw. Then insert the carrier foot into the base and tighten (but not too tightly) the base set screw. You can also place the Top rod holder with the openings facing down. In this position, it holds pipes or aluminum profiles absolutely securely with the grub screws. Insert the inner running profile or the round tube into the openings of the carrier and fix it with carrier grub screws. You can move the support foot in the base by approx. 1.5 cm in length to align the distance between the curtain rod and the wall or ceiling (only for 1-track brackets). If you want a smaller distance between the pole and the wall or ceiling, you can shorten the support foot with a hacksaw (minimum possible distance is approx. 65mm). Of course you can also extend the wall bracket (optional). For this we offer a 50mm standard extension for the top carrier system. The extension is simply attached to the carrier foot with a threaded pin. If you need special lengths, please feel free to contact us.

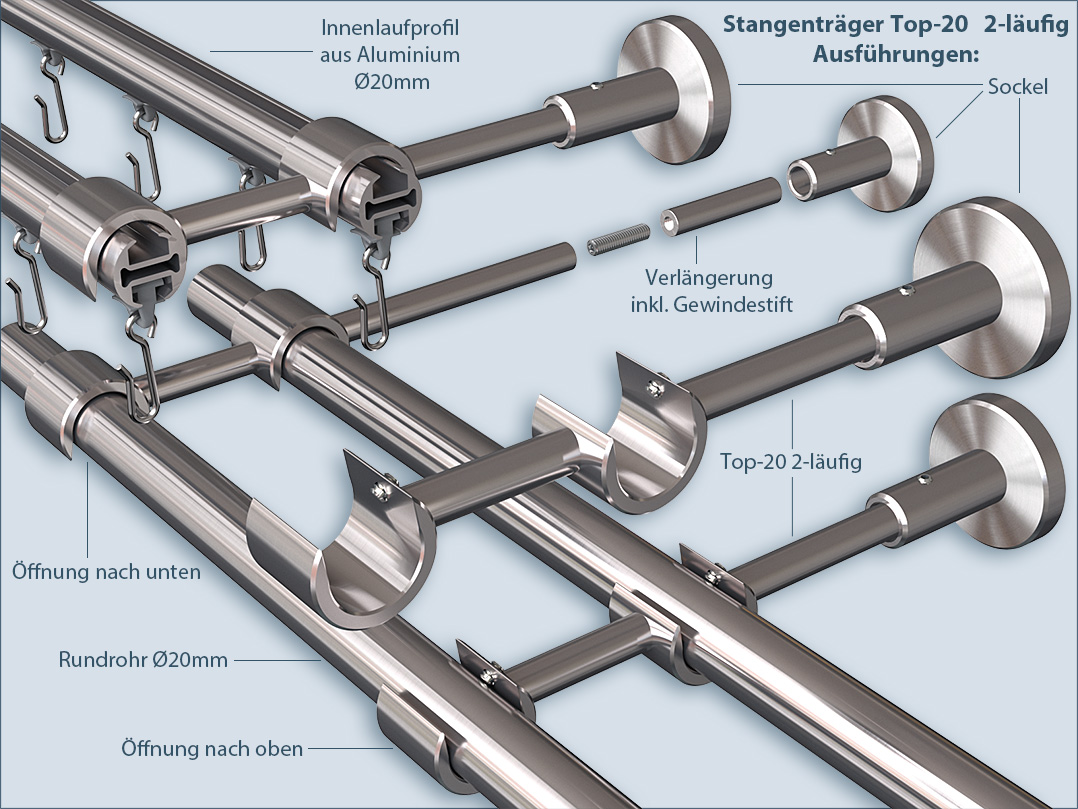

You can place these wall brackets absolutely freely on the curtain rod. First mount the bases on the wall. To mount the Top wall bracket, you can either fasten the base with a screw-on plate or directly with Spax screws. After installing the bases, slide the carrier foot into the base and tighten the base set screw. Then insert the aluminum inner running profiles or round stainless steel tubes into the carrier openings and fix them with carrier grub screws. You can also place the Top wall bracket with the openings pointing downwards. In this position, too, the tubes or the aluminum profiles are held firmly with the grub screws. The rod holder can be adjusted in the base about 1.5 cm in length to change the distance between the rods and the wall. If you want a smaller distance from the pole to the wall, it is possible to shorten the support foot with a hacksaw. The minimum possible distance is approx. 65mm (first run). Of course it is also possible to extend the rod carrier (optional). We also offer a 50mm standard extension for the top bracket system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.
Rod bracket Top 20, V2A stainless steel.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
