Two-track ceiling support Top-20-Universal: complete system for ceiling attachment of tubes and internal rails. There are room situations where the normal wall mounting of curtain rods is not possible or not stable enough. For example, if the room is equipped with floor-to-ceiling windows or very wide window sills, or if a roller shutter box is installed above the window and therefore there is no stable base for mounting brackets on the wall. In these cases, we suggest attaching the curtain rods to the ceiling. The advantages of ceiling mounting are obvious: you can achieve any distance between the rods and the wall and ceiling. Requirements for the subsurface, even with larger systems, are not as high as with wall mounting because there is no carrier leverage with ceiling mounting. Our double-barrel Top-20 ceiling brackets also offer the option of attaching any rod to the ceiling, whether it's a round stainless steel tube or an inner-rail curtain rod, of course it's possible to combine the rods in one bracket. You can mount the carriers with the openings pointing downwards (e.g. for inner running profiles) or upwards (e.g. for normal tubes). When using interior curtain rods, an all-round trouble-free path of the curtain is guaranteed. You can also combine the ceiling suspension with wall mounting, for which our two-track Top-20 wall bracket is absolutely compatible. Standard lengths are 5, 15, 30 and 45cm (can be shortened). We can also manufacture longer straps, please just ask.
Examples of use: Curtain rod ceiling suspension with Top-20-Universal bracket.
Rod holder is mounted with openings at the top, so you can attach the 2-track curtain rods to the ceiling with regular round tubes. You can order stainless steel tubes with a diameter of 20mm here.

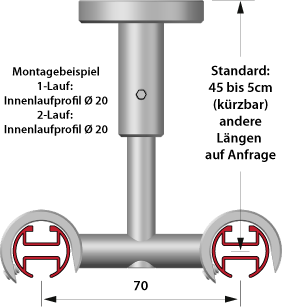

Rod holder is mounted with openings facing down so you can attach the 2 inner run curtain rods to the ceiling. This guarantees an all-round trouble-free path for the curtain. You can buy round inner running rods with a diameter of 20mm here.

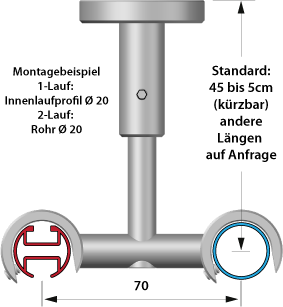

Here a round tube is combined with an inner barrel profile. In the run with the inner rail, an all-round trouble-free path of the curtain is guaranteed.

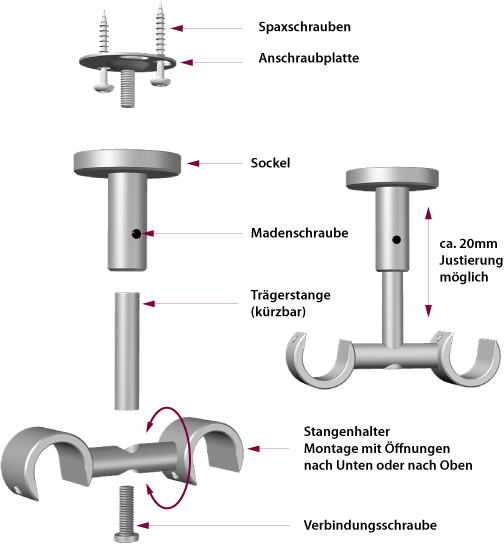

Mounting: Top-20-Universal support for ceiling mounting
Combination ceiling mounting and wall mounting.
You can also combine the ceiling suspension with wall mounting, for which our two-track Top-20 wall bracket is absolutely compatible. From a system length of 240cm we recommend the use of intermediate supports.
Here curtain rods are attached to the side of the wall and in the middle to the ceiling.

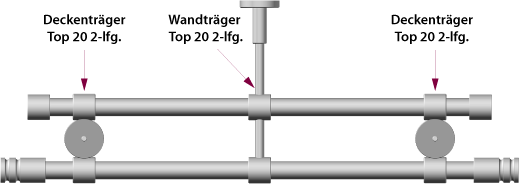

Two-track curtain rods on the side with ceiling mounting and in the middle with wall mounting
Double track holder Top-20-Universal, for ceiling mounting of round and internal track curtain rods Ø 20mm
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
