Deco design article: rod support wall bearing 20, V2A stainless steel.

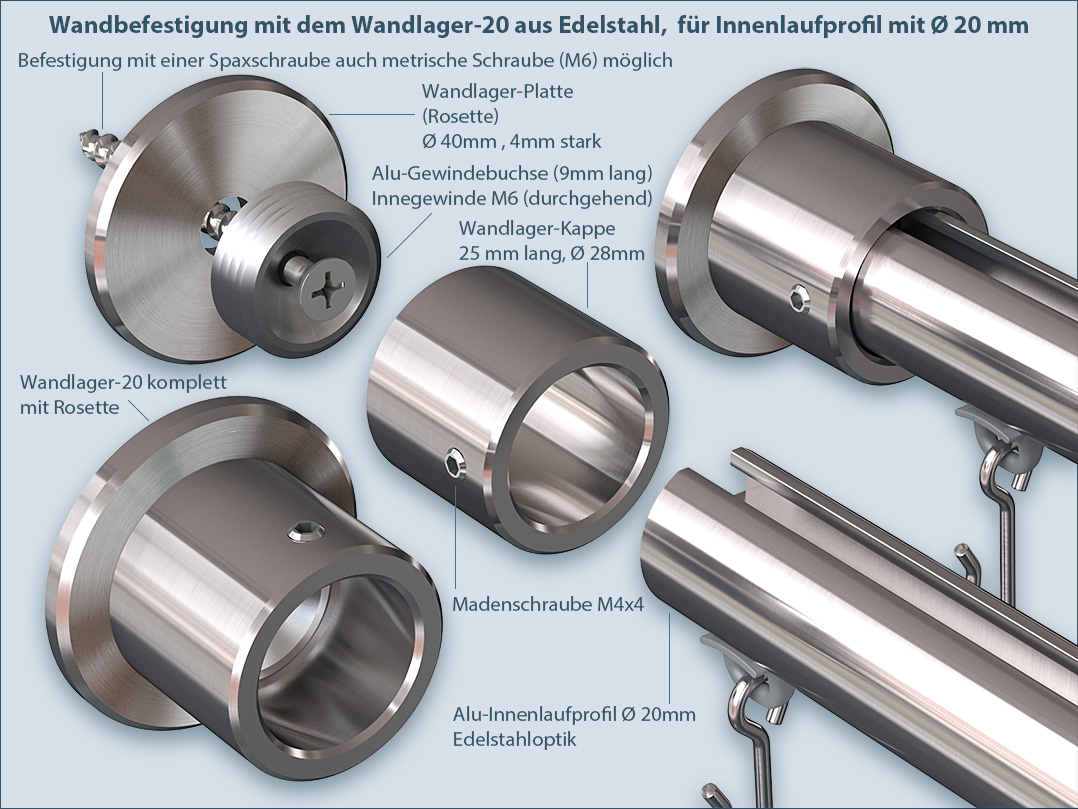

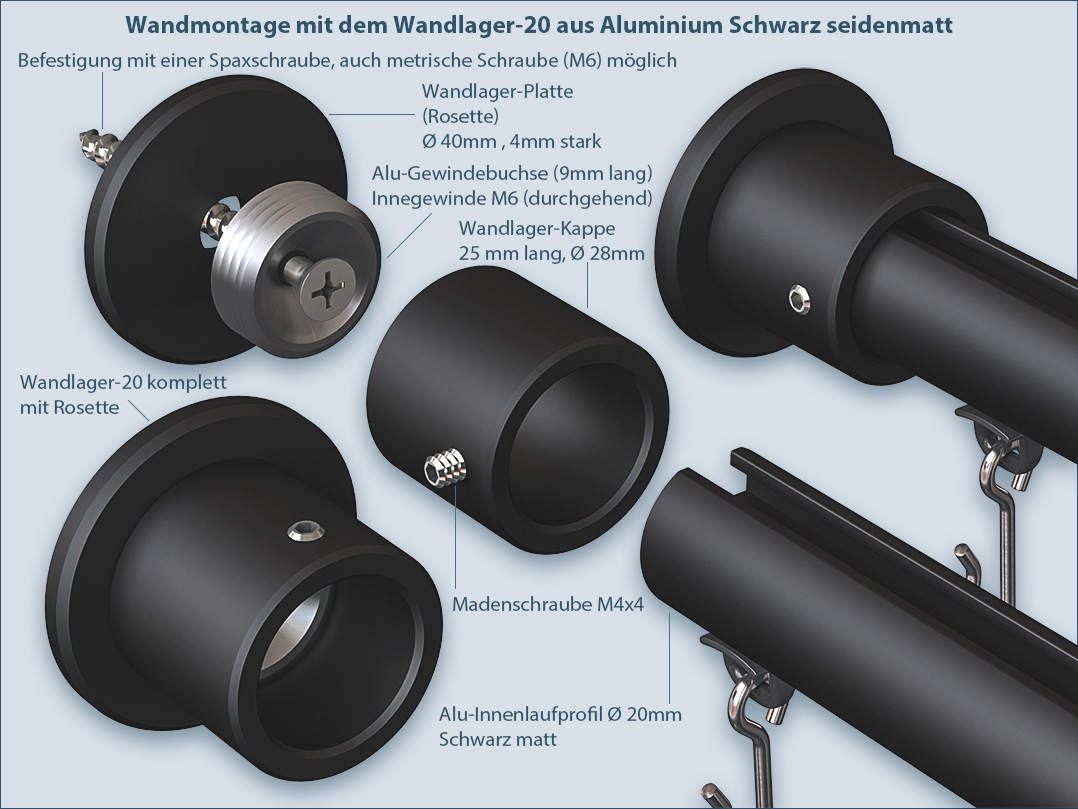

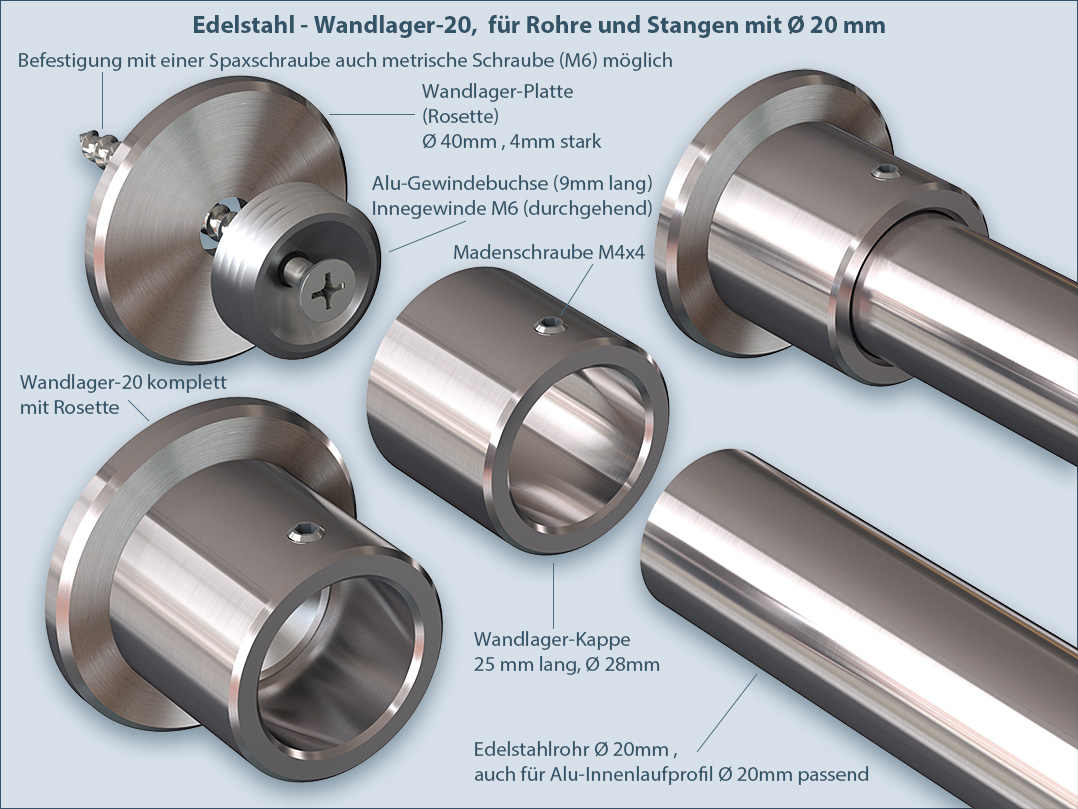

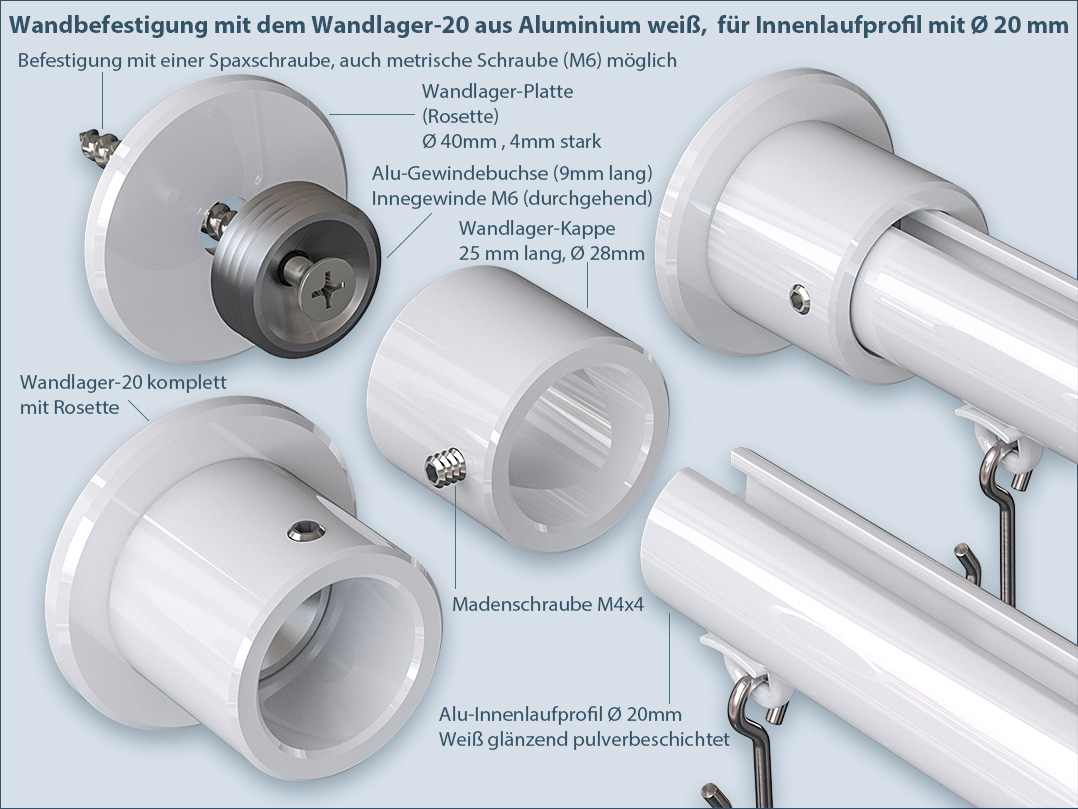

Curtain rod brackets Wall brackets for 20mm tube diameters are a practical solution for fastening curtain rods in niches. They are made of high-quality stainless steel or aluminum. The stainless steel wall bracket is satin finished, black and white aluminum wall brackets are available in a black satin finish or white gloss finish. These rod mounts can be used with round tubing or round inner races. The brackets offer a stable and reliable fastening option for curtain rods, curtain rods, wardrobe and clothes rails, towel rails and kitchen rails and are an elegant addition to any room design. With the wall bracket system, you can easily decorate on the floor and then attach the completely decorated pole between two walls in the niche. First fasten the wall mounting plates (rosettes) and threaded bushes to the wall with Spax screws. Then push the rod onto the threaded bush and screw on the cap. The rod is locked with a grub screw.
Fastening without wall bearing plates (rosettes) If desired, you can also mount the wall brackets without rosettes. However, we only recommend this type of attachment for hard surfaces such as stone, hardwood or tiles.

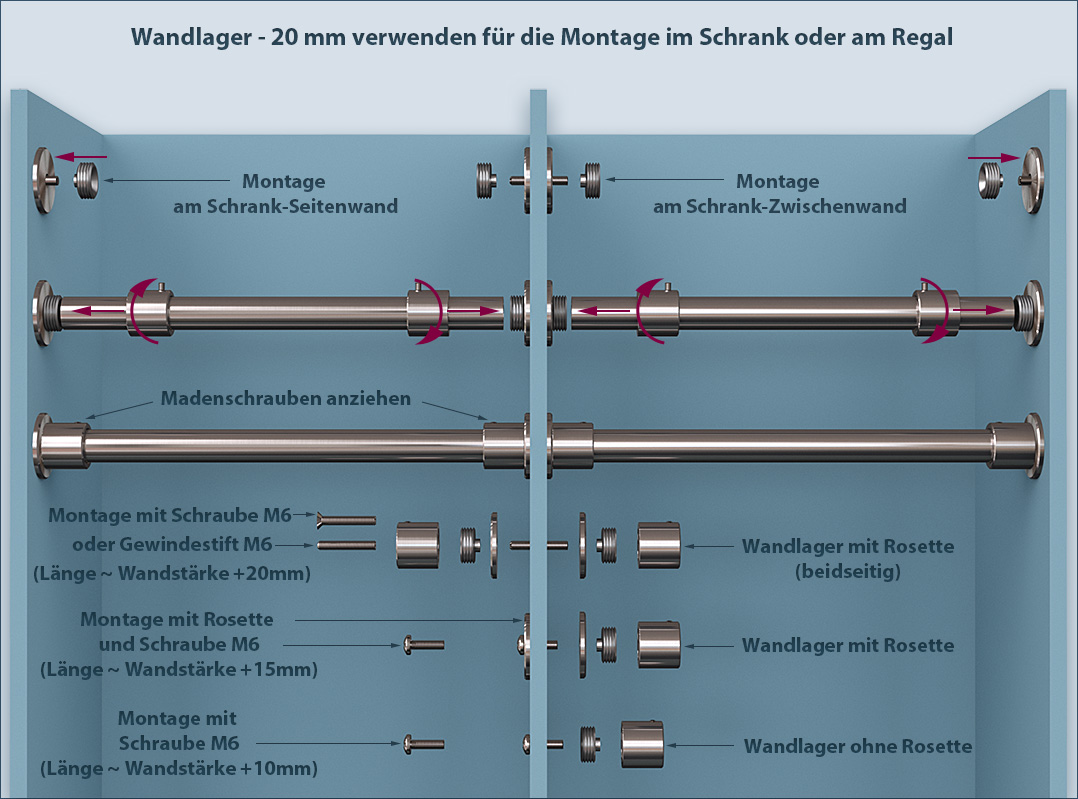

Mount wall brackets 20mm in the cupboard or on the shelf In addition to mounting in a wall niche, you can also use our wall storage brackets in a closet or on a shelf to mount clothes rails or wardrobe rails on side or partition walls. For this you can use metric screws with a thread size of M6 (not included).
Example of use: curtain rod for wall brackets, single-track, with hooks
Example of use: Curtain rod, wall bearing, two-track, with rings
Rod bracket Wall holder 20, V2A stainless steel.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
very good optical uniformity
Grain size 2500
Shiny brushed appearance
for curtain rod sets with the rod Ø20mm
25mm Long, Ø28mm, Wall Bracket Plate Ø40mm, Cut tube by 13mm/ per 1 piece Wall Bracket
1-Point Mounting with Spax Screw
Wall to Wall Mounting
Recommended accessory: Intermediate bracket Top 20, Sont 20
