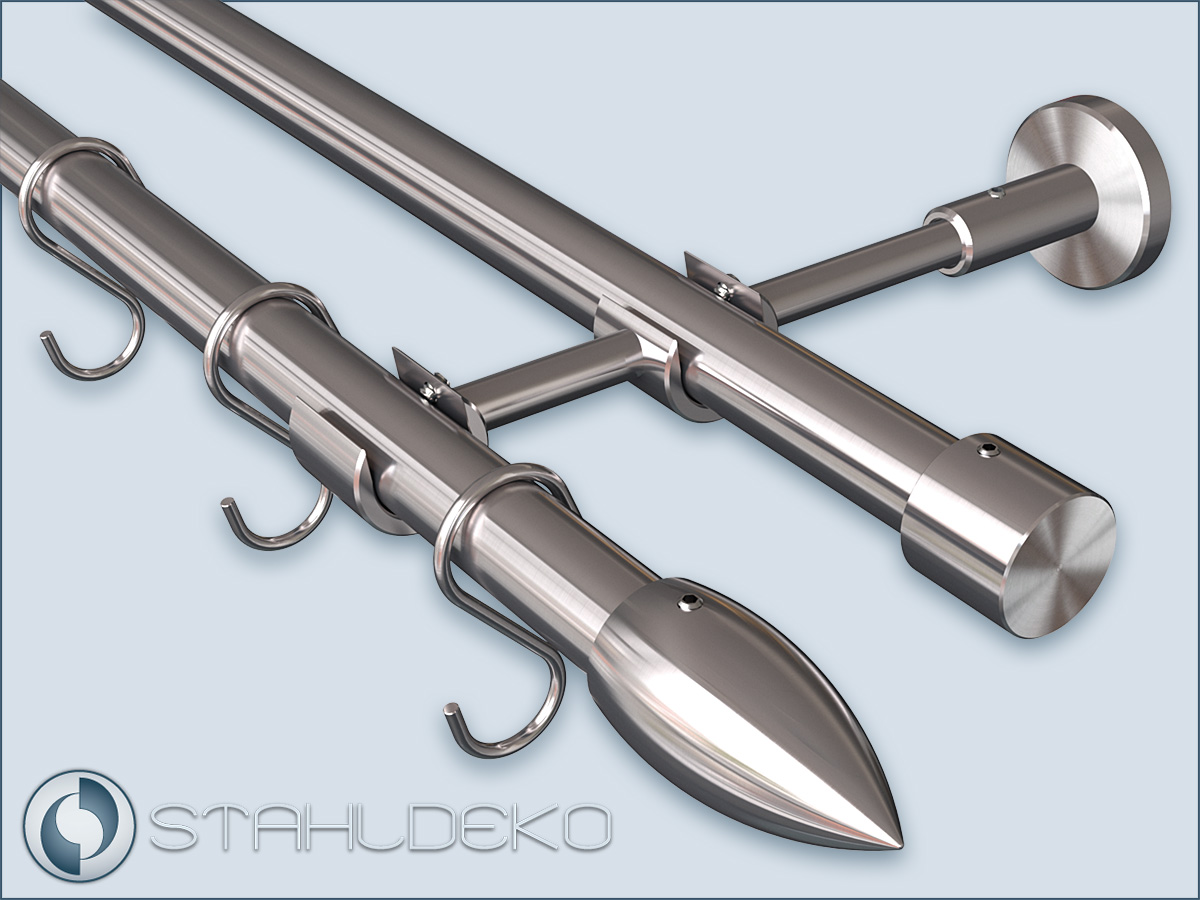

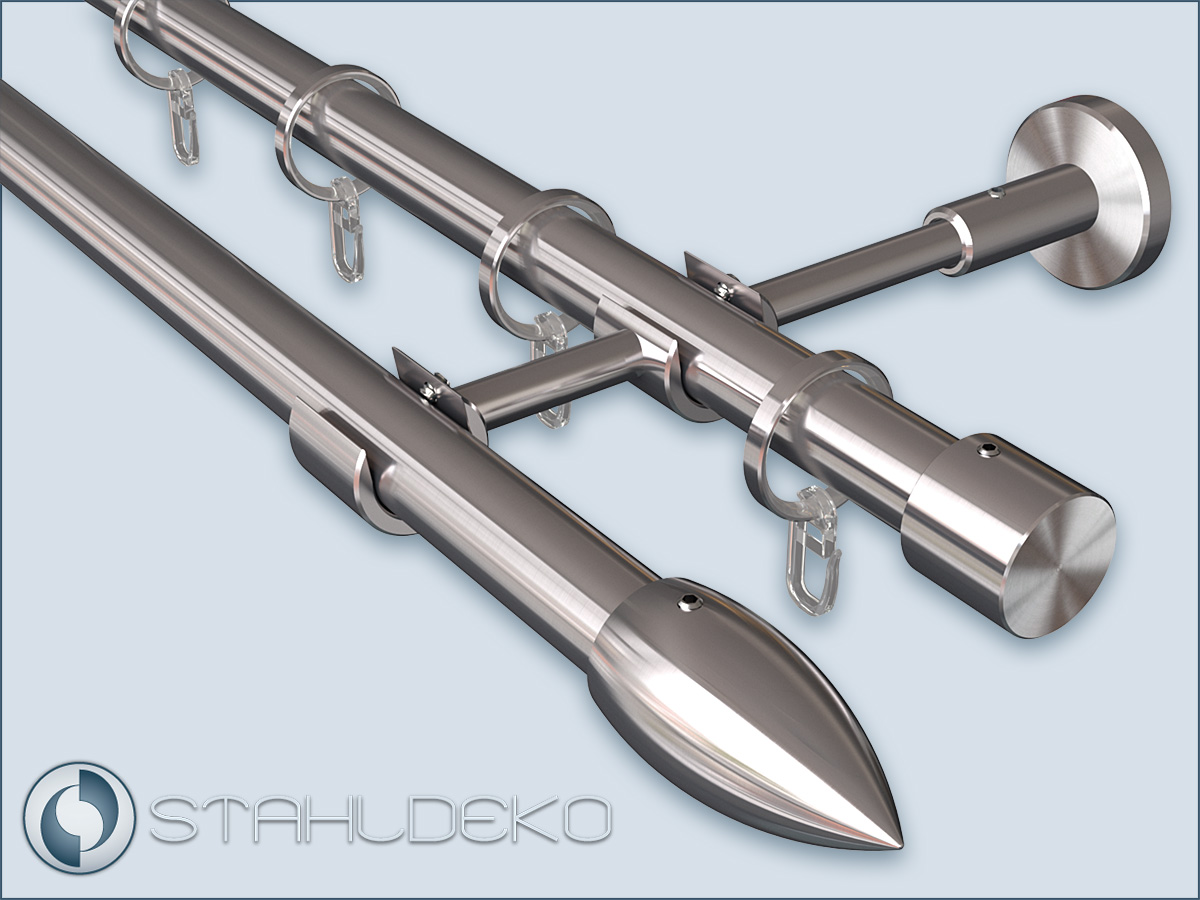

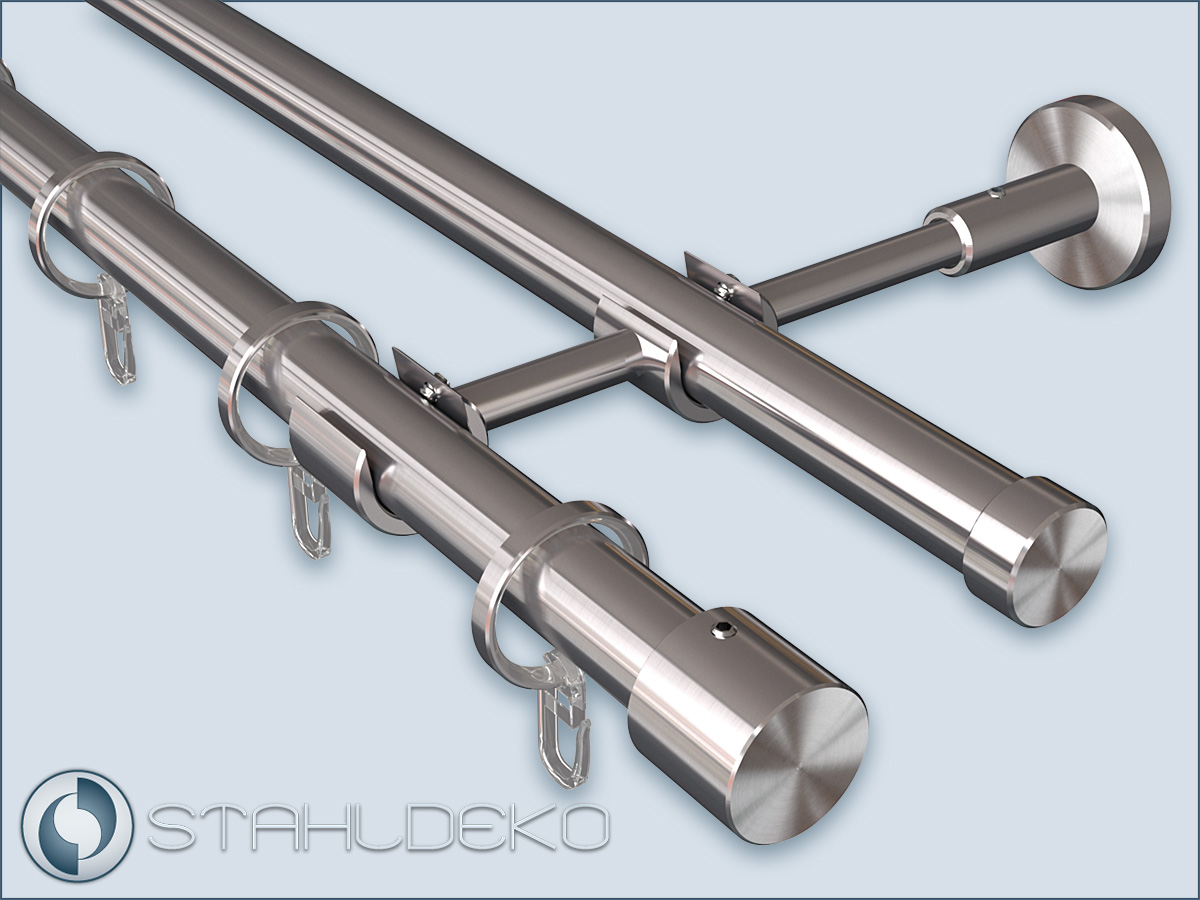

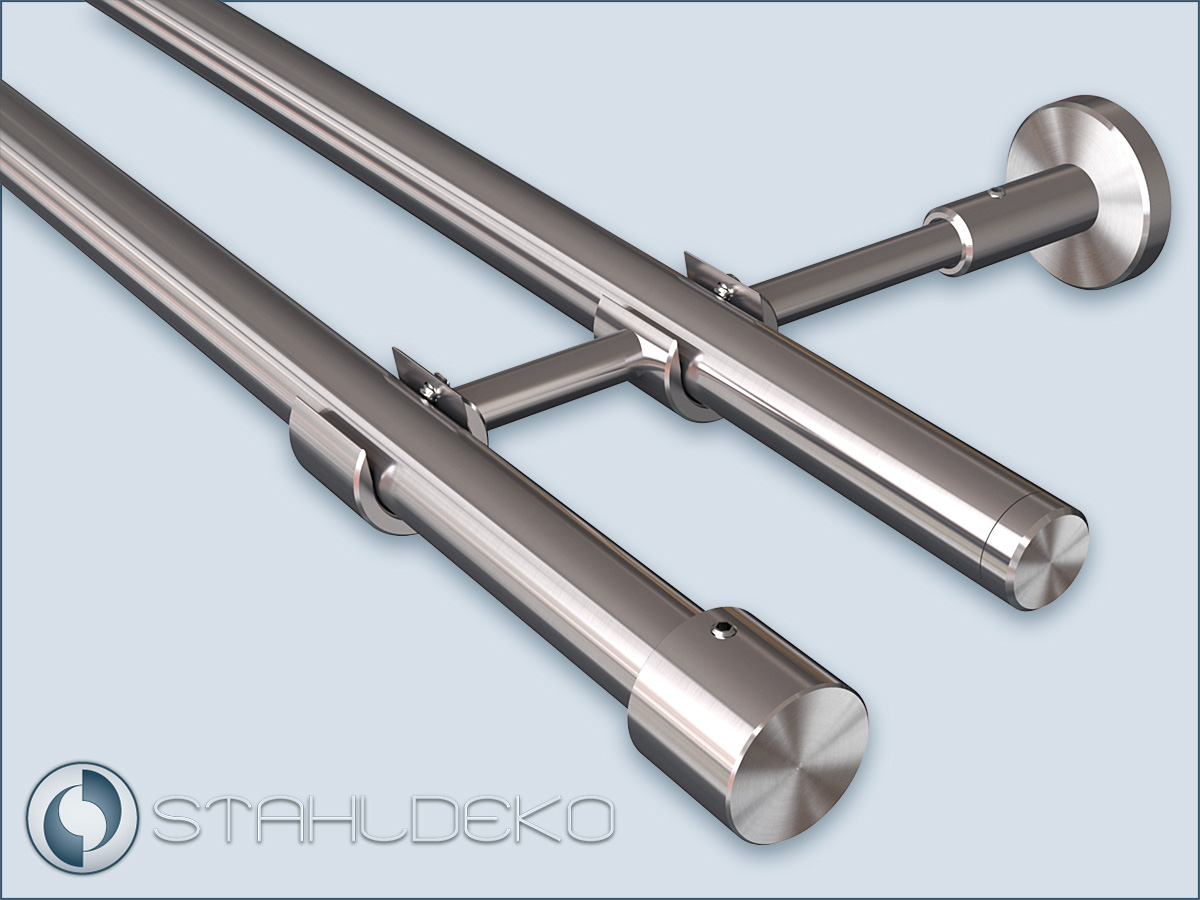

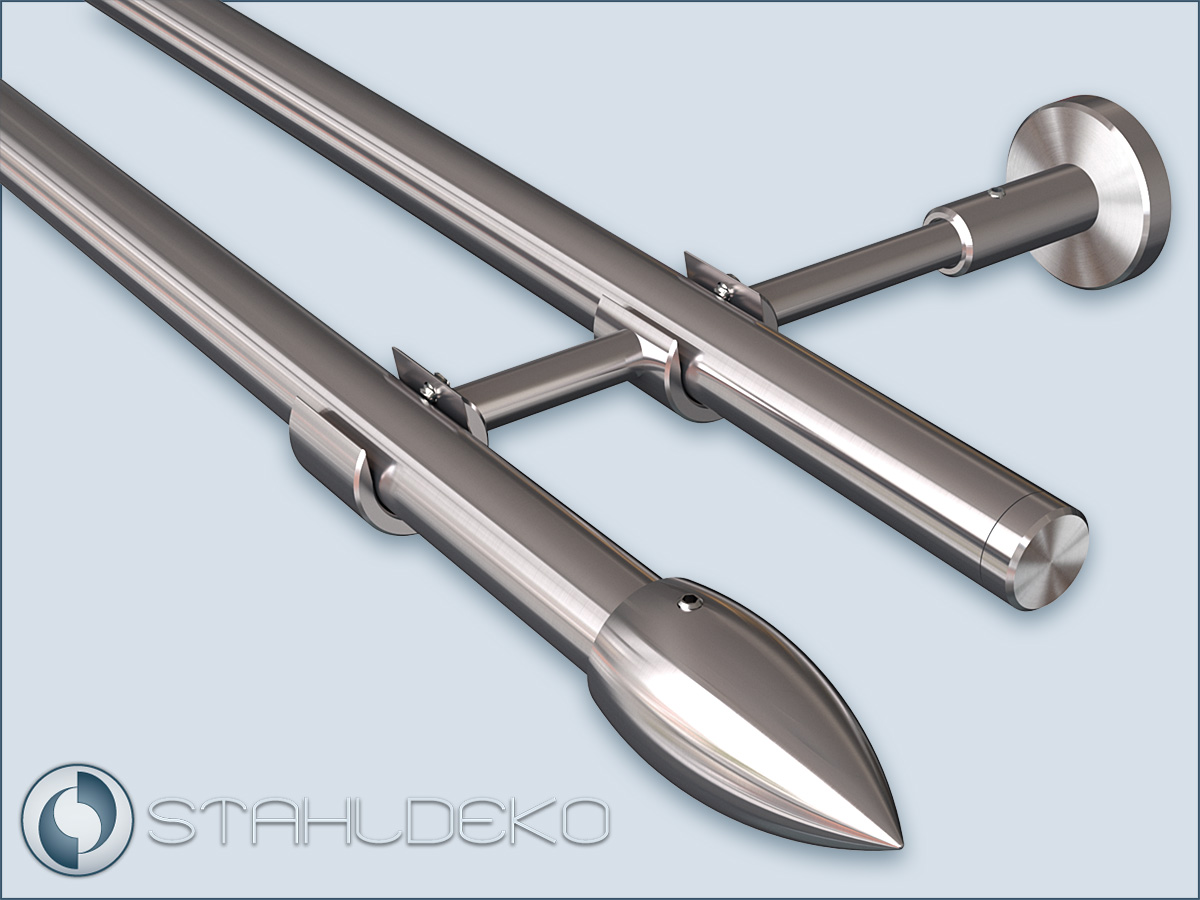

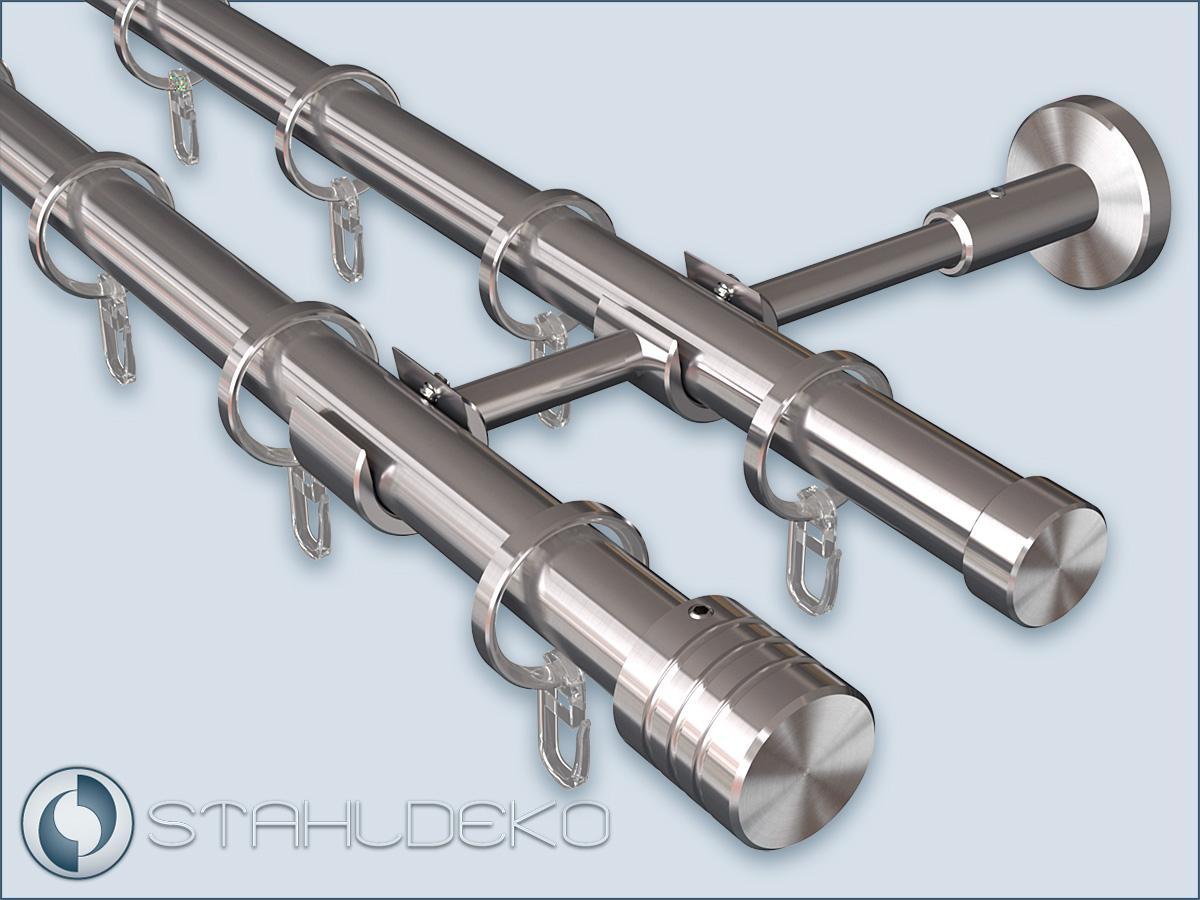

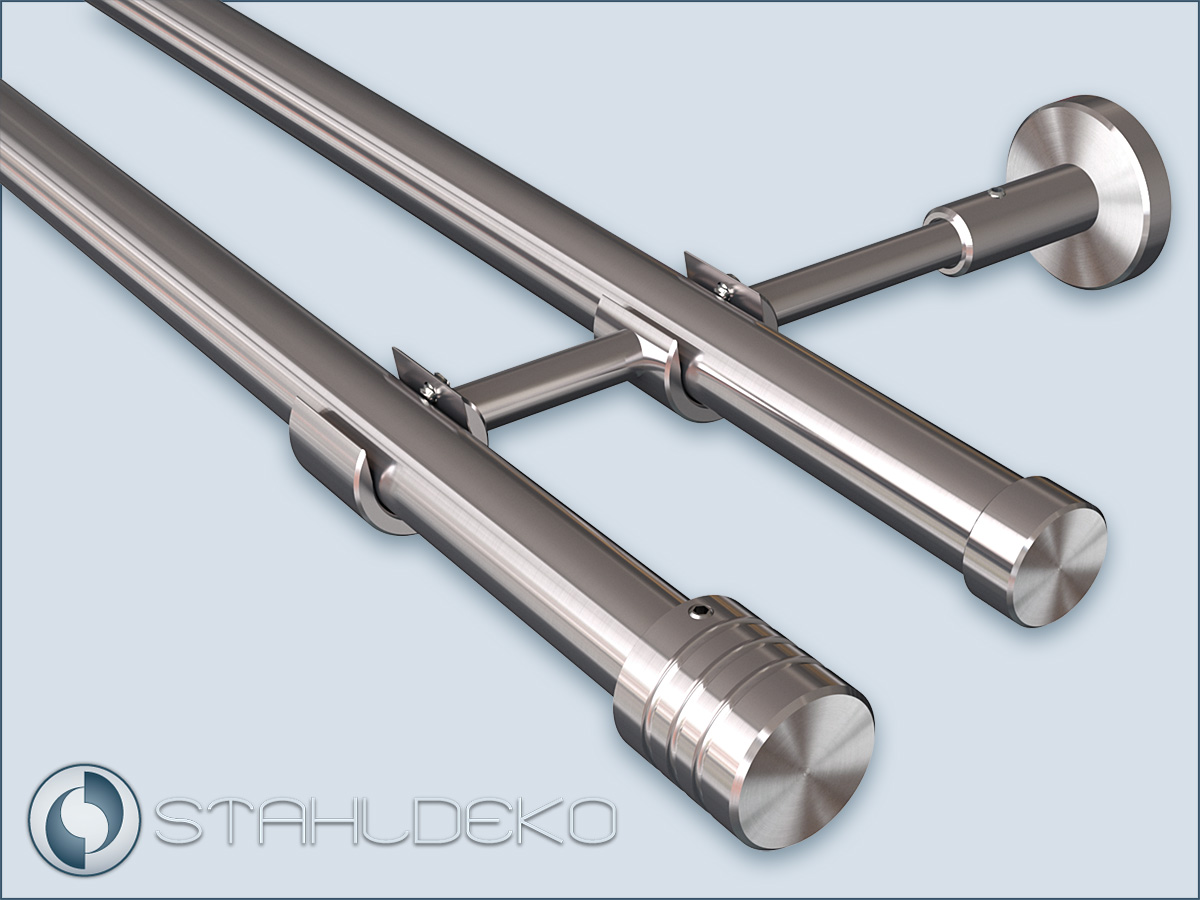

2-track curtain rail made of V2A stainless steel has a tube diameter of 20 mm and is supplied with Top-20 brackets. You can choose the pipe length, finials, rings and hooks according to your needs.

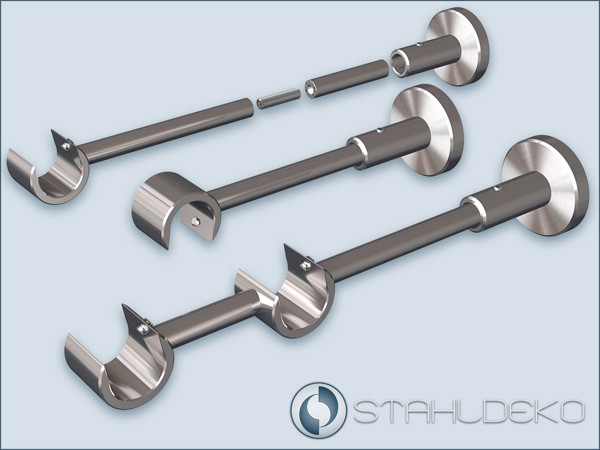

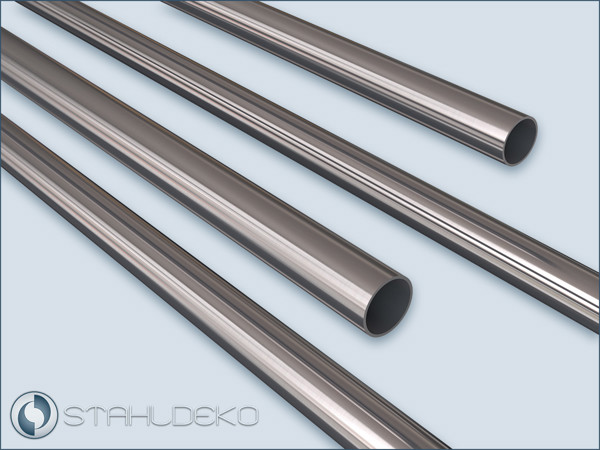

The classic curtain rod is equipped with a round tube and is attached to the wall. The Top-20 carrier system has a two-track, open bracket that was specially developed for the convenient attachment of curtain rods. These supports are designed for round tubes with a diameter of 20 mm and are made of strong and durable stainless steel. The stainless steel material not only makes the rod mount very stable, but also gives it a modern and elegant look that suits many different interior styles. One of the most popular and most purchased curtain rods by our customers, the Top 20 double track curtain rod is perfect for hanging curtains in both residential and commercial spaces. Round tube curtain rods are usually used with curtain rings, curtain hooks, loops or grommets to attach the curtains to the rod. This version is the most commonly used version for attaching curtains and blinds in window decoration. You are ordering a complete curtain rod, which consists of the following parts: 2 pieces of stainless steel tube with a diameter of 20 mm in an elegant, satin finish finish, matching the stainless steel brackets and end pieces. Lengths of up to 600 cm are available in one piece on request. You will also receive 2, 3 or 5 Top-20 double-track carriers with a base, made of solid stainless steel DIN WNR 1.4301 with a satin finish. Fastening material is included in the scope of delivery, the number of supports depends on the tube length of the rod ordered. You also have the option of ordering 4 end pieces of your choice or the rod without end pieces. We recommend that you order the number of rings or hooks you require, with a minimum of 10 per 1 meter of curtain width. *If you have specific requirements, custom-made products are available upon request. We can bend our stylish sets into any desired shape to meet your individual needs and room situation.

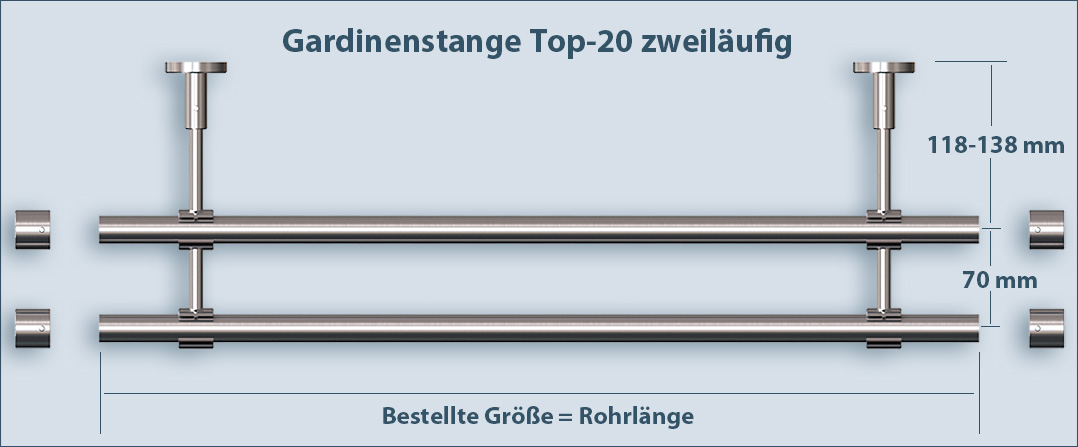

Order a double-track curtain rod made of stainless steel from the Top-20 system and measure the correct length beforehand
The ordered size corresponds to the tube length without end pieces. If desired, please enter the required length in cm in the field "shorten by:". We then cut the round tube to the appropriate length. For example: If you need a pipe of exactly 213cm, please select under "pipe length" - 220cm and enter "7 cm" in the field "cut by:". Sections are not supplied. * Parcel service shipping: Pipes up to 260cm are always delivered in one piece for parcel service delivery. The pipe is divided as follows from a length of more than 260cm: up to 520cm divided in the middle from a length over 520cm 1/3 + 1/3 + 1/3 divided. A connection adapter is automatically supplied. A support should be attached to the junction. * Freight forwarding: Pipes longer than 260cm and up to 400cm are delivered in one piece for forwarding. Pipes longer than 520cm and up to 600cm are divided in the middle. *Curtain rods longer than 400cm and up to 600cm can be delivered in one piece on request. The price is available on request.

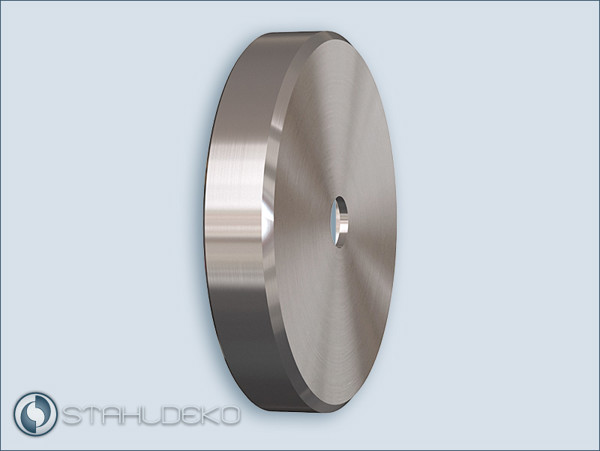

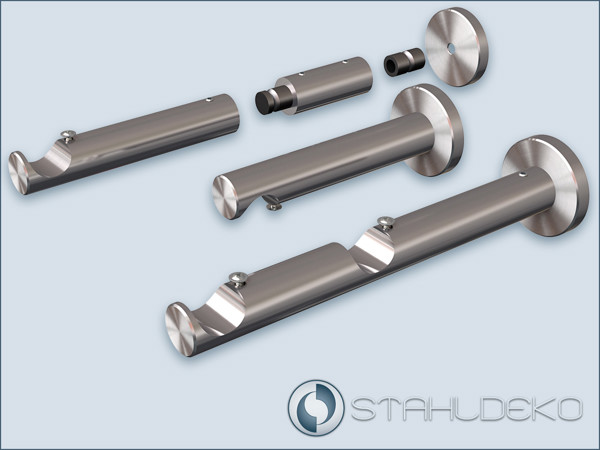

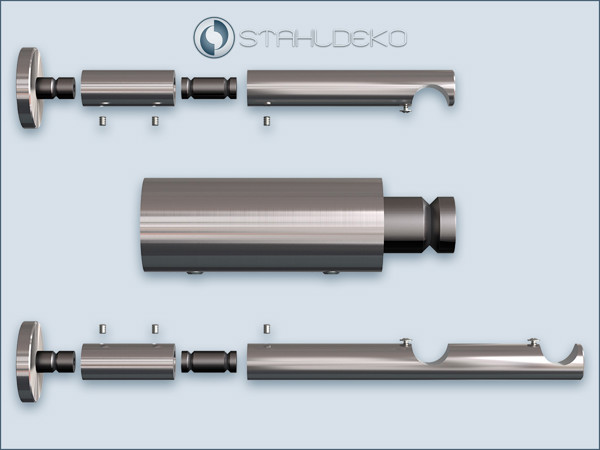

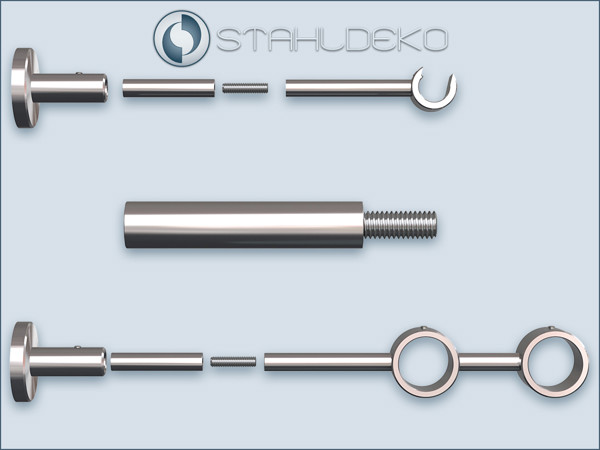

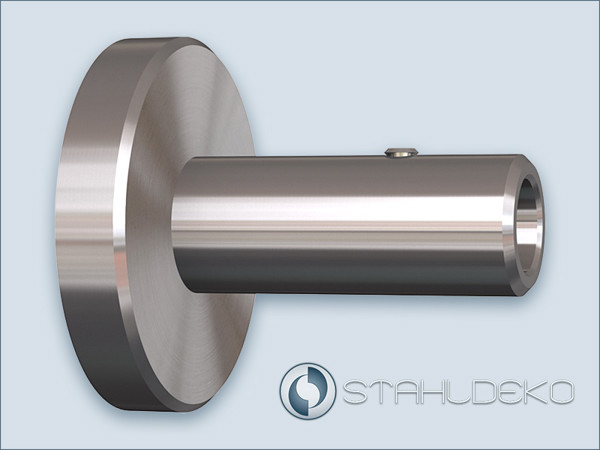

You can place these wall brackets for the curtain rod absolutely freely. Begin by mounting the bases on the wall. To mount the Top wall bracket, you can either attach the base with a screw-on plate or directly with Spax screws. After assembly, slide the carrier foot into the base and tighten the grub screw on the base. Then insert the aluminum inner running profiles or round stainless steel tubes into the openings of the carrier and fix them with the carrier grub screws. The rod mount can be adjusted in length by approximately 1.5cm in the base to change the distance between the rod and the wall. If you want a smaller distance from the pole to the wall, you can shorten the support foot with a hacksaw. The minimum distance is about 65mm (first run). Of course it is also possible to extend the rod carrier (optional). We offer a 50mm standard extension for the top mount system. Simply screw the extension to the carrier foot with a grub screw. We can also make special lengths of extensions - just ask. You can also place the Top wall bracket with the openings facing down. In this position, too, the tubes or the aluminum profiles are firmly held in place with the grub screws.
Select and order the desired stainless steel finials for the Top-20 curtain rod.

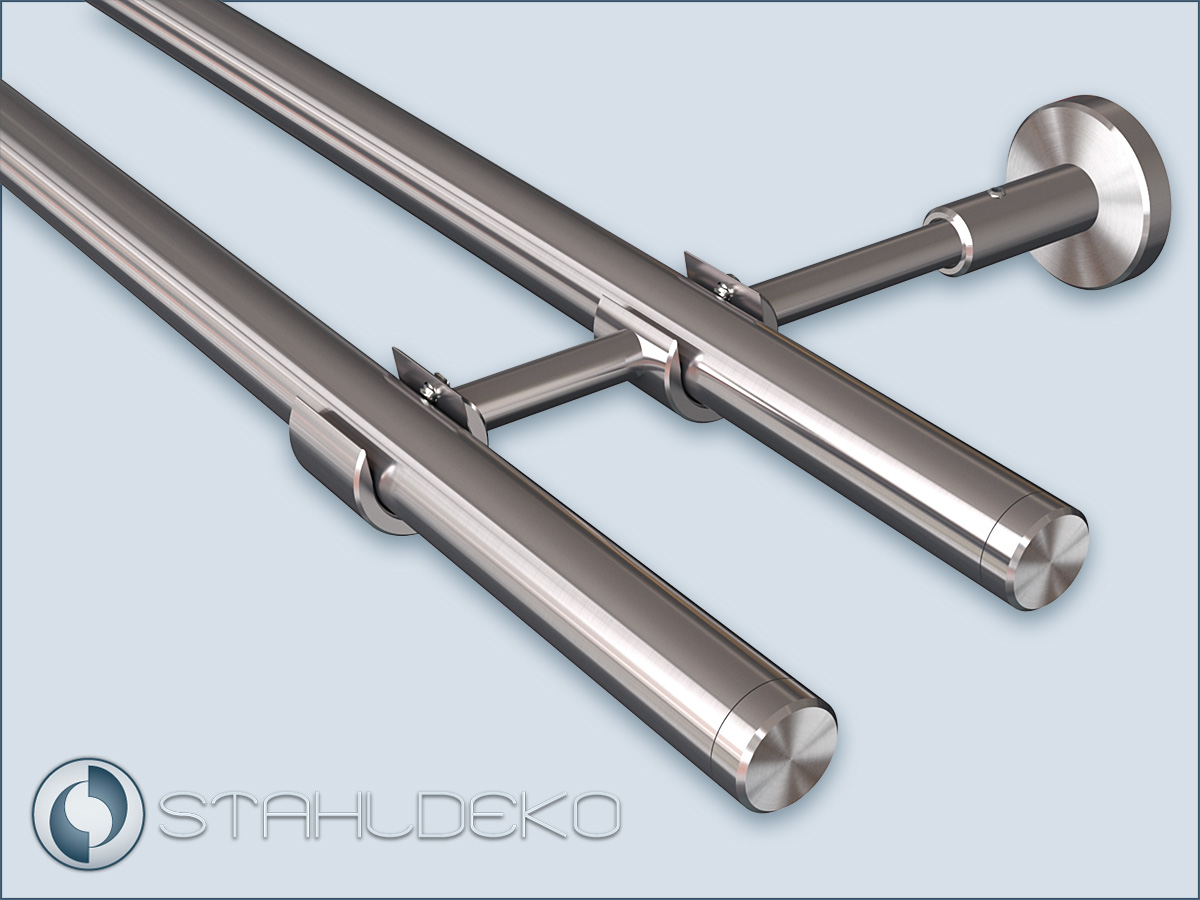

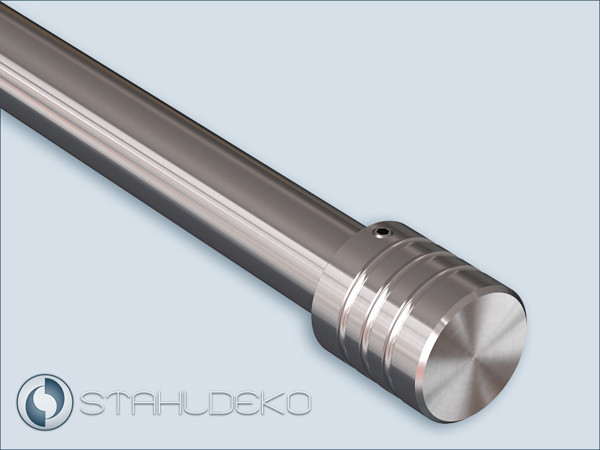

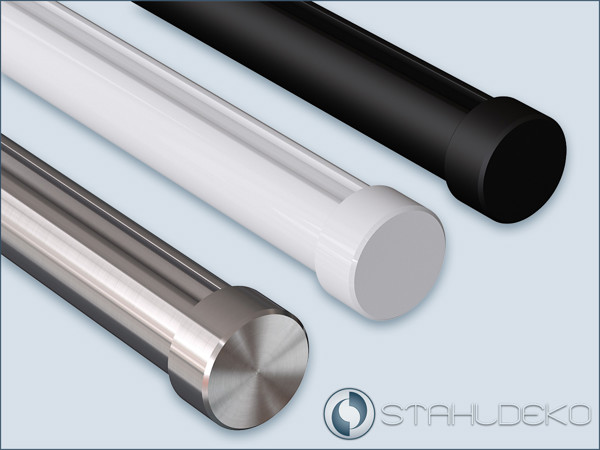

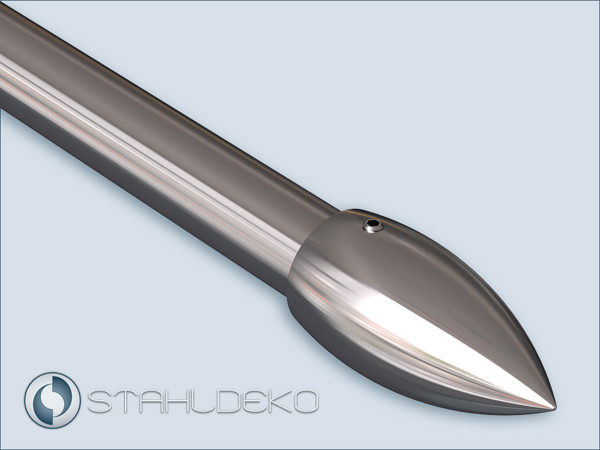

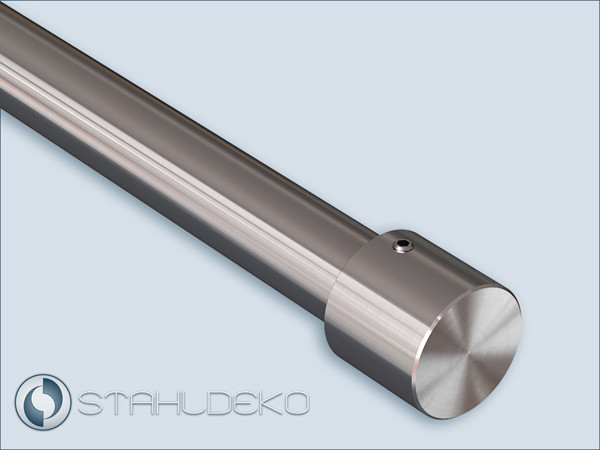

We offer different end pieces for our tubes with a diameter of 20mm. Simply select the desired end piece from the corresponding field. In the picture you can see a selection of our end pieces and end knobs for tubes with a diameter of 20mm. Of course you can also order a version without end pieces, for example to use a wall bracket or a bay window joint at this point.

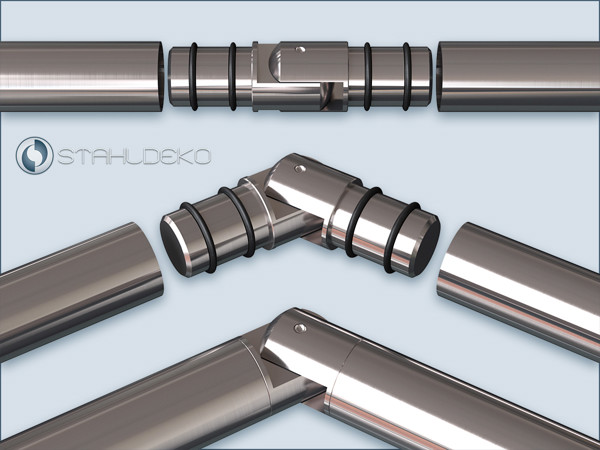

Connect tube ends with bay window joint to create angled curtain rods, for example.
If you need an L-shape or U-shape style set for your room or want to make a trapezoidal curtain rod for your bay window, you can use our connecting joints to join 20mm diameter tubes. During manufacture, these corner joints are inserted into the pipe ends instead of the end pieces, so that angles from 75° to 285° can be easily and steplessly achieved. To compose an L-shaped curtain rod, order: 1 pc. curtain rod with 4 end pieces + 1 pc. curtain rod without end pieces but with 2 joints. To compose a U-shaped or a 3-sided trapezoidal curtain rod, order: 2 curtain rods each with 2 end pieces + 1 curtain rod without end pieces but with 4 joint connectors. Need help configuring? Contact us by email or phone.
Order curtain rings made of stainless steel including clip-on hooks.

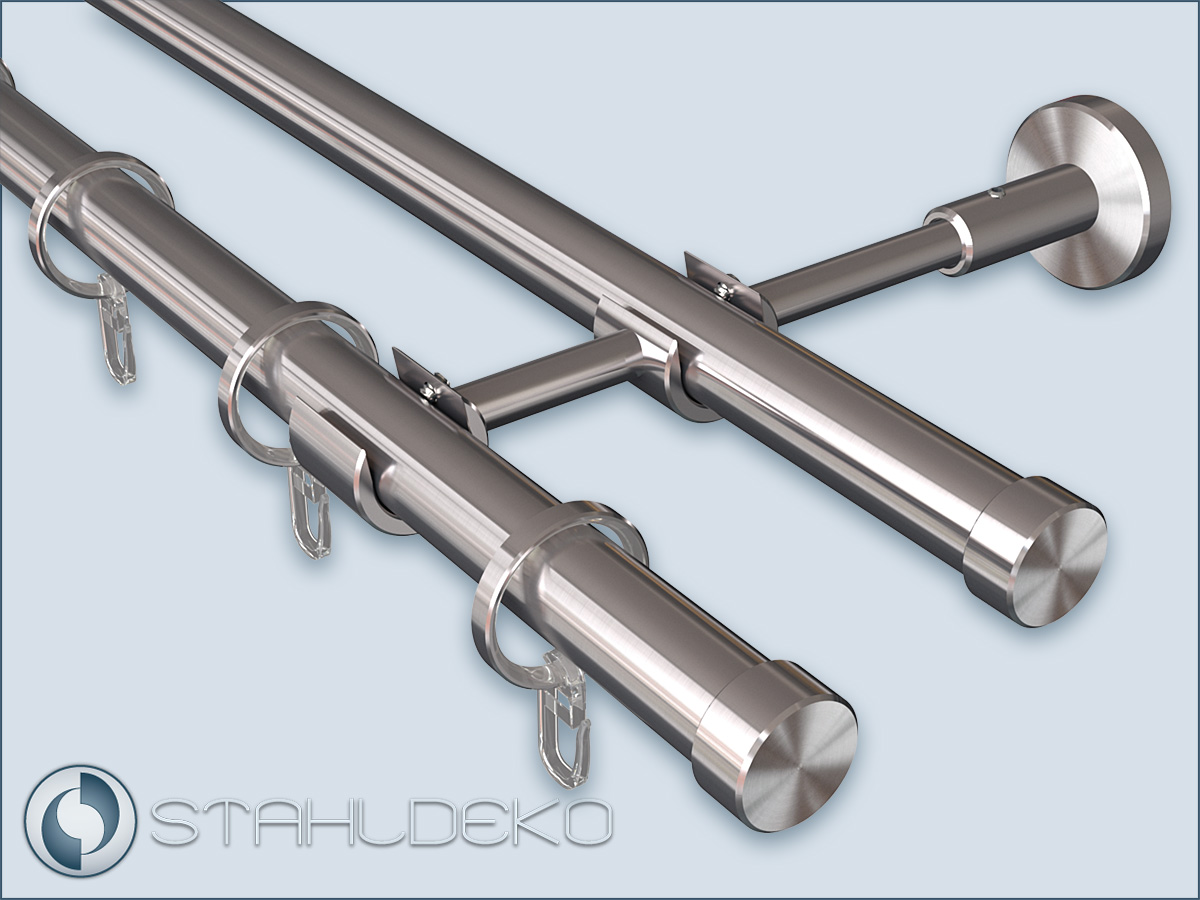

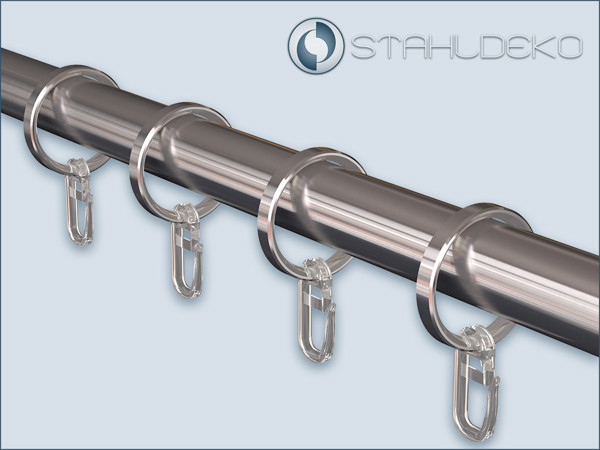

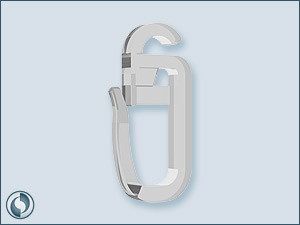

For easy attachment of your curtains to the curtain rod, we recommend ordering our stainless steel curtain rings. These rings are made of stainless steel and have a plastic insert that allows the curtains to slide quietly. Each curtain ring comes with a clear plastic clip-on (gathering) hook for you to easily attach to the rod. Please refer to the drawing for the dimensions: D1 = 30mm D2 = 37mm H = 62mm
Curtain hooks for rods and tubes with a diameter of 20mm, material stainless steel.

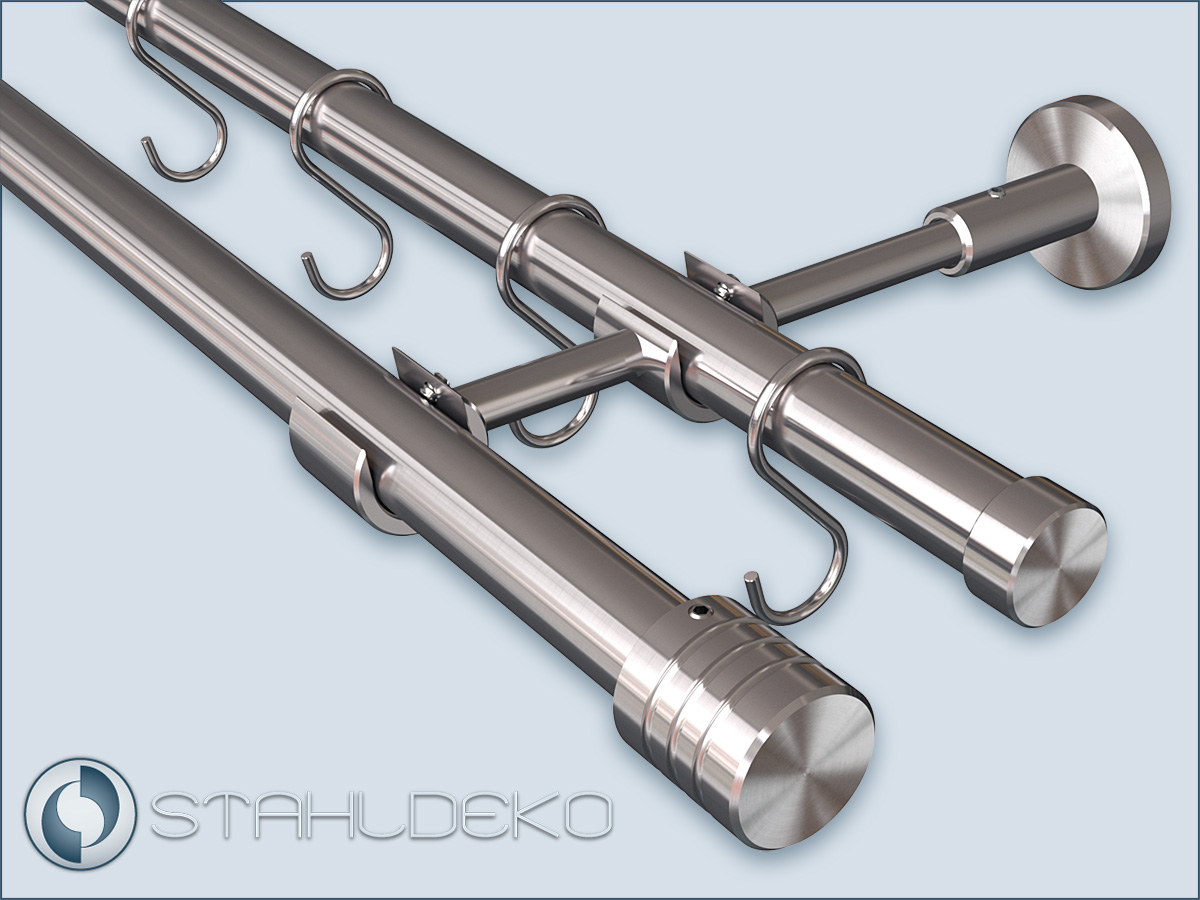

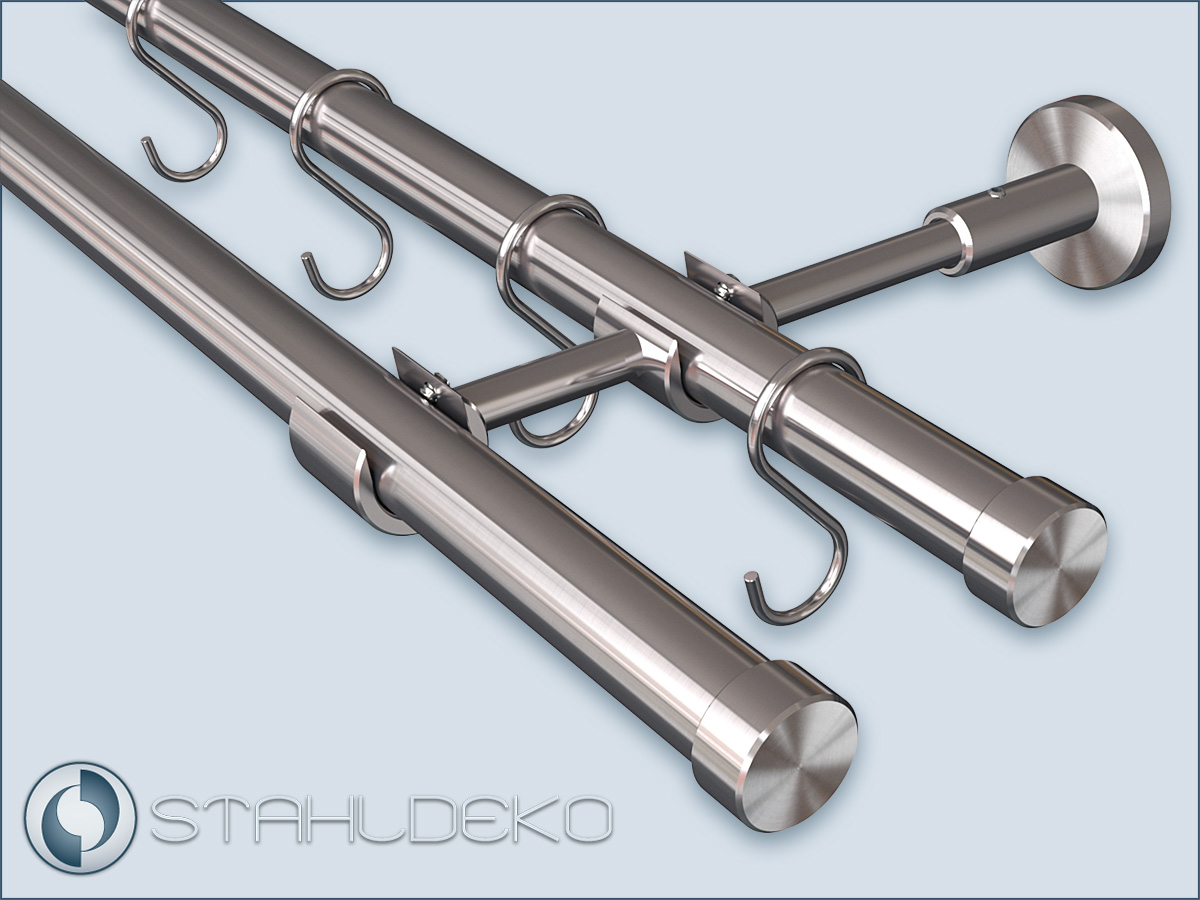

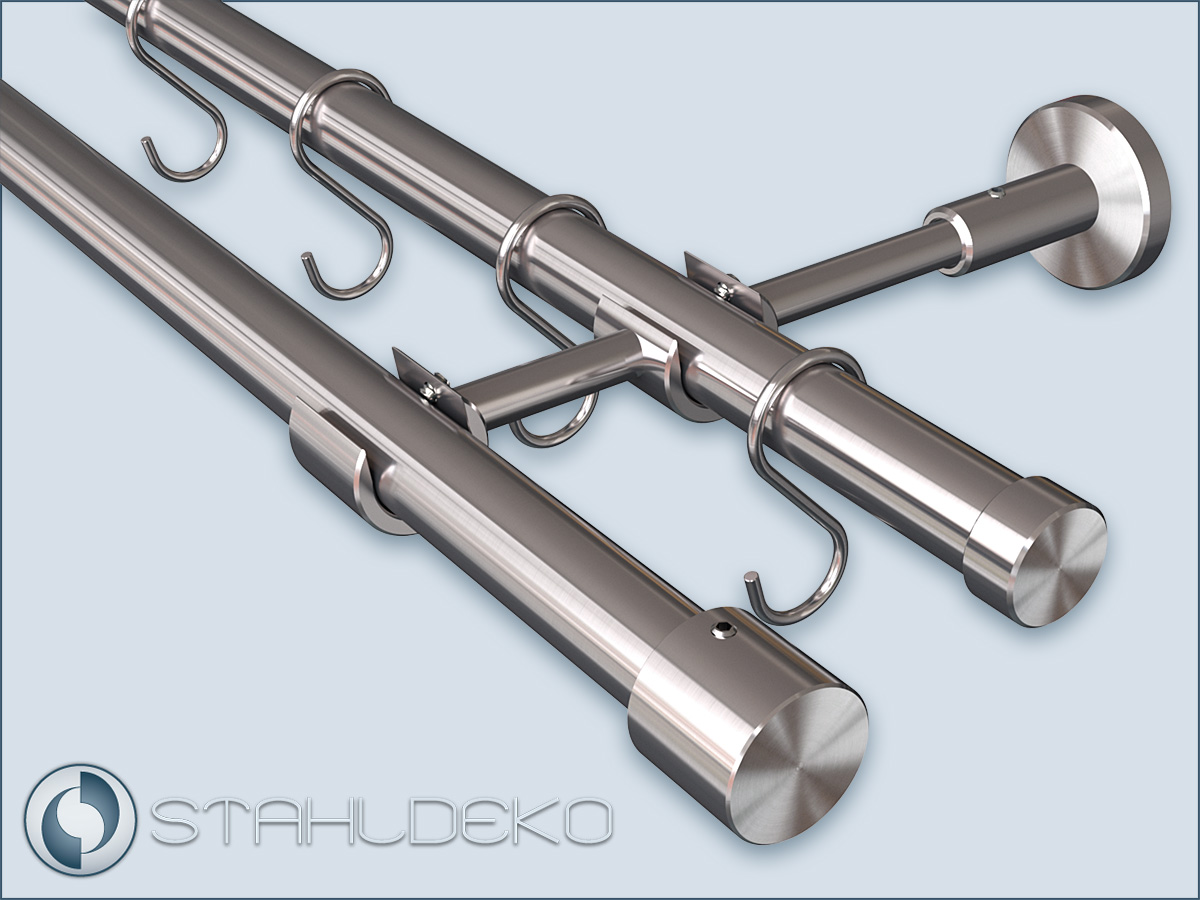

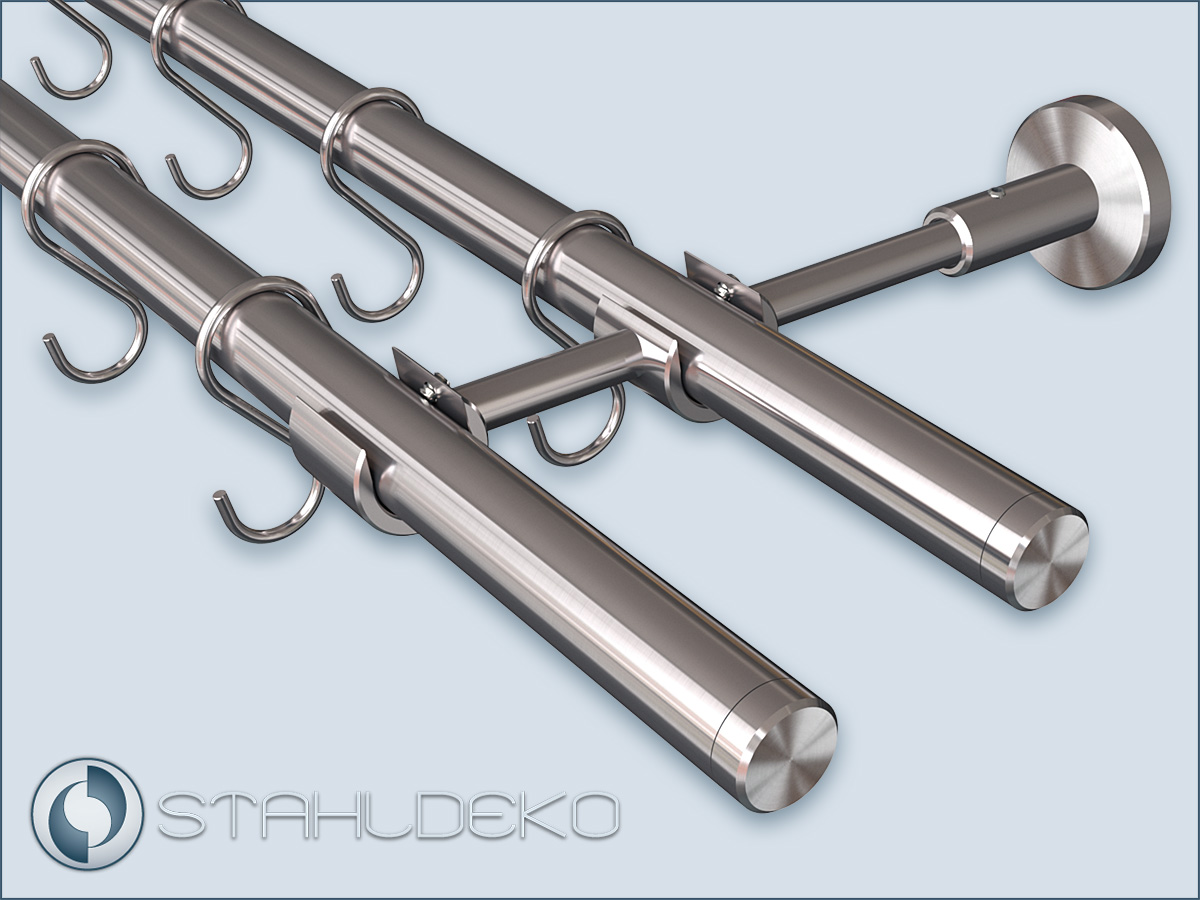

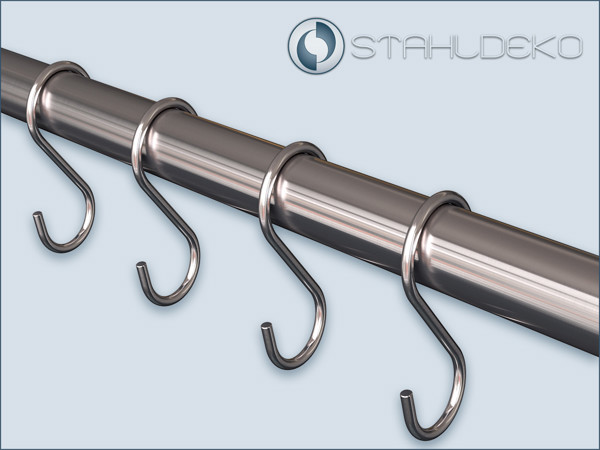

In order to hang up your curtains stably and smoothly, we recommend our S-shaped curtain hooks made of V2A stainless steel. They are very stable and robust, but at the same time very smooth-running. The hooks are bent from 3mm stainless steel wire and the ends are stamped. They can be used in place of the rings and are perfect for curtains with sewn-on curtain tape. These hooks are suitable for both indoor and outdoor use. Thanks to their clamping system with a 19mm opening, the hooks are easy to attach and detach. Please refer to the drawing for the dimensions.
V2A - Stainless steel 18/10, DIN WNR 1.4301, rust-free, heat-resistant, impact-resistant, suitable for indoor and outdoor applications, extremely easy to maintain.
High-precision processing with CNC automatic lathes
