Double-track curtain rail with Top-20 inner track for wall mounting.
Classic 2-track inner rail for wall mounting. An advantage of the inner rail sets is the possibility to move the curtain absolutely freely along the entire length of the curtain rod. The wall brackets, thanks to the open construction, always keep the glider running free, thus guaranteeing that the curtain can travel without any problems all round. You order a complete 2-line. Inner running rod consisting of: 2 pcs. inner rail profile Ø 20mm made of aluminium, the anodized surface in stainless steel look is absolutely suitable for our wall brackets and end pieces made of V2A stainless steel. Glider width 6mm, length from 100cm to 400cm. Lengths of up to 600cm (also in one piece) are also possible on request. 2 pieces or 3 pieces (depending on the length ordered) 2-track carrier Top-20 with base, material V2A stainless steel, including fastening material. If desired, you can also order the carrier extensions. 4 pcs. end pieces (at your choice for each barrel). Desired number of curtain gliders, various glider systems of your choice. We recommend at least 10 pieces (per run) gliders per 1 meter curtain width. *Custom-made products on request, apart from straight rods, we also produce all our curtain sets in any other shape, absolutely curved according to your needs and room situation.
Order correct length.
Ordered length is the tube length without end pieces. *If desired, please enter the number in cm in the field "shorten by:". then we will cut the inner running profile to the right length for you. For example: if you need a rod of exactly 238cm, then under "tube length" please select -240cm, and in the field "cut by:" enter the number "2 cm". Sections are not sent. * Parcel service shipping: The inner running profile is from a lengthover 260cm, divided in the middle. A connection adapter is included. A support is to be attached to the connection point. * Freight forwarding: The inner running profile (up to 400cm) is delivered in one piece. * Curtain rods 400-600cm (also in one piece) - price on request.

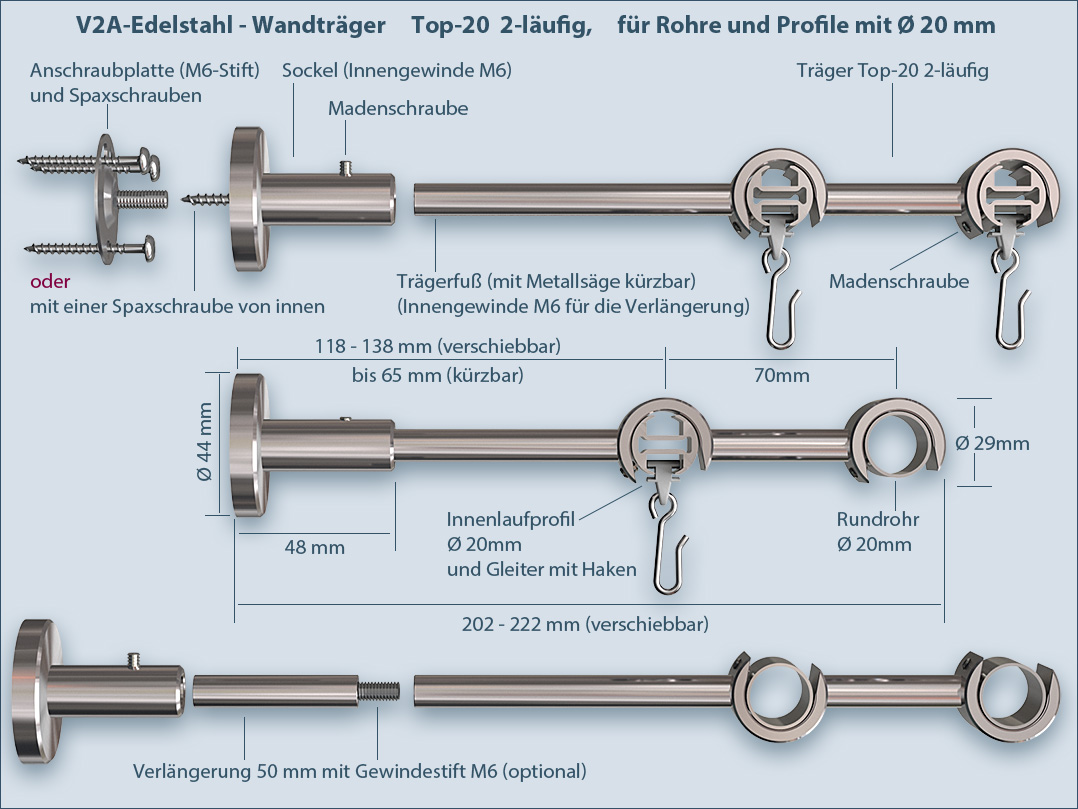

Inner rail fastening system for wall mounting Top-20 double rail.
You can place the wall brackets on the curtain rail absolutely freely. First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly with Spax screws. Then slide the carrier foot into the base and tighten the base grub screw (not too tight). Then insert the inner running profiles into the carrier openings and fix them with carrier grub screws. You can adjust the length of the support in the base by approx. 2 cm and thus align the distance between the rods and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is approx. 60mm. Of course, it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the top carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.
Order desired gliders with hooks for curtains and curtains:
X Glider: Standard curtain gliders with pleating hooks, made entirely of plastic, color white, are inserted into the rail at the side.
rotary glider: Comfort curtain gliders with clip-on hooks, made entirely of plastic, color white, these gliders can be screwed in or out at any point on the inner track system.
Glides with stainless steel hooks: Very stable (up to 1.5 kg/each) and at the same time very smooth-running gliders with stainless steel hooks. Especially suitable for heavy drapes and drapes, wet areas and outdoor areas, e.g. curtains for vestibules or wind protection curtains for patios or balconies.
loop gliders: Sliders for loop curtains made entirely of plastic, color white. Due to its semicircular shape, the sliding element offers very good sliding properties in all of our inner rails.
Order any end pieces for Top-20 double-track inner track curtain rod.
We have different end pieces for our 20mm aluminum inner runner profiles. Simply select the desired end piece in the corresponding field. You can order different end pieces for each barrel.

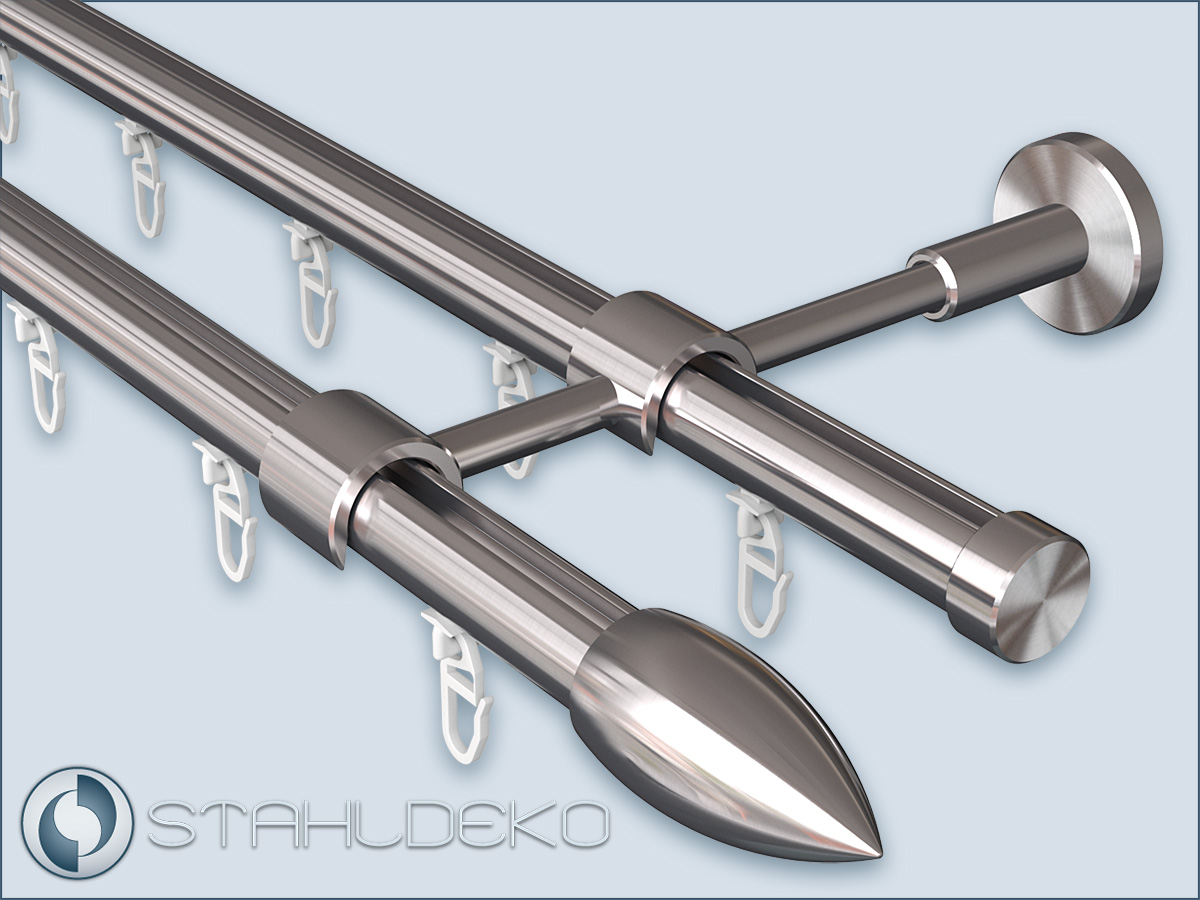

Internal track curtain rod Top-20 double track, wall mounting
Rods: Aluminum in stainless steel look. Accessories: V2A - Stainless steel 18/10, DIN WNR 1.4301, rust-free, suitable for indoor and outdoor applications.
High-precision processing with CNC automatic lathes
Wall mounting with Top-20-20 2-lfg. bracket and base. Attachment with screw-on plate or directly with Spax screw.

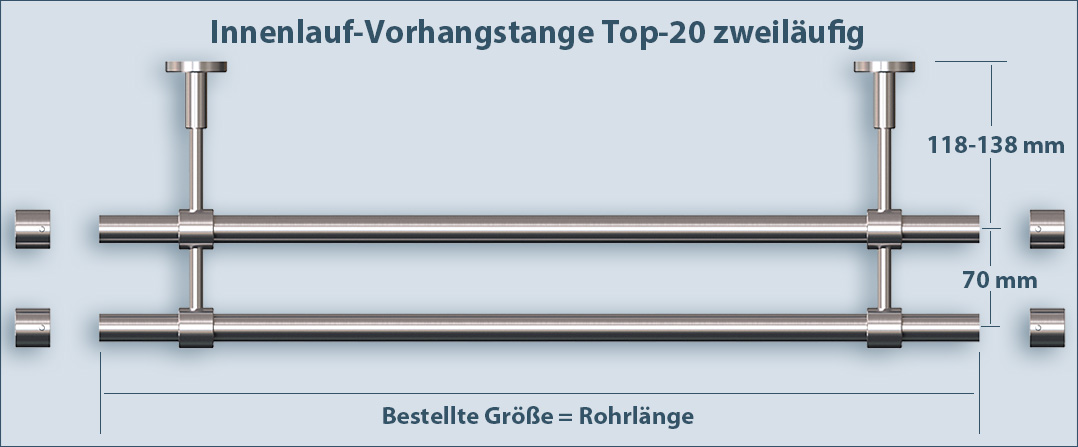

Inner track profiles from 100 to 400cm (can be shortened upon request). Profiles 400-600cm in one piece - price on request. Inner track profile with Ø20mm. Wall distance 118-138/188-208 mm (optionally with extensions).
End Cap of Choice, for Each Rail
Various Sliders of Choice
Scope of Delivery
Complete curtain pole: 2 pcs. rod, 2 or 3 pcs. rod holders (by rod length), bracket extensions (optional), 4 pcs. end piece, sliders (optional), incl. mounting material.
