Curtain rail with standard inner rail for ceiling mounting, 2 rails.
Discover the classic indoor pole for ceiling mounting. A big advantage of the curtain rods with inner track system is the possibility to move the curtain freely over the entire length of the rod. The carriers are mounted in the upper run (fastening run) of the inner run profile and thus always keep the lower run (glider run) free. This guarantees an all-round trouble-free path for the curtain.
When you order from us you will receive a complete inner run curtain rod which consists of the following parts:
2 pcs. Inner running profile Ø 20mm made of aluminium. The anodized surface with a stainless steel look harmonises perfectly with our carriers and end pieces made of V2A stainless steel. The glider width is 6mm. You can order interior curtain rods up to a length of 400cm (in one piece) right here online. Lengths of up to 600cm (also in one piece) are also possible on request.
2, 3 or 5 pieces (depending on the length ordered) Standard 2-line ceiling bracket, material: V2A stainless steel. The fastening material is included. If you wish, you can also order joints for mounting on the slope.
2 pcs end pieces for the first run (of your choice).
2 pcs end pieces for the second run (of your choice).
The desired number of curtain gliders, various glider systems of your choice. We recommend at least 10 gliders per 1 meter curtain width and run.
*We also manufacture custom-made products on request. Apart from straight poles, we can shape all of our poles according to your individual needs and spatial conditions.
Ordering an inner track curtain rod of the correct length
The ordered length of the curtain rod corresponds to the rod length without end pieces.
If you need a special length, please enter the desired length in centimeters in the "Shorten by:" field. We will cut the aluminum profile according to the length you provide. For example, if you need an inner running rod with an exact length of 196 cm, select 200 cm under "Tube length" and enter "4 cm" in the "Shorten by:" field. Please note that we do not ship sections.
Shipping by parcel service:
Pipes with a length of up to 260 cm are always delivered in one piece. For lengths over 260 cm, the tube is divided as follows:
Pipes up to a length of 520 cm are divided in the middle.
Pipes longer than 520 cm are divided into thirds (1/3 + 1/3 + 1/3).
A connection adapter is always included in the scope of delivery. A support should be mounted at the connection point.
Shipping by forwarding agent:
Pipes longer than 260 cm and up to 400 cm are delivered in one piece. Pipes longer than 520 cm and up to 600 cm are split in the middle.
For curtain rods that are longer than 400 cm and up to 600 cm and are to be delivered in one piece, please ask us about the price.

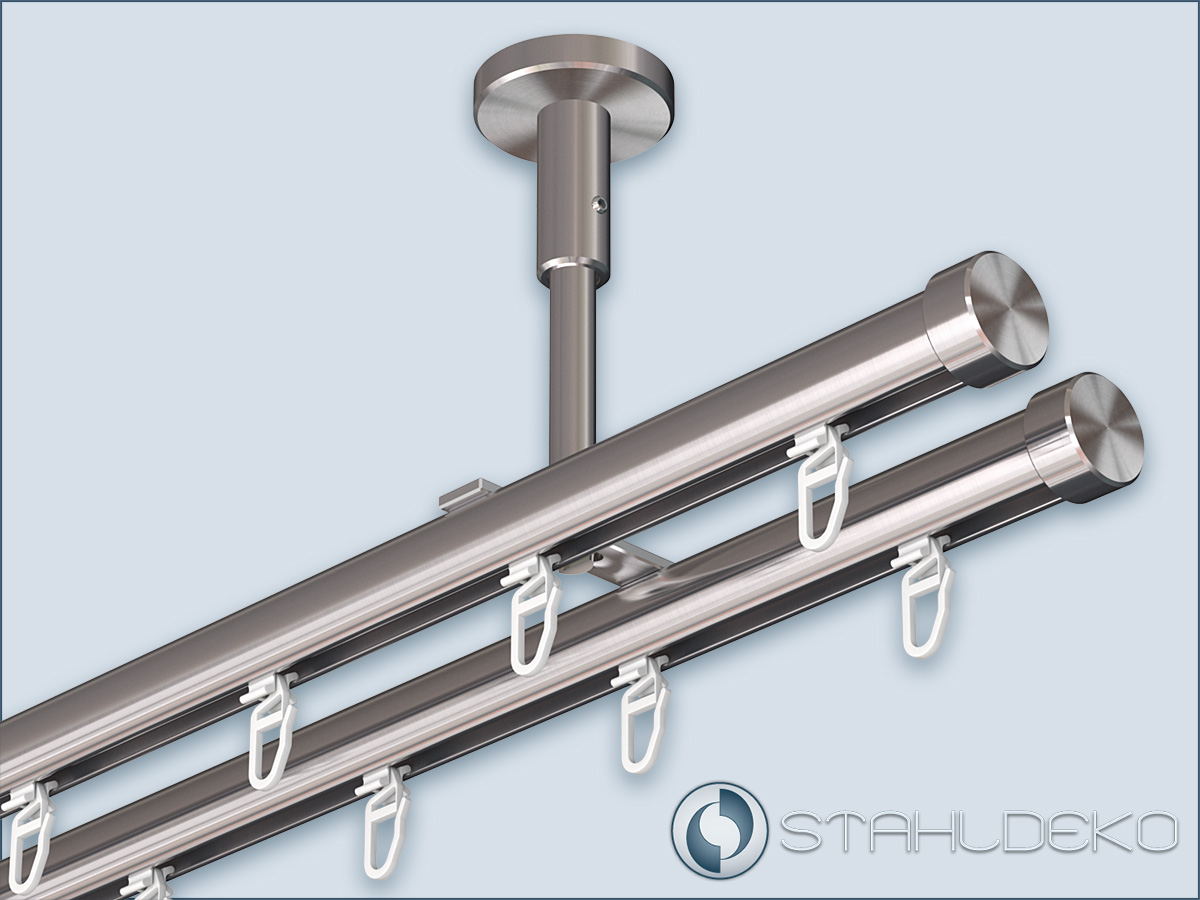

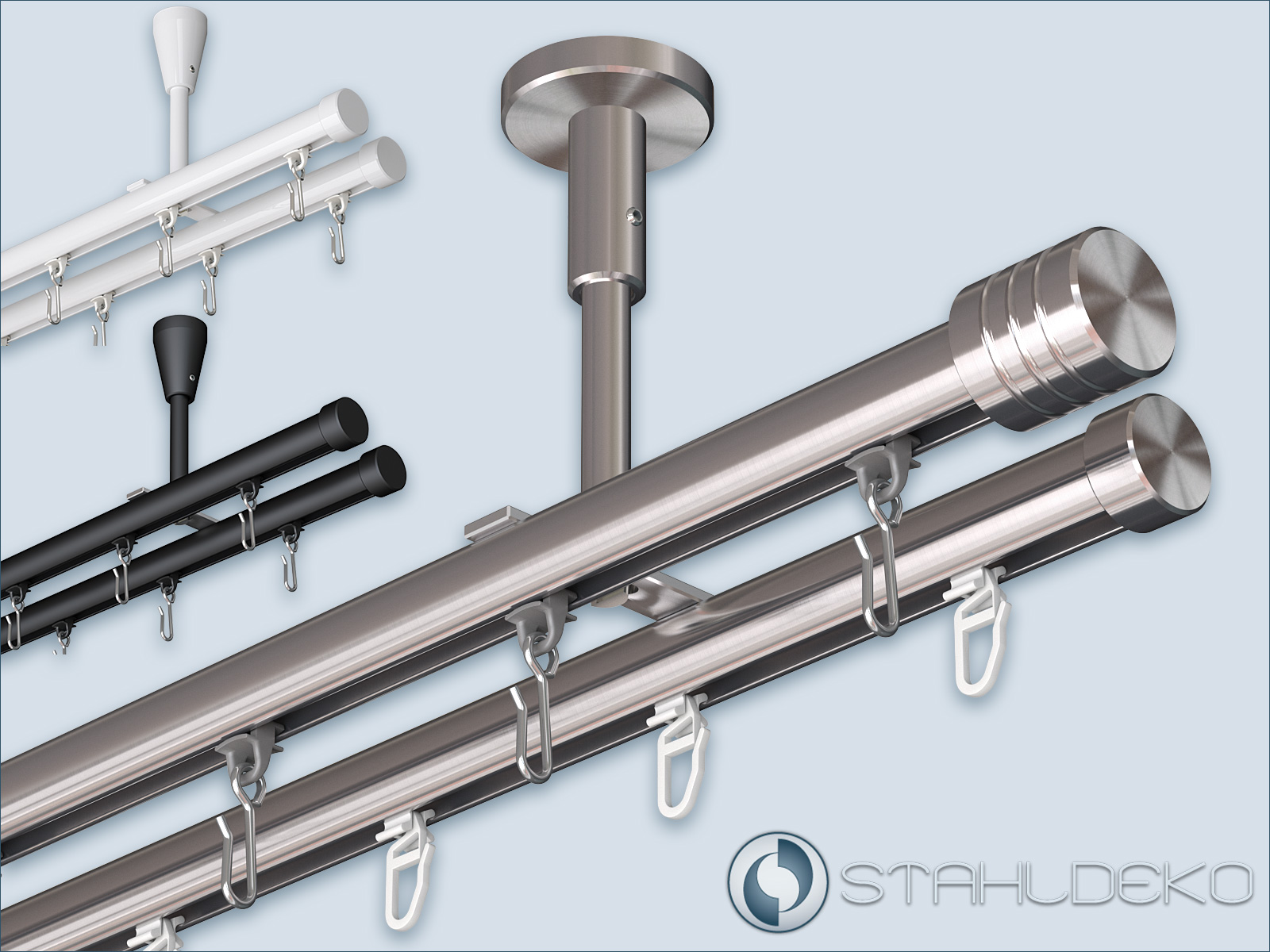

2-track inner track mounting system for ceiling mounting standard
You can choose the position of the ceiling brackets on the inner track curtain rod as you wish. First mount the bases on the ceiling depending on the length of the curtain rod. The base is fastened either with a screw-on plate or directly with a Spax screw. Then slide the flat nut into the profile's fastening barrel and position it according to the sockets already attached. Then screw the ceiling support rods with the 2-track rail holder to the flat nut. Slide the construction towards the ceiling and insert the ceiling support rods into the sockets. Tighten the grub screws in the base (not too tight). You can adjust the height of the supports in the base by approx. 2 cm and thus align the curtain rod horizontally on the ceiling. If you prefer a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. In this case, the minimum possible distance is approx. 50 mm.
Of course, we also offer solutions for sloping roofs or sloping walls.
If you want to attach the ceiling bracket to a slope, please order a joint for 10 mm tubes. First screw this joint to one side of the ceiling support rod (a grub screw and a drive-in nut are included in the scope of delivery). Insert the other side of the joint into the base and fix it with a grub screw. This allows you to easily mount the ceiling support on a sloping wall or roof at any angle. Of course, you can combine ceiling brackets with and without a joint on a curtain rod, for example if the rod ends at the side of a sloping wall.

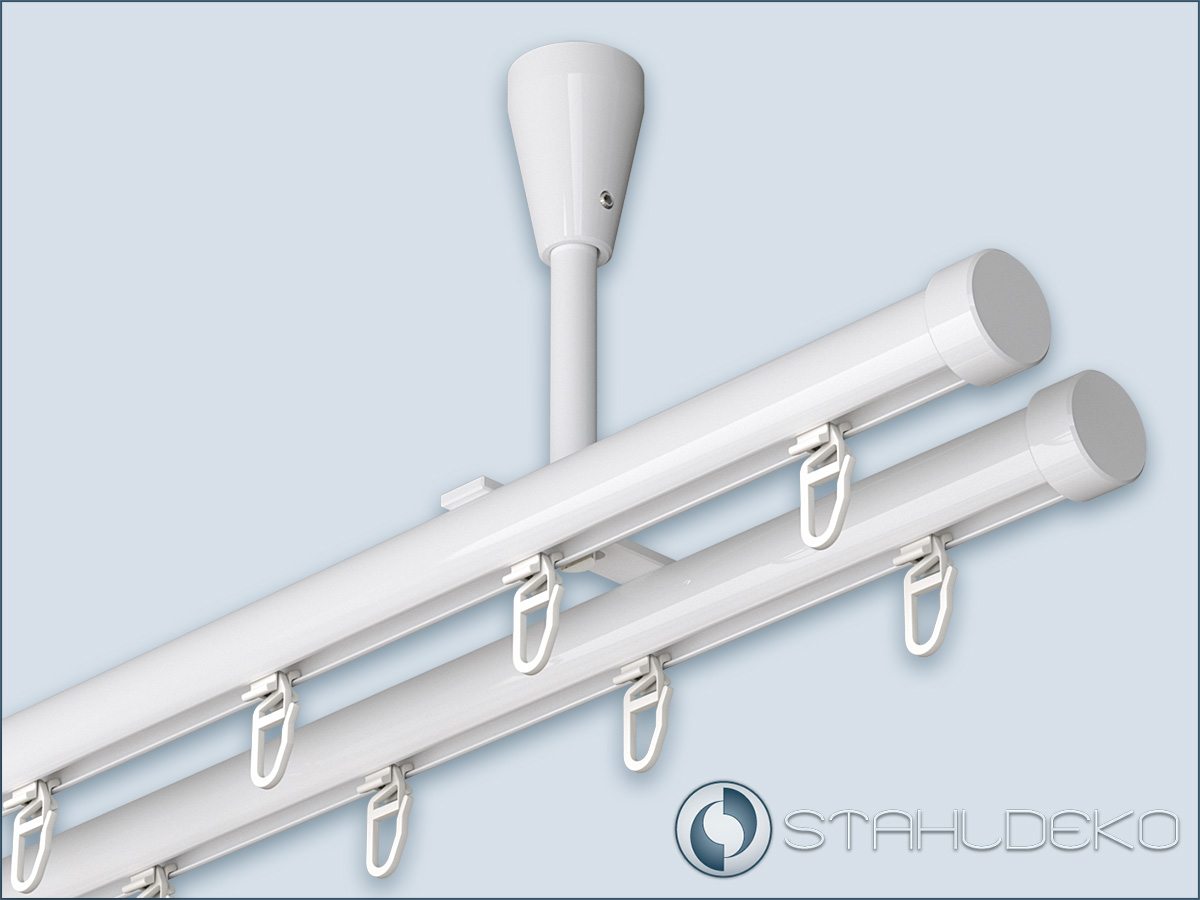

Inner track mounting system for attachment to the ceiling Standard, two-track, aluminum glossy white
Of course, our two-track standard ceiling support is also available in glossy white aluminum to match our white inner rails. You can position the double-track ceiling beams on the inner rail as you wish. First, mount the bases on the ceiling according to the length of the rod. The bases can either be fastened with a hanger bolt or screwed on directly with a spax screw. Then slide the flat nut into the profile's fastening barrel and position it according to the base already attached. Screw the ceiling support rods with the two-track rail holders to the flat nut. Then push the construction to the ceiling and insert the ceiling support rods into the sockets. Now tighten the grub screws in the sockets, but not too tight. You can adjust the height of the support in the base by about 2 cm and thus align the curtain rod absolutely horizontally on the ceiling. If you prefer a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

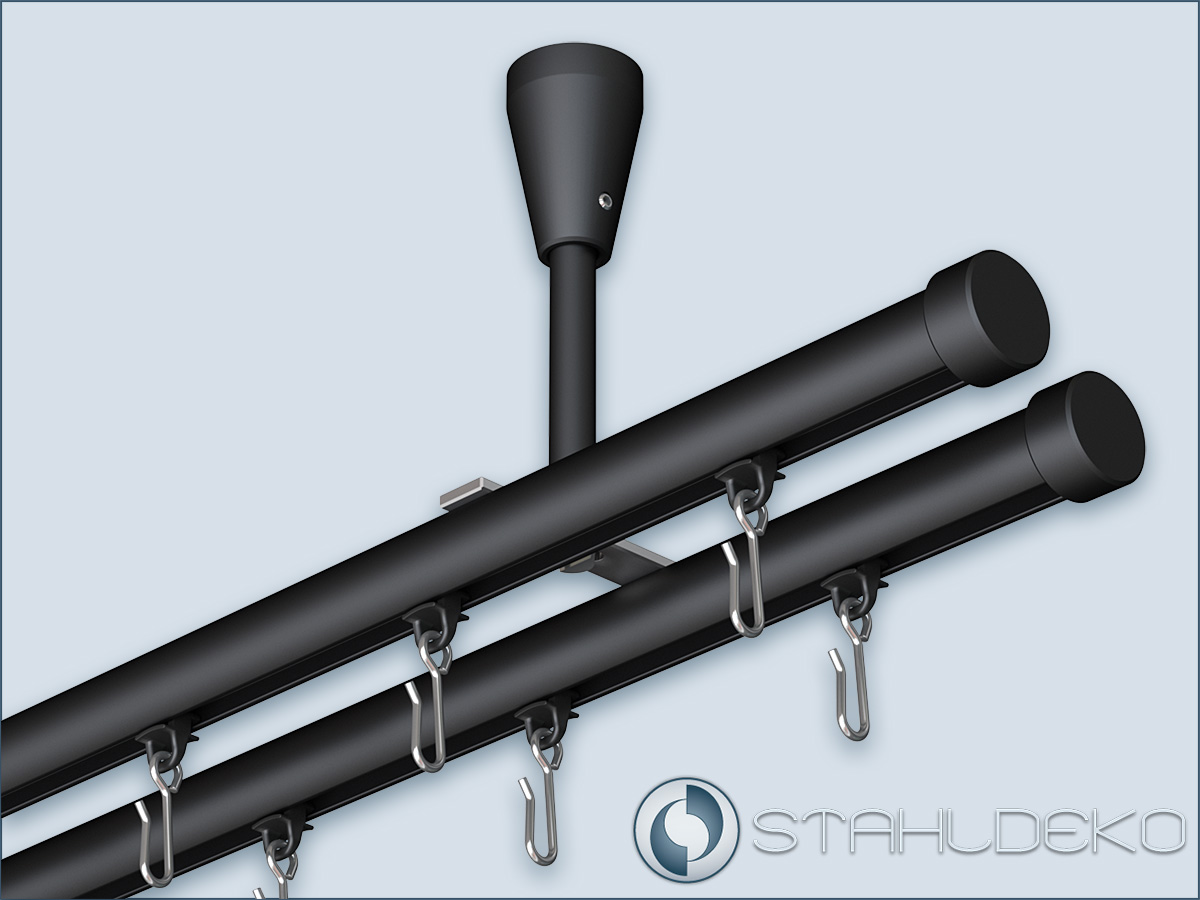

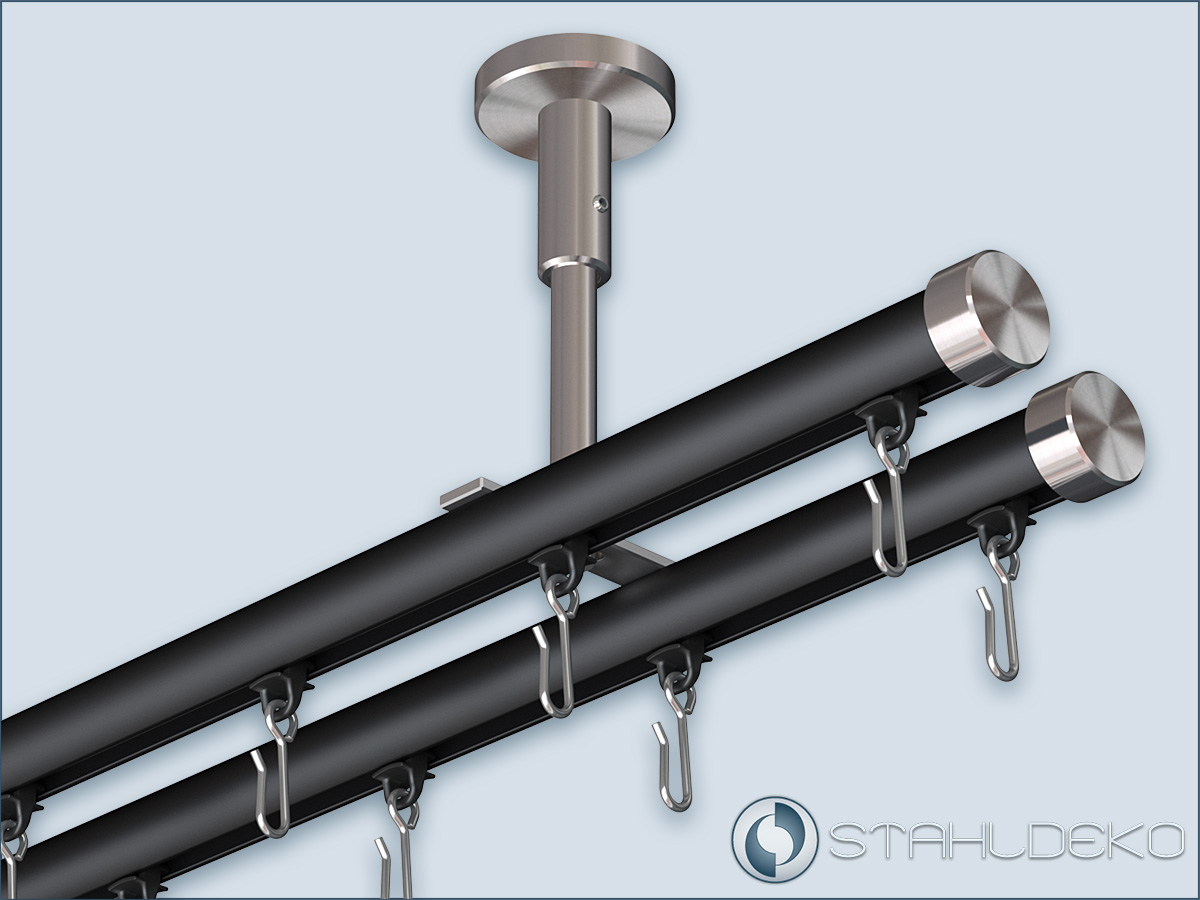

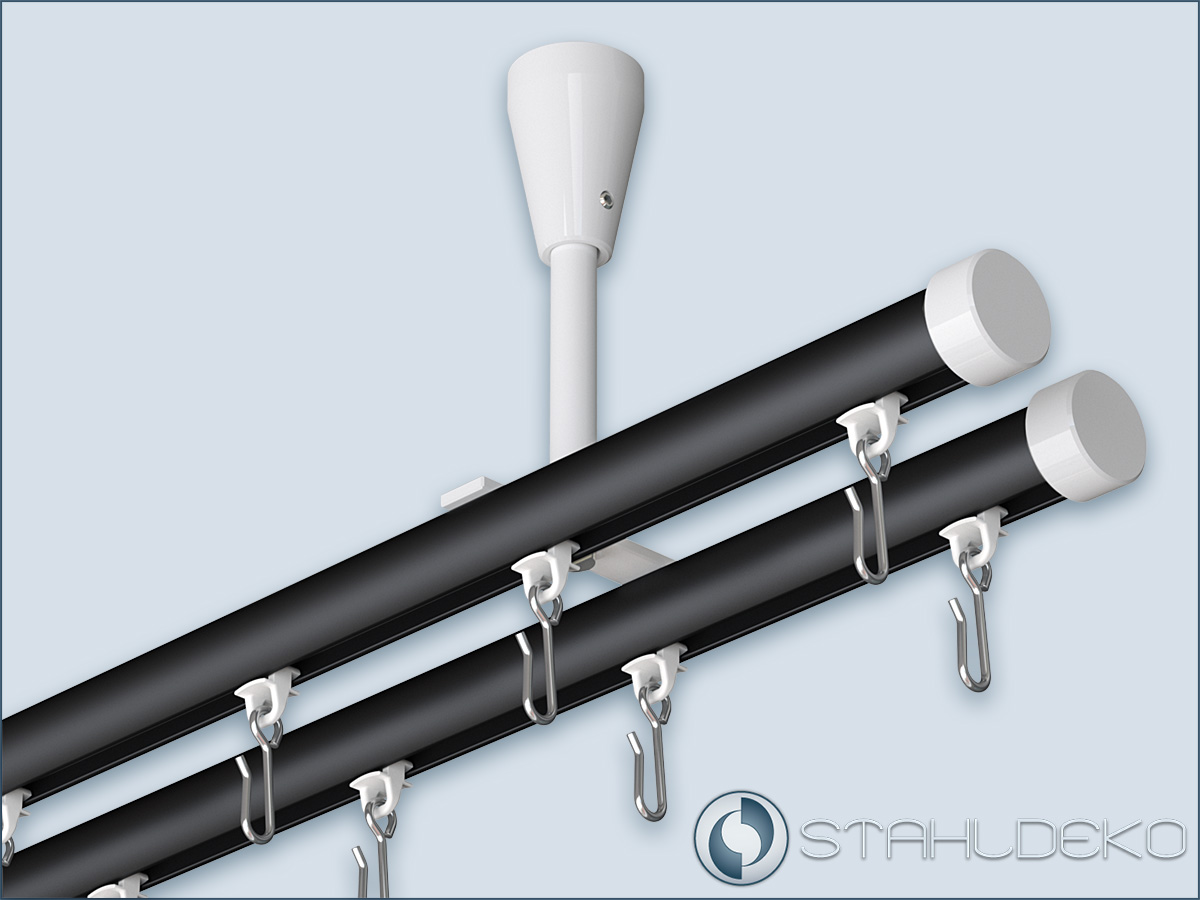

Inner track mounting system for standard ceiling mounting, two-track, in black satin finish made of aluminium.
Of course, our two-track standard ceiling support is also available in black, satin-matt aluminum to match our inner rails. The positioning of the two-track ceiling beams on the inner rail is entirely up to you. Start by mounting the bases on the ceiling, using the length of the rod as a guide. To attach the base, you have the option of attaching it with a hanger bolt or screwing it on directly using a Spax screw. Then slide the flat nut into the profile's fastening barrel and align it with the base that has already been mounted. The ceiling support rods, equipped with double-track rail holders, are now screwed to the flat nut. Now lift the entire construction to the ceiling and insert the ceiling support rods into the sockets. The next step is to tighten the socket grub screws, but be careful not to overtighten. The height of the support can be adjusted by about 2 cm in the base, which enables the curtain rod to be precisely aligned horizontally on the ceiling. If you prefer a smaller distance between the rod and the ceiling, you can shorten the ceiling support rod using a hacksaw. In this case, the minimum distance that can be realized is about 50 mm.

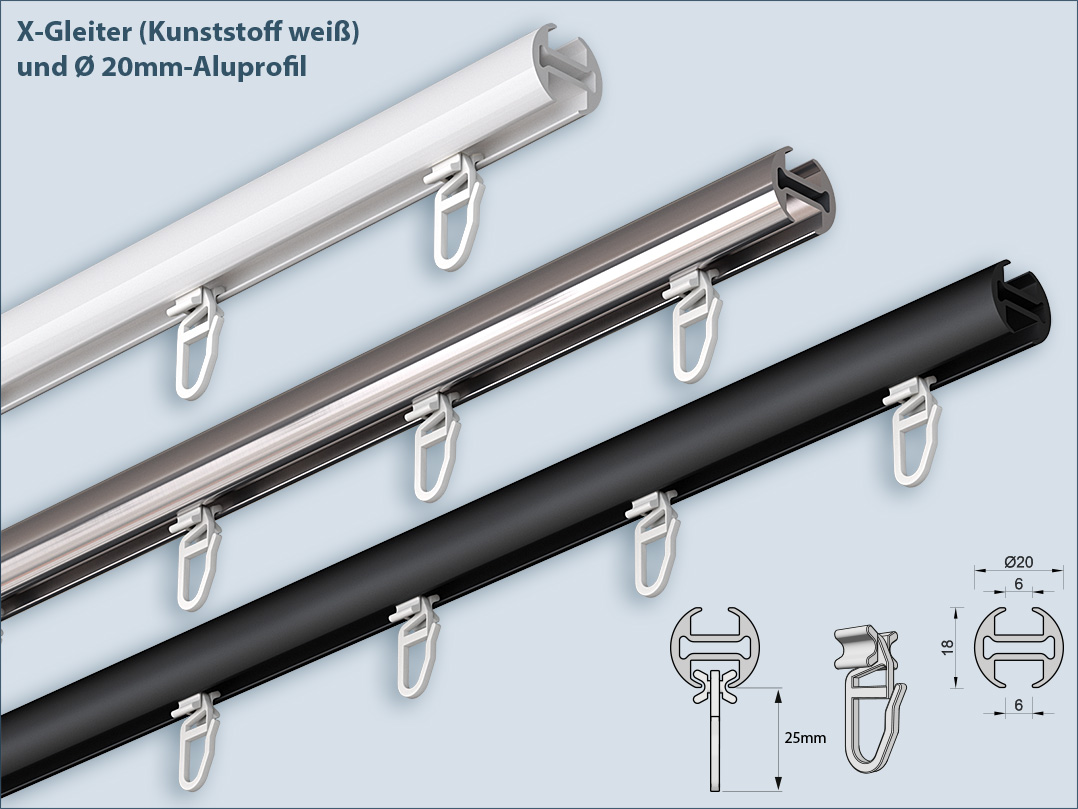

Color choices for our 20mm diameter round inner race bar

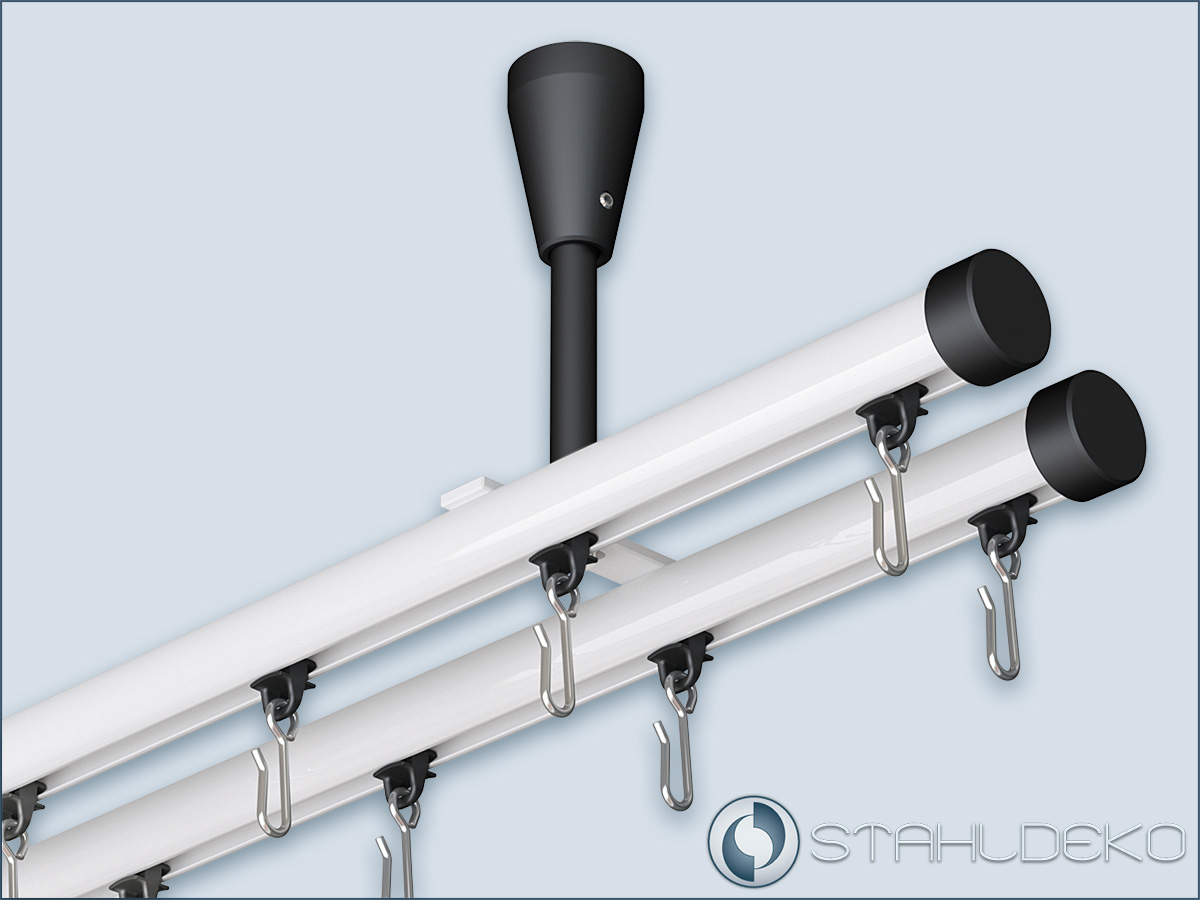

Our 20mm inner bars are made from high quality aluminum and are available in four attractive finishes: stainless steel look, gloss white, matte black and gloss black. For each rod we offer matching end pieces made of stainless steel V2A and end caps in glossy white or satin black.Please note: The wall brackets are only available in stainless steel V2A! Design your curtain rods creatively and individually: combine different colors according to your personal taste and style. Whether classic combinations such as stainless steel with white or black or more unusual variants such as black and white or stainless steel and black - with us there are no limits to your creativity.
Order desired gliders with hooks for curtains and curtains:
X Glider: Standard curtain gliders with pleating hooks, made entirely of plastic, color white, are inserted into the rail at the side.

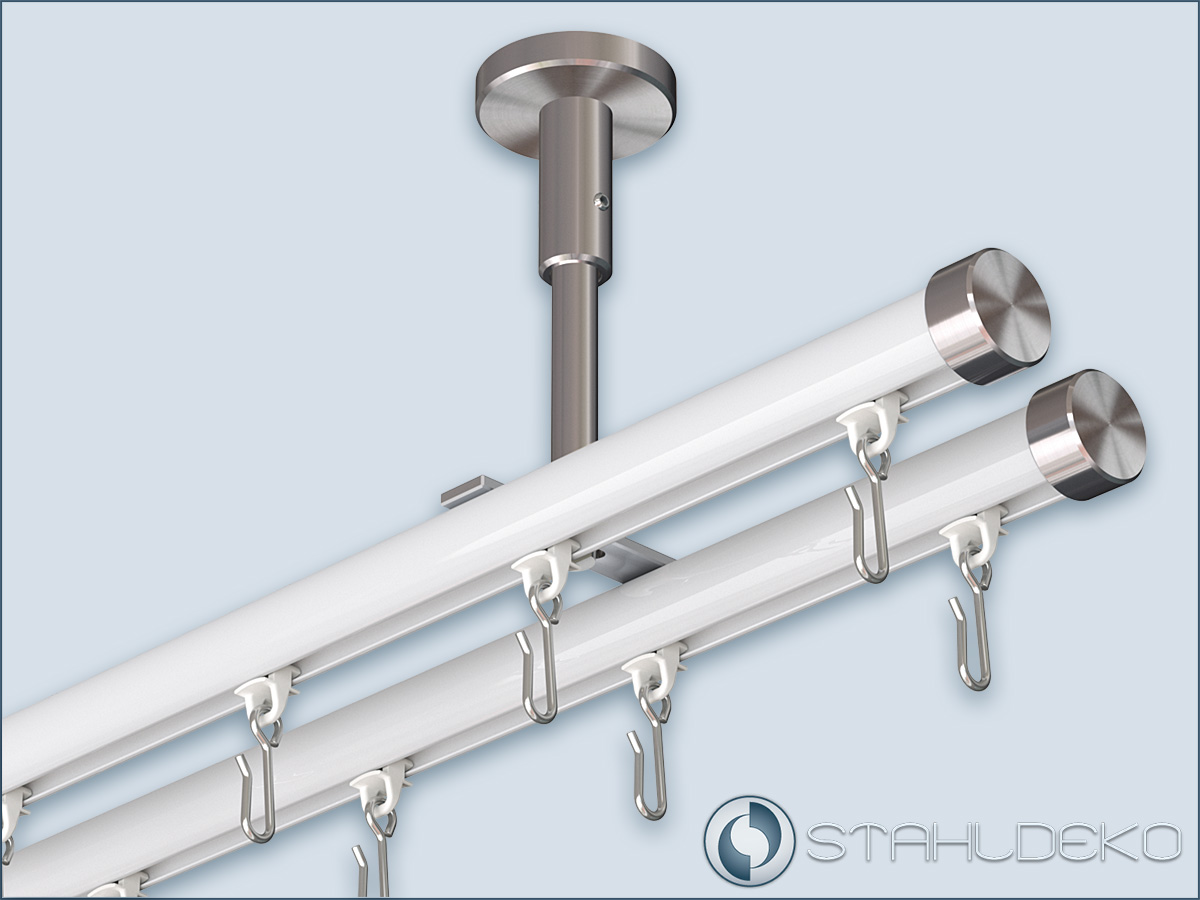

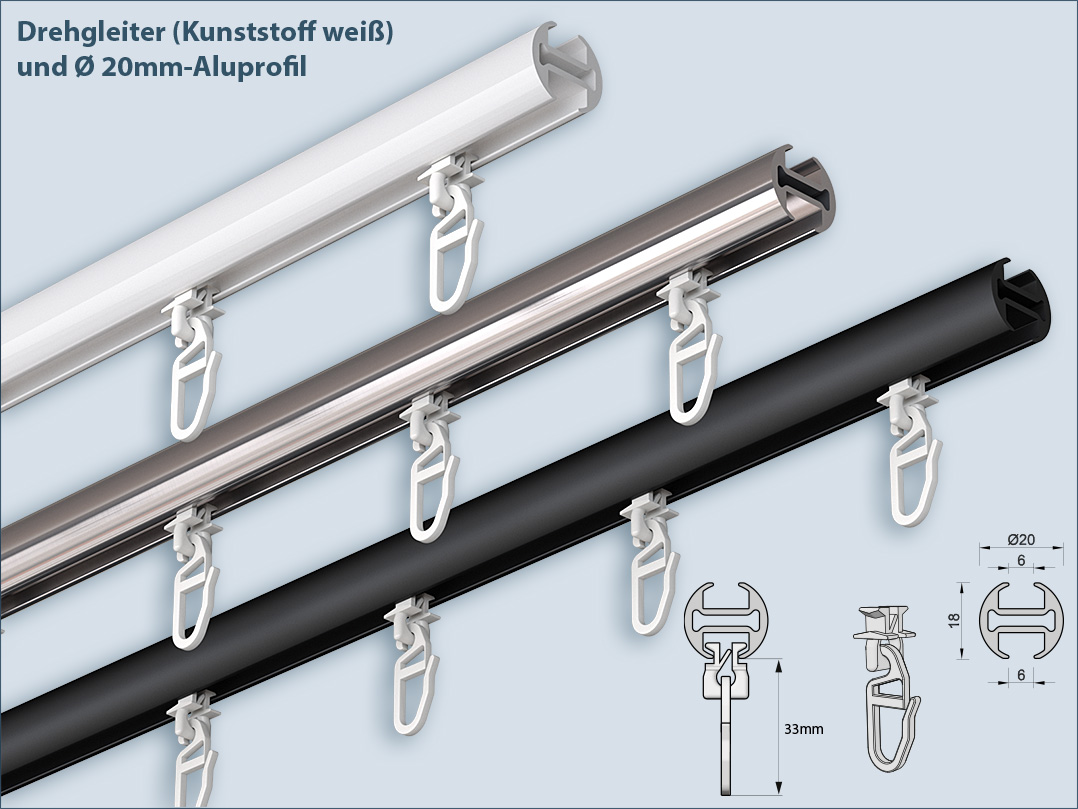

rotary glider: Comfort curtain gliders with clip-on hooks, made entirely of plastic, color white, these gliders can be screwed in or out at any point on the inner track system.

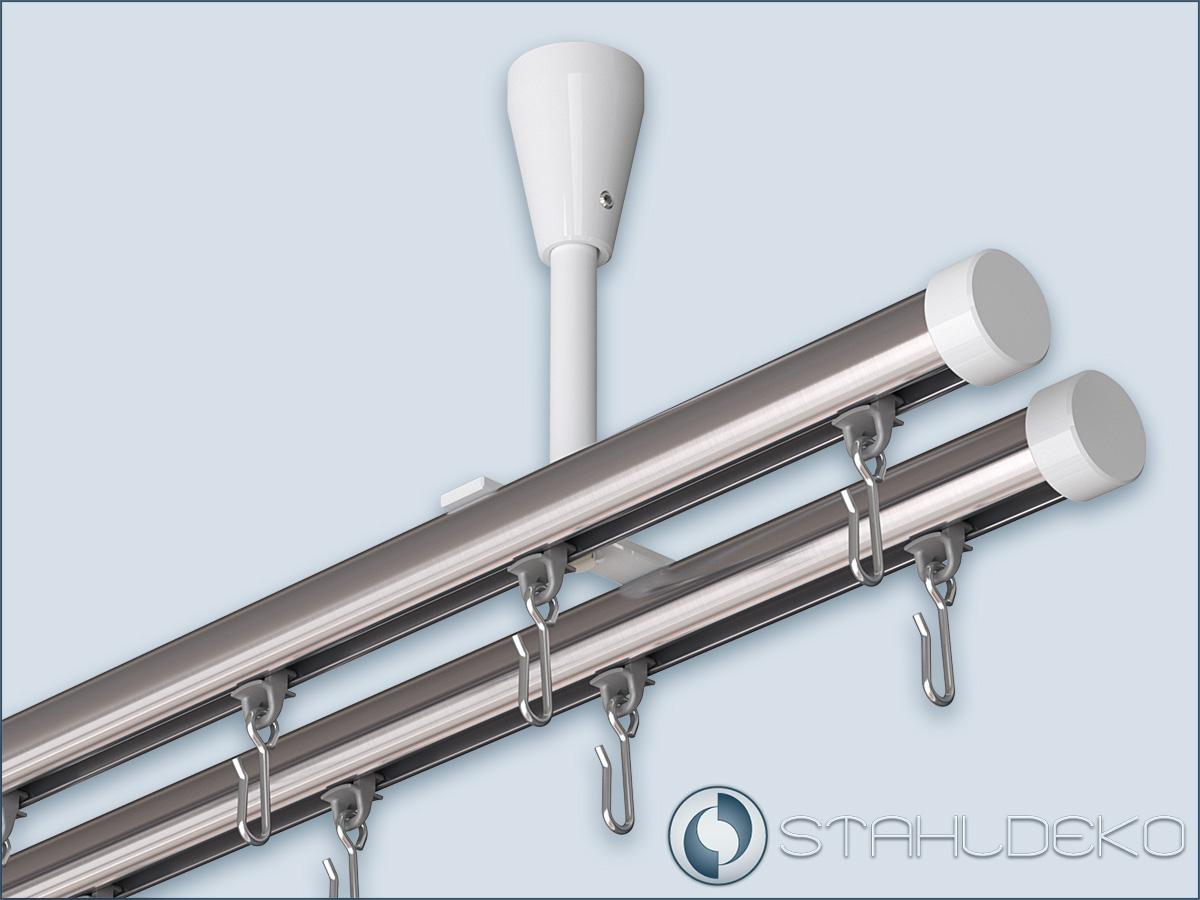

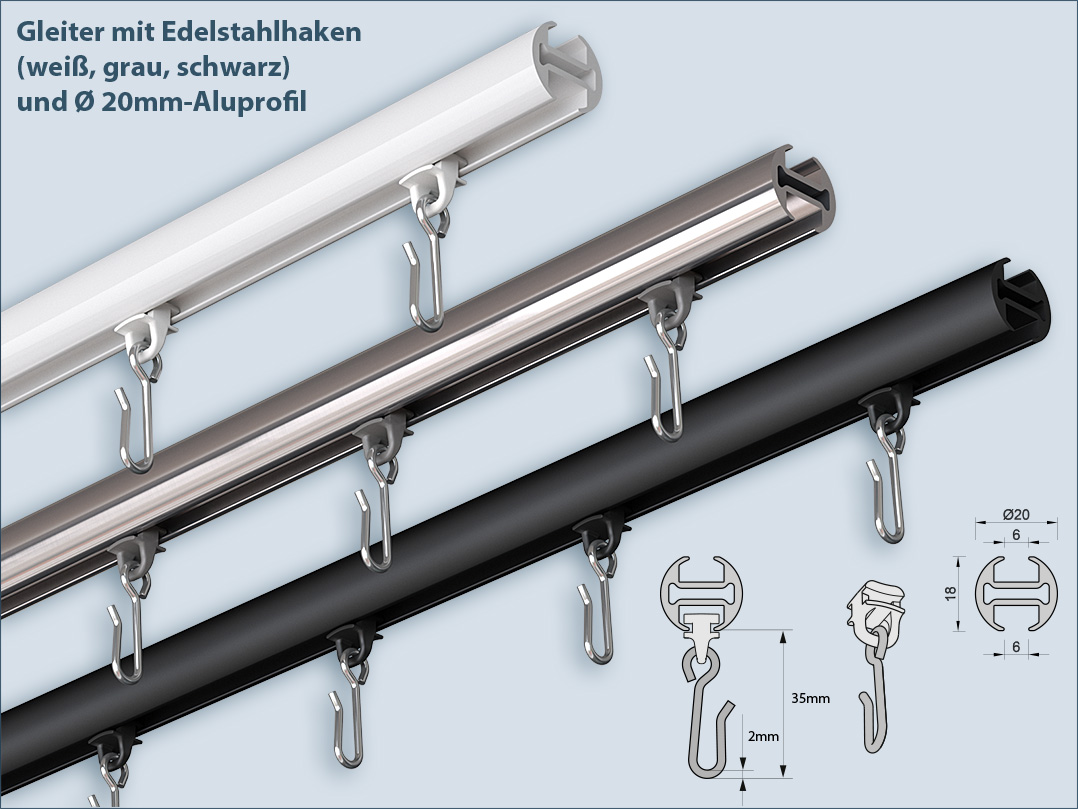

Glides with stainless steel hooks: Very stable (up to 1.5 kg/each) and at the same time very smooth-running gliders with stainless steel hooks. Especially suitable for heavy drapes and drapes, wet areas and outdoor areas, e.g. curtains for vestibules or wind protection curtains for patios or balconies.
loop gliders: Sliders for loop curtains made entirely of plastic, color white. Due to its semicircular shape, the sliding element offers very good sliding properties in all of our inner rails.
Order any end pieces for curtain rails with inner rail profile Ø 20mm.
In our offer you will find a wide range of end pieces for our high-quality aluminum profiles, which have a diameter of 20mm. Simply browse the options available in our dedicated selection section to find the right end piece. We are proud to present a variety of stainless steel end caps and end knobs, as well as black and white coated aluminum finishes for 20mm diameter profiles. You are of course free to place an order without end pieces. This allows you to alternatively use wall mounts, arches or corners. Our goal is to ensure you find the optimal solution for your specific needs. Explore our wide selection and give your curtains and curtain rods the ideal finish!

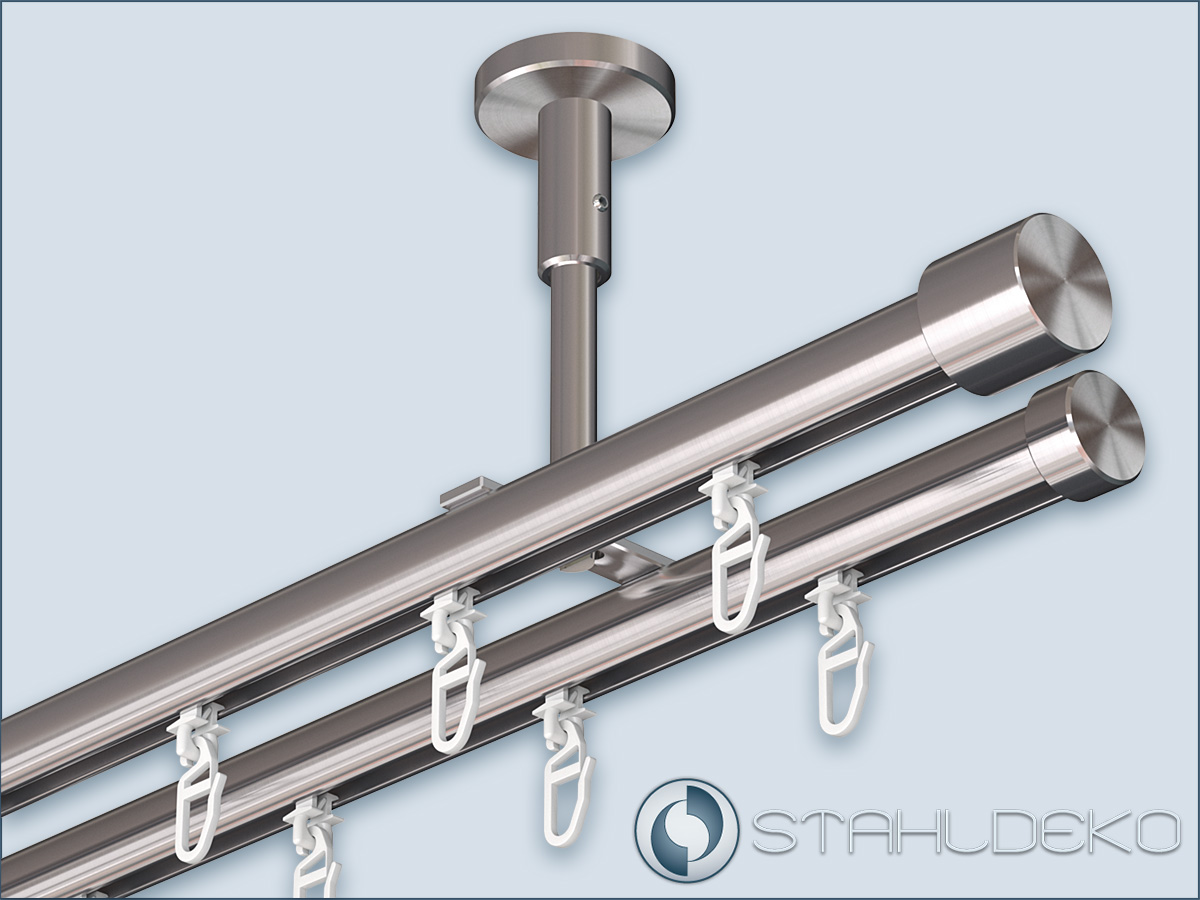

Internal track curtain rod "Standard", double track, for ceiling mounting
Rod: Aluminum in stainless steel look. Accessories: V2A - Stainless steel 18/10, DIN WNR 1.4301, rust-free, suitable for indoor and outdoor applications.
High-precision processing with CNC automatic lathes
Standard ceiling bracket 2-lfg. Base attachment to the ceiling with screw-on plate or directly with Spax screw.
Pipe lengths from 100 to 400cm (can be shortened upon request). Pipes 400-600cm in one piece - price on request. Inner track profile with Ø20mm. Ceiling bracket length (distance ceiling-top edge of the profile) 5 to 45cm.
End Cap of Choice
Various Sliders of Choice
Scope of Delivery
Complete curtain pole: 2 pcs. rod, 2 or 3 pcs. ceiling holders (by rod length), 4 pcs. end piece of choice, sliders (optional), incl. mounting material.
