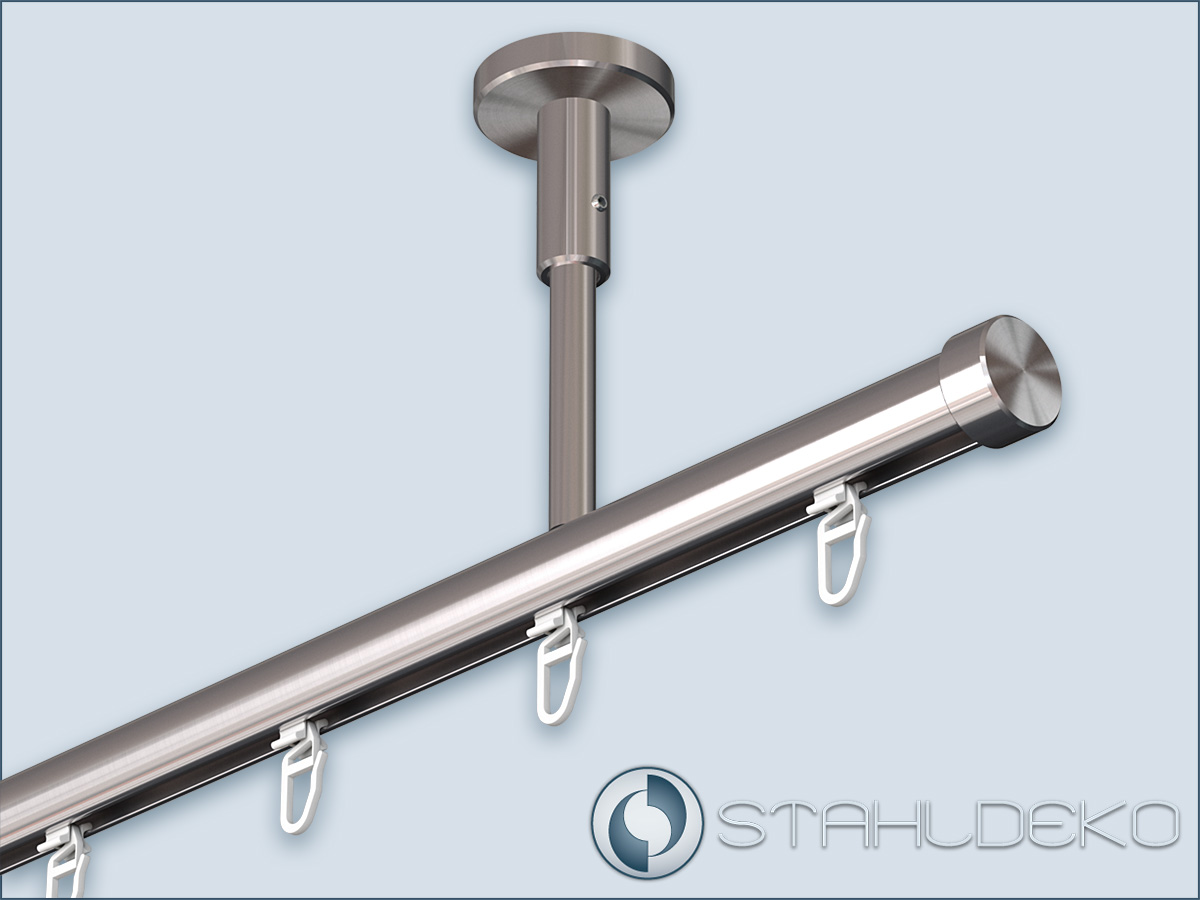

Curtain rod with standard inner track for ceiling mounting, 1-track
This classic inner rail is ideal for ceiling mounting. A main advantage of curtain sets with an inner track system is the possibility of completely free movement of the curtain along the entire rod. The brackets are mounted in the upper run (fixing run) of the profile, which always keeps the lower run (glider run) free, thus guaranteeing a trouble-free path for the curtain.
With your order you will receive a complete interior curtain rod, consisting of:
1 piece inner runner profile Ø 20mm made of aluminium. The anodized surface in stainless steel look goes perfectly with our carriers and end pieces made of V2A stainless steel. The glider barrel has a width of 6mm, the length ranges from 100cm to 600cm. You can order inner rails up to a length of 400cm (in one piece) directly here online. Pole lengths of up to 600 cm are also available in one piece on request.
2, 3 or 5 standard ceiling supports (depending on the length ordered), made of V2A stainless steel, including fastening material. If necessary, you can also order joints for mounting on a slope.
2 end pieces (of your choice).
The desired number of curtain gliders, with different glider systems to choose from. We recommend at least 10 gliders per 1 meter curtain width.
*Custom-made products are possible on request. In addition to straight curtain rods, we also manufacture all our rods in any other shape, perfectly adapted to your needs and room situation.
Order the standard single-track interior curtain rod in the right length.

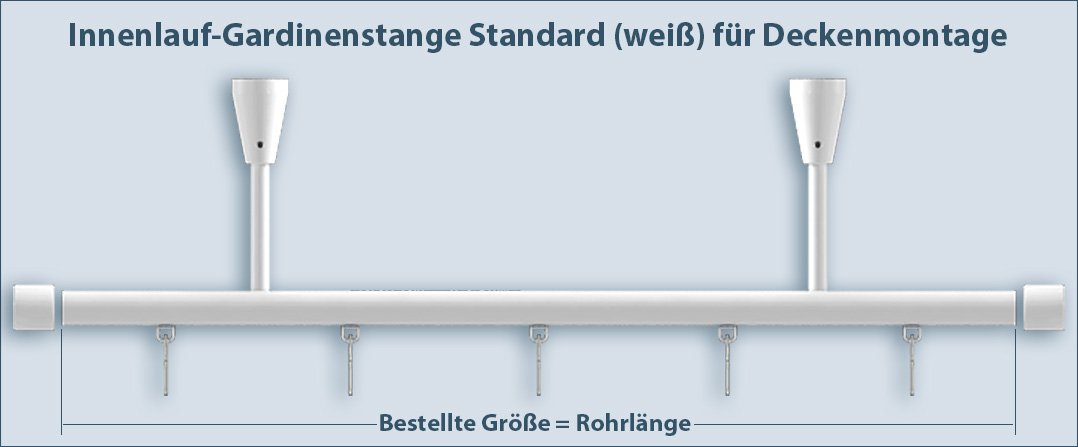

The ordered length corresponds to the bar length without end pieces.
If you require a specific length, please enter the desired length in centimeters in the "Trim by:" field. We then cut the aluminum profile to the length you specify. For example, if you need an inner running rod with an exact length of 212 cm, select 220 cm under "Tube length" and enter "8 cm" in the "Shorten by:" field. Please note that we do not ship sections.
Shipping by parcel service:
Pipes up to a length of 260 cm are always delivered in one piece. For lengths over 260 cm, the tube is divided as follows:
Pipes up to 520 cm in length are divided in the middle.
Pipes longer than 520 cm are divided into thirds (1/3 + 1/3 + 1/3).

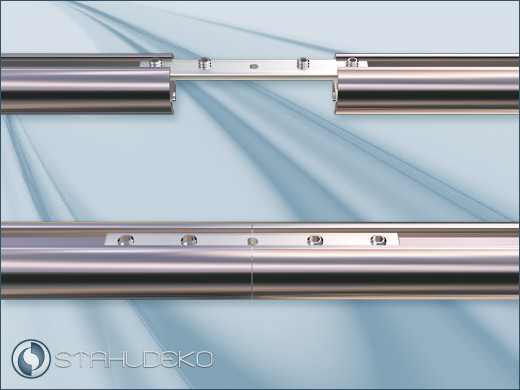

A connection adapter is always included in the scope of delivery. A support should be installed at the junction.
Shipping by forwarding agent:
Pipes longer than 260 cm and up to 400 cm are delivered in one piece. Pipes longer than 520 cm and up to 600 cm are split in the middle.
For curtain rods that are longer than 400 cm and up to 600 cm and are to be delivered in one piece, please ask us about the price.

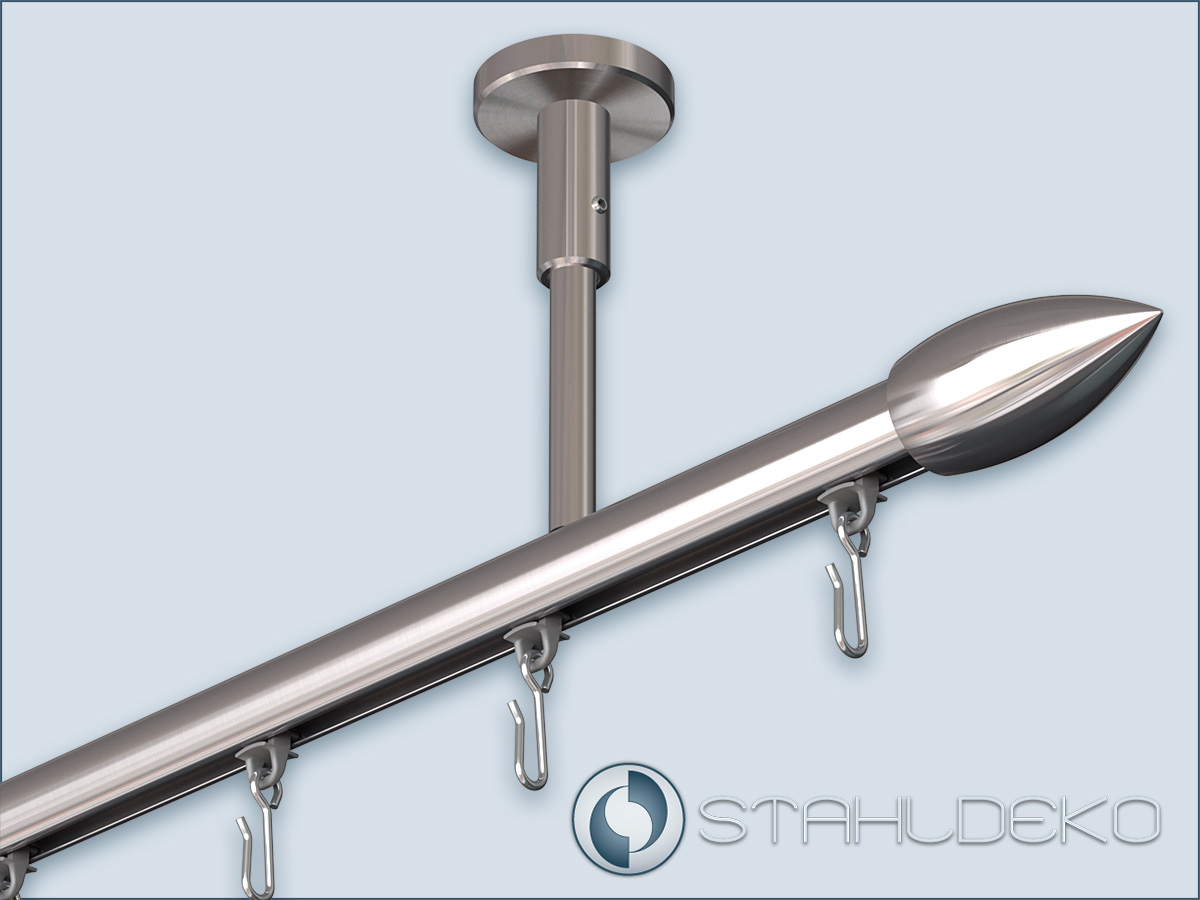

Inner track fastening system standard 1-track made of stainless steel for ceiling mounting.

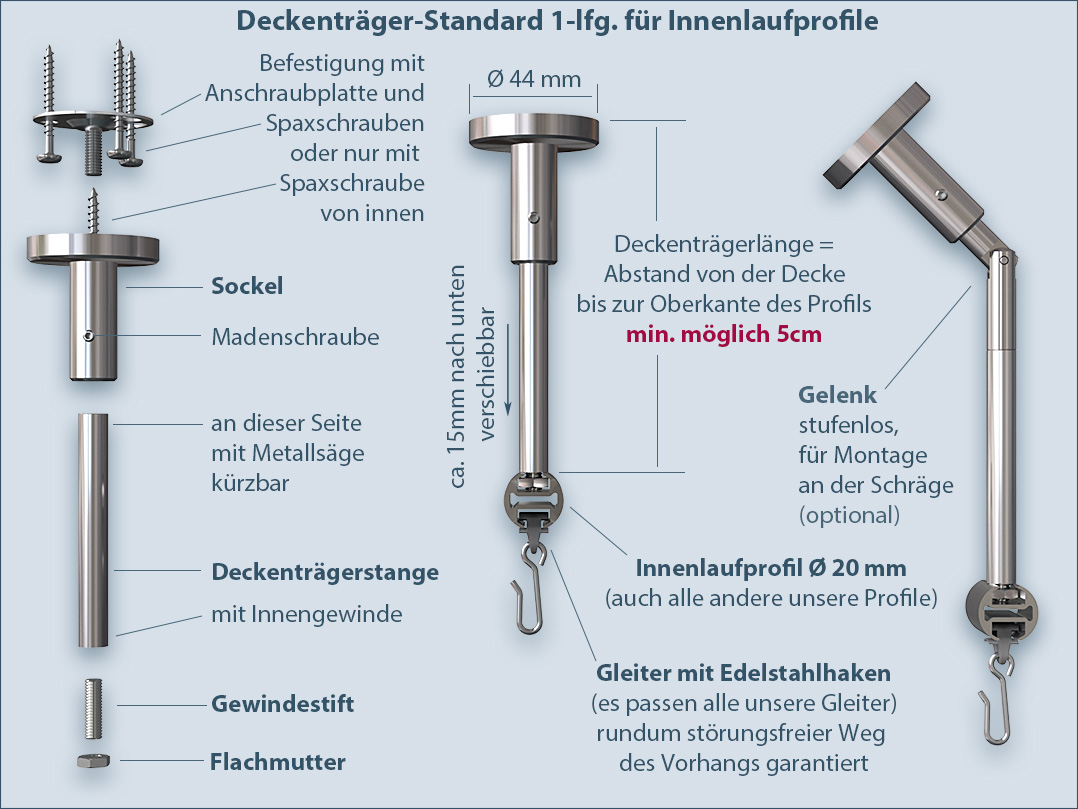

You can place the ceiling supports absolutely freely on the inner rail. First mount the bases on the ceiling according to the length of the curtain rod. You can either attach the base using a screw-on plate or screw it on directly with a spax screw. Then slide the flat nut fixed on the grub screw into the profile's fixing barrel and position it according to the base already fitted. Screw the ceiling support rods onto the grub screws. Slide the construction towards the ceiling and insert the ceiling support rods into the sockets. Then tighten the grub screws of the bases (but not too tight). You can adjust the height of the bracket in the base by approx. 2 cm and thus align the curtain rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.
Of course, we can also offer you a solution for a sloping roof or a sloping wall.

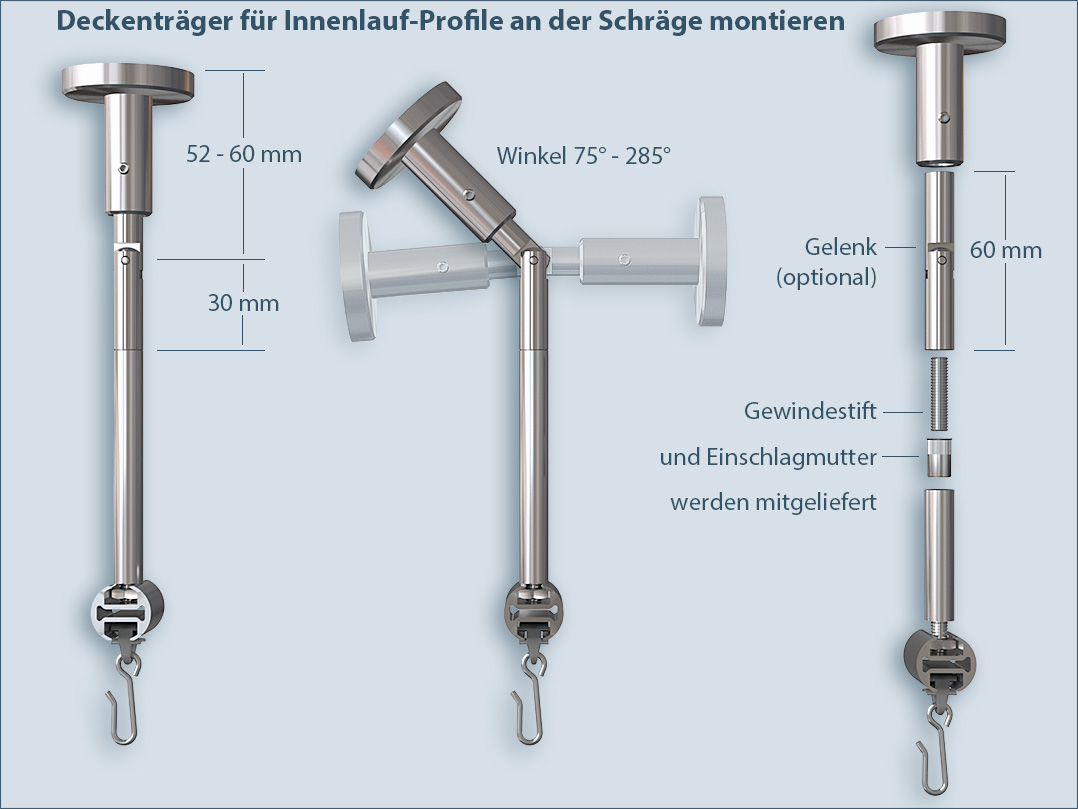

If you want to mount the ceiling bracket on a slope, please order a joint for 10 mm tubes. First screw this joint to one side of the ceiling support rod (a set screw and a drive-in nut are supplied), insert the other side of the joint into the base and fix it in the base with a grub screw. You can easily mount the ceiling support on the wall or roof slope at any angle. Of course, you can combine the ceiling brackets with and without a joint on a curtain rod, e.g. B. if the rod closes laterally to a sloping wall.

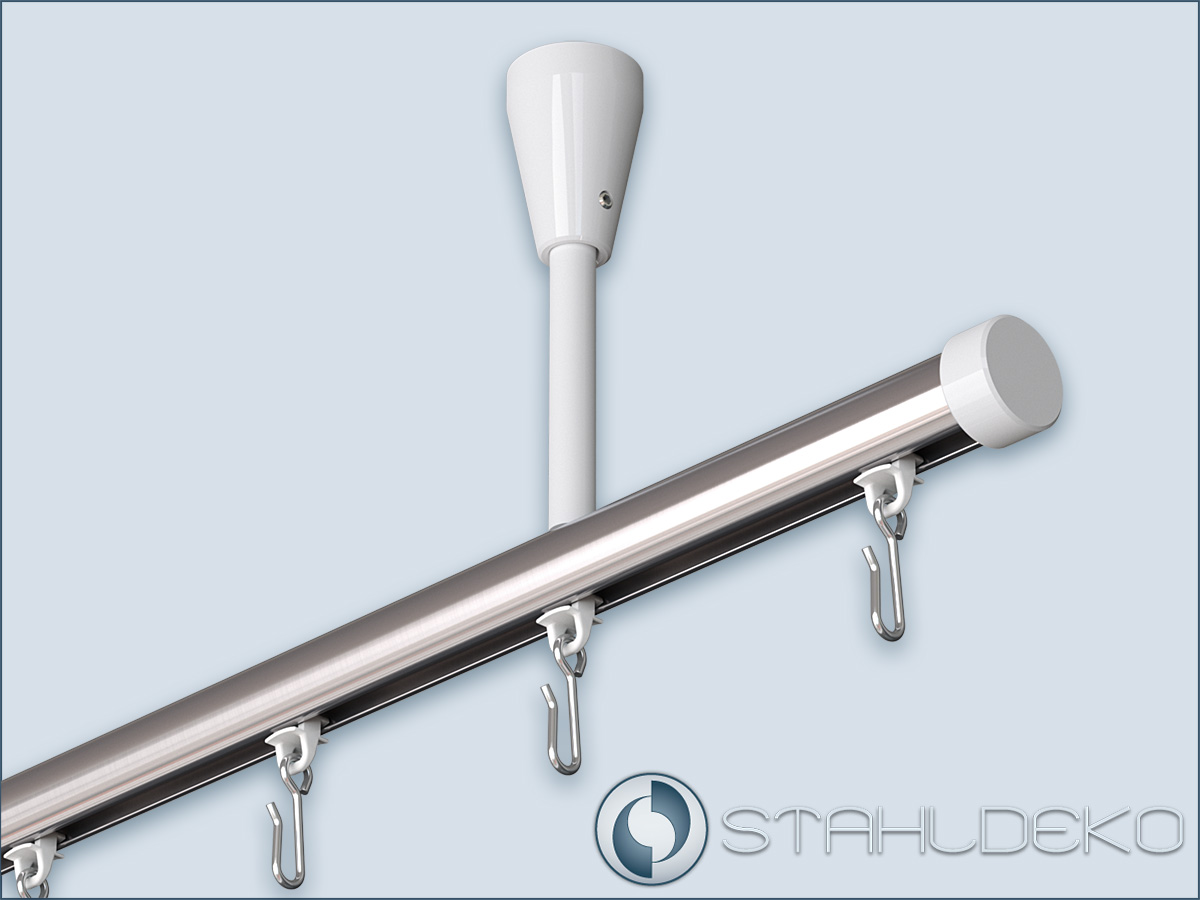

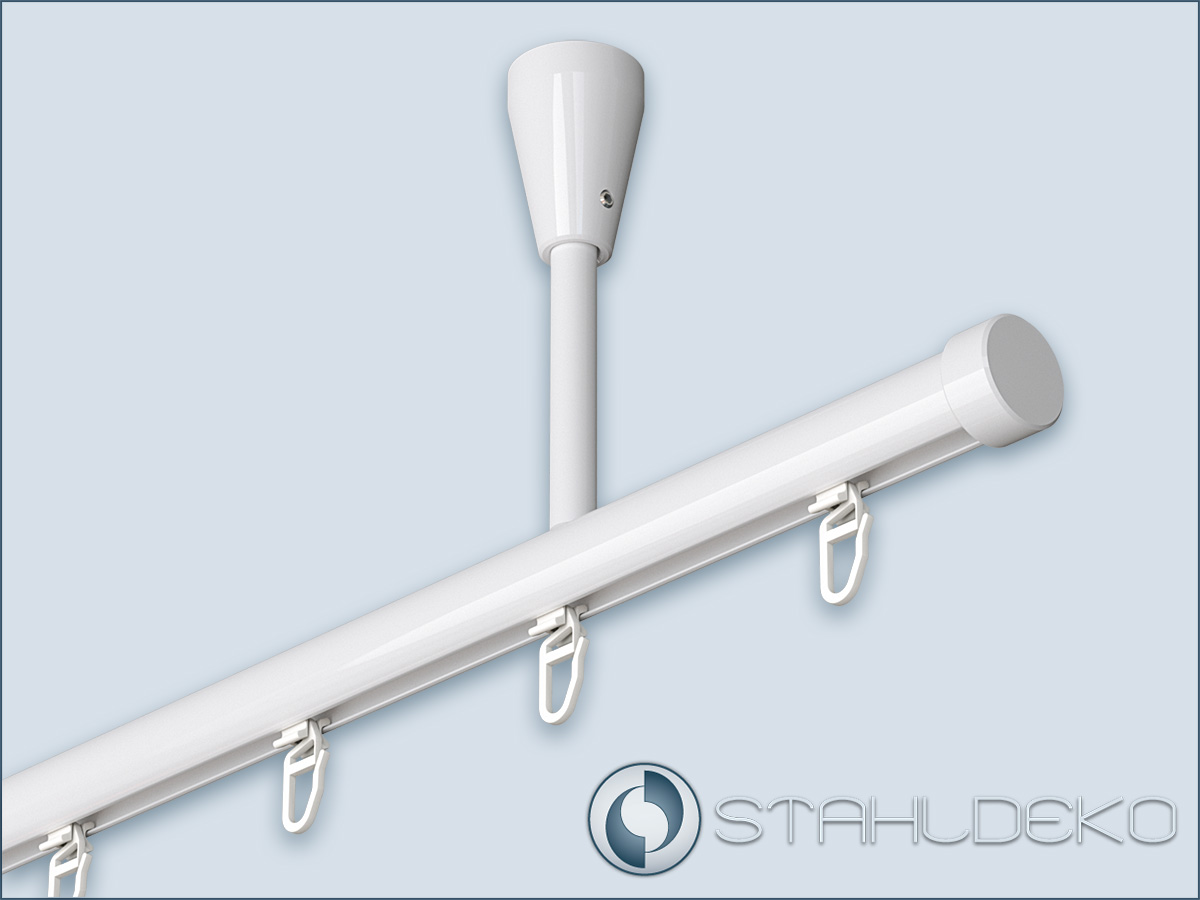

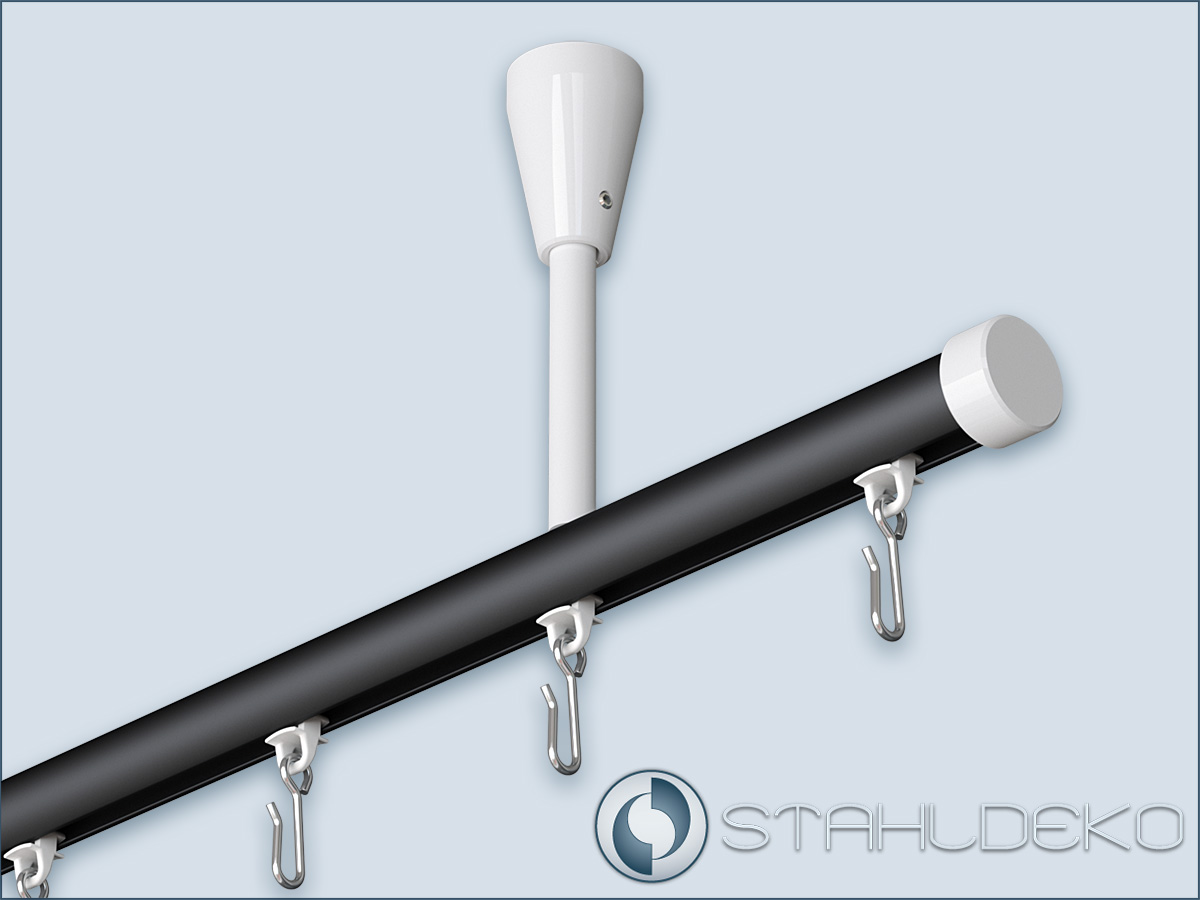

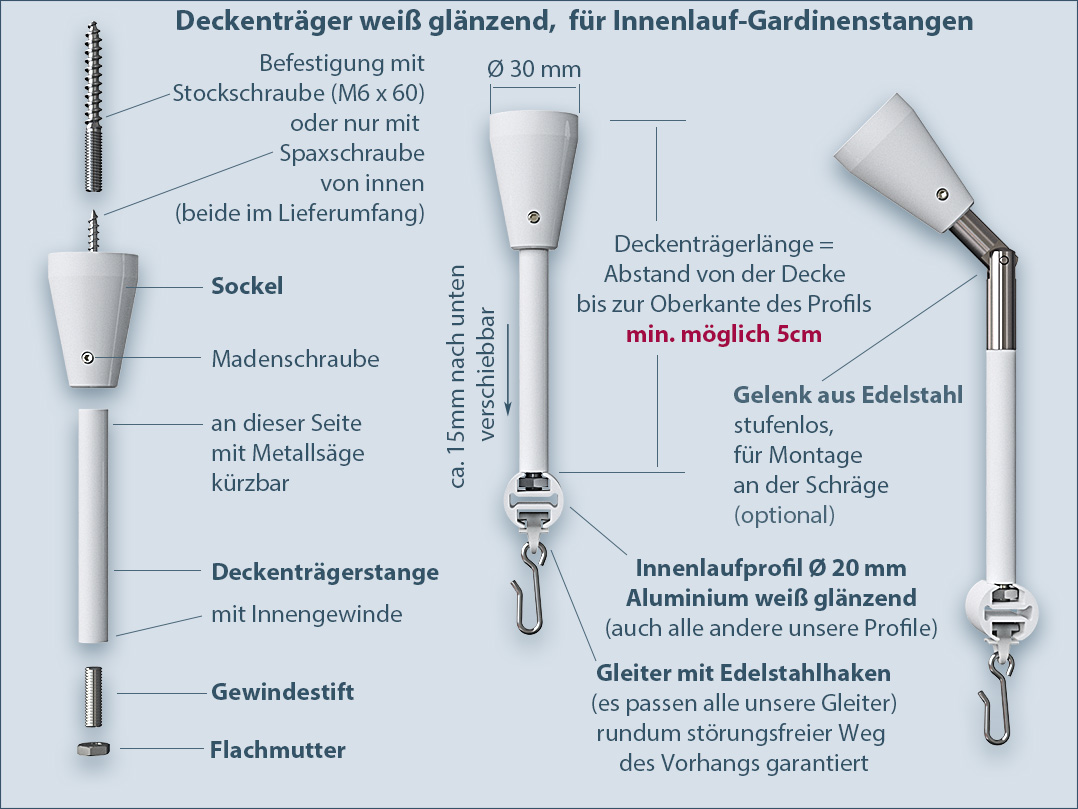

Inner track fastening system standard 1-track for ceiling mounting in white.
You can position the white ceiling supports absolutely freely on the inner rail. First mount the bases on the ceiling according to the length of the curtain track. You can either attach the base with a hanger bolt or screw it directly with a Spax screw. Then slide the flat nut fastened on the grub screw into the fastening barrel of the profile and position it according to the base already attached. Screw the ceiling support rods onto the grub screws. Slide the construction towards the ceiling and insert the ceiling support rods into the sockets. Then tighten the grub screws of the bases (but not too tight). You can adjust the height of the support in the base by approx. 2 cm and thus align the rail absolutely horizontally on the ceiling. If you want a smaller distance from the rail to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

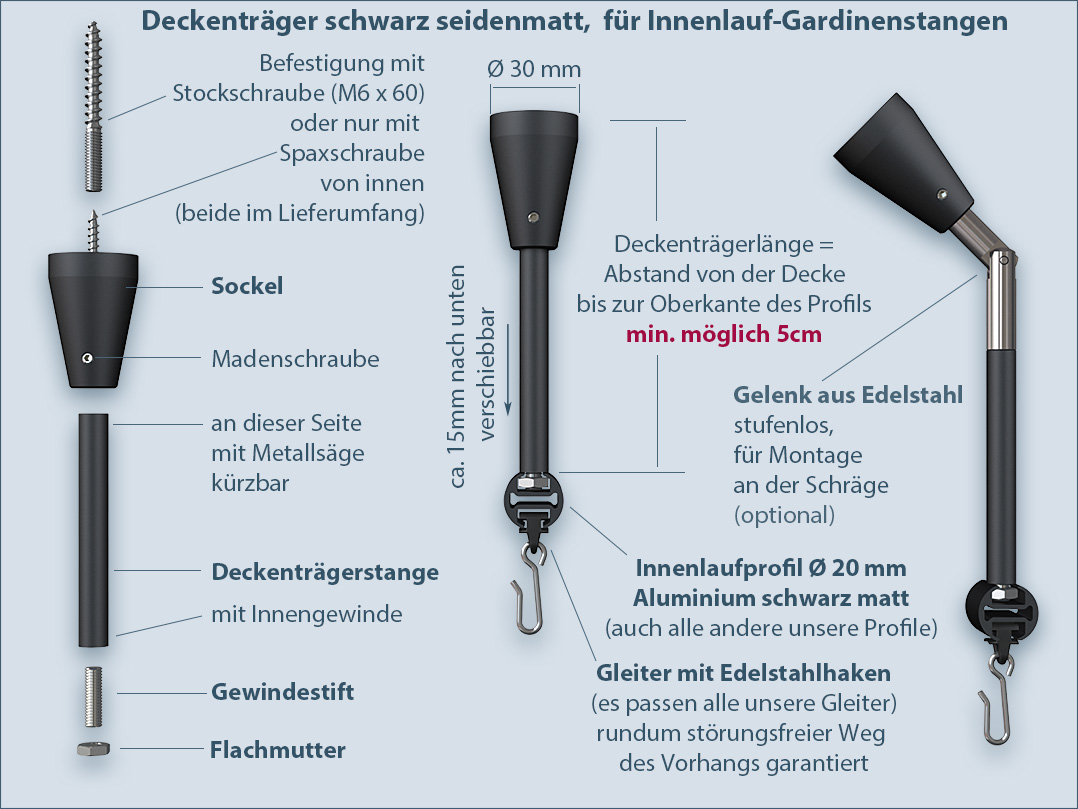

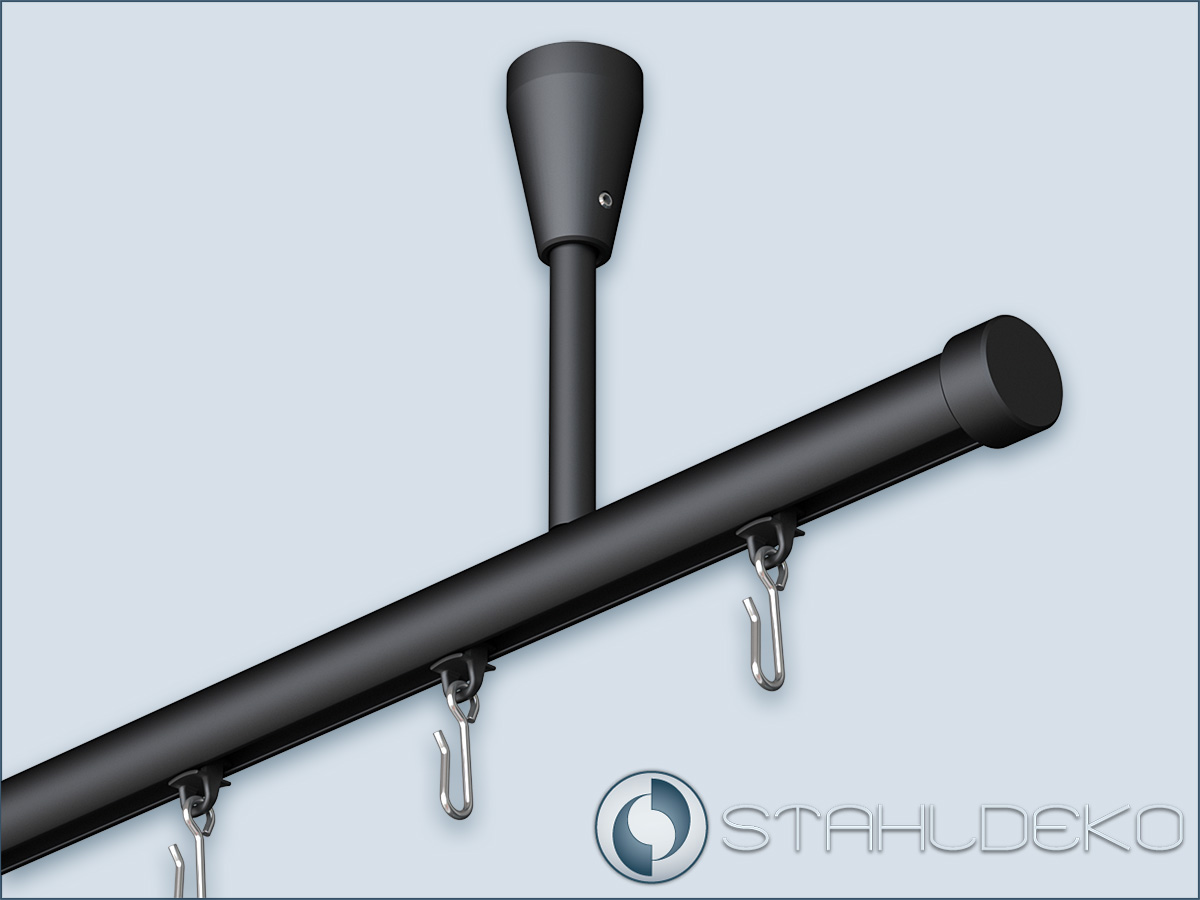

Standard ceiling support, single-track, made of black aluminium.
Installation on the ceiling with the satin black ceiling bracket:
You can position the ceiling supports absolutely freely on the pole. First, distribute the flat nuts of the ceiling supports evenly over the entire length of the shower rail. Then screw the ceiling support rods into the flat nuts. Mount the bases on the ceiling according to the position of the ceiling support rods already screwed on. You can either attach the base with a hanger bolt or screw it directly with a spax screw. Slide the entire construction with the ceiling support rods towards the ceiling and guide the ceiling support rods into the sockets. Then tighten the grub screws of the bases (but not too tight). You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower curtain rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, you can shorten the ceiling support rod with a hacksaw. The minimum possible distance is approx. 50 mm.

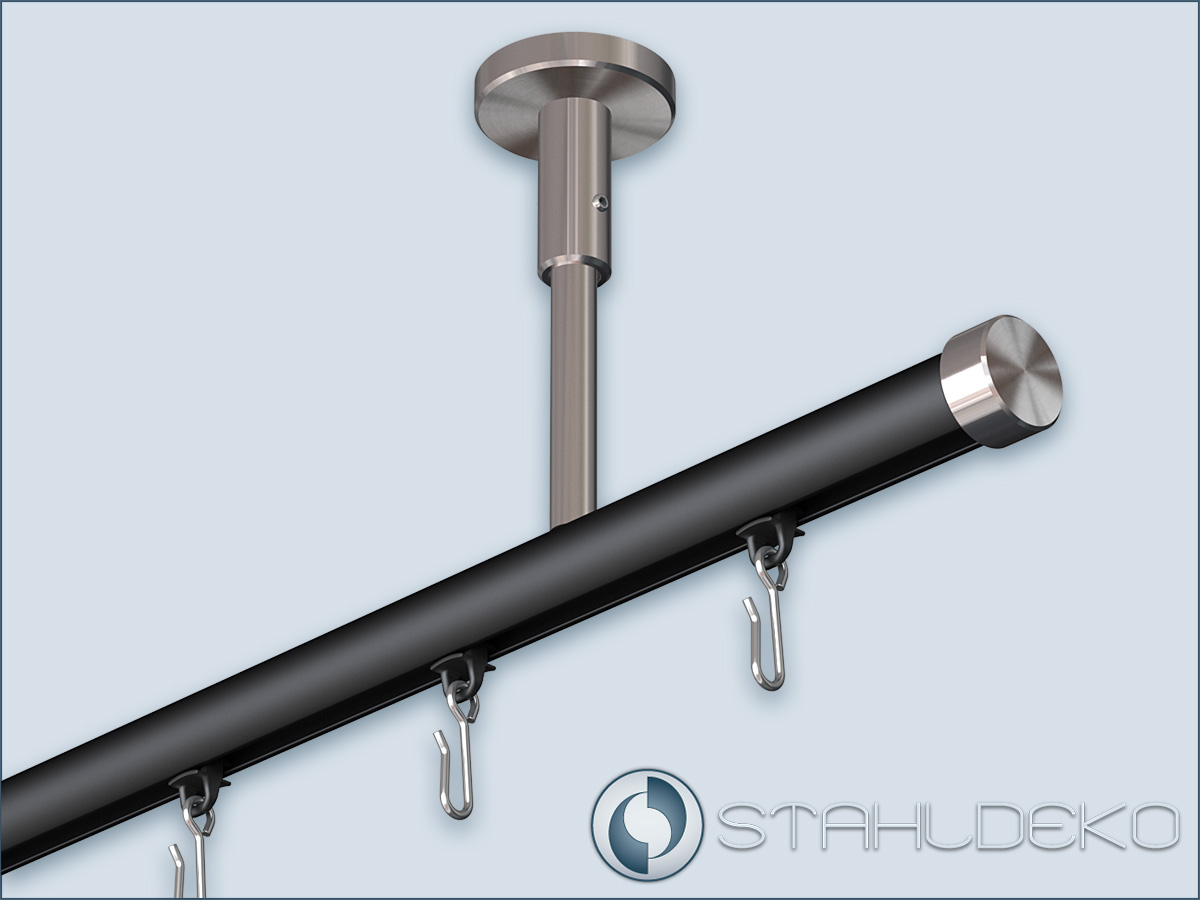

Color options for our 20mm diameter round inner race bar

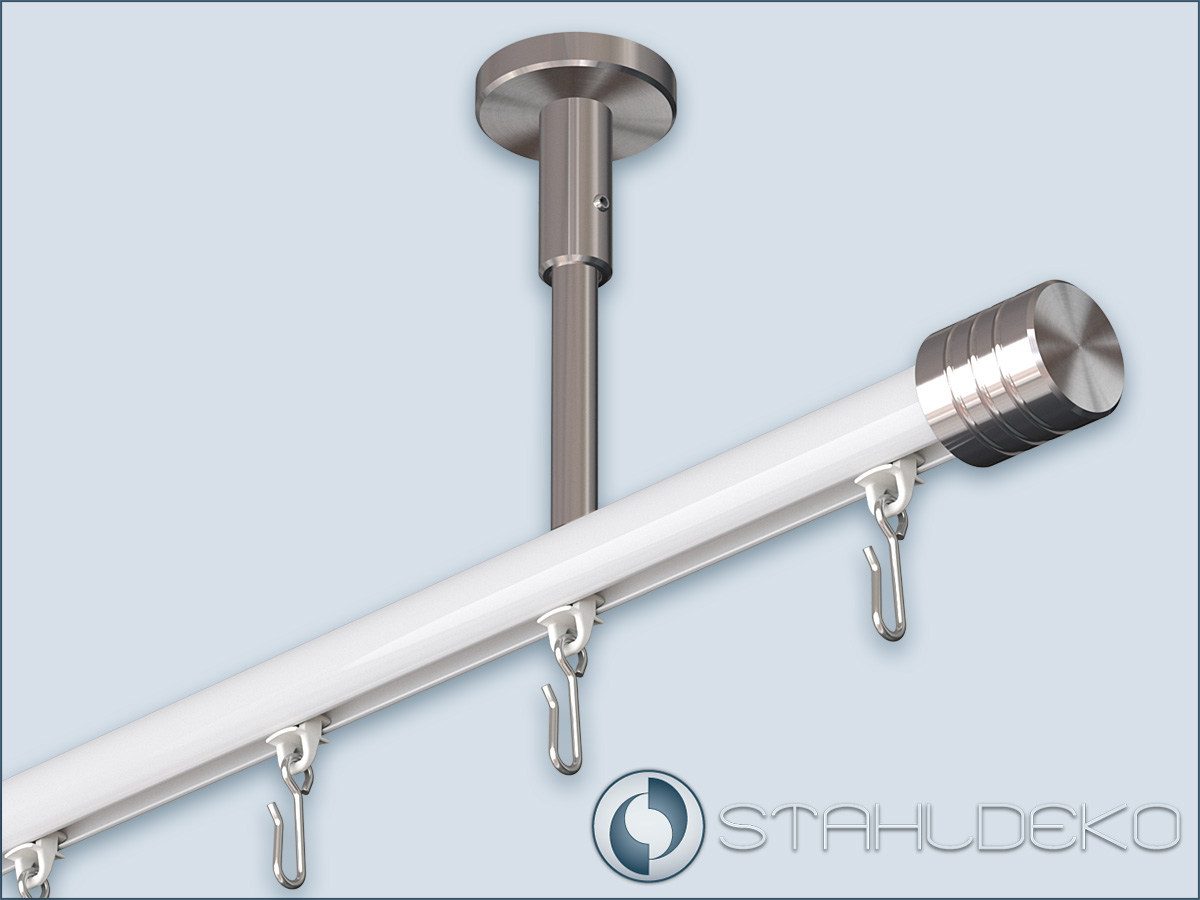

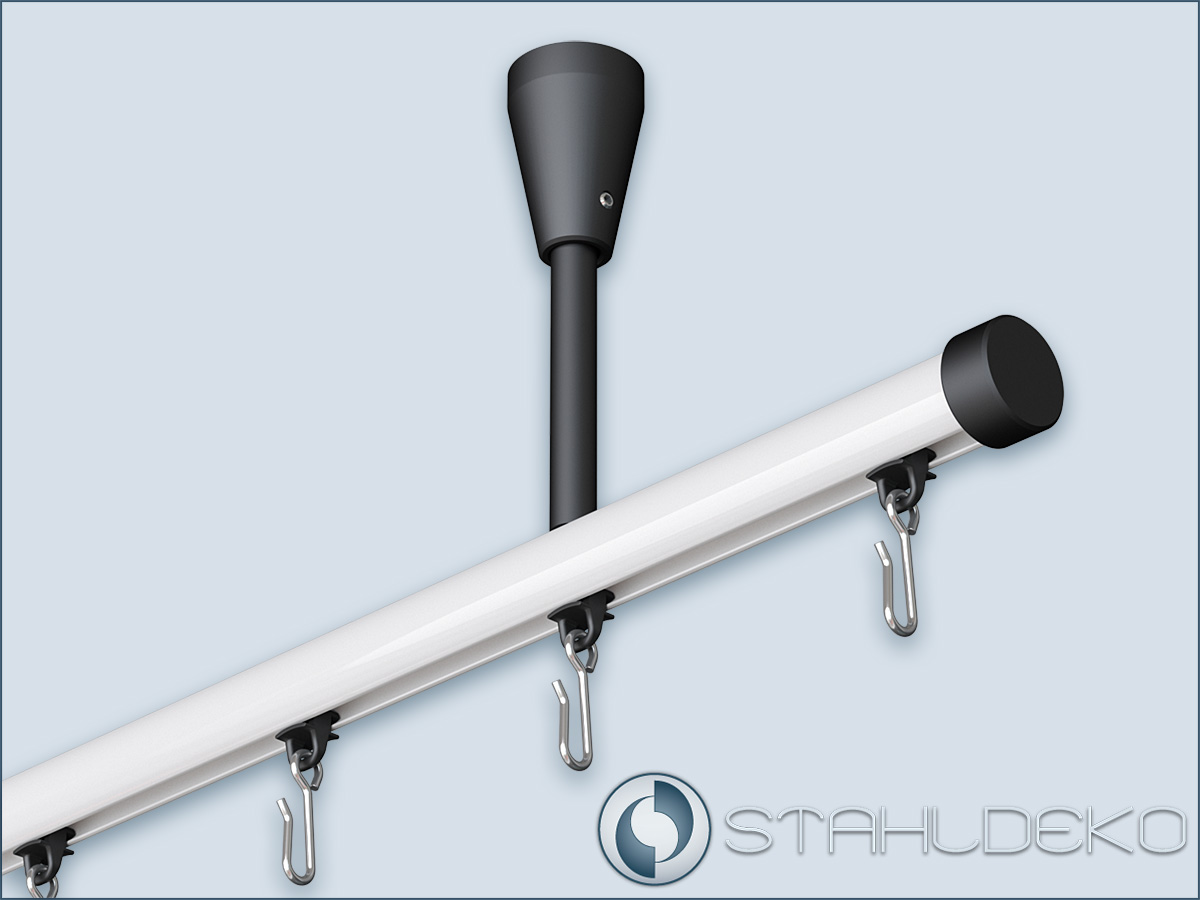

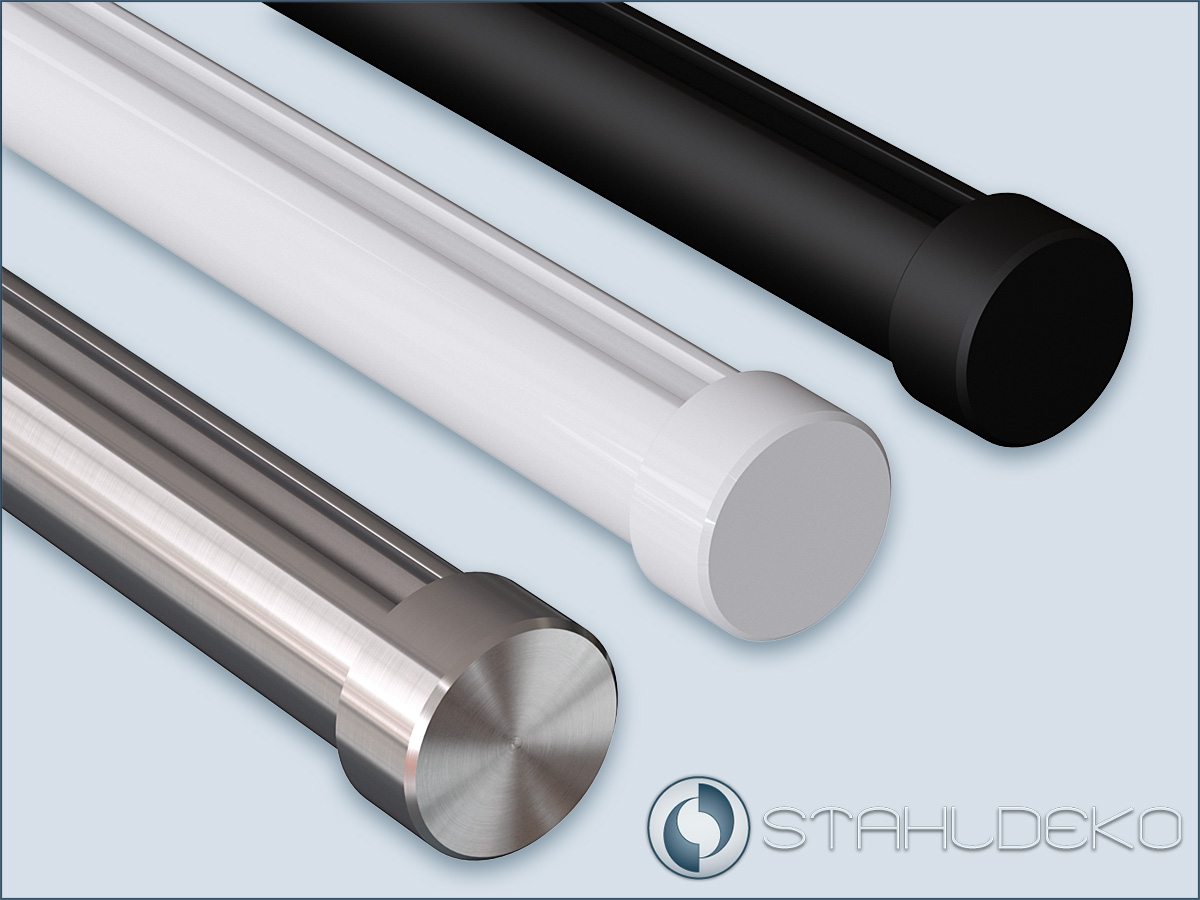

Our inner rails with a diameter of 20mm are made of high-quality aluminum and are available in four stylish finishes: stainless steel look, glossy white, matt black and glossy black. You can order matching end pieces made of stainless steel V2A and end caps made of glossy white or satin black aluminum for each rod. Please note: The wall brackets are only available in stainless steel V2A! Bring your curtain rods to life by combining the colors however you like. Go for classic combinations like stainless steel with white or black, or try out creative mixes like black with white or stainless steel with black. Design your curtain rods individually according to your personal preferences and requirements.
Order desired gliders with hooks for curtains and curtains:

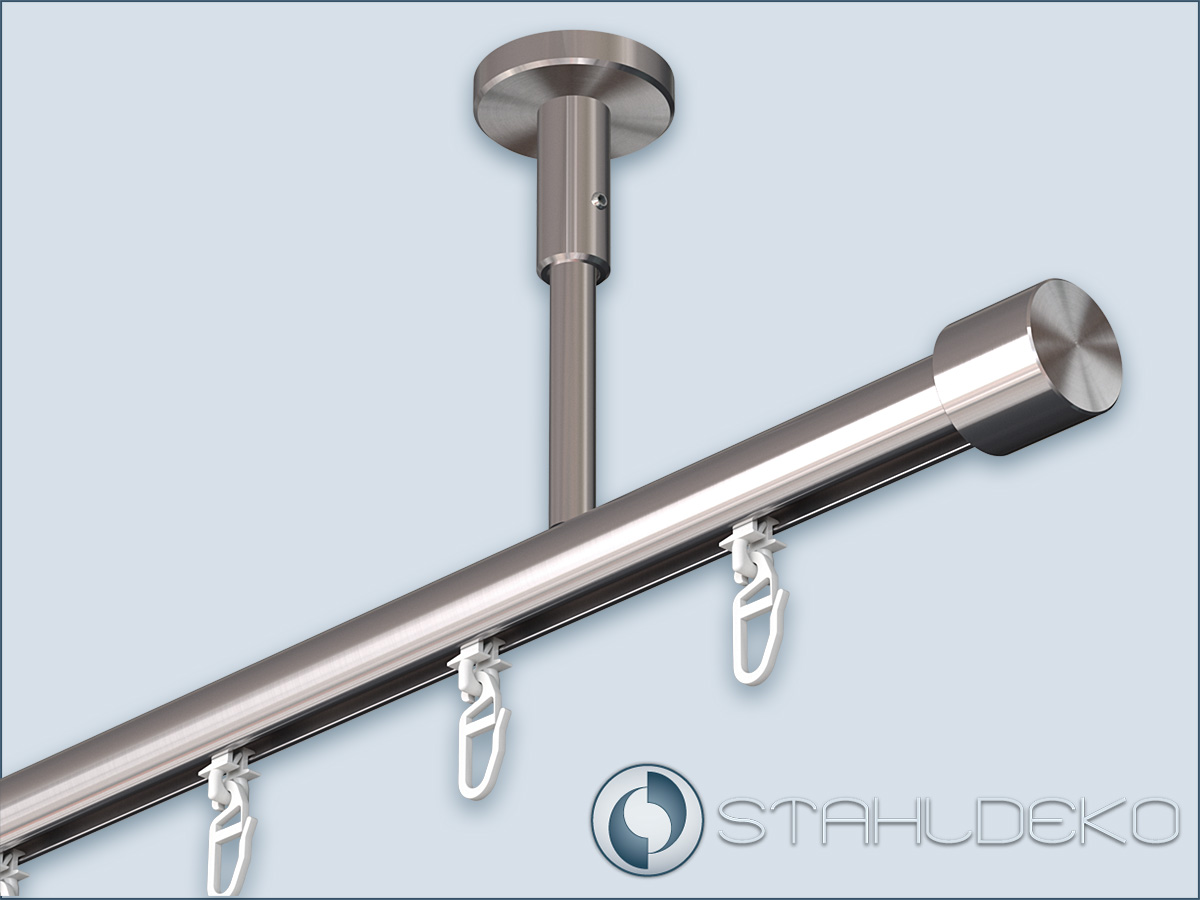

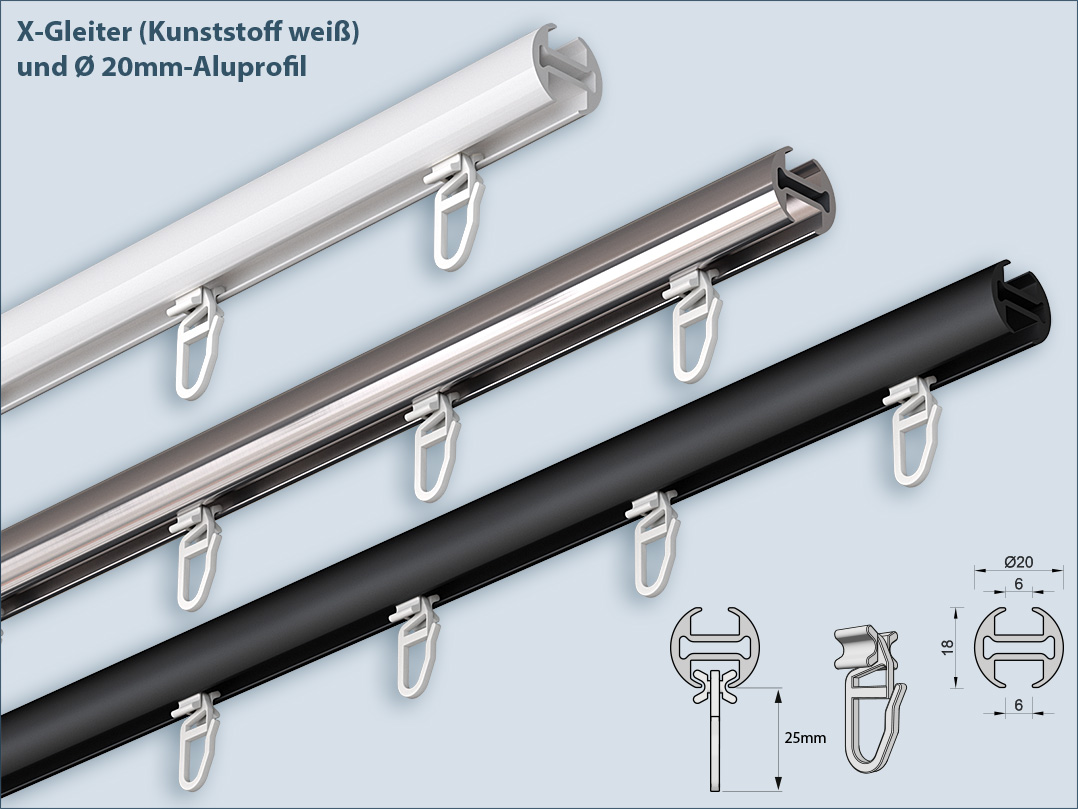

X Glider: Standard curtain gliders with pleating hooks, made entirely of plastic, color white, are inserted into the rail at the side.

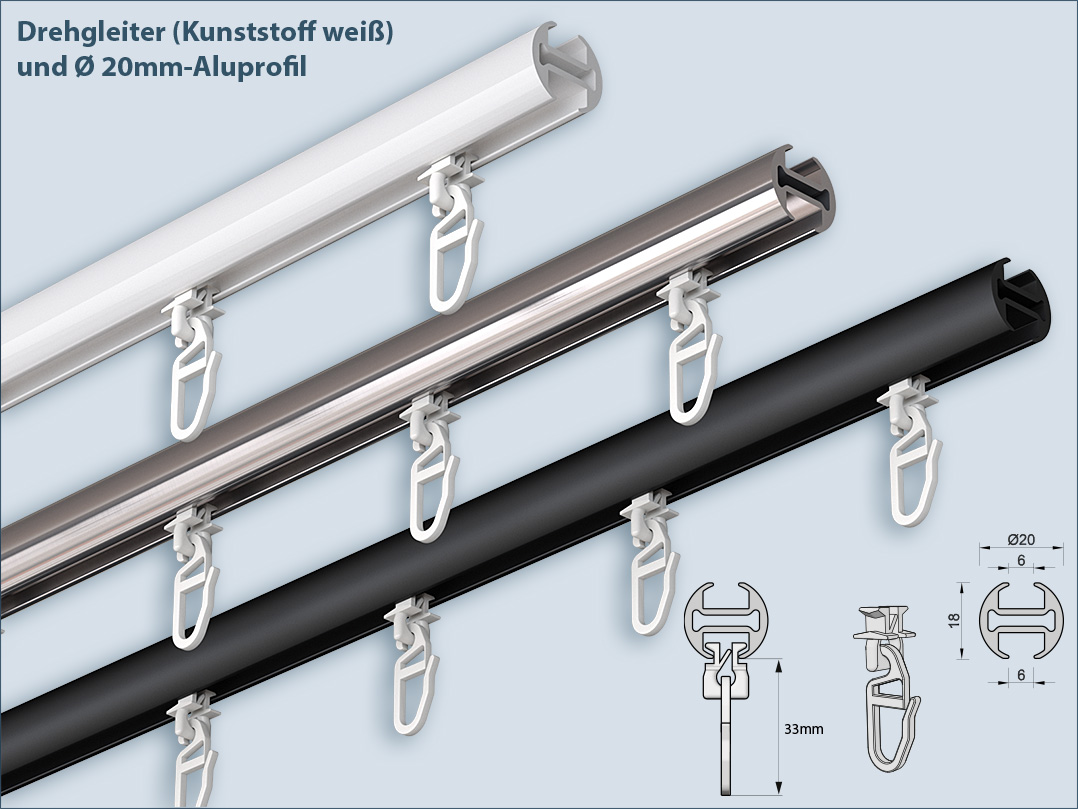

rotary glider: Comfort curtain gliders with clip-on hooks, made entirely of plastic, color white, these gliders can be screwed in or out at any point on the inner track system.

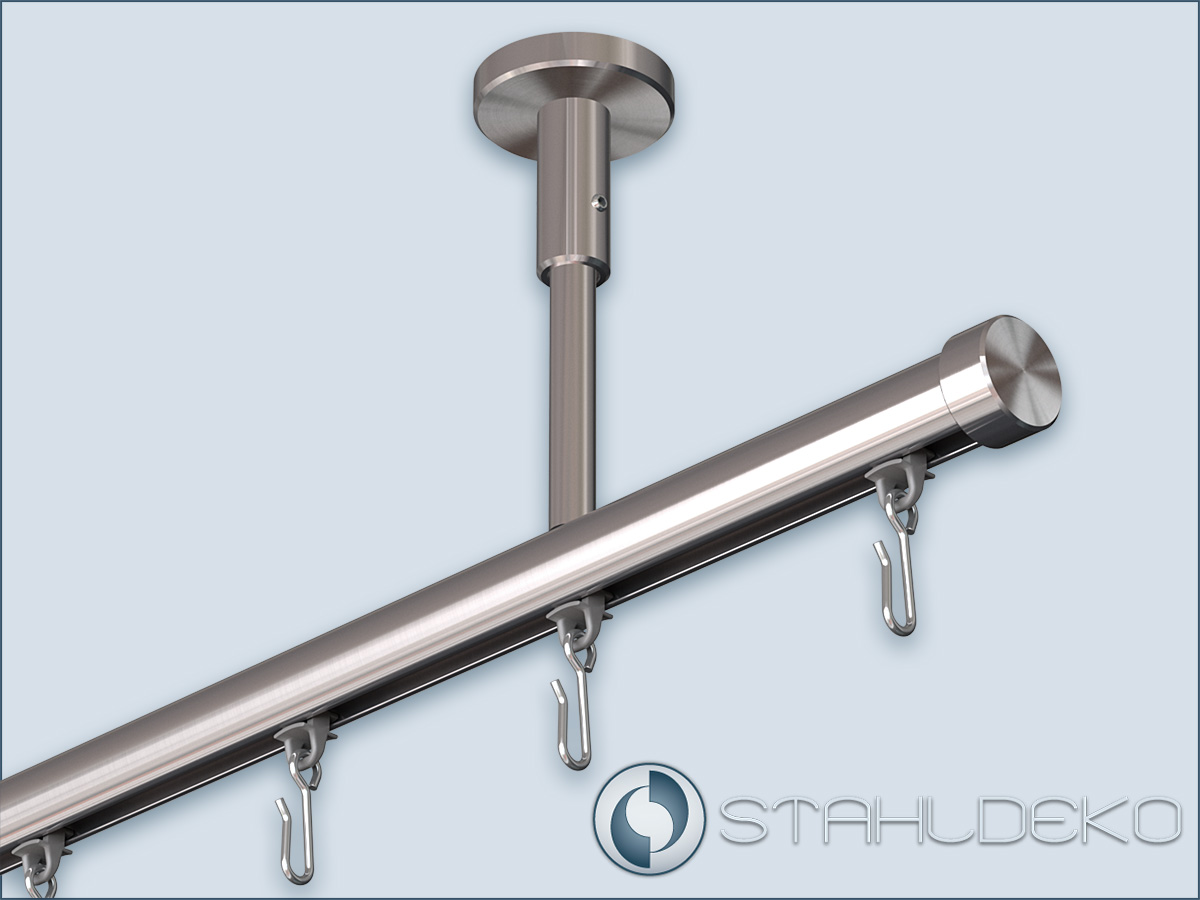

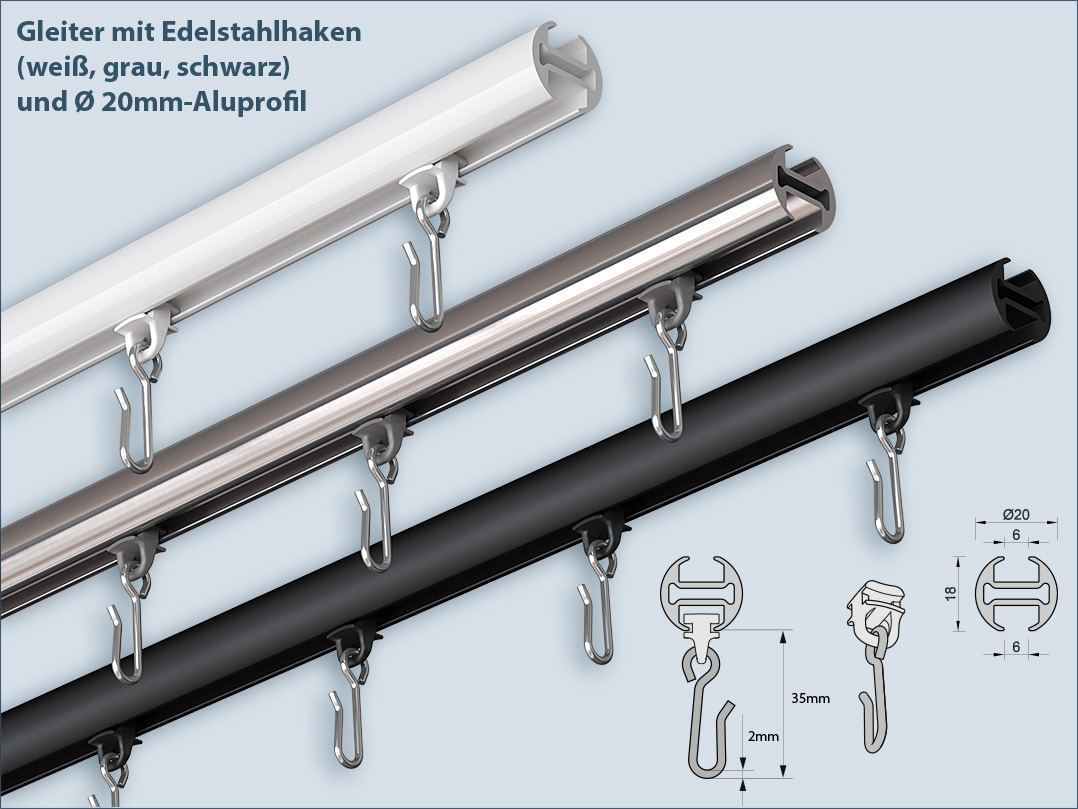

Glides with stainless steel hooks: Very stable (up to 1.5 kg/each) and at the same time very smooth-running gliders with stainless steel hooks. Particularly suitable for heavy drapes and drapes, wet areas and outdoor areas, e.g. curtains for vestibules or wind protection curtains for terraces or balconies.
loop gliders: Sliders for loop curtains made entirely of plastic, color white. Due to its semicircular shape, the sliding element offers very good sliding properties in all of our inner rails.

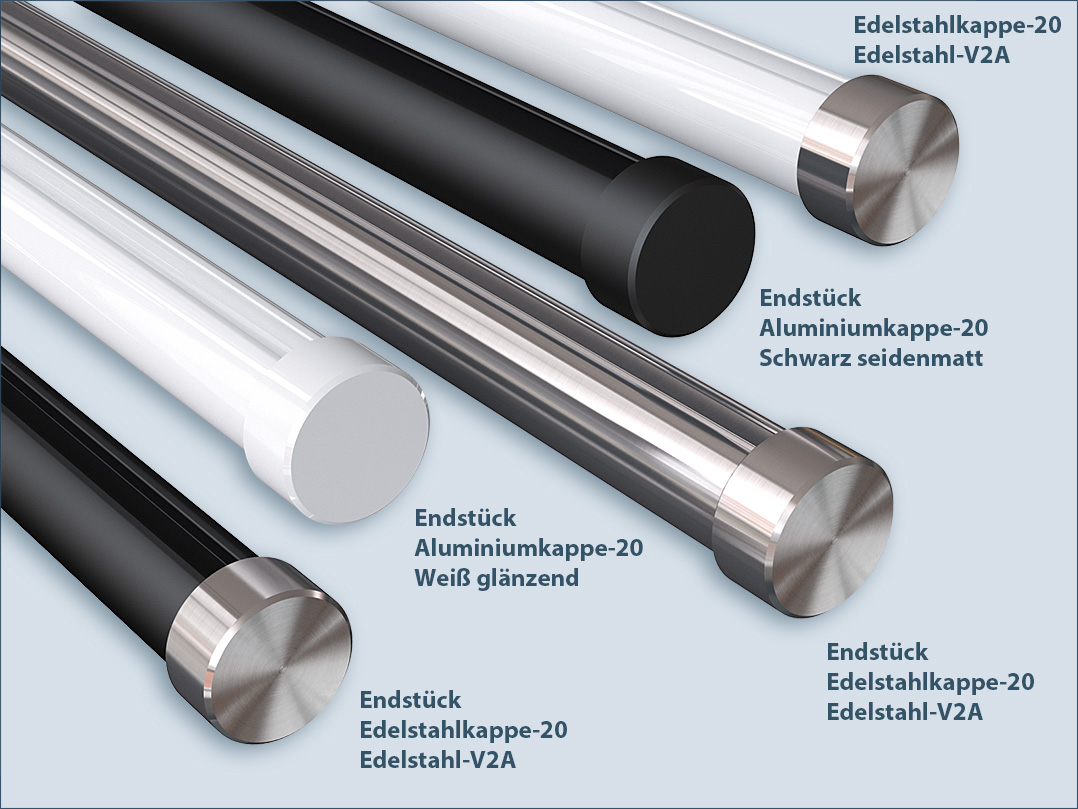

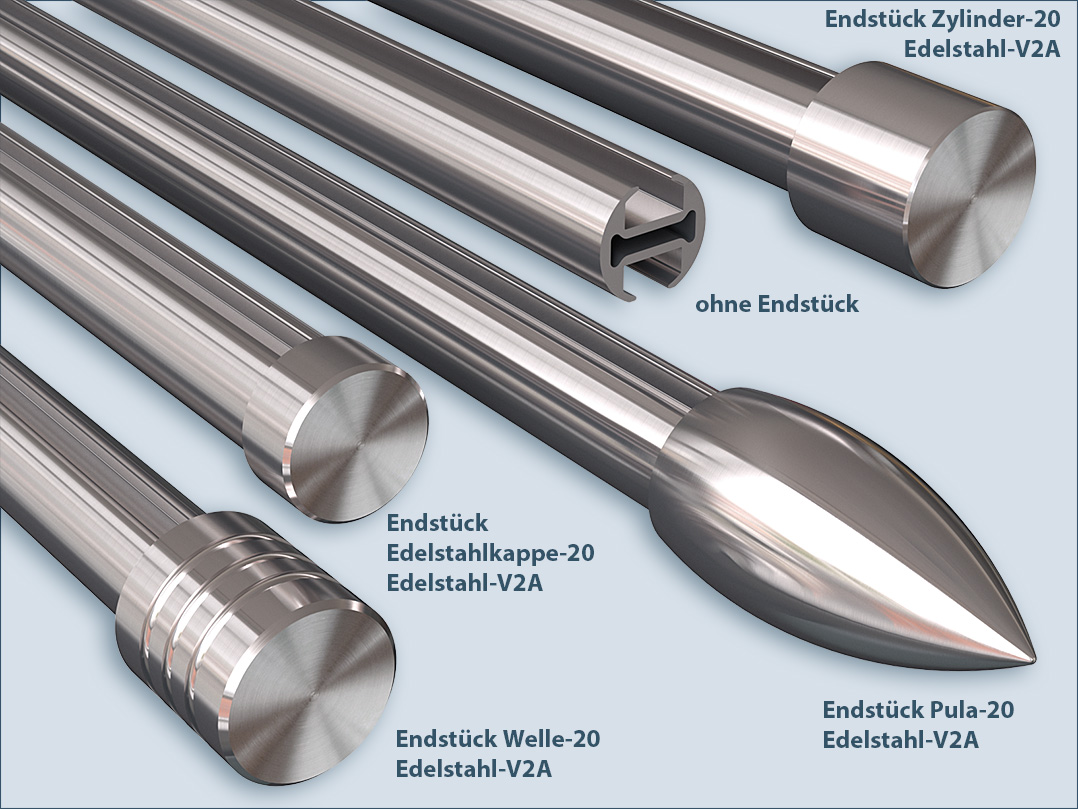

Order any end pieces for curtain rods with inner profile Ø 20mm.
In our offer you will find a wide range of end pieces for our high-quality aluminum profiles, which have a diameter of 20mm. Simply browse the options available in our dedicated selection section to find the right end piece. We are proud to present a variety of stainless steel end caps and end knobs, as well as black and white coated aluminum finishes for 20mm diameter profiles. You are of course free to place an order without end pieces. This allows you to alternatively use wall mounts, arches or corners. Our goal is to ensure you find the optimal solution for your specific needs. Explore our wide selection and give your curtains and curtain rods the ideal finish!
Internal track curtain rod "Standard", single track, for ceiling mounting
Rod: Aluminum in stainless steel look. Accessories: V2A - Stainless steel 18/10, DIN WNR 1.4301, rust-free, suitable for indoor and outdoor applications.
High-precision processing with CNC automatic lathes
Standard ceiling bracket 1-lfg. Base attachment to the ceiling with screw-on plate or directly with Spax screw.
Pipe lengths from 100 to 400cm (can be shortened upon request). Pipes 400-600cm in one piece - price on request. Inner track profile with Ø20mm. Ceiling bracket length (distance ceiling-top edge of the profile) 5 to 45cm.
End Cap of Choice
Various Sliders of Choice
Scope of Delivery
Complete curtain rod: 1 pc. rod, 2 or 3 pcs. ceiling holders (by rod length), 2 pcs. end piece of choice, sliders (optional), incl. mounting material.
