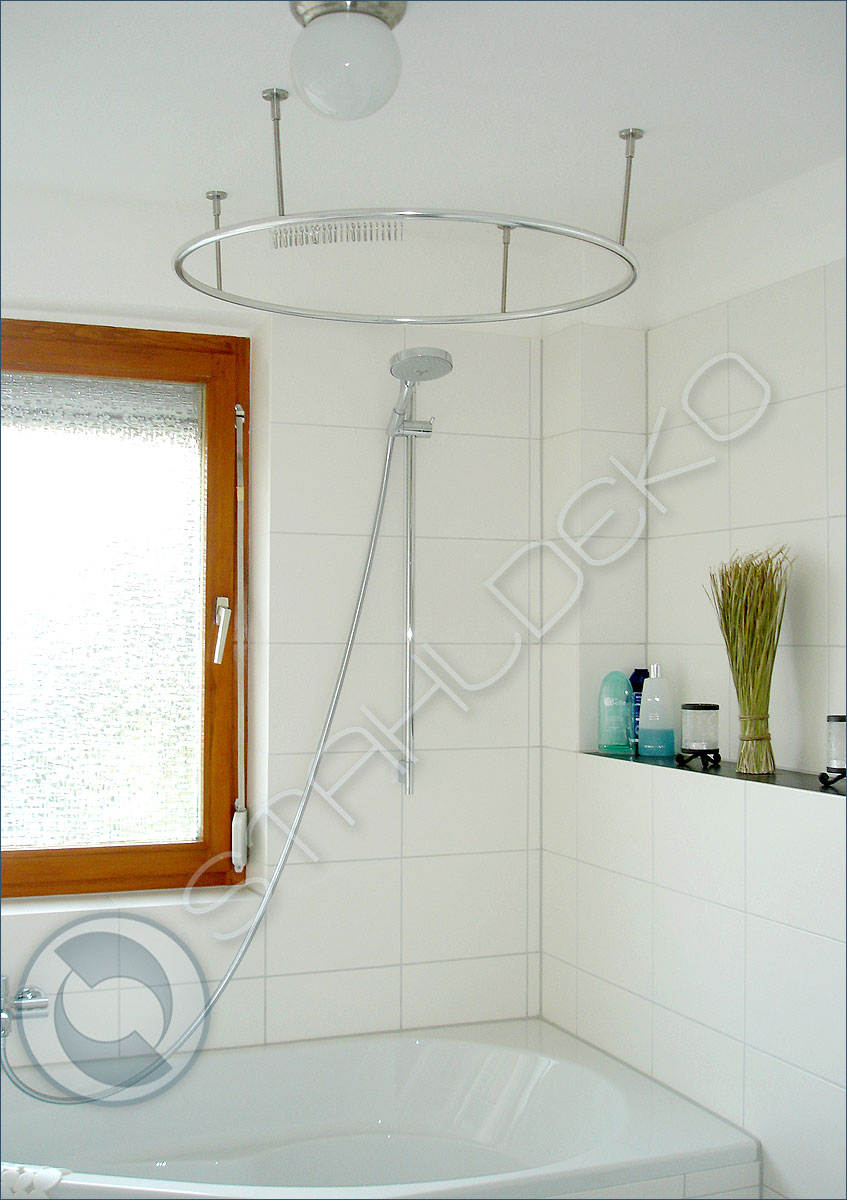

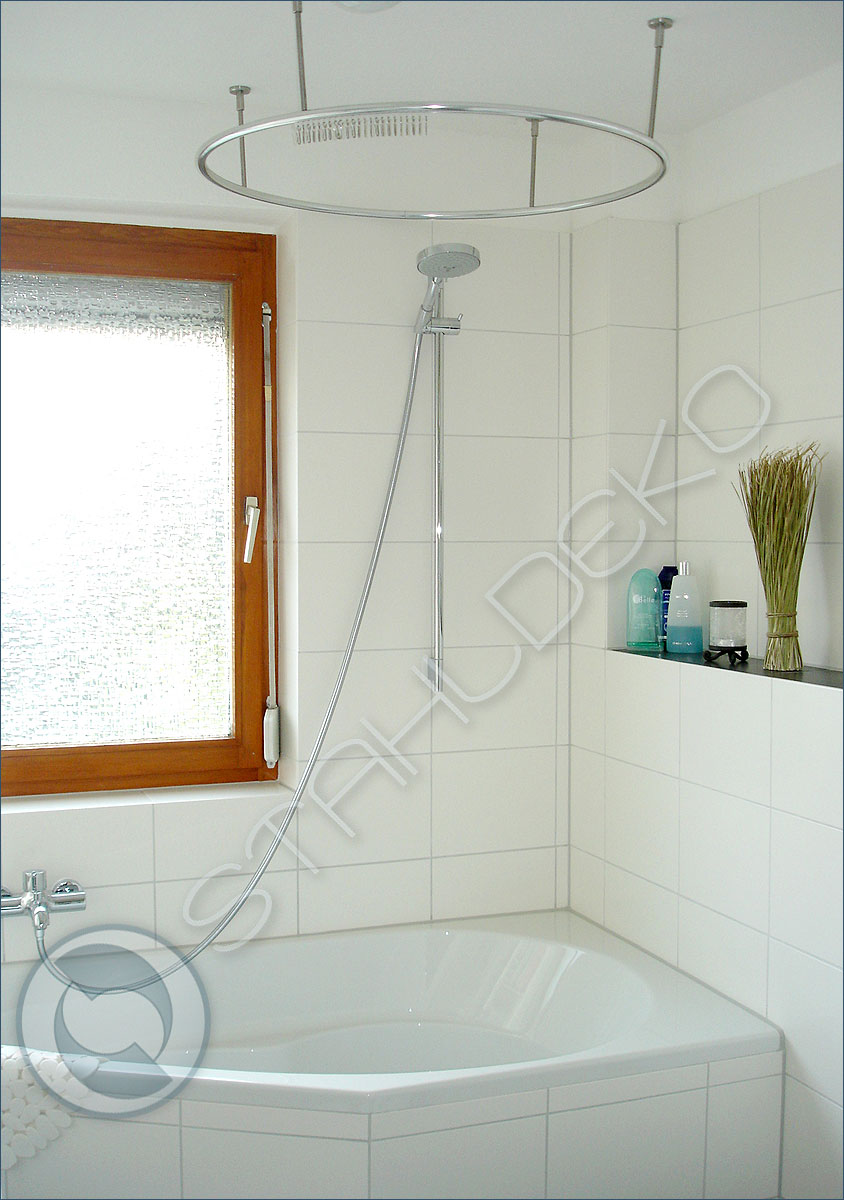

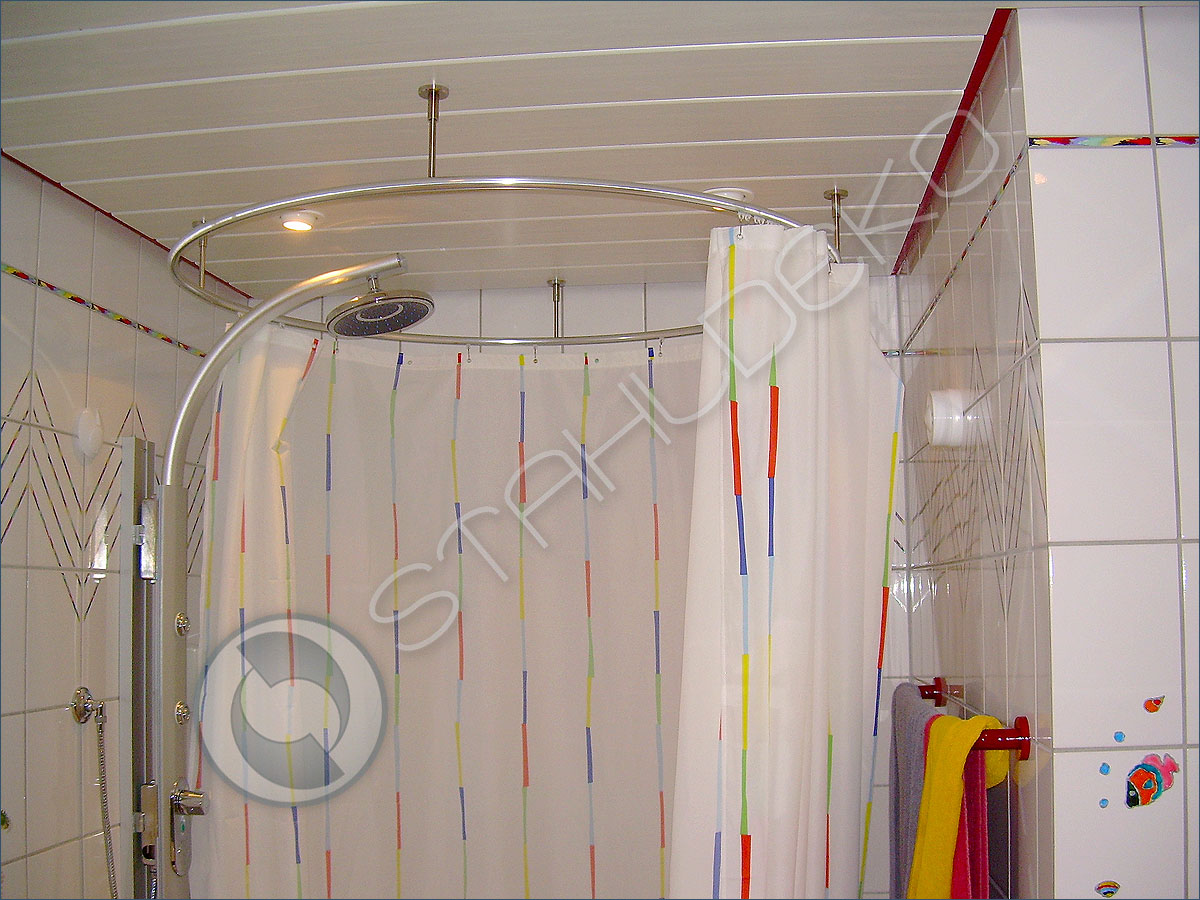

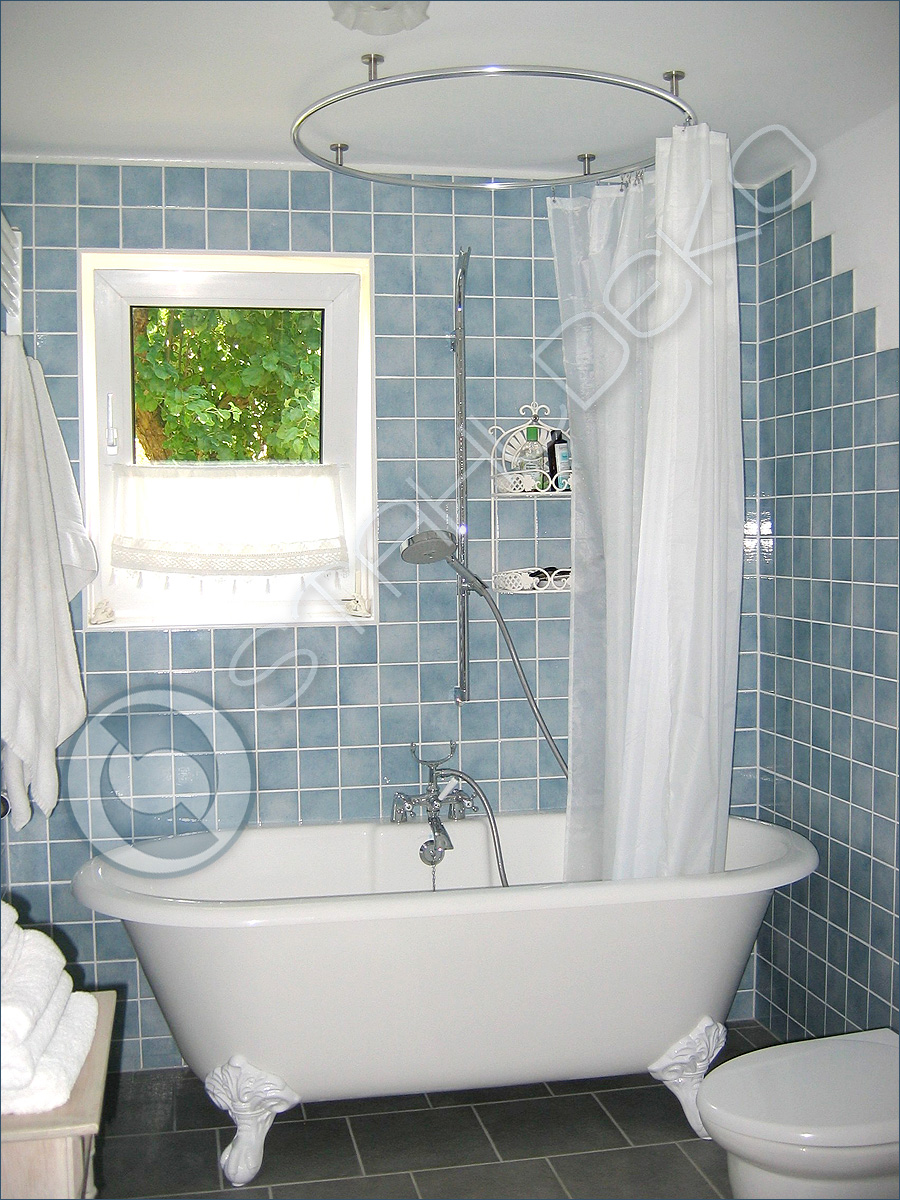

Shower curtain rail curved all around as a ring in a circle shape, for shower, bathtub or floor-level shower area in the bathroom.
Complete rod for shower curtain in a round closed shape with an inner profile Ø 20mm made of aluminium, the anodized surface in stainless steel look black or white powder-coated is absolutely suitable for our ceiling supports, slider width 6mm. The curtain rod is made in one piece and of course also delivered undivided, the rod ends are connected to the rail connector, thus guaranteeing an all-round trouble-free path for the shower curtain. The ring rod is bent in a circle with a diameter of 80, 90, 100, 120, 140 or 160 cm. The scope of delivery includes the ceiling brackets and the shower curtain gliders with stainless steel hooks.

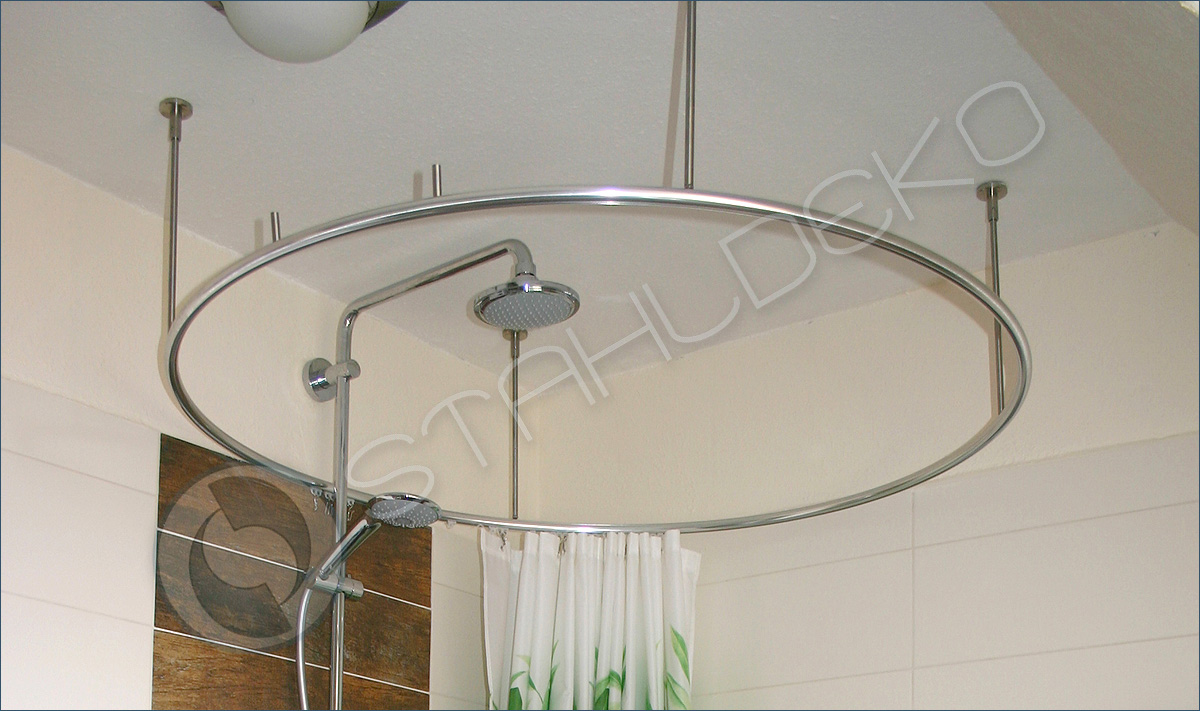

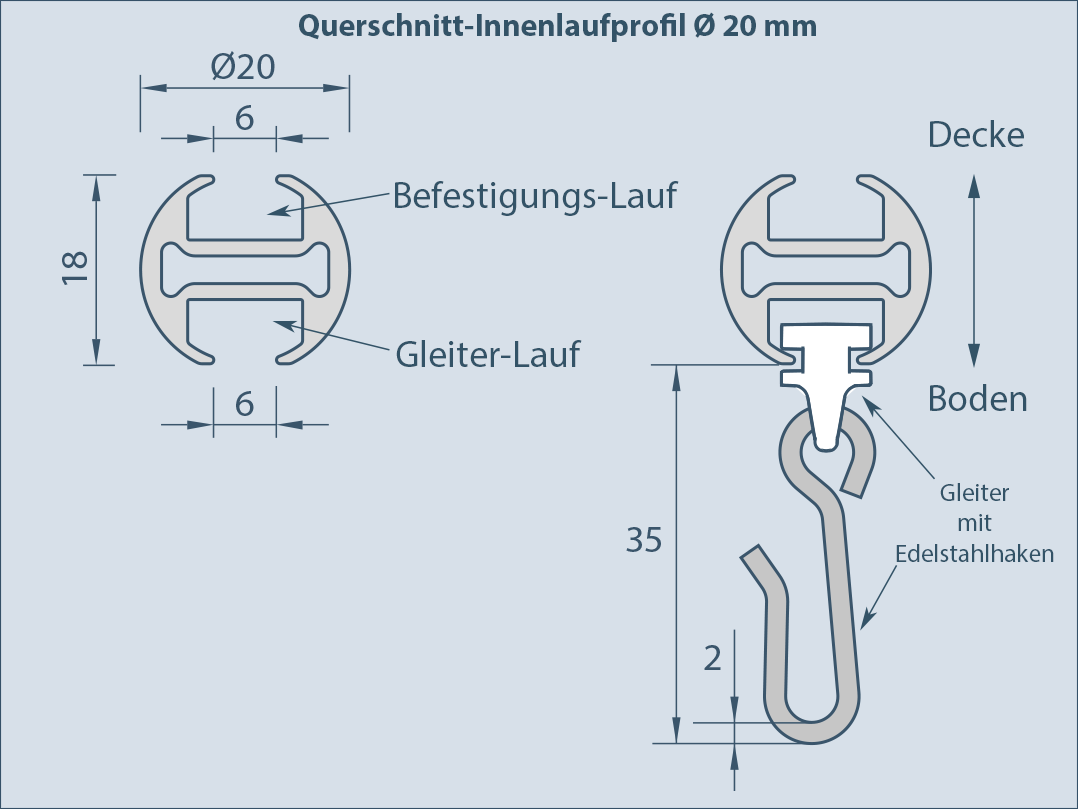

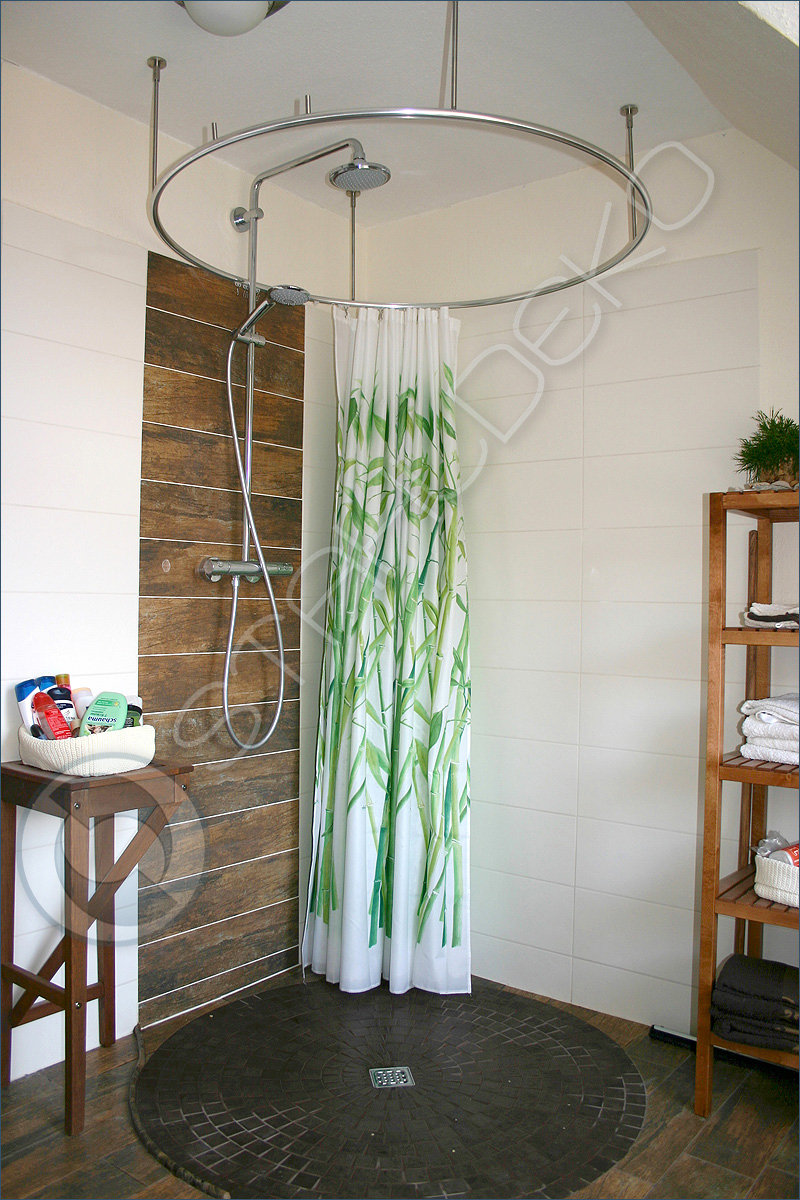

An advantage of the inside rails is the possibility to move the shower curtain along the entire length of the rail without any problems. The ceiling supports are fastened in the upper run (fastening run) of the inner run profile and always keep the lower run (glider run) free, thus guaranteeing an all-round trouble-free path for the curtain. Our ring-shaped shower curtain rods are therefore ideally suited to set up a barrier-free shower area in the bathroom or a floor-level area for a disabled shower.
*Custom-made products and made-to-measure products on request, we also produce our rods in any other closed shape, for example a square, square or oval shape, bent absolutely according to your dimensions, needs and space situation.

Order the circle shower curtain rod in the right size and design.
Ordered size is outside diameter of ring bar. You can order the shower rail in different diameters to suit the dimensions of your bathtub, shower or floor-level shower area.

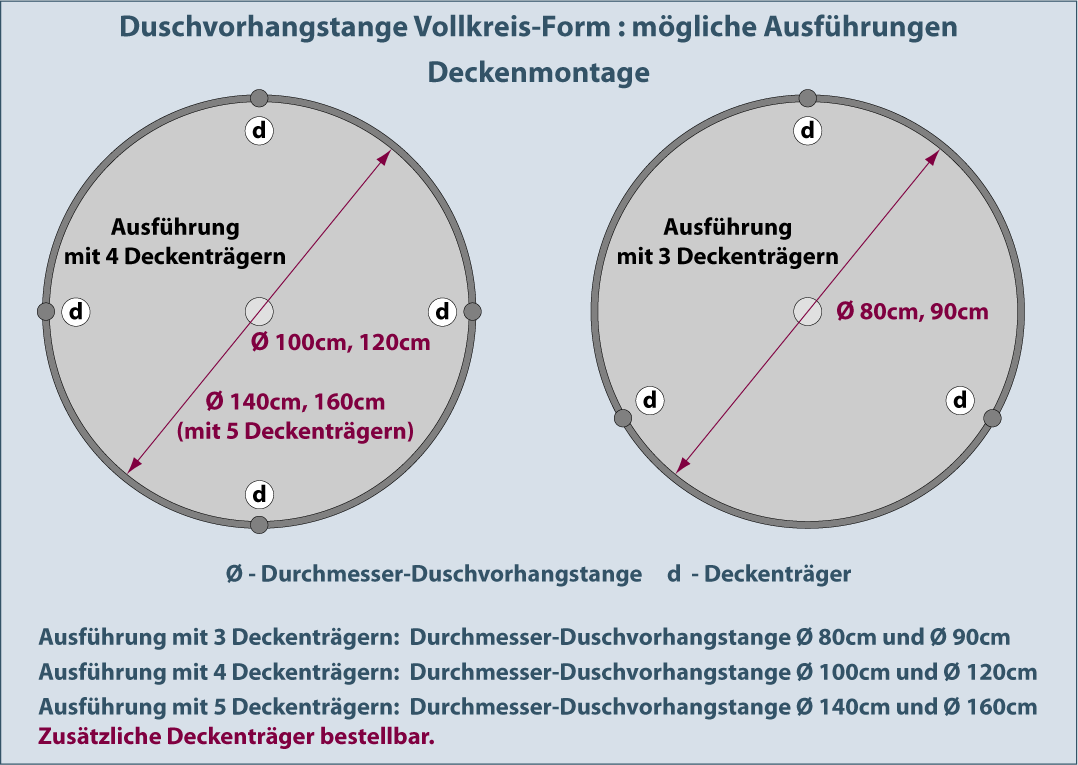

The shower curtain ring rod should be fixed at least 3 points. You can order the following shower rail versions:
Version with 3 ceiling supports: diameter shower curtain rod Ø 80cm and Ø 90cm
Version with 4 ceiling supports: diameter shower curtain rod Ø 100cm and Ø 120cm
Version with 3 ceiling supports: diameter shower curtain rod Ø 140cm and Ø 160cm
You can place the ceiling supports absolutely freely on the rod, of course the supports should be evenly distributed in order to achieve the best stability of the construction.
If desired, you can also order additional ceiling supports.

Shower curtain rod colors (circle shape).
Our shower curtain rods, curved as a ring, are made from an inner profile Ø 20mm made of aluminum. You can choose the following surfaces: stainless steel look, glossy white, matt black and glossy black. The accessories - the ceiling brackets, the wall brackets and the end caps can of course be ordered in the appropriate materials: stainless steel V2A, glossy white aluminum or satin black aluminum. Of course it is also possible to combine the colors, e.g. B: Stainless Steel/White, Black/White or Stainless Steel/Black,

Ceiling support made of stainless steel.
The shower curtain rod for a round shower area is bent from an aluminum inner profile Ø 20mm, the anodised surface in stainless steel look is absolutely suitable for our ceiling supports made of stainless steel V2A.

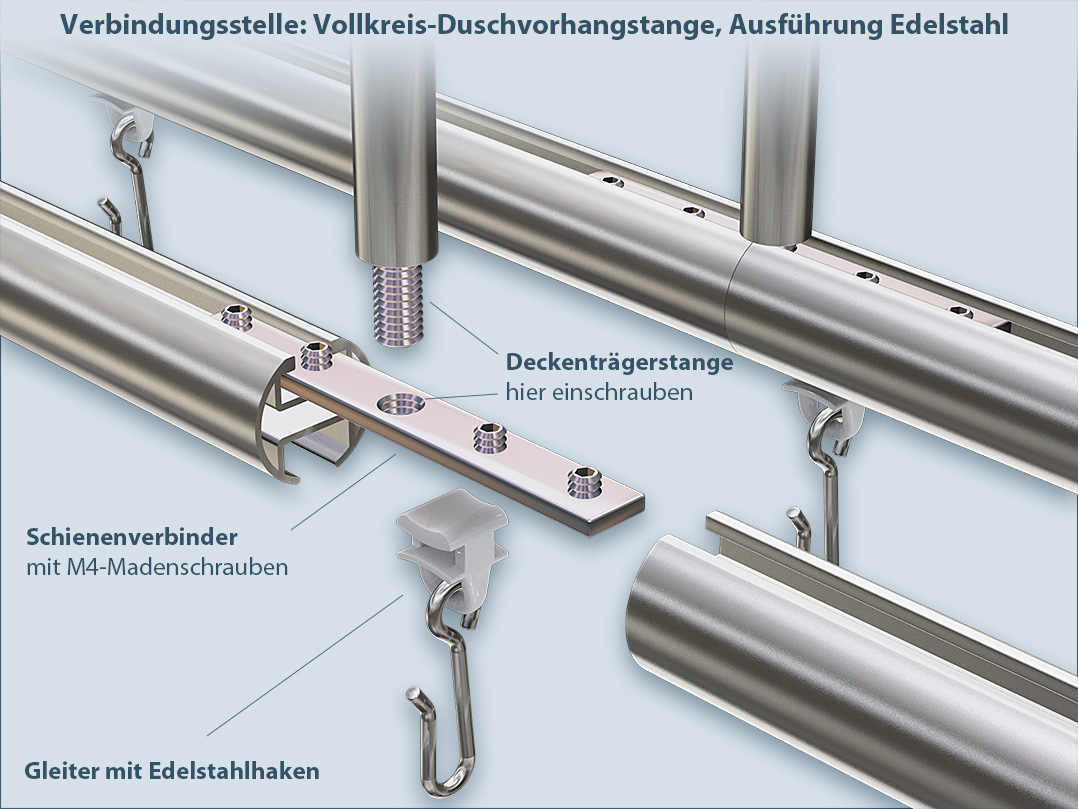

Connect or disconnect rod ends with rail connectors and mount a stainless steel ceiling support:

The circle curtain rod is shipped in one piece with the ends connected. To insert the shower curtain gliders with stainless steel hooks into the glider run and the flat nut for the ceiling brackets into the fastening run, please loosen the connection on one side, insert the glider and flat nut, close the rod again and tighten the grub screws on the rail connector.

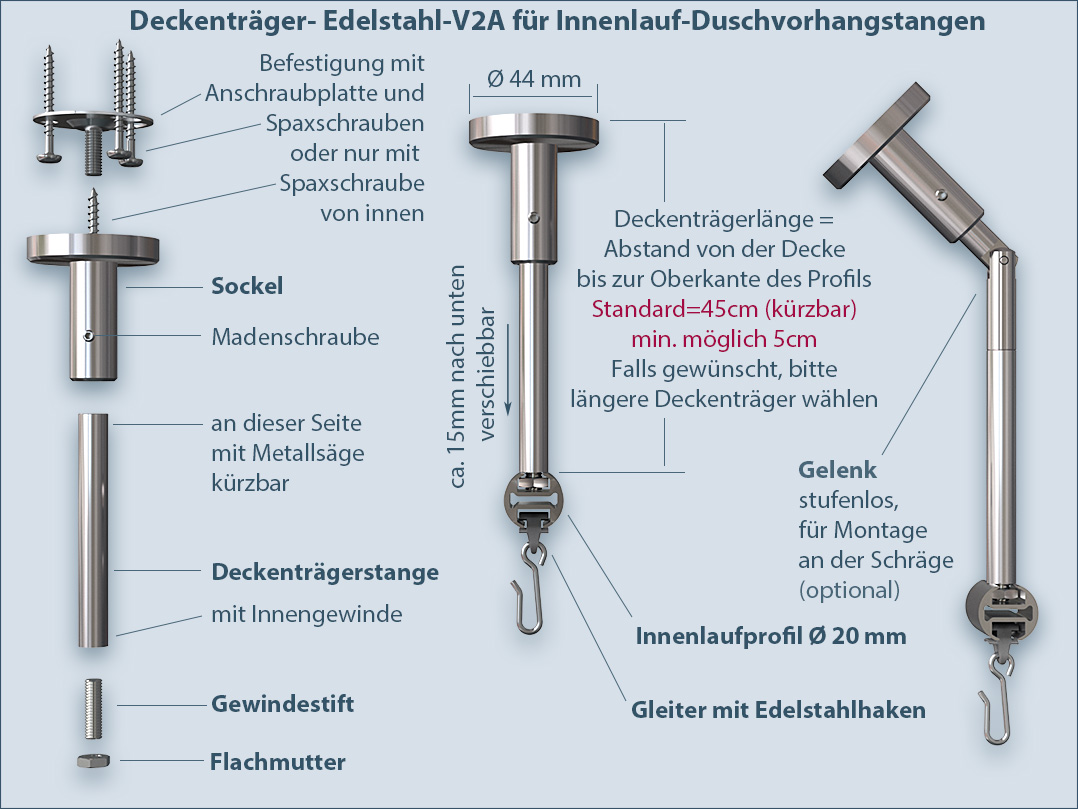

Ceiling attachment with the ceiling bracket made of stainless steel V2A:

You can place the ceiling supports absolutely freely on the inner ring rod. First, distribute the ceiling support flat nut evenly in the shower curtain rod's mounting run along the entire length. Screw the ceiling support rods into the flat nut. Mount the bases on the ceiling according to the position of ceiling support rods already screwed on. You can either attach the base using a screw-on plate or screw it on directly with a Spax screw. Slide the circle construction with ceiling support rods to the ceiling and insert the ceiling support rods into the sockets. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the shower curtain rod absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

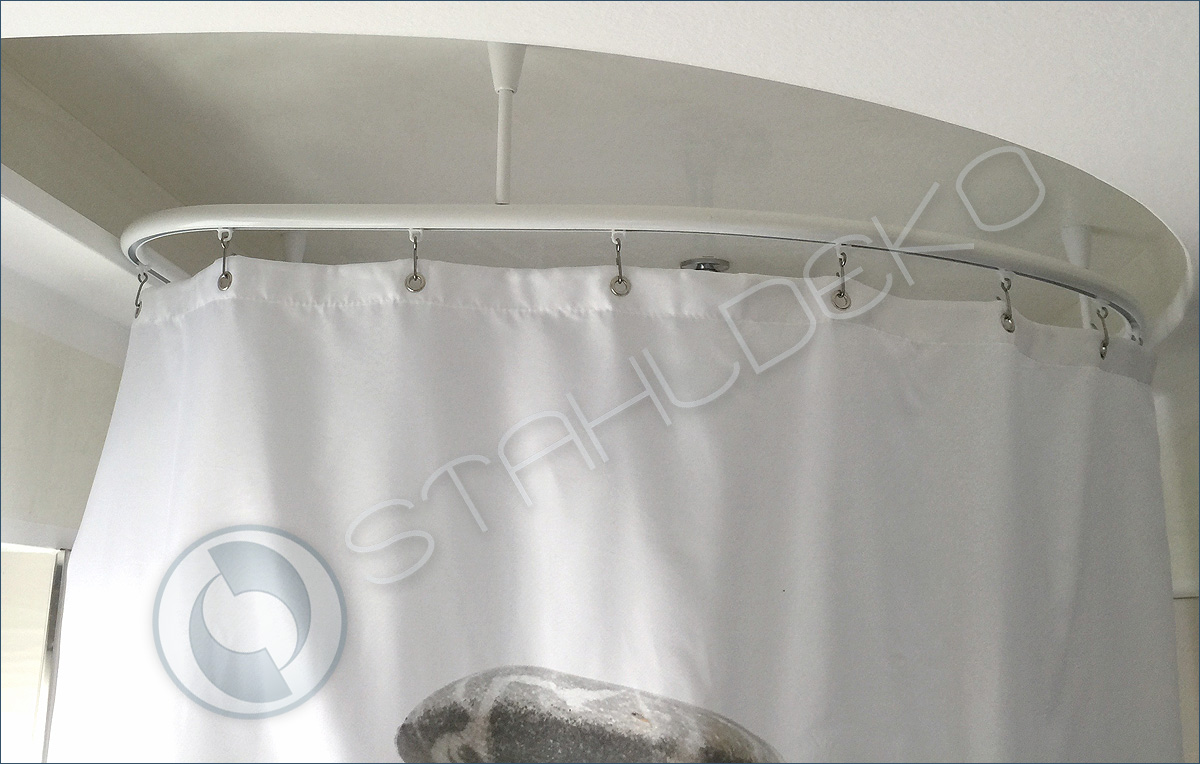

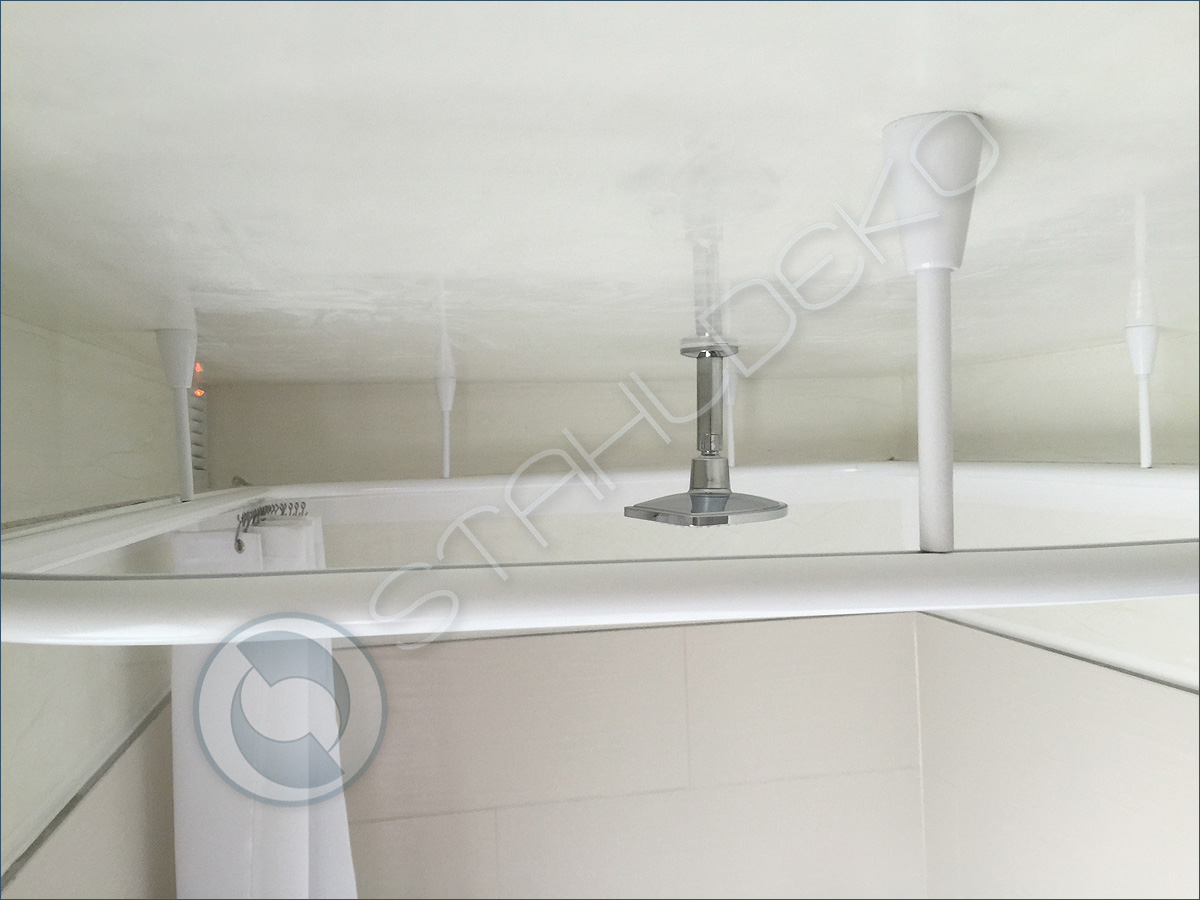

White aluminum ceiling support.
Circular curved shower rod with inner tube Ø 20mm made of aluminium, the white powder-coated surface is absolutely suitable for our carriers.

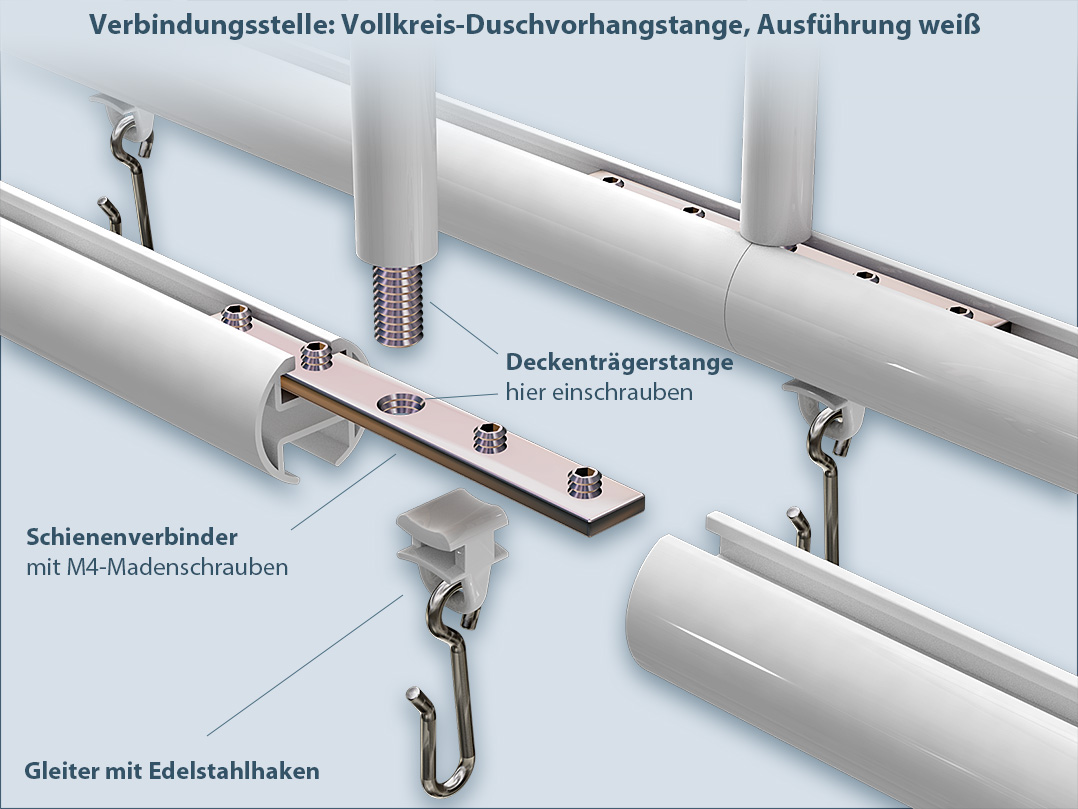

Connect or loosen rail ends with rail connectors and screw on a white ceiling support:

The Ring Bar comes in one piece with the ends connected. To insert the shower curtain gliders with stainless steel hooks into the glider run and the flat nut for the ceiling support into the fastening run, please loosen the connection on one side, insert the glider and flat nut, close the curtain rod again and tighten the grub screws on the rail connector.

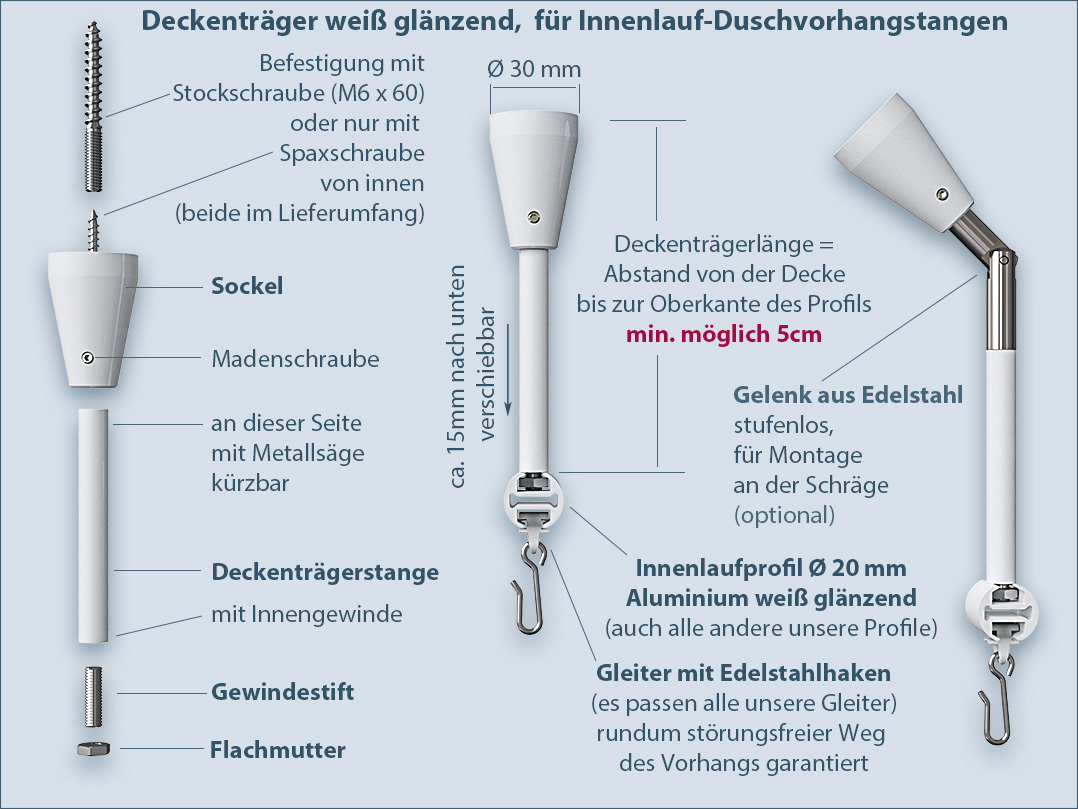

Installation on the ceiling with the white powder-coated ceiling support:

You can place the ceiling brackets on the rod absolutely freely. First, distribute the ceiling support flat nut evenly in the shower rail's mounting run along the entire length. Screw the ceiling support rods into the flat nut. Mount the bases on the ceiling according to the position of ceiling support rods already screwed on. You can either attach the base with a hanger bolt or screw it directly with a Spax screw. Slide the complete construction with ceiling support rods towards the ceiling and guide the ceiling support rods into the sockets. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the rod for the shower curtain absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

Black aluminum ceiling support.
Circular shaped shower rod with inner tube Ø 20mm made of aluminium, the black matt surface is absolutely suitable for our carriers.

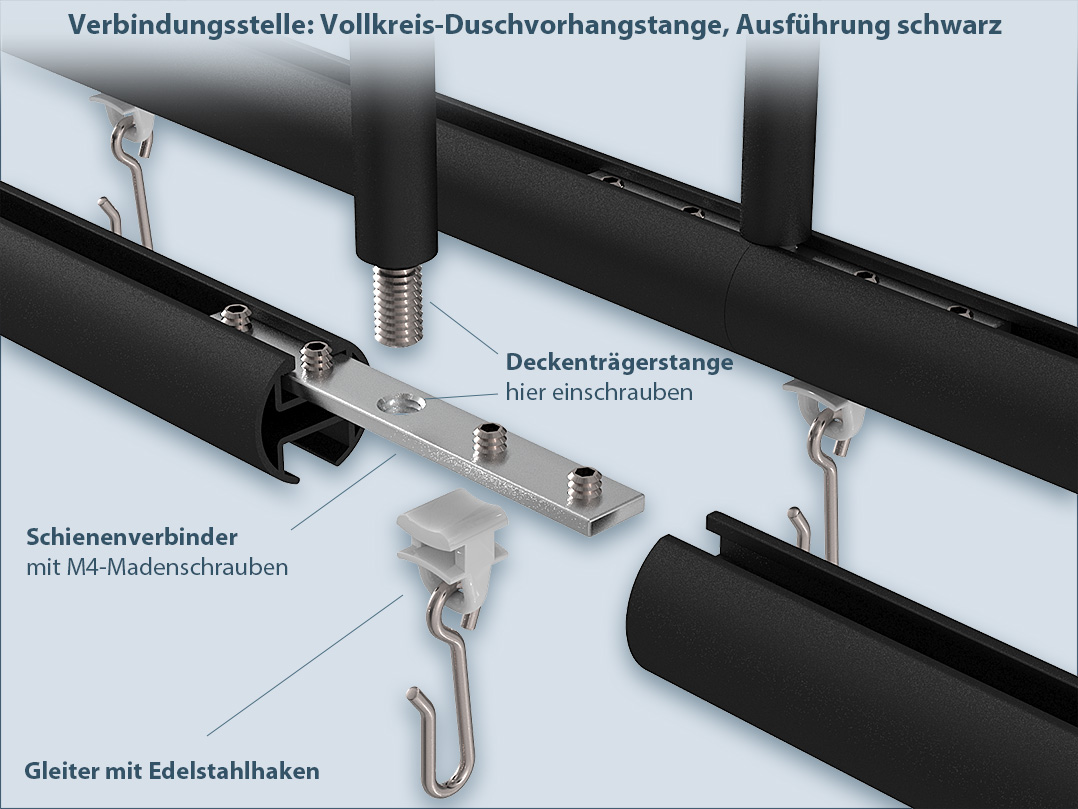

Connect or loosen rail ends with rail connectors and screw on a black ceiling support:

The rod, bent into a ring, is supplied in one piece with the ends connected. To insert the shower curtain gliders with stainless steel hooks into the glider run and the flat nut for the ceiling support into the fastening run, please loosen the connection on one side, insert the glider and flat nut, close the curtain rod again and tighten the grub screws on the rail connector.

Installation on the ceiling with the ceiling support black satin finish:

You can place the ceiling brackets on the rod absolutely freely. First, distribute the ceiling support flat nut evenly in the shower rail's mounting run along the entire length. Screw the ceiling support rods into the flat nut. Mount the bases on the ceiling according to the position of ceiling support rods already screwed on. You can either attach the base with a hanger bolt or screw it directly with a Spax screw. Slide the complete construction with ceiling support rods towards the ceiling and guide the ceiling support rods into the sockets. Tighten (not too tight) the socket grub screw. You can adjust the height of the support in the base by approx. 1.5 cm and thus align the rod for the shower curtain absolutely horizontally on the ceiling. If you want a smaller distance from the rod to the ceiling, it is possible to shorten the ceiling support rod with a hacksaw, the minimum possible distance is approx. 50mm.

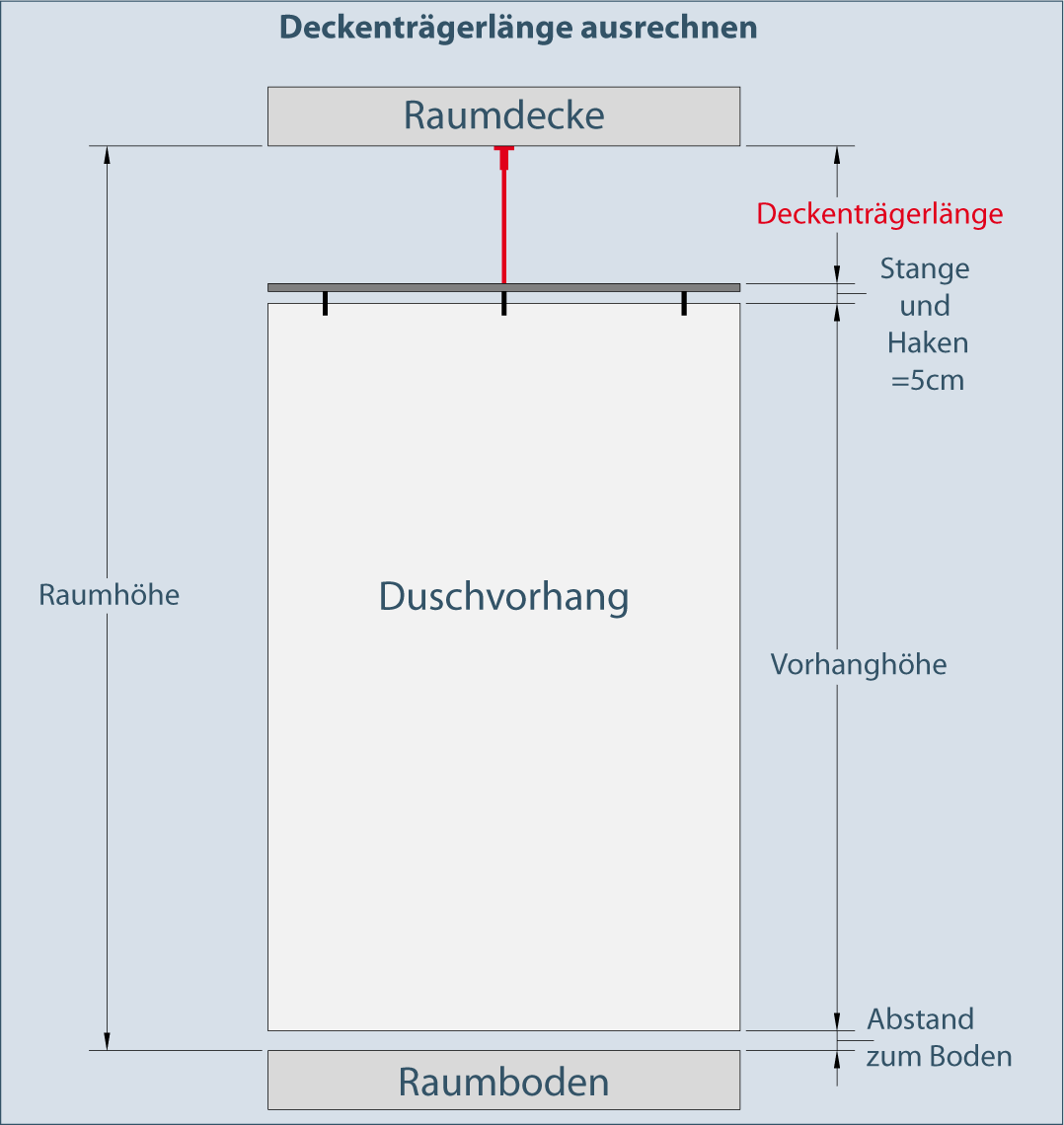

Calculate the ceiling beam length.
Ceiling support length = room height - curtain height - distance to the floor - rod and hook (5cm)

You can also shorten the ceiling support yourself with a hacksaw. Standard ceiling support length for our circle shower curtain rods=45cm. Min. possible ceiling support length = 5cm. You can also move the ceiling support approx. 1.5 cm down. We can also supply longer ceiling supports, please select under "longer ceiling supports".

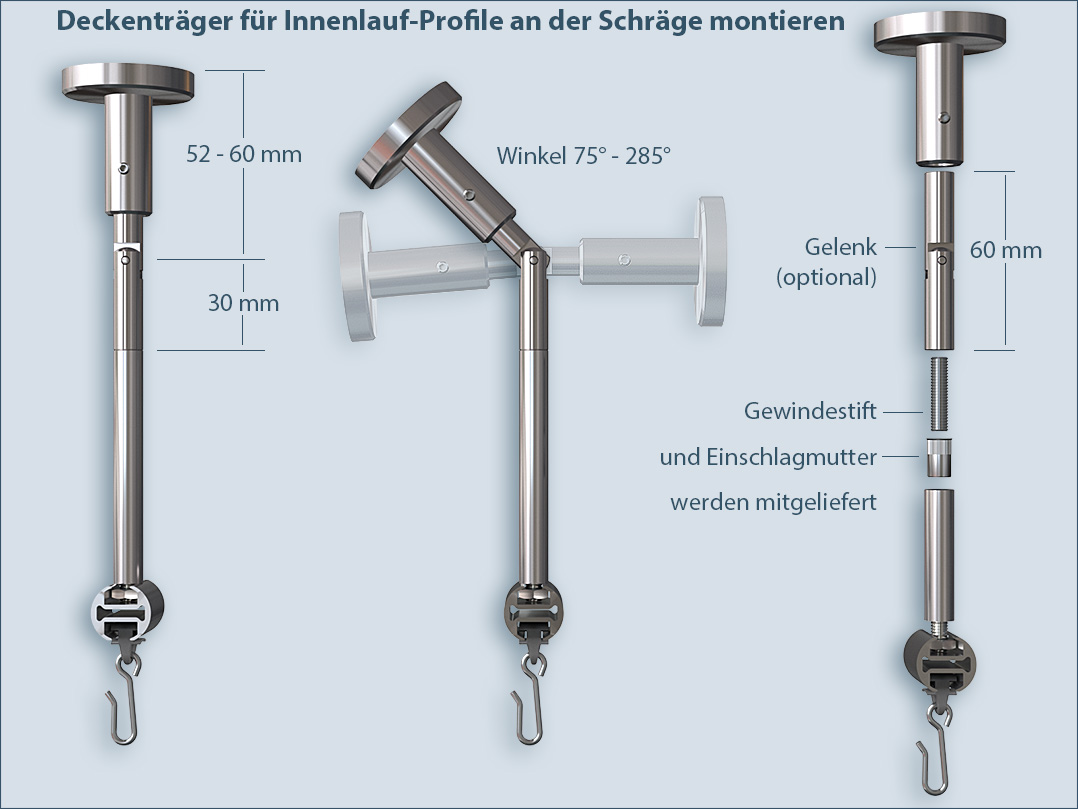

Mount the full-circle rod for the shower curtain on a sloping roof or wall (the joints are only available in stainless steel).

If you want to attach the rod to a slope, you can order the joints for ceiling brackets. First screw this joint to one side of the ceiling support rod (a set screw and a drive-in nut are supplied), then push the other side of the joint into the base and fix it with a base grub screw. So you can easily mount the ceiling support on the slope at any angle. You can, of course, combine the ceiling supports with and without a joint on a shower rod, for example if the shower rod ends on a sloping wall.

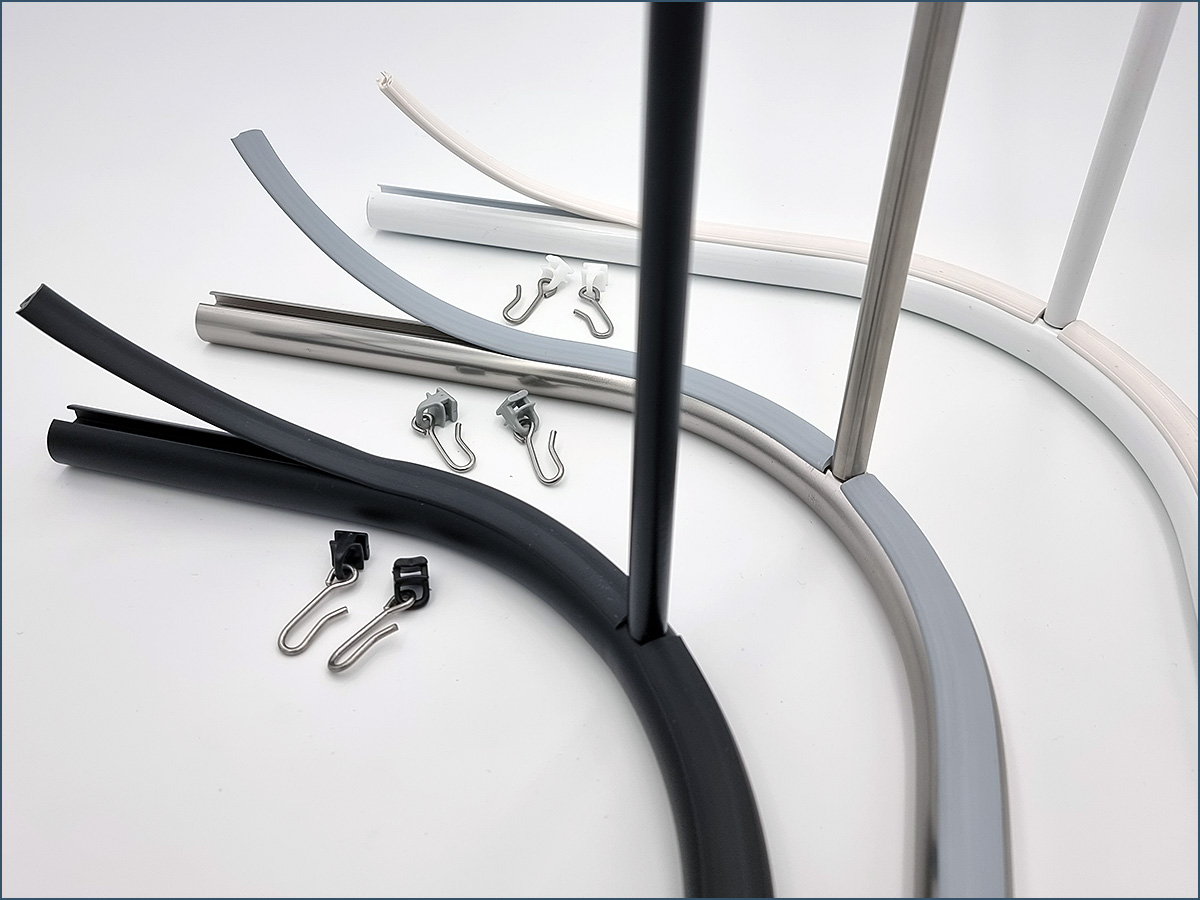

Rubber cover against dirt and dust, for fixing barrel, white, black or light grey.

Elastic rubber band, which you can quickly and easily shorten to the desired length with conventional scissors. You can then simply press the cover strip into the fastening barrel of the inner barrel profile. This means that water, dirt and dust can no longer accumulate in the upper course of the ring rod.

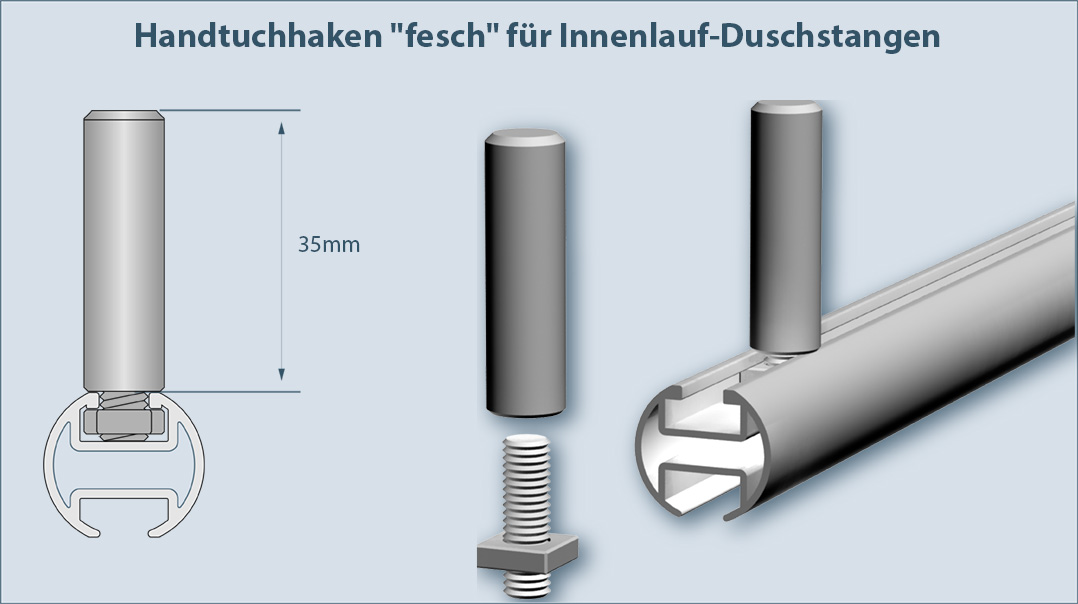

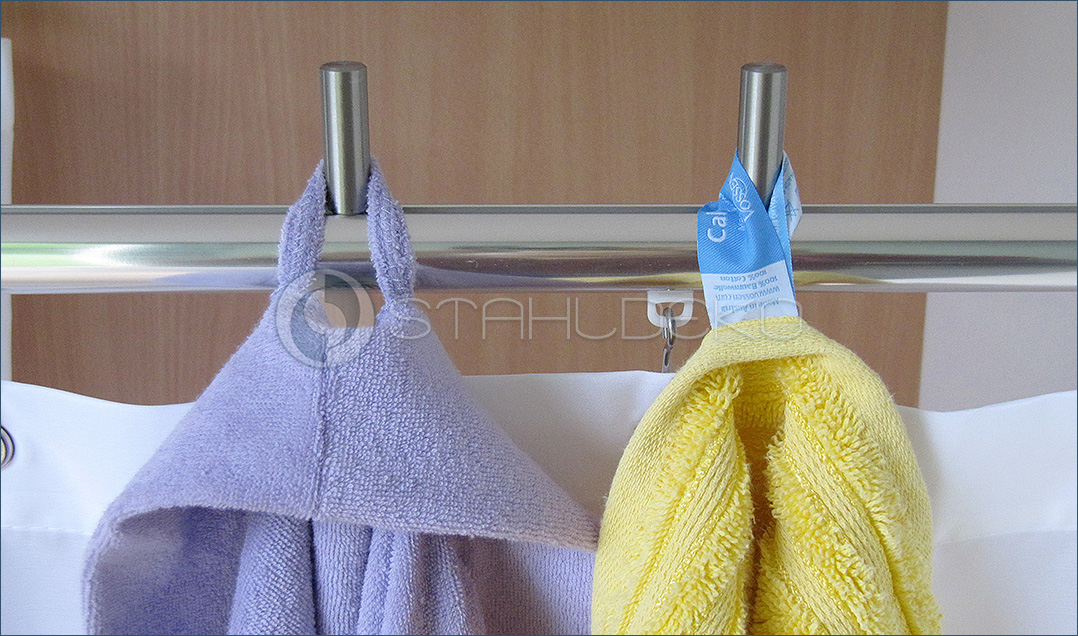

Towel hook "fesch" made of stainless steel V2A, for fully curved shower curtain rod

So your bathrobe and bath towel are always ready to hand when showering. Simply mount these robe hooks in the mounting rails on our shower rods. These bath towel hooks are made of V2A stainless steel and are absolutely suitable for wet areas. At the same time, the hooks are very flexible and can be attached anywhere on the curtain rod. Simply slide the grub screw with flat nut to the desired position and turn the hook. The stainless steel hook is very robust, but also elegant, attractive and chic, just smart! The hook fits perfectly with our shower curtain rods. This combination looks very elegant and guarantees an all-round trouble-free path for the shower curtain, even if a bath towel or bathrobe is hanging on the rod. You can also use the shower rail as a towel rail. The dimensions and fastening system can be found in the drawing.
