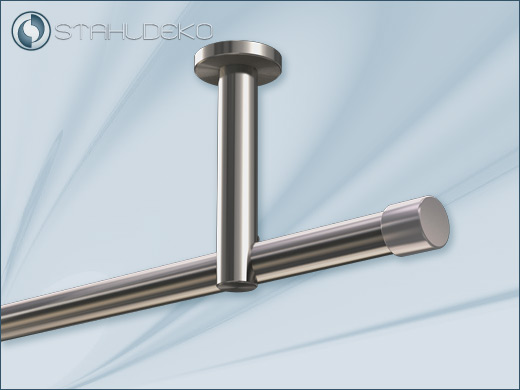

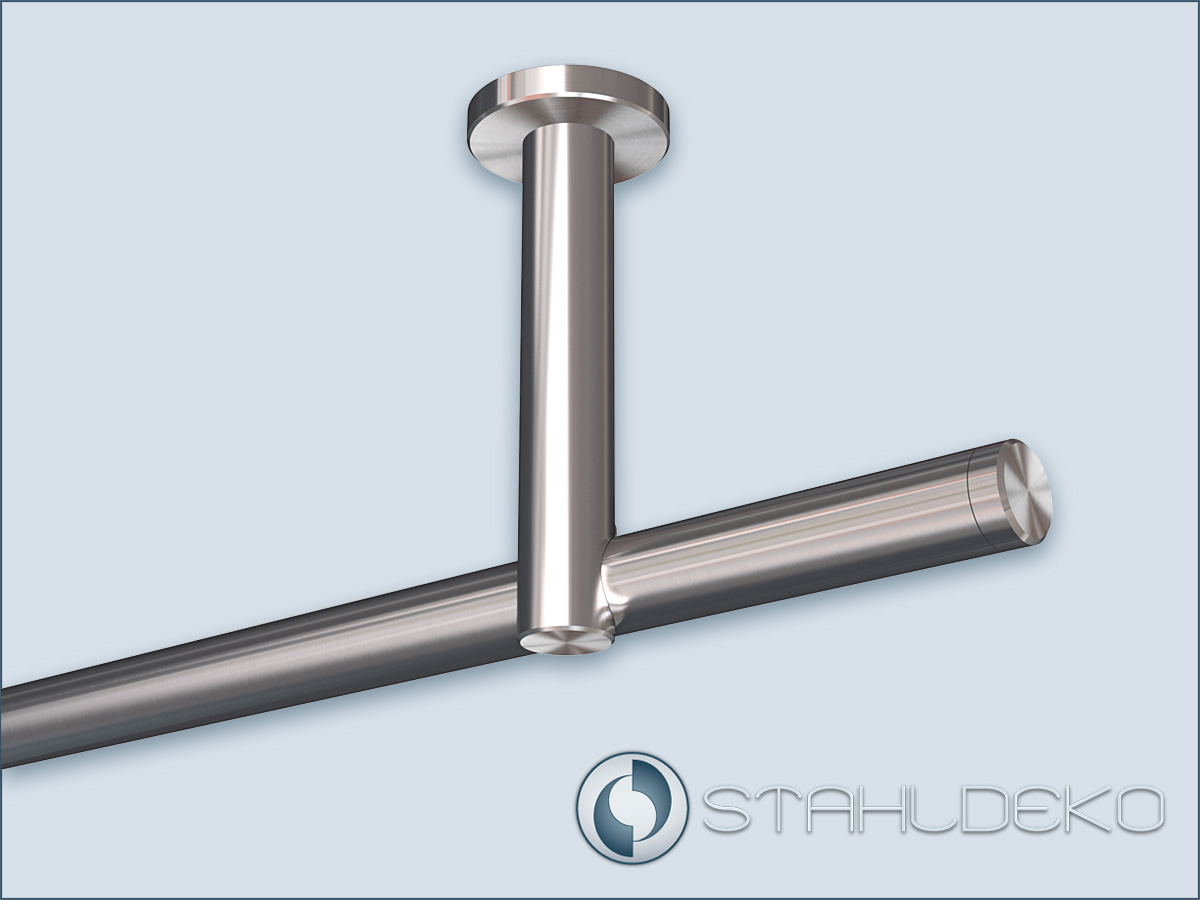

Curtain rod for ceiling mounting Sont-20 single-track, end pieces of your choice, with or without rings.
If wall mounting is not possible or not desired, you can also attach a curtain rod to the ceiling. An advantage of ceiling mounting is the possibility of allowing any distance from the wall to the curtain. This could be necessary, for example, to cover a particularly deep window sill or a radiator with curtains. The wall brackets always lose stability when you increase the distance from the wall, the stability of the ceiling brackets remains the same and the rod does not hang down. The curtain rod Sont-20 is a complete curtain system for mounting on the ceiling. All parts are made of stainless steel V2A. The tube diameter is 20mm. The tube lengths are possible from 100 to 260 cm in one piece, from 280 to 400 cm divided or in one piece. Lengths of up to 600 cm in one piece are also possible on request. Fastening: The scope of delivery includes the Sont-20 ceiling supports with base plate and fastening material. End pieces: You can order the rod with different end pieces, you can simply choose any end piece from the range. Curtain attachment: If you are using loop curtains or curtains with eyelets, please order the rod without the rings. If you want to use a curtain with curtain tape, you can order the right number of curtain rings.
Order correct size.
Ordered length is the tube length without end pieces. *If desired, please enter the number in cm in the field "shorten by:". then we will cut the tube to the right length for you. For example: if you need a curtain rod tube of exactly 172cm, then please select under "tube length"-180cm, and in the field "cut by:" enter the number "8 cm". Pipe sections are not included. * Parcel service shipping: The pipe is divided in the middle from a length of more than 260cm. A connection adapter is included. A ceiling beam is to be attached at the connection point. * Freight forwarding: The tube (up to 400cm) is delivered in one piece. * Curtain rods 400-600cm - price on request.

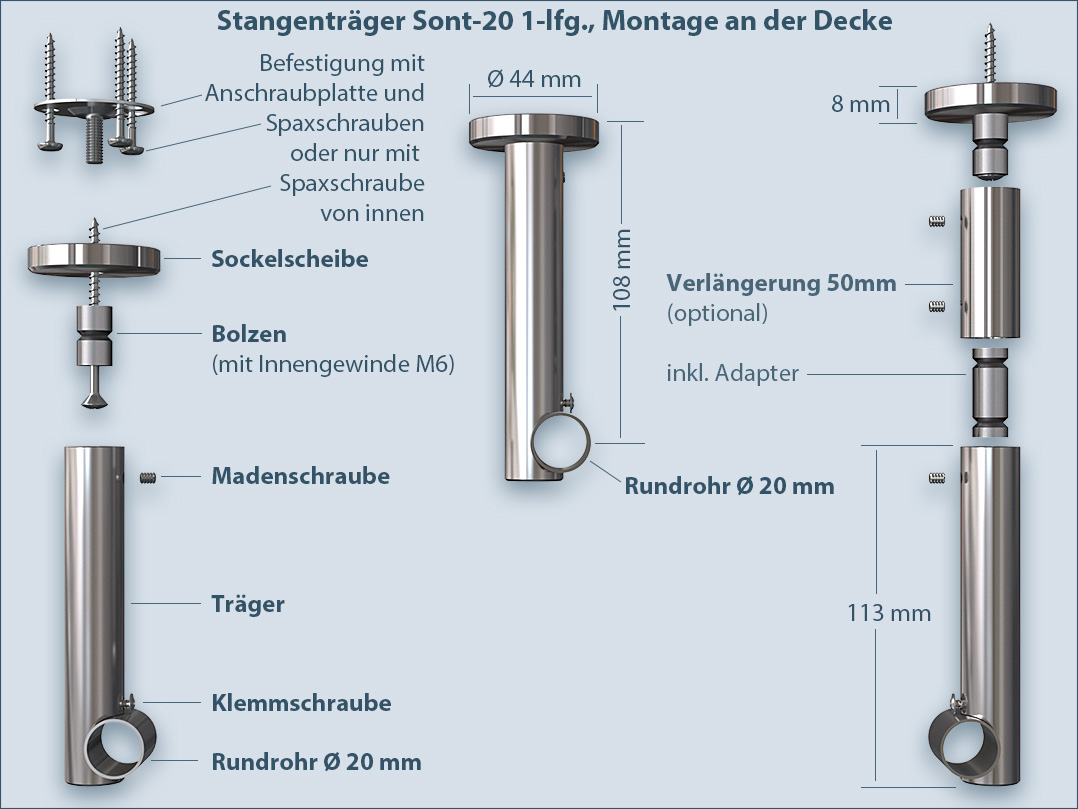

Mounting system for ceiling mounting Sont-20 1-track.
You can place the ceiling brackets on the curtain rail absolutely freely. First attach the base plate to the ceiling with bolts. You can either fasten the base plate and bolts with a screw-on plate or screw them on directly with Spax screws. Then slide the carrier onto the stud and tighten the carrier grub screw (not too tight). Then insert the rod into the carrier openings and fix them with carrier clamping screws. Of course it is also possible to extend the ceiling support (optional). You will find a 50mm standard extension for the Sont 20 carrier system with the individual curtain rod parts. You connect the extension and the carrier with an adapter. It is also possible to connect several extensions with each other and thus enable the desired distance to the ceiling. We can also make special lengths of extensions, just ask.

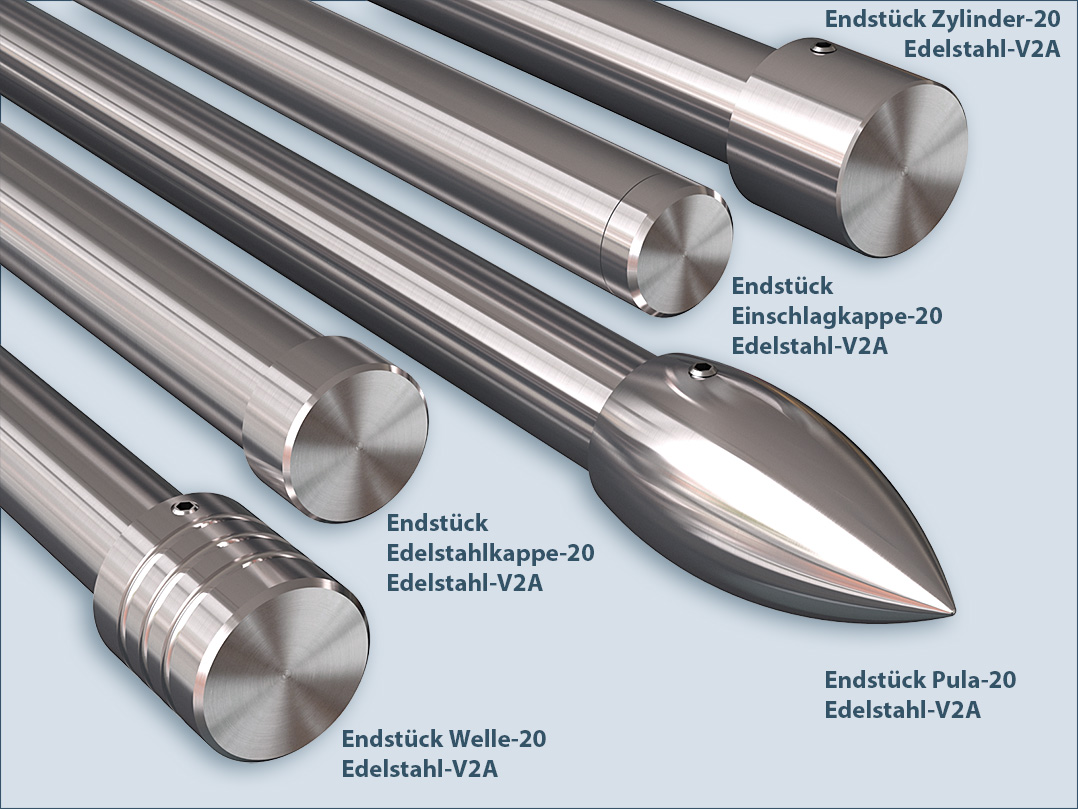

Order different end pieces for curtain rail Sont-20.
We have different end pieces for our 20mm stainless steel tubes. Simply select the desired end piece in the corresponding field. This table shows our range of end pieces for 20mm diameter pipes.
Curtain rod Sont-20 for ceiling attachment, single track, entirely made of stainless steel, pipe diameter 20mm
V2A - Stainless steel 18/10, DIN WNR 1.4301, rust-free, heat-resistant, impact-resistant, suitable for indoor and outdoor applications, extremely easy to maintain.
High-precision processing with CNC automatic lathes
Ceiling attachment with Sont-20 bracket and base plate. You can freely position the ceiling brackets. Attachment with screw-on plate or directly with Spax screw.
Tubes from 100 to 400cm (can be cut to size upon request). Tube lengths 400-600cm in one piece - Price on request. Stainless steel tube with Ø20mm. Distance to ceiling 108 mm (optional with extensions)

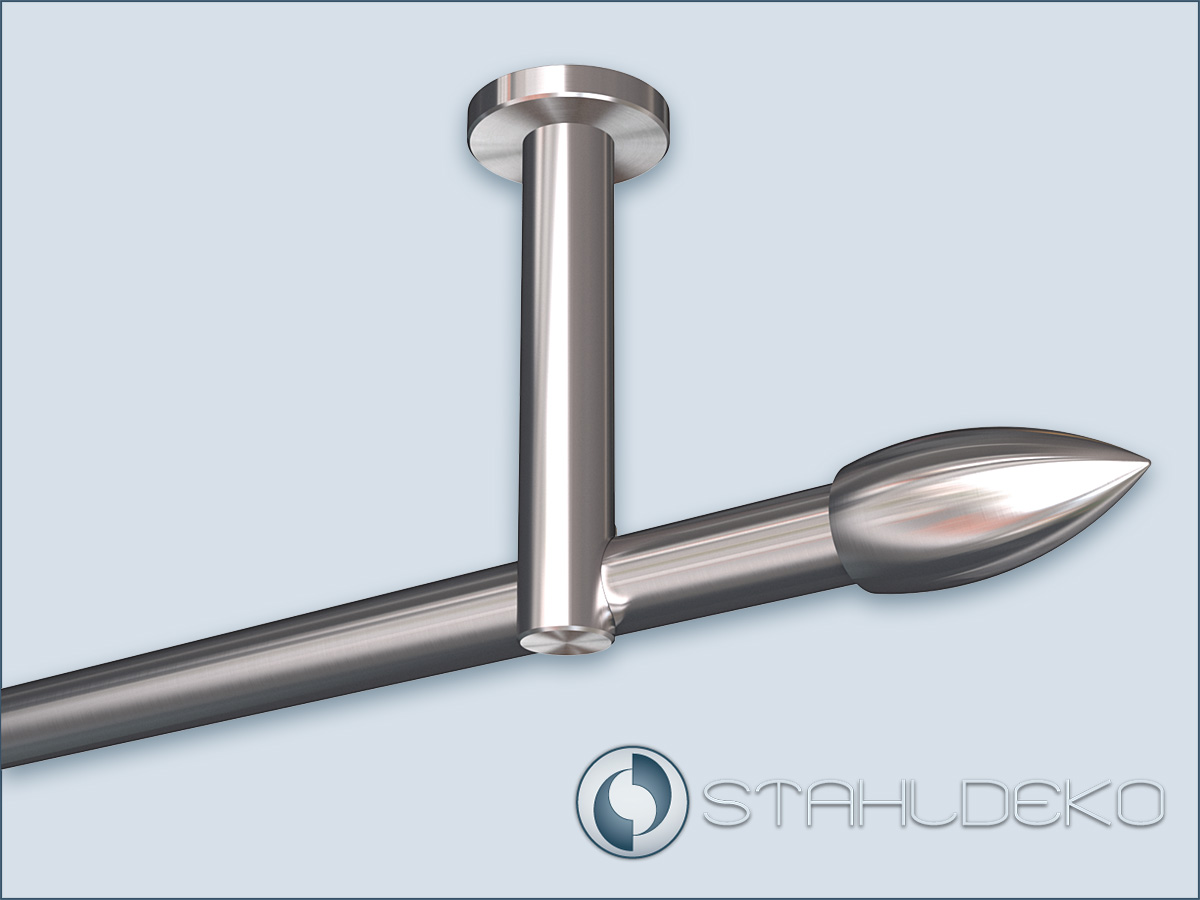

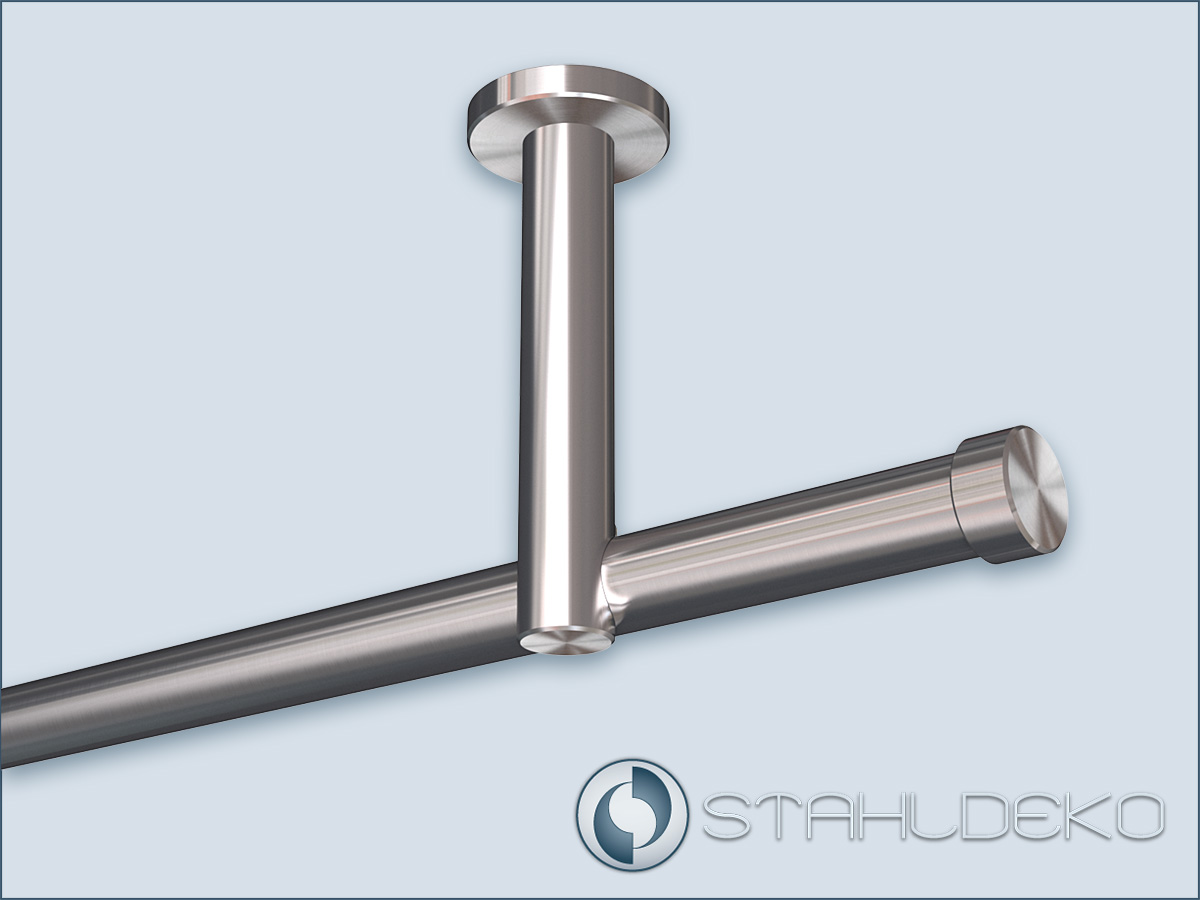

End Cap of Choice

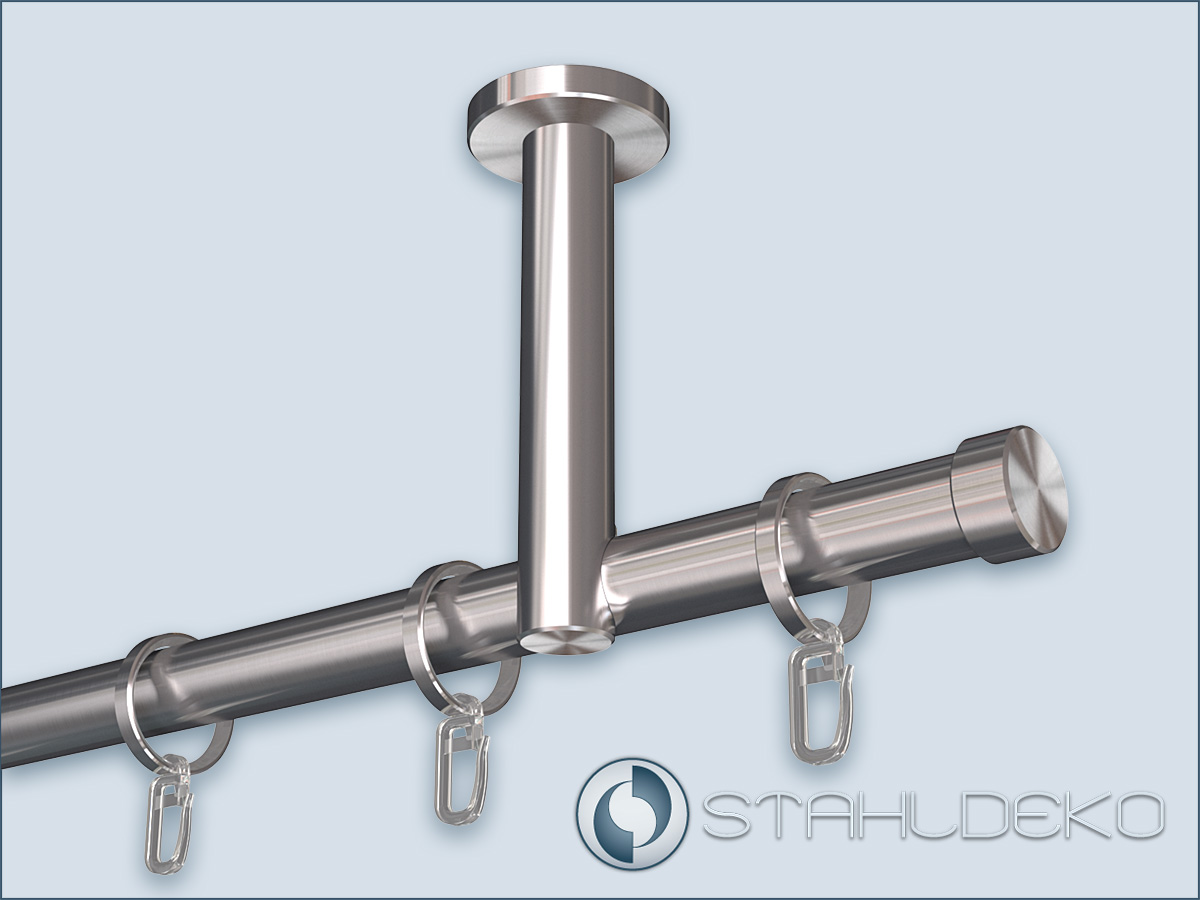

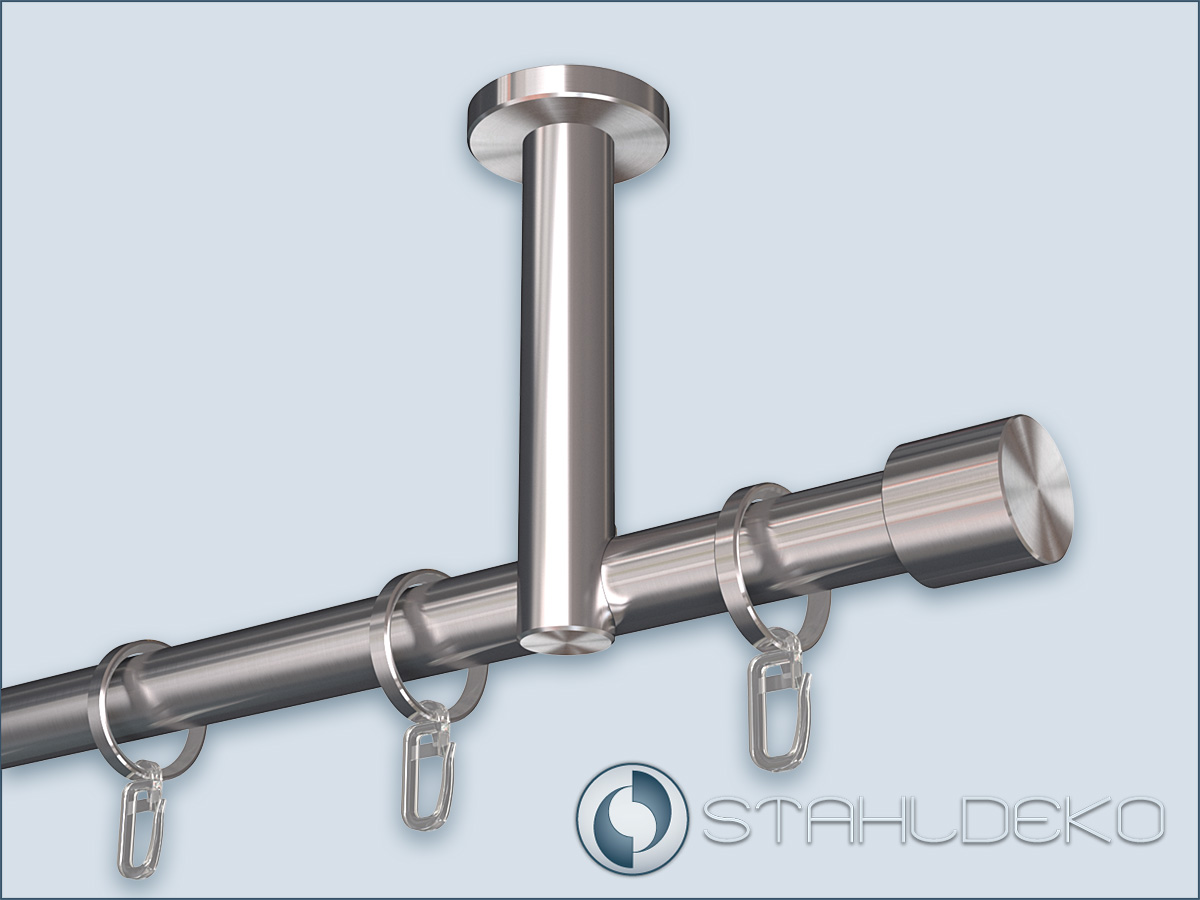

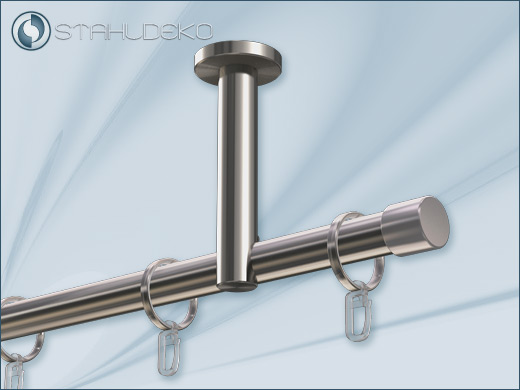

With Curtain Rings, or Without Rings Directly on the Rod (For Loop Curtains and Eyelet Curtains)
Scope of Delivery
Complete curtain rod: 1 pc. rod, 2 or 3 pcs. brackets (by rod length), bracket extensions (optional), 2 pcs. end pieces, curtain rings (optional), incl. mounting material.
Joint-20 for corner solutions. Bent curtain rods - price on request.
