Rod support system Sont-16 made of stainless steel: examples of use and fastening system

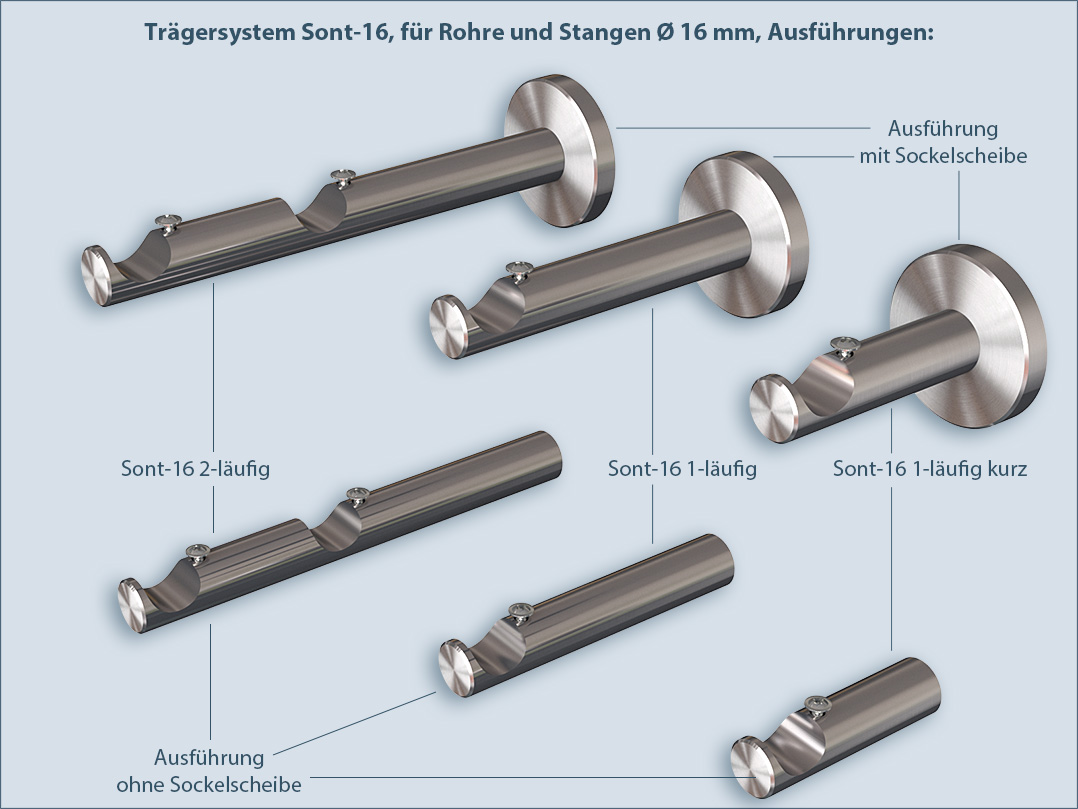

Accessories for furnishing ideas, rod holder Sont-16 made of stainless steel V2A: open rod holder made of stainless steel for all rods, tubes and aluminum profiles with Ø 16mm. Available as 1-barrel or 1-barrel short and 2-barrel holder. Fastening with mounting plate or hanger bolt (1-line short without base washer), drilled holes and screws are covered with base washer (available separately). The rod is placed on the brackets from above and secured with a screw. With this holder system, you can easily decorate the floor, then mount the completely decorated rod on the wall or ceiling (only one-way).

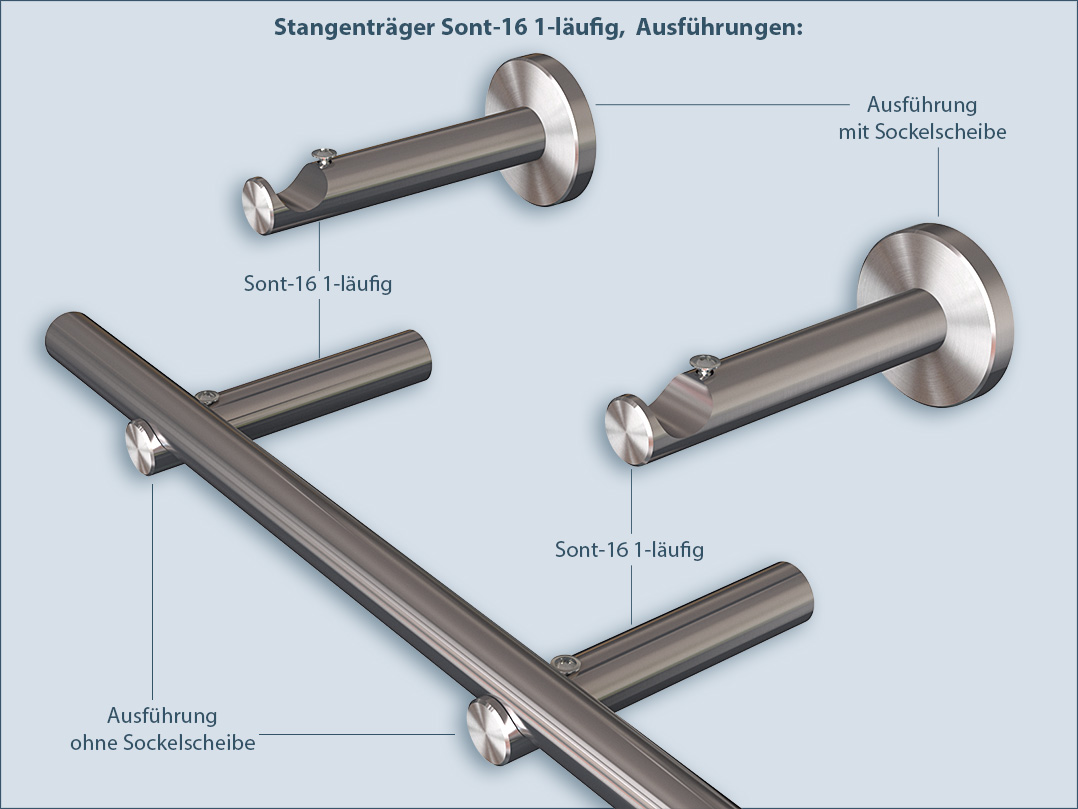

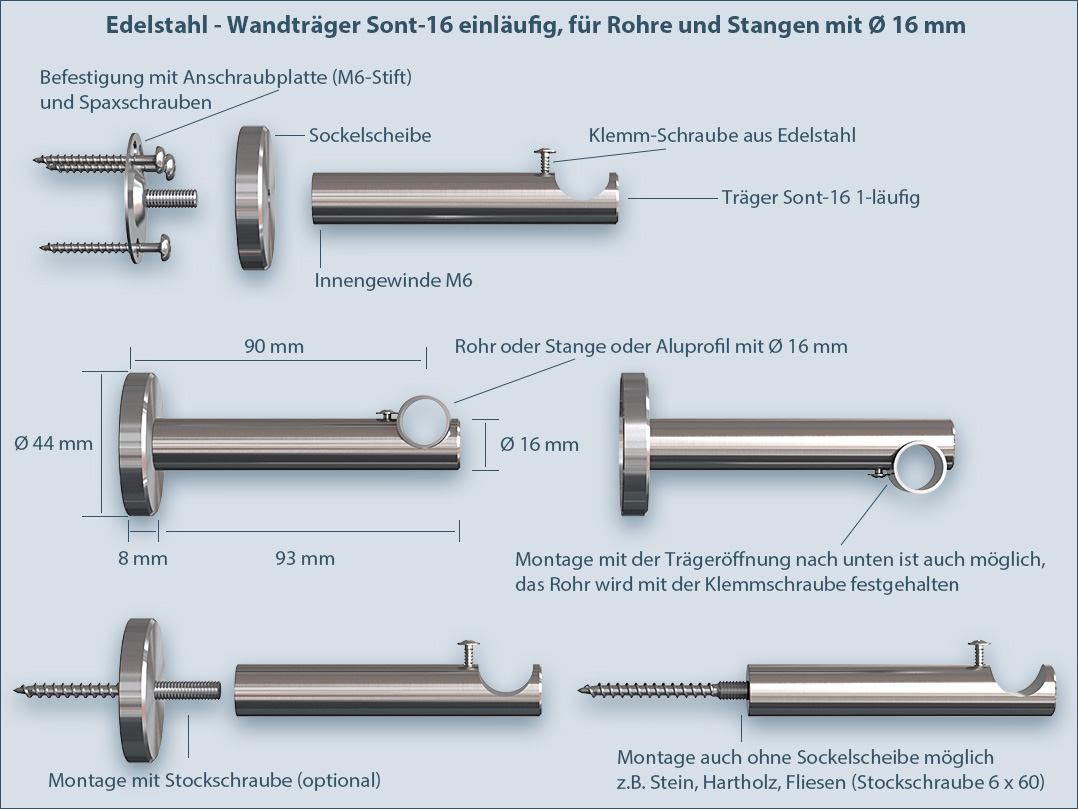

Rod holder Sont-16 1-track, fastening system assembly instructions.

With this rod holder system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall or ceiling. You can place the brackets on the pole absolutely freely. First attach the mounting plate to the wall with Spax screws. Then cover the mounting plate with the base washer and screw the carrier onto the mounting plate threaded pin. Then insert the tube or profile into the holder openings and fix it with the clamping screws. You can also place the Sont curtain holder with the openings facing downwards. In this position, too, the tube or the aluminum profile is held firmly with the clamping screws.

Wall mount rod mount Sont-16 1-track short. Fastening and assembly instructions

With this holder system, you can easily decorate the curtains on the floor, then attach the completely decorated tube or aluminum profile to the wall or ceiling. You can place the holders on the rod absolutely freely. First attach the mounting plate to the wall with Spax screws. Then cover the mounting plate with the base washer and screw the bracket onto the mounting plate threaded pin. Then insert the tube or profile into the holder openings and fix it with the clamping screws. You can also place the Sont bracket with the openings pointing downwards. In this position, too, the tube or the aluminum profile is held firmly with the clamping screws.

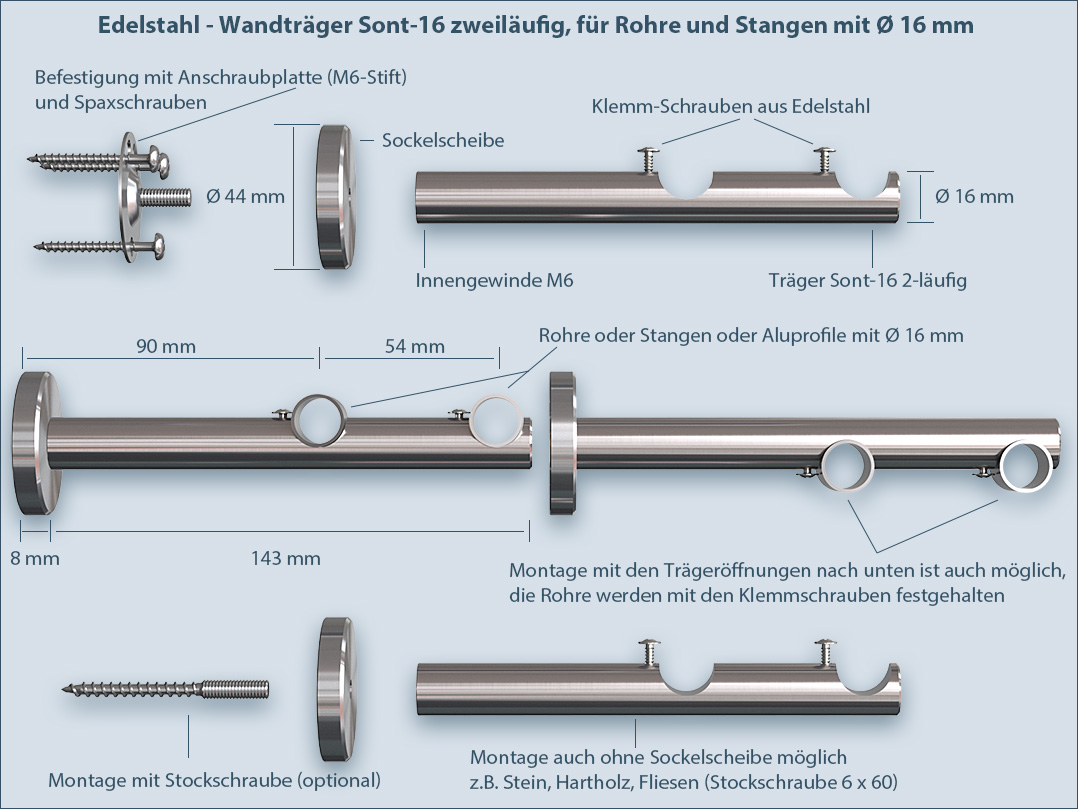

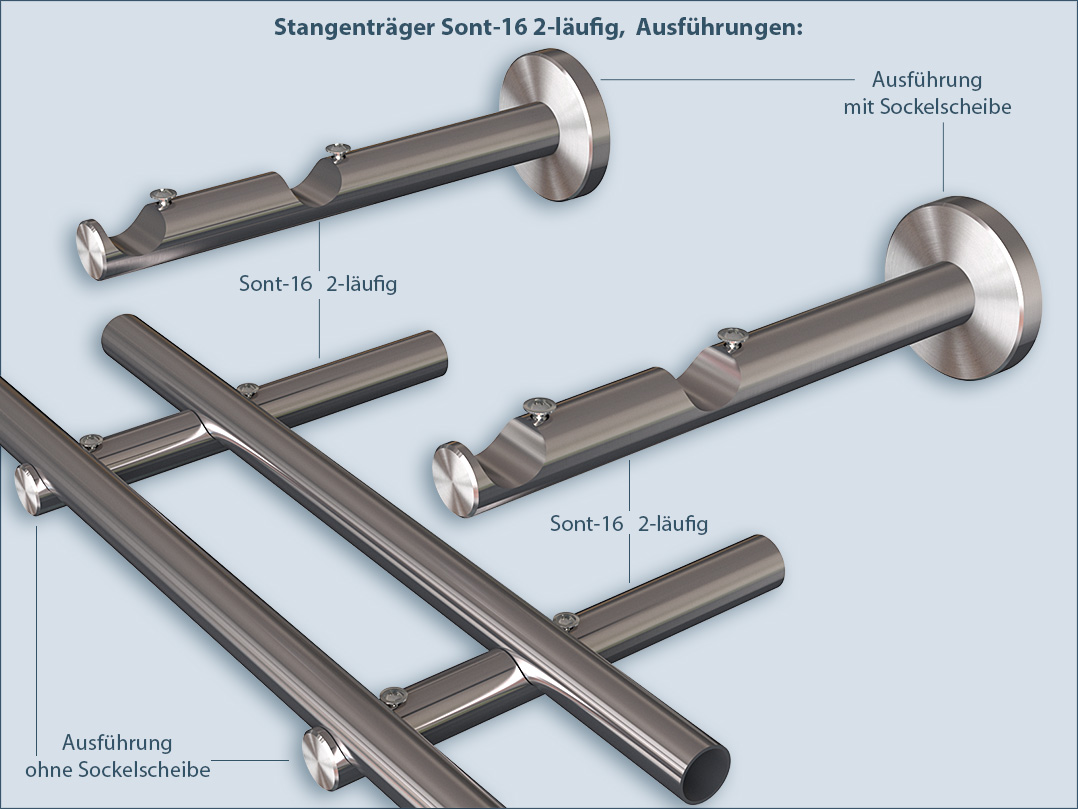

Double bracket wall bracket: fastening system for wall fastening Sont-16 2-track.

With this double bracket system, you can easily decorate on the floor, then mount the fully decorated curtain rod on the wall. You can freely distribute the wall brackets on the rod, of course pay attention to the even curtain weight distribution. First mount the screw-on plates with Spax screws on the wall. Then cover the mounting plates with the base washers and screw the holders onto the mounting plate threaded pins. Then insert the tubes or profiles into the carrier openings and fix them with the carrier clamping screws. You can also place the Sont-16 curtain holder with the openings facing downwards. In this position, too, the tubes and aluminum profiles are held firmly with the clamping screws.
