Rod holder Sont-28mm for railing, handrail, clothes rail and curtain rail: examples of use and fastening system

Open rod carrier made of stainless steel V2A for all rods and tubes with Ø 28mm. Attachment with hanger bolt, with or without rosette. The rod is pushed in from the side and secured with a grub screw.
Particularly stable rod holder system made of stainless steel for wall mounting and ceiling mounting. Due to the very high stability, we also recommend the Sont-28 brackets for use as holders for handrail rods, as supports for railings, rod holders for towel rails and towel rails as well as rod holders for clothes rails and cloakroom rails.

Rod holder Sont-28: rod mounting system for wall mounting and ceiling mounting.

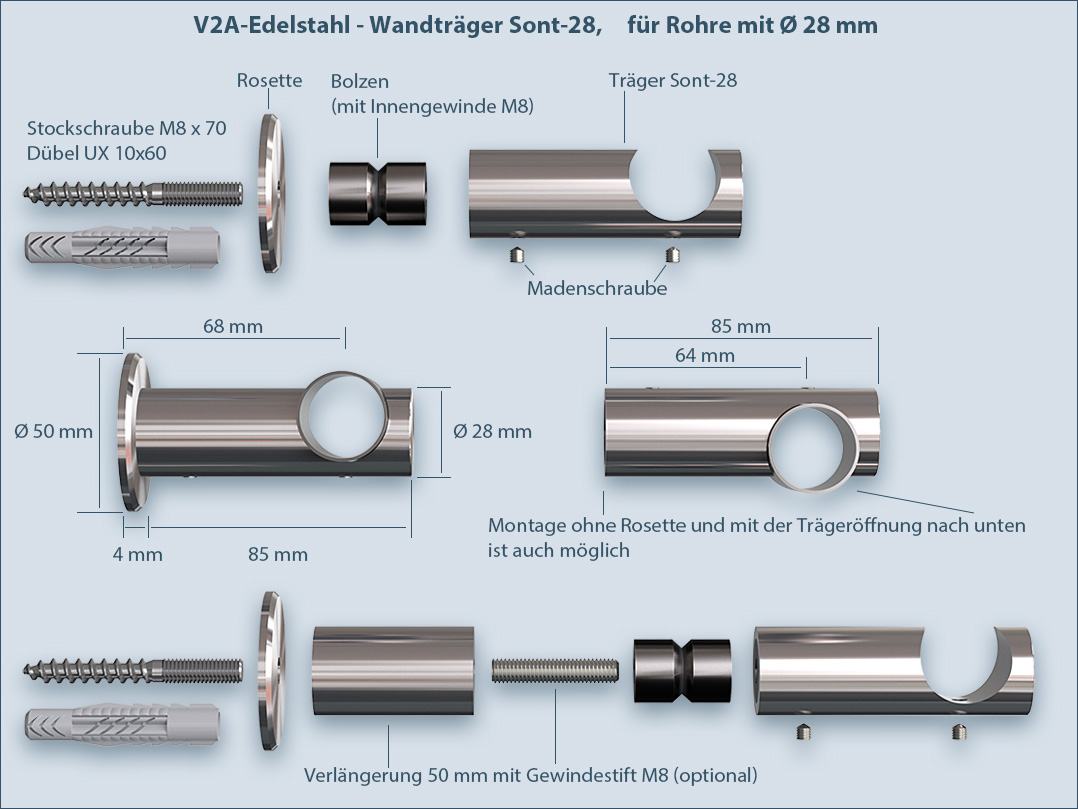

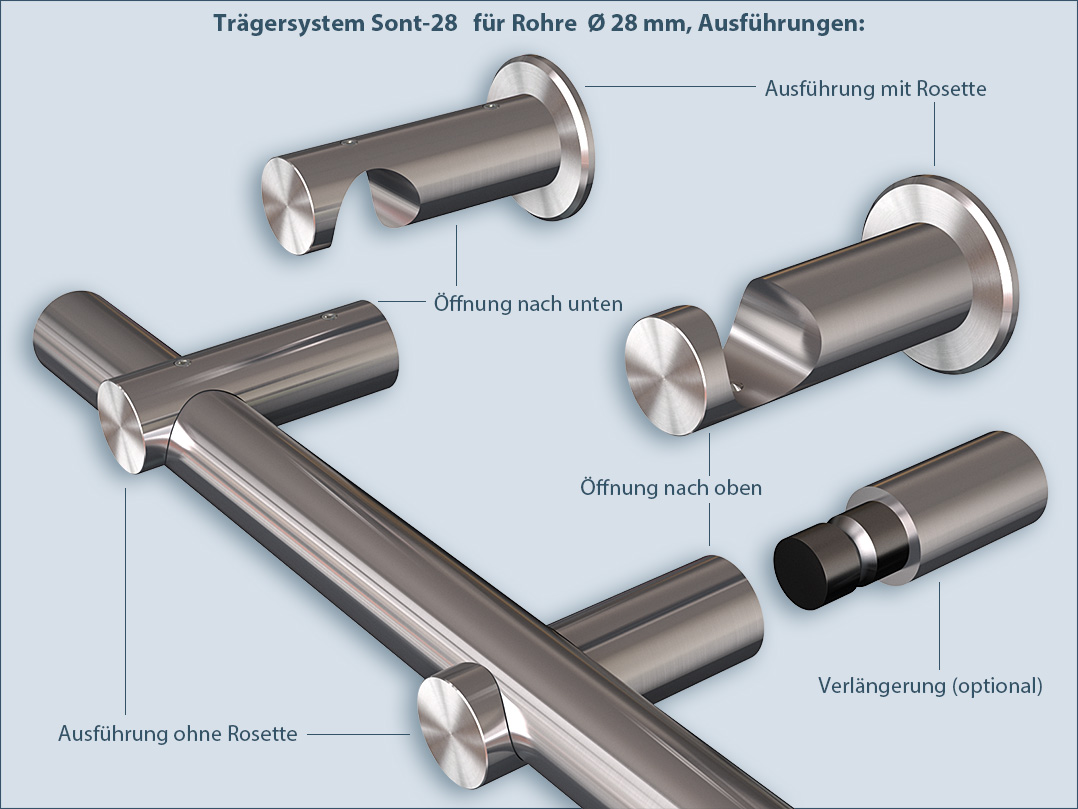

With this rod holder system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall. You can place the wall brackets on the curtain rod absolutely freely. First fasten the bolt with or without a rosette to the wall. You can screw on the bolt and the rosette with hanger bolts. Then slide the rod supports (along with the tube) onto the studs and tighten the support grub screws (not too tight). You can also place the Sont-28 rod holders with the openings facing downwards, the tube is also held absolutely tight with the grub screws in this position. Of course it is also possible to extend the stainless steel rod holder (optional). We also offer a 50mm extension made of stainless steel for the Sont-28 carrier system. Connect the extension and the carrier with a threaded pin.
