Assemble your own made-to-measure Primo28 double-barreled curtain rod
Very stable double rail curtain rod with the round tube made of stainless steel for wall mounting. With the round tube rods, the curtains are attached to the tube with rings or hooks or loops or eyelets. This version is the most commonly used version for attaching curtains and blinds when decorating windows. You order a complete curtain rod consisting of: 2 pcs. tube Ø 28mm made of stainless steel, the stylish and silky gloss look is absolutely suitable for our rod supports and end pieces made of stainless steel. Lengths of up to 600 cm in one piece are also possible on request. 2 pieces, 3 pieces or 5 pieces (depending on the length ordered) rod holder Primo-28 2-barreled, material is stainless steel DIN WNR 1.4301 satin-polished, incl. fastening material. up to 4 end pieces (of your choice), the version with only one end piece per barrel or without end pieces is possible. Desired number of curtain rings or curtain hooks, we recommend at least 10 rings or hooks per 1 meter of curtain width. *Custom-made products on request, except straight rods, we also bend all our tubes in any other shape, made absolutely according to your needs and space situation.
Order the correct curtain rod length.
Ordered size is the tube length without end pieces. *If desired, please enter the number in cm in the field "shorten by:". then we will cut the pipes to the right length for you. For example: If you need a tube of exactly 224cm, then under "Length" please select -240cm, and in the field "Shorten by:" enter the number "16 cm". Pipe sections are not included. * Parcel service shipping: The tubes up to 260cm are always delivered in one piece. The pipe is divided as follows from a length of more than 260cm: up to 520cm divided in the middle from a length over 520cm 1/3 + 1/3 + 1/3 divided A connection adapter is always included. A rod holder is to be fitted at the junction. * Freight forwarding: The tubes longer than 260cm and up to 400cm are delivered in one piece. The tubes longer than 520cm and up to 600cm are divided in the middle * Curtain rods longer than 400cm and up to 600cm in one piece - price on request.
Rod bracket Primo-28 double-barreled: fixing system for wall mounting.
With this wall bracket system, you can easily decorate the floor and then mount the completely decorated rods on the wall. You can place the wall brackets on the bars absolutely freely. First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly with Spax screws. After that, attach the rod holders (along with the tubes) to the wall and slide the support feet into the base and tighten the base grub screw (not too tight). Then adjust the tubes in the rod supports and fix them with support grub screws. You can adjust the length of the brackets in the base by approx. 15mm and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is approx. 66mm (first run). Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.
Order desired stainless steel end pieces for curtain rod Primo-28.
We have different end pieces for our 28mm stainless steel tubes. Simply select the desired end piece in the corresponding field. The picture shows our range of end pieces for our 28mm diameter tubes. Of course, you can also order the version without end pieces, for example to use a wall bracket at this point.

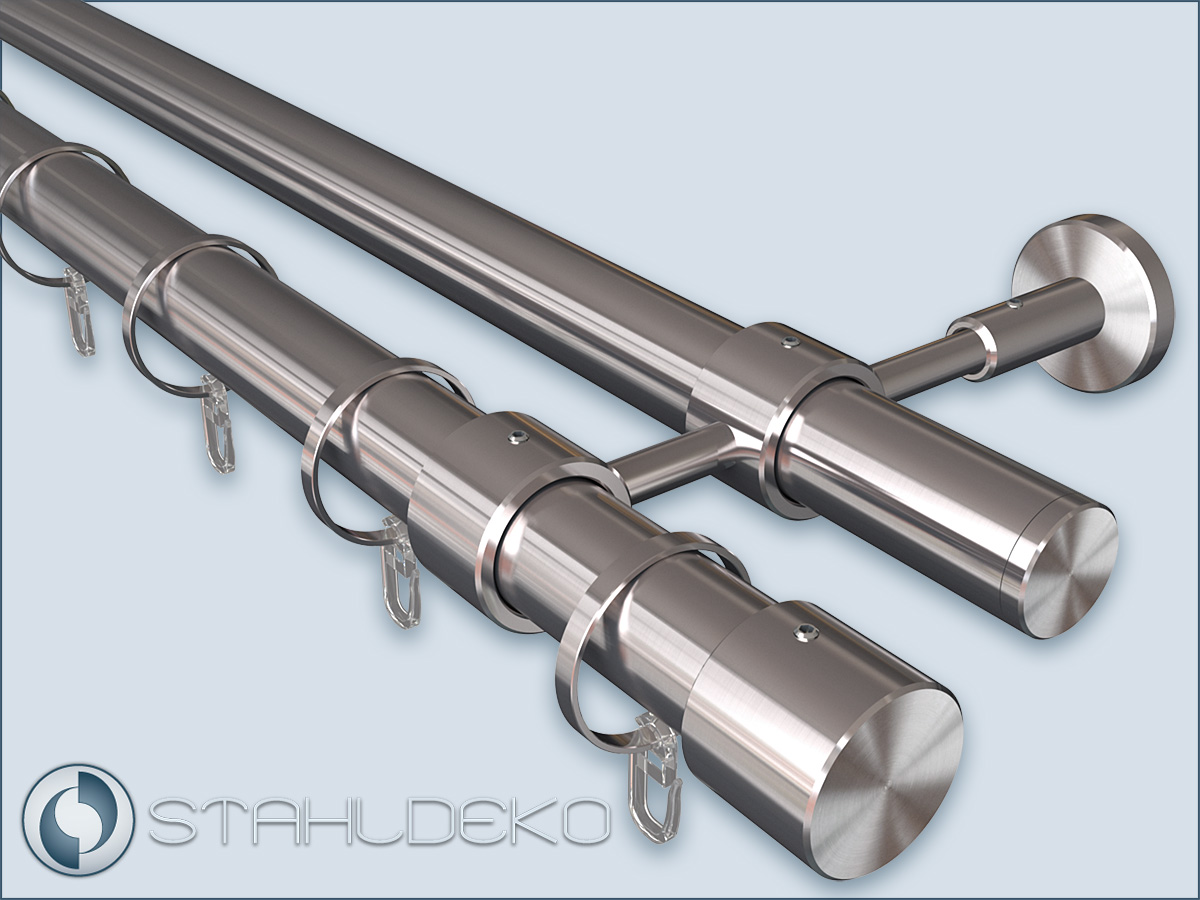

Order curtain rings made of stainless steel for curtain rod Primo-28.
You can use our stainless steel rings to attach curtains to a curtain rod with a round tube. These rings are made of stainless steel. All rings are supplied with clip-on hooks (folding hooks) made of plastic (transparent). Please refer to the drawing for the dimensions: D1 = 38mm D2 = 42mm H = 67mm

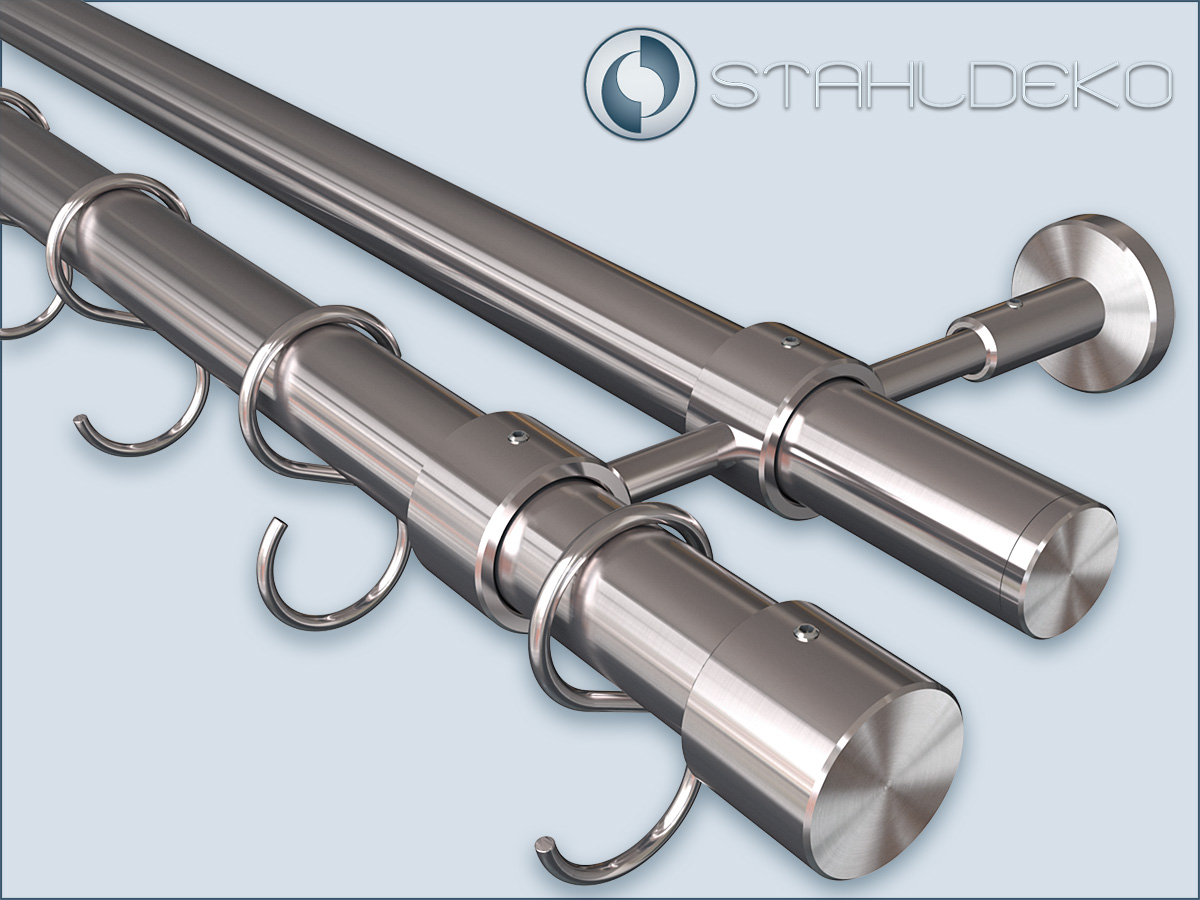

S-hook as a curtain hook for our rods and tubes with a diameter of 28mm, material stainless steel.
S-shaped hooks with an inner diameter of 34mm, therefore also suitable for pipes and rods with an outer diameter of up to 34mm as curtain and curtain hooks, hooks for shower curtains, hooks for kitchen railings, hooks for wardrobes, towel rails and towel hooks. Hook S-shape made of V2A stainless steel, absolutely stable and robust, bent from stainless steel wire with a diameter of 4mm, ends are punched. For indoor use as curtain hooks and curtain hooks, coat hooks and cloakroom hooks as well as railing hooks and towel hooks. Easy attachment and detachment to 28mm rods by "clamp system with 27mm opening". Please refer to the drawing for the dimensions.
Exclusive stainless steel curtain rods: Bend tubes and rods to measure.
In addition to straight rods, we also offer all of our curtain sets in any other shape, bent and made to suit your needs and room situation. Whether square bay windows, round window fronts, curved walls and ceilings, skylights and sloping roofs, exclusive window and door frames - we offer you custom-made curtain rods for all of this. In the bathroom area, you can use our 28mm curved curtain rods as shower curtain rods, towel rails and handrail grab bars. In the changing area, it can be curved clothes rails and changing rails, and in the kitchen, a curved railing. Simply email us your sketch or drawing and you will immediately receive an offer. Of course, all the necessary supports, wall brackets, ceiling suspensions and assembly materials are always included. Do you have anymore questions? Contact us!

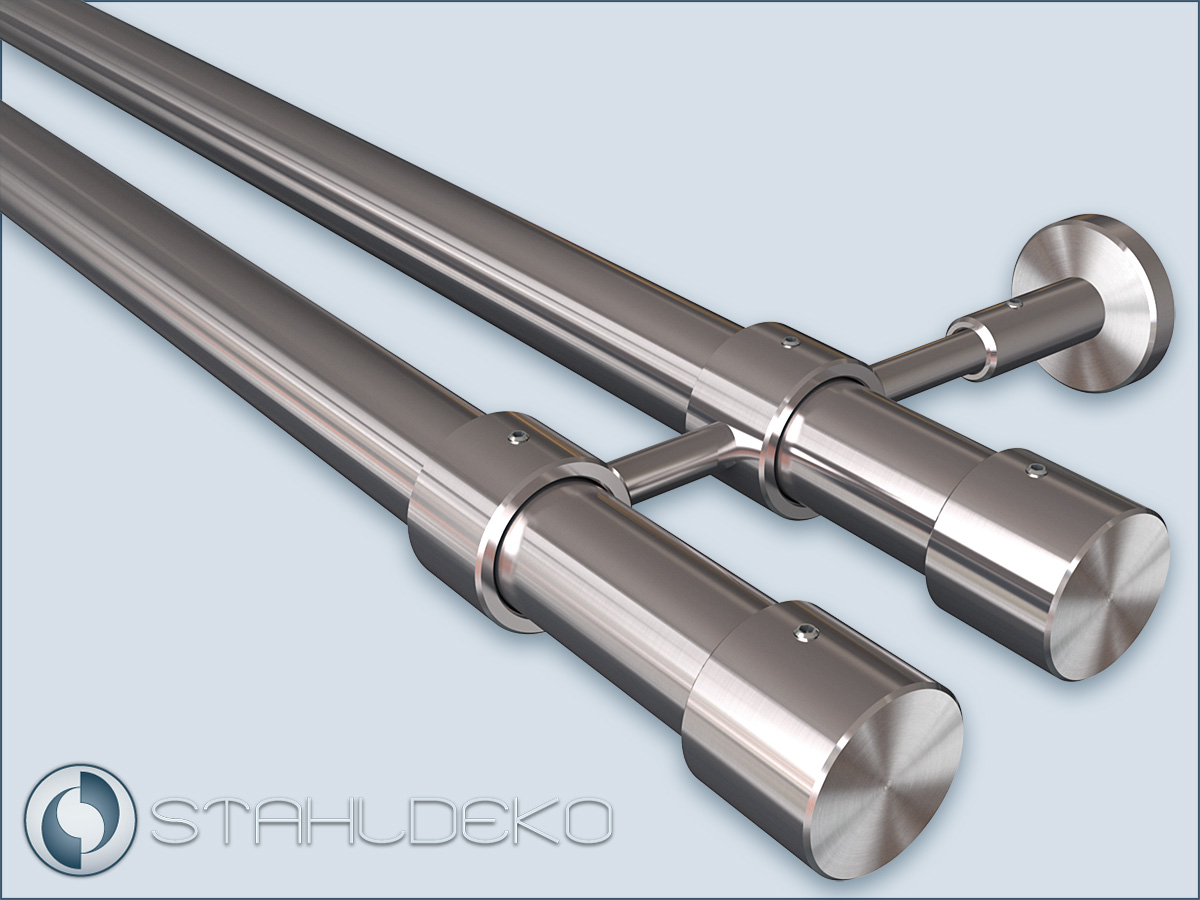

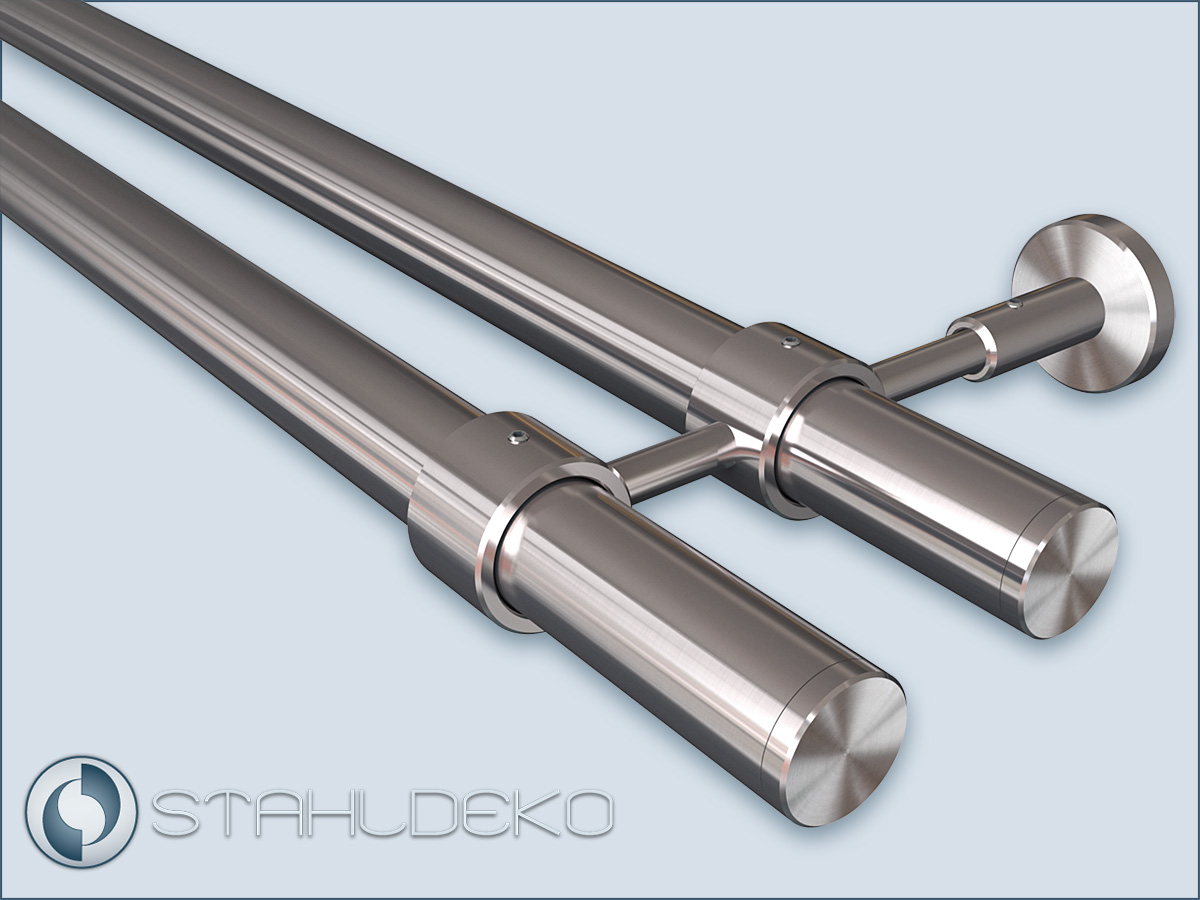

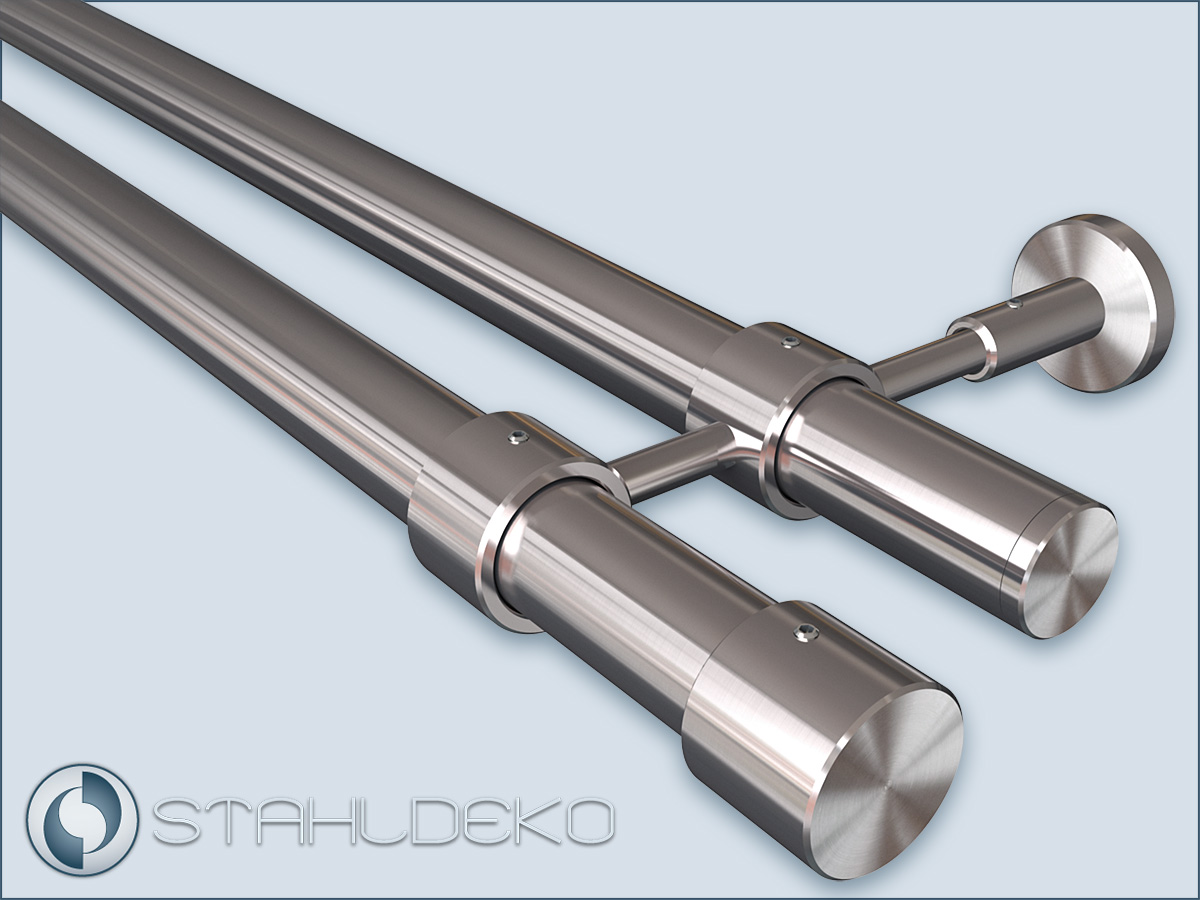

Curtain Rod Primo28 -Cylinder, double-track.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
