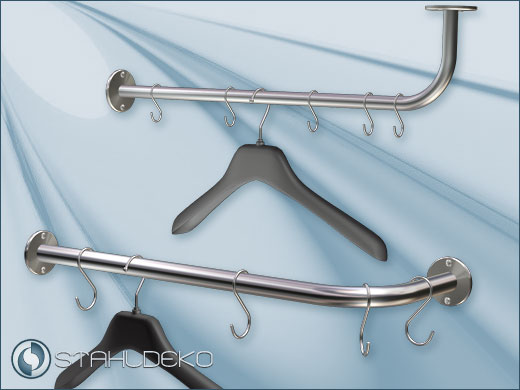

L-Shaped Clothes Rail: Curved Stainless Steel Rail for Wall and Ceiling Mounting.
Exceptionally durable, single-piece curved clothes rail made of V2A stainless steel with a tube diameter of 28mm, available in various
lengths. The corner features a 10cm radius (centerline of the tube), complemented by two highly stable wall brackets. These wall bracket
plates have a support surface with a diameter of 65mm. Mounting materials included; clothes hooks are available separately. These rails
are ideally suited for corner installation and can be flexibly adjusted thanks to different sizes. Garments can be hung with hangers (not
included) or optionally available clothes hooks.
Proper Measurement and Ordering of the L-Shaped Clothes Rail in the Right Size

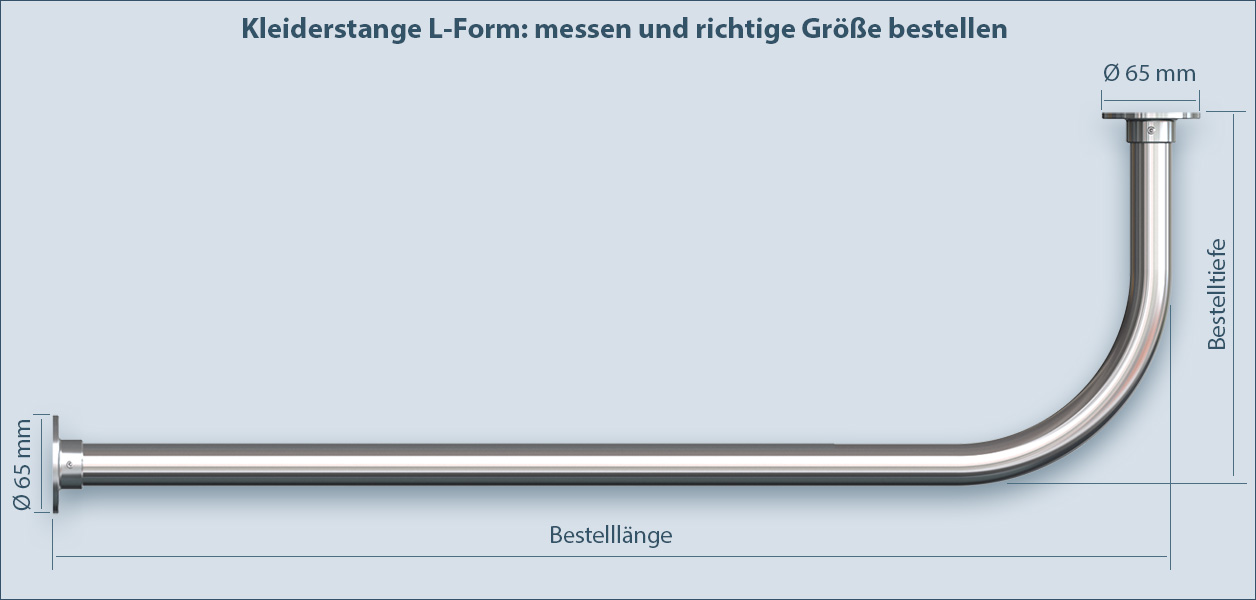

Please refer to the above drawing for the order length and depth. The dimensions of the clothes rail correspond to the external corner
measurement of the tube. When ordering, you can specify the length and depth as needed. For custom adjustments, enter the shorter length
in the designated field. For example: For a clothes rail of 105cm in length, select "Length 120cm" and enter "15cm" in the "Cut length by"
field. The minimum depth of the curved tube is approximately 18cm due to the bending radius.
* We also offer custom-made special orders upon request. Send us your inquiry via email or fax for a personalized and non-binding offer.
Installation Guide for the Clothes Rail Wall Bracket – Reliable Fixing for 28mm Diameter
Stability is critical for a clothes rail. Proper installation ensures load-bearing capacity, supported by stainless steel screws
(countersunk head 4.8 x 60) and dowels (Fischer SX 8x40), intended for masonry mounting. For other substrates, suitable fastening
materials should be obtained separately. Use the wall bracket as a template for drilling and follow the installation guide for optimal
results. After the tube installation and securing with the grub screw, your "L-Shaped" Clothes Rail is ready for use.
Tip: Use a lubricant, such as liquid soap, for screw mounting.
Stainless Steel S-Hooks for the L-Shaped Clothes Rail
The S-hooks are crafted from high-quality V2A stainless steel and stand out for their excellent stability and durability. With a diameter
of 4mm, the stainless steel wire is highly resistant. The flattened ends of the hooks ensure safe handling. They are perfectly suited for
both indoor and outdoor use, serving as reliable hanging options for your wardrobe. The hooks can be easily and tool-free attached to
clothes rails with a 28mm diameter, providing a secure fit with their 27mm opening.
Clothes rails in L-shape, up to 200cm in length, 20 or 28mm pipe diameter
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
very good optical uniformity
very stable wall bracket for clothes rods, support surface 70mm
2-Point Mounting with Stainless Steel Screws
Other lengths, sizes, shapes available on request
Additional available: Brackets
Scope of Delivery
1 pc. Clothing rod incl. 2 pcs. wall mounts, curved tube and fixing material, without clothes hooks, without hangers
