Rod support Sont 10: Application examples and fastening system

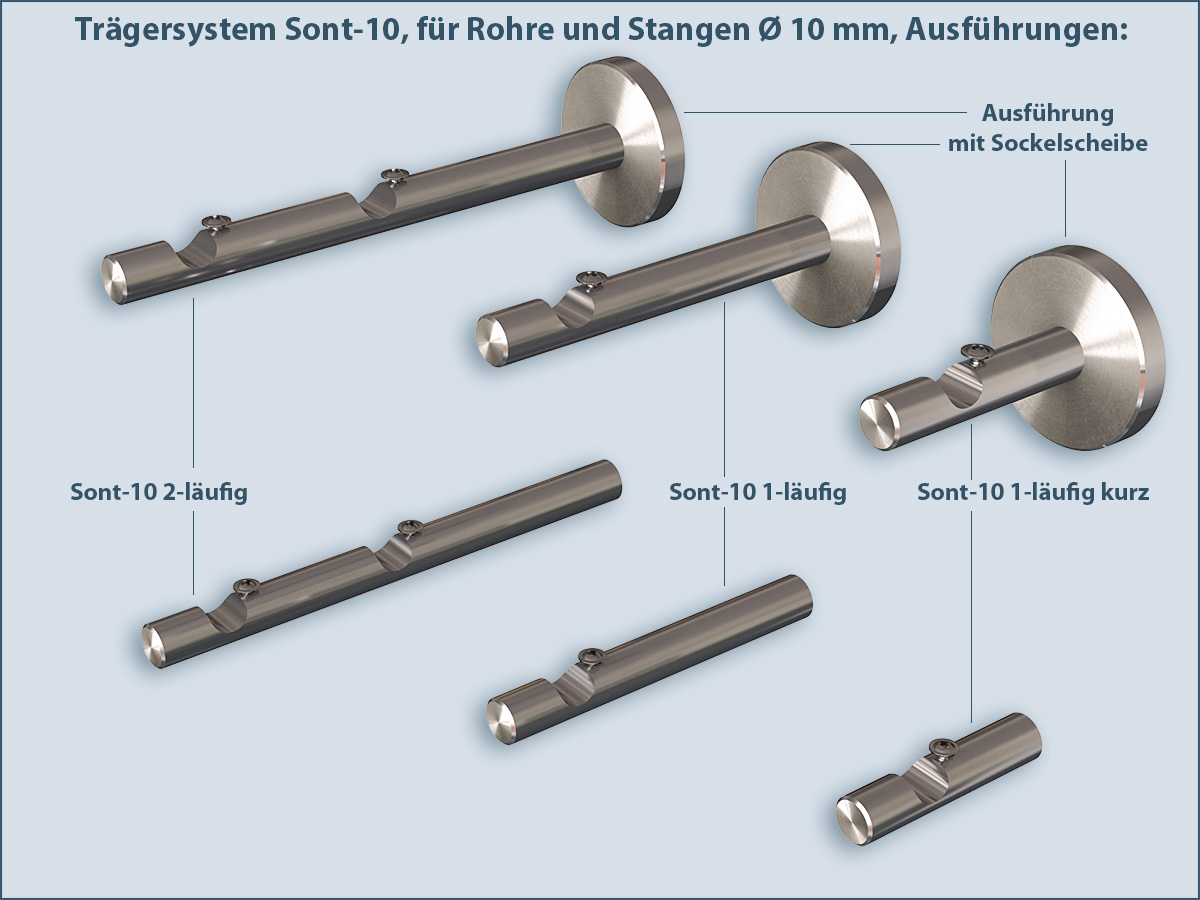

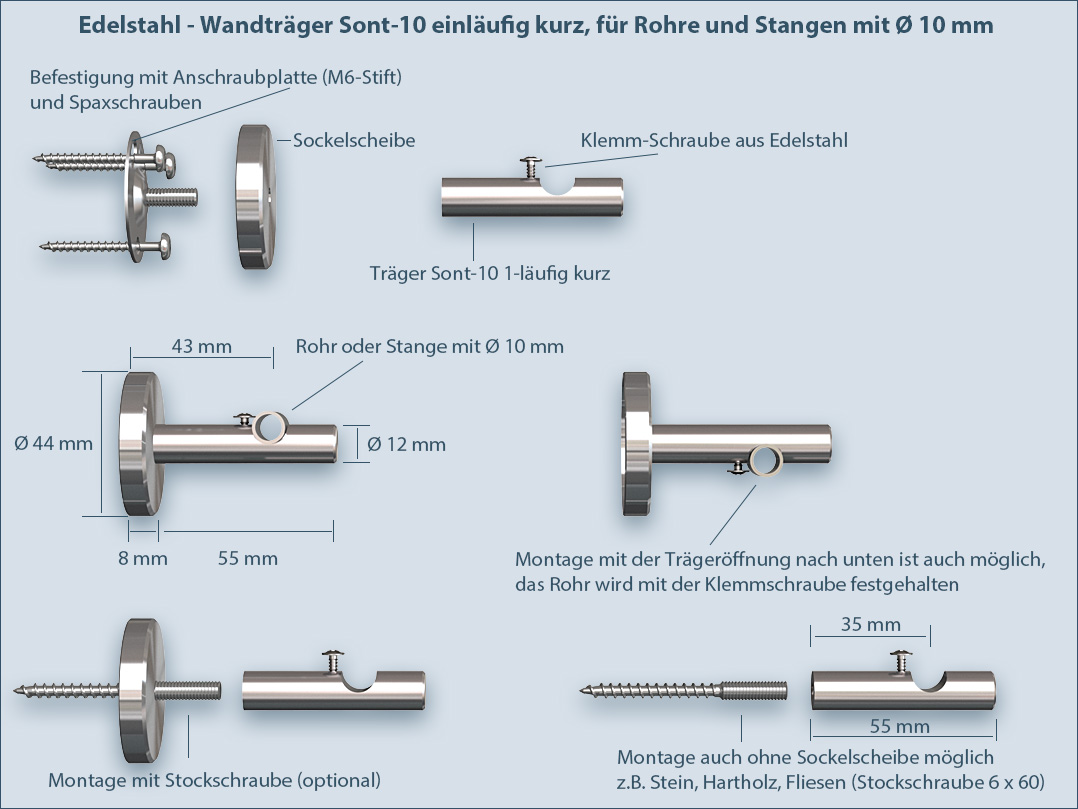

Furnishing accessories, rod support Sont10 made of stainless steel V2A: open rod support made of stainless steel for all rods and tubes with Ø 10mm. Available as 1-line. or 1-line short and 2-line Carrier. Fastening with mounting plate or hanger bolt (1-line short), drilled holes and screws are covered with base washer (available separately). The rod is placed on the carrier from above and secured with a screw. With this support system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall or ceiling (only one-way).

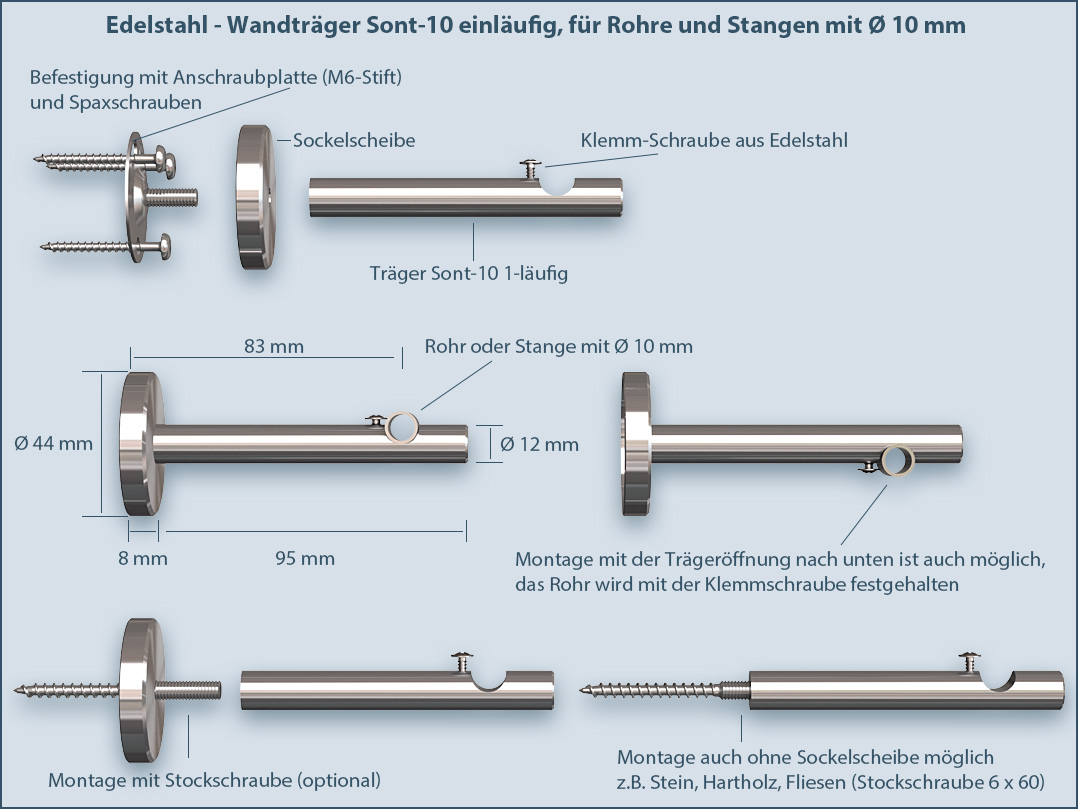

Curtain rod fastening system for wall mounting Sont-10 single-track.
With this wall bracket system, you can easily decorate the curtains on the floor, then attach the completely decorated rod to the wall. You can place the straps on the bar absolutely freely. First attach the mounting plate to the wall with Spax screws. Then cover the mounting plate with the base washer and screw the carrier onto the mounting plate threaded pin. Then insert the tube into the carrier openings and fix it with the carrier clamping screws. You can also place the Sont curtain supports with the openings pointing downwards. In this position, too, the tube is held firmly with the clamping screws.

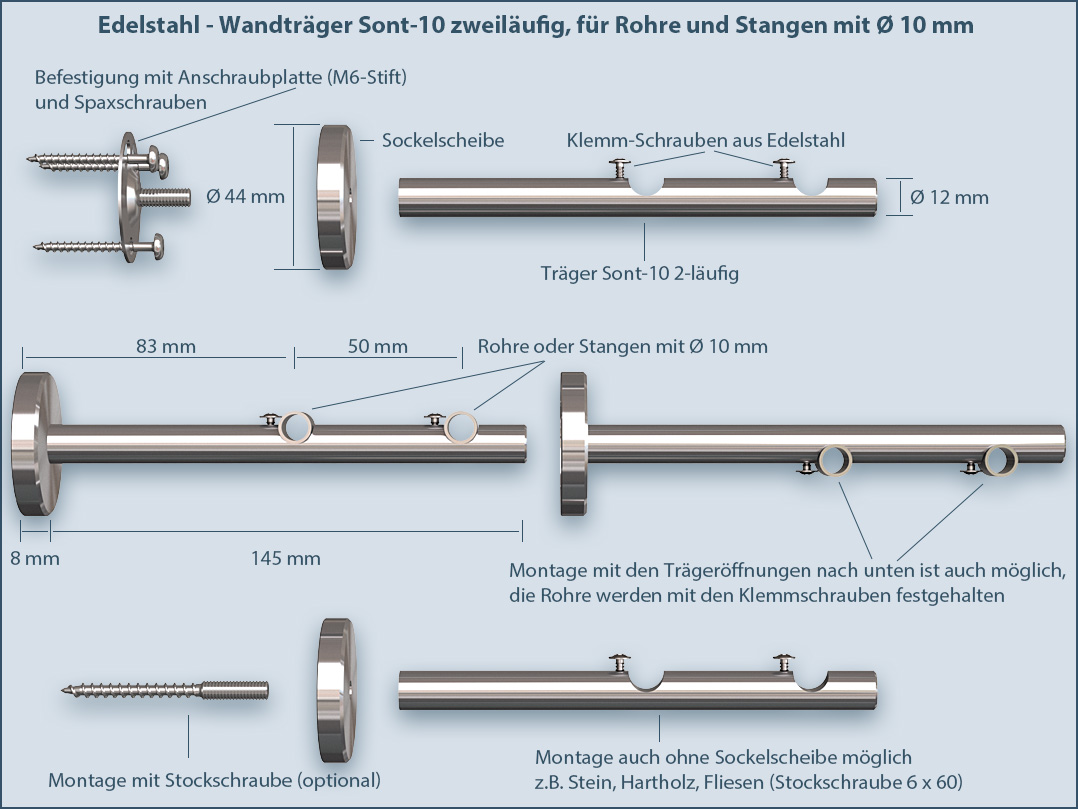

Curtain rod mounting system Sont-10 two-track for wall mounting.
With this wall bracket system, you can easily decorate the curtains on the floor, then mount the completely decorated curtain rod on the wall. You can distribute the wall brackets on the rod absolutely freely, of course pay attention to the even curtain weight distribution. First mount the screw-on plates with Spax screws on the wall. Then cover the mounting plates with the base washers and screw the supports onto the mounting plate threaded pins. Then insert the tubes into the carrier openings and fix them with the carrier clamping screws. You can also place the Sont-10 curtain supports with the openings facing downwards; the tubes are also held firmly with the clamping screws in this position.
Rod bracket Sont10 made of stainless steel-V2A.
V2A - stainless steel 18/10, DIN WNR 1.4301
rust-free, heat-resistant, impact-resistant
suitable for indoor and outdoor applications
High-precision processing with CNC automatic lathes
