Rod support Primo 16 for round tube fittings Ø 16 mm, stainless steel - V2A: Application examples and fastening system

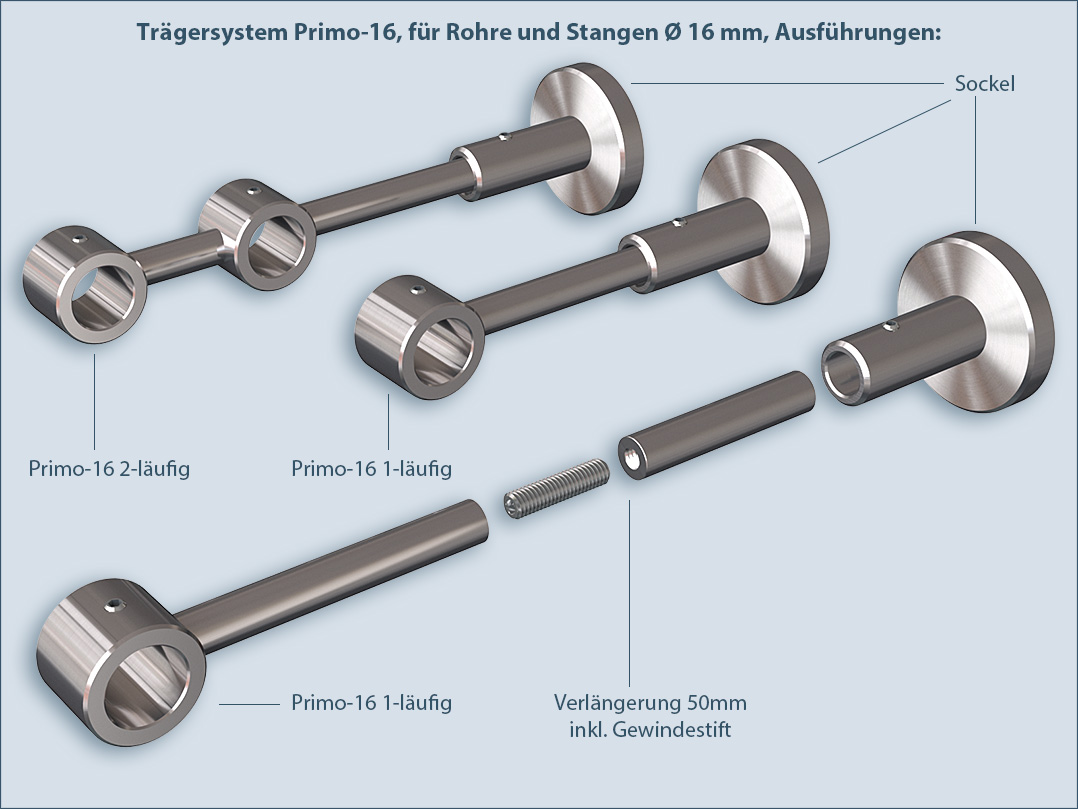

Accessories for decorations: rod support Primo 16, stainless steel - V2A. closed rod carrier made of stainless steel for all rods and tubes with Ø 16mm. Available as 1-line. or 2-line Holder. Fastening with screw-on plate, boreholes and screws are covered with a base (sold separately). Rod holder is inserted into the base and secured with a grub screw. The tube or rod is pushed in from the side and secured in the holder with a grub screw. With this support system, you can easily decorate the curtains on the floor, then attach the completely decorated curtain rod to the wall or ceiling (single rail only). With the help of the extensions (sold separately) you can increase the distance to the wall or ceiling.

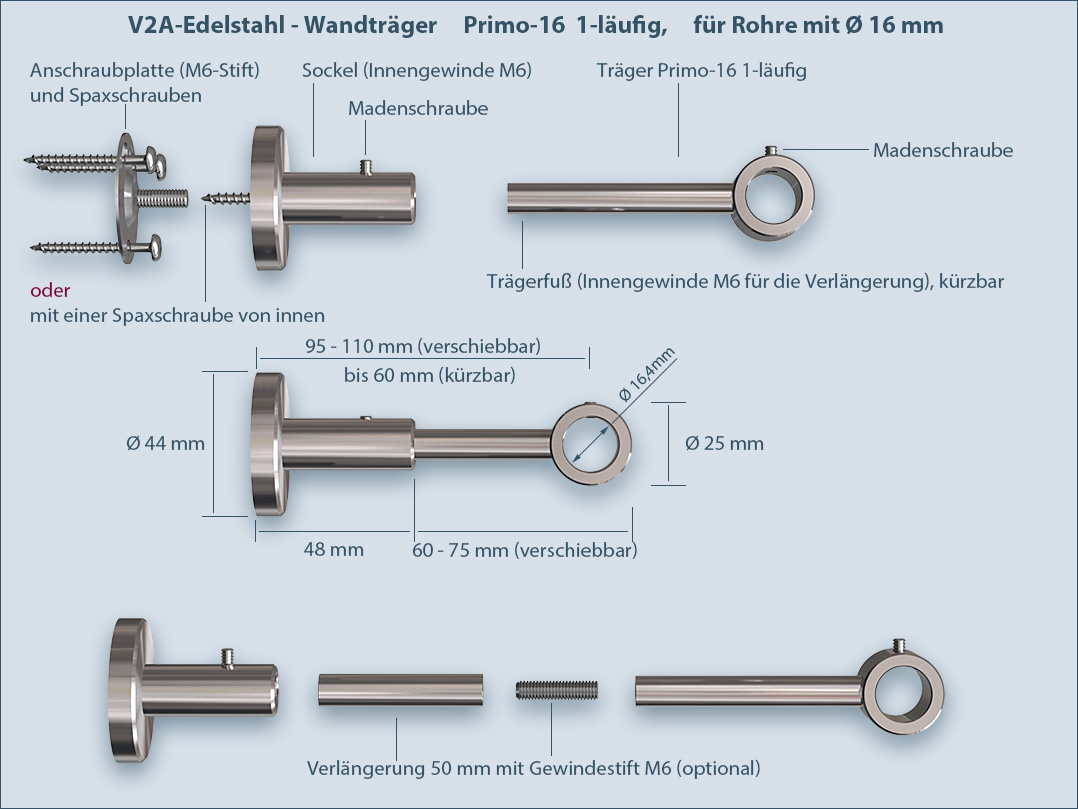

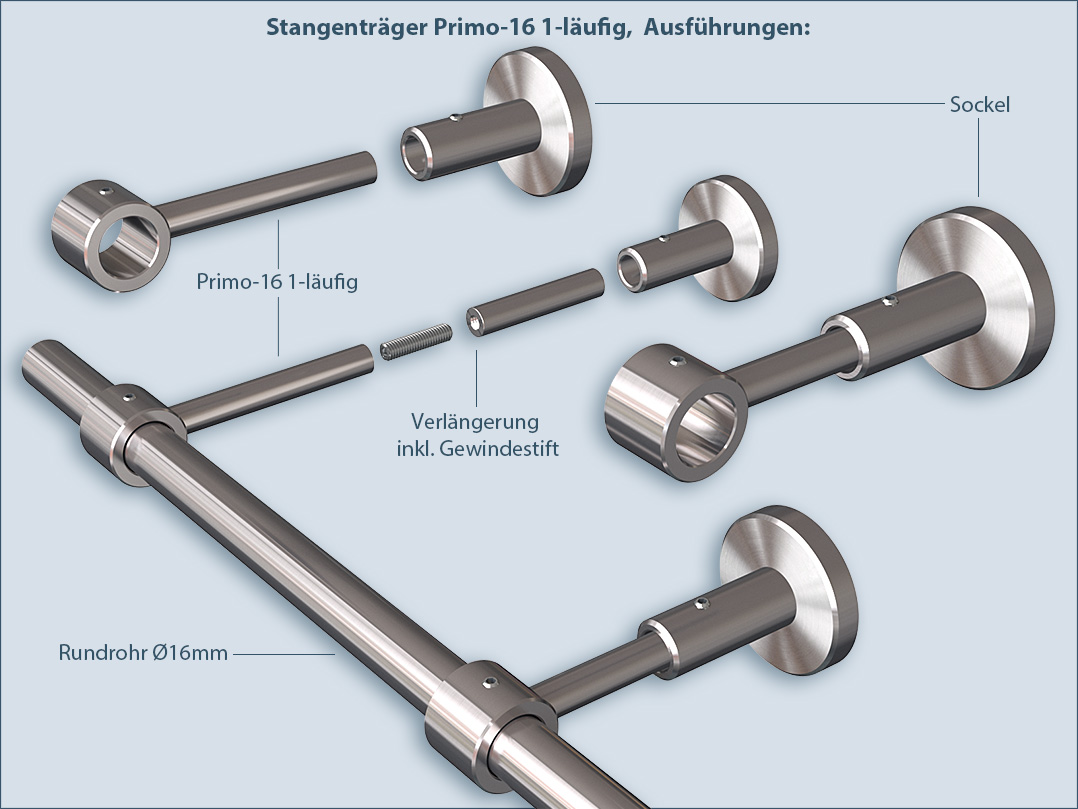

Rod support Primo-16 1-track for curtain rod and curtain rod, fastening system and assembly instructions

With this bracket system, you can easily decorate the curtains on the floor, then attach the completely decorated curtain rod to the wall. You can place the straps on the curtain rod absolutely freely. First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly from the inside with a Spax screw. After that, attach the rod brackets (along with the tube) to the wall and slide the bracket feet into the base and tighten the base grub screw (not too tight). Then adjust the rod in the holders and fix them with carrier grub screws. You can move the holder in the base about 15mm in length and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is about 60mm. Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.

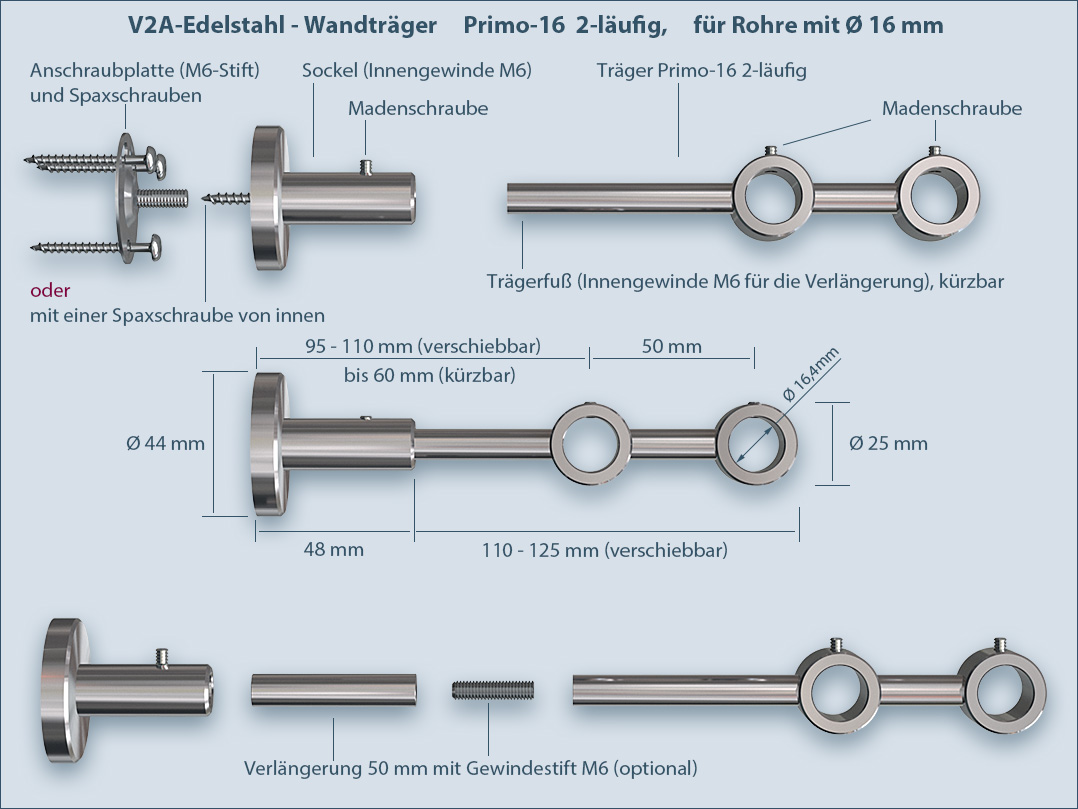

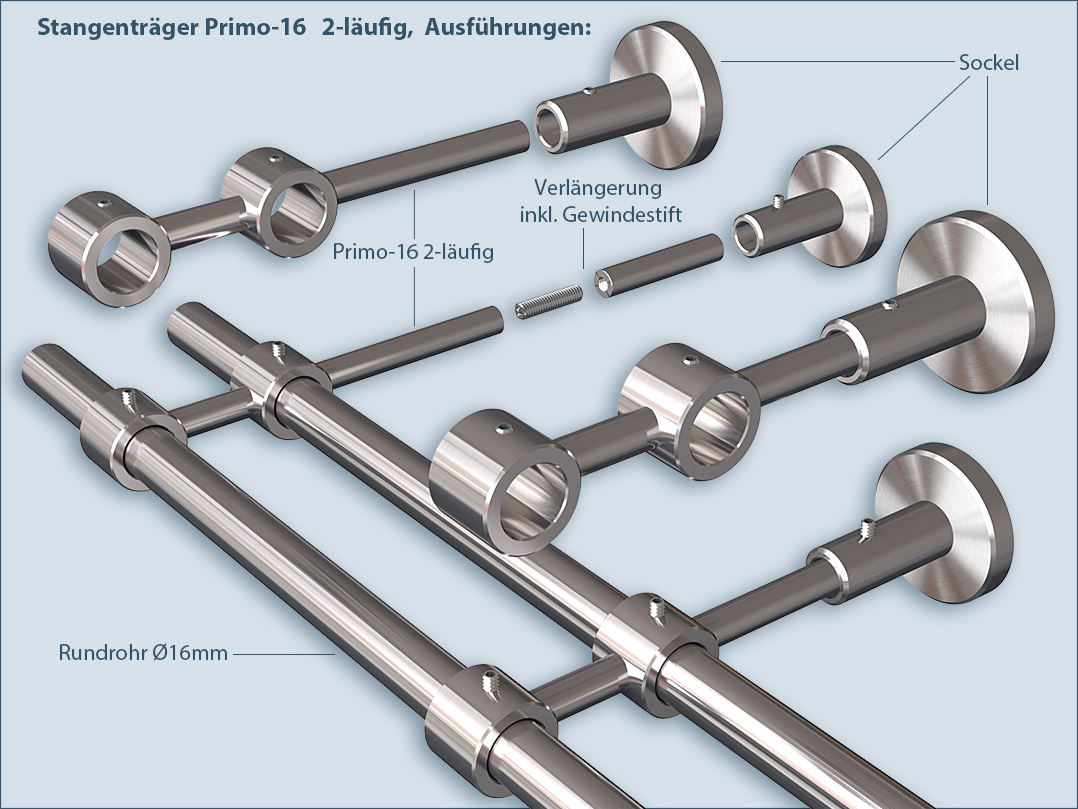

Two-track holder for curtain rods with 16mm diameter tubes: fastening system for wall mounting

With this wall bracket system, you can easily decorate the floor, then mount the completely decorated curtain rod on the wall. You can place the wall brackets on the rod absolutely freely.
First mount the bases on the wall. You can either attach the base with a screw-on plate or screw it on directly with a spax screw. After that, attach the pole mount (along with the tubes) to the wall and slide the support feet into the base and tighten the base grub screw (not too tight). Then adjust the tubes in the rod supports and fix them with support grub screws. You can adjust the length of the holders in the base by approx. 15mm and thus align the distance between the curtain rod and the wall. If you want a smaller distance from the bar to the wall, it is possible to shorten the support foot with a hacksaw, the minimum possible distance is about 60mm (first run). Of course it is also possible to extend the wall bracket (optional). We also offer a 50mm standard extension for the Primo carrier system. You simply screw the extension to the carrier foot with a threaded pin. We can also make special lengths of extensions, just ask.
